Verified fitment — 1 vehicle
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (1)
Manufacturer reference prices
Catalogue / RRP reference only — the live MotoDoc price is on the product page.
| Currency | Reference price | Type | Source |
|---|---|---|---|
| EUR | 16.35 | listing | cfmoto.quadzillaparts.co.uk |
| GBP | 15.12 | listing | cfmoto.quadzillaparts.co.uk |

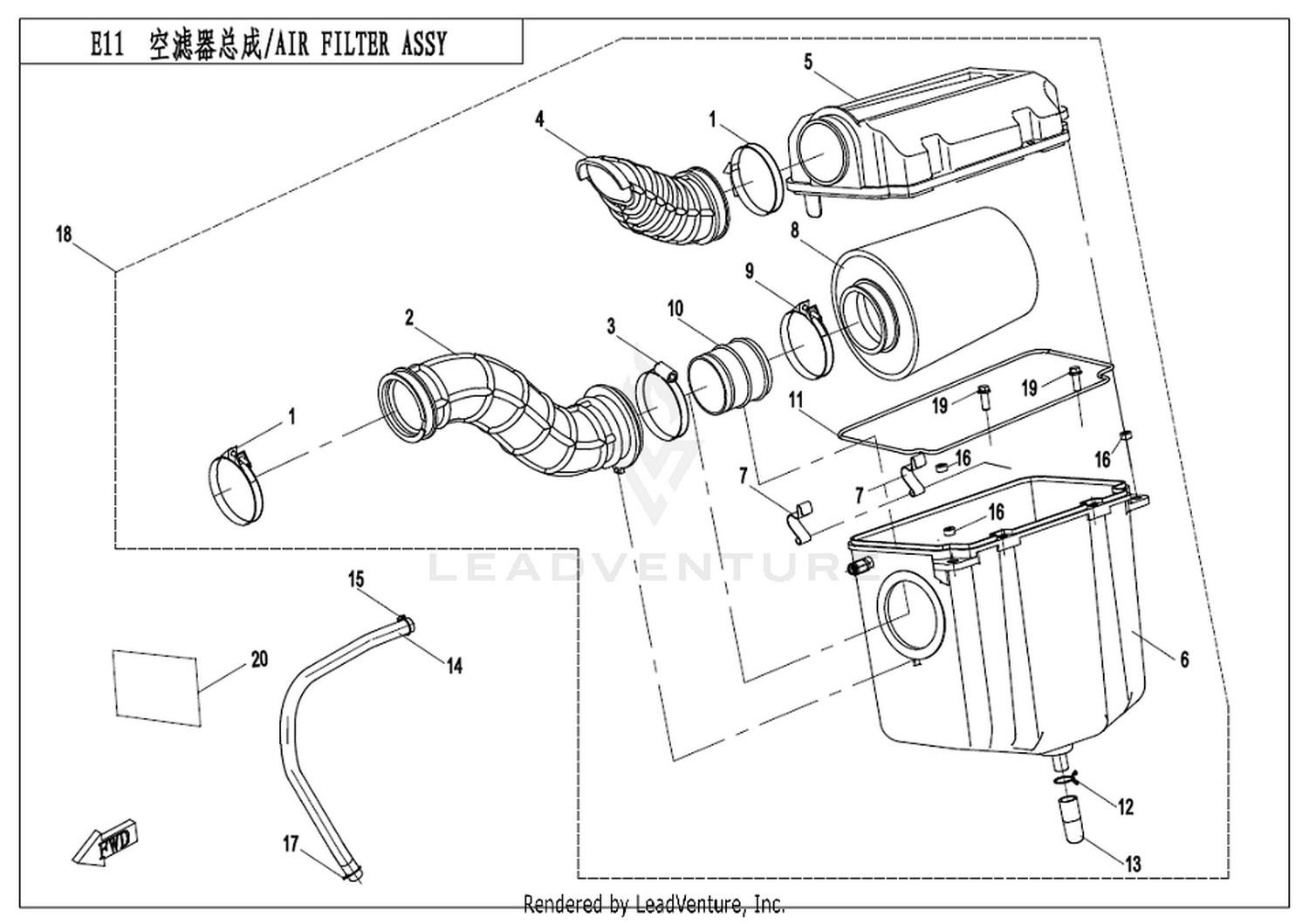

Location in exploded diagrams
Other parts on this diagram — Air Filter Assy
- #07 0GR0-110003 — Pipe, Air Intake
- #09 0120-110001 — Clamp 64 64
- #22 30601-114010 — Clamp "
- #16 9CR6-042027 — Air Filter Heat Insulator
- #05 0GR0-110002-10000 — Air Filter Upper Housing
- #10 0GR0-110004 — Filter Element Connecting Pipe
- #16 0GR0-110009 — Bushing
- #06 0GR0-110001-10000 — Air Filter Lower Housing
- #11 0GR0-110006 — Air Filter Seal Ring
- #19 30601-113520 — Clamp A13.5
- #01 01A0-110003 — Clamp 67
- #07 0180-110003 — Clasp
- #17 30601-117010 — Clamp A17
- #16 0GR0-111000 — Air Filter Sub Assy
- #02 0GR0-110005 — Air Outlet Pipe
- #16 0180-110005 — Oil Storage Hose
- #18 0GR0-111000-00001 — Air Filter Sub Assy
- #03 0GR0-110008 — Clamp
- #03 0800-112000-00001 — Filter Element
- #14 0GR0-110007-10000 — Breather Hose, Crankcase
- #06 0010-090005-0010 — Bolt M6X16 Galvanized Trivalent Chromium
