Verified fitment — 8 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
Manufacturer reference prices
Catalogue / RRP reference only — the live MotoDoc price is on the product page.
| Currency | Reference price | Type | Source |
|---|---|---|---|
| EUR | 19.44 | listing | cfmoto.quadzillaparts.co.uk |
| GBP | 17.98 | listing | cfmoto.quadzillaparts.co.uk |
Location in exploded diagrams

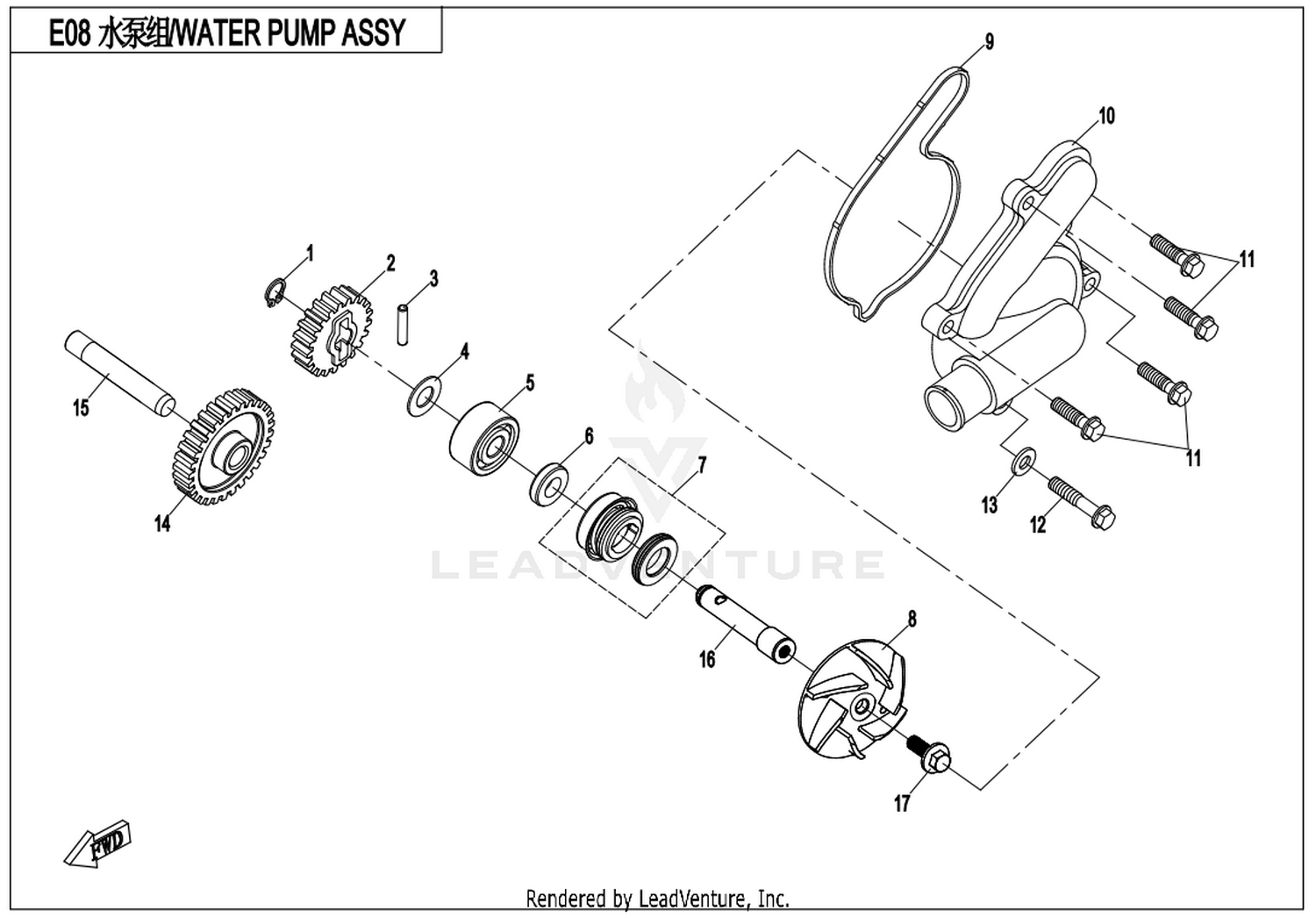

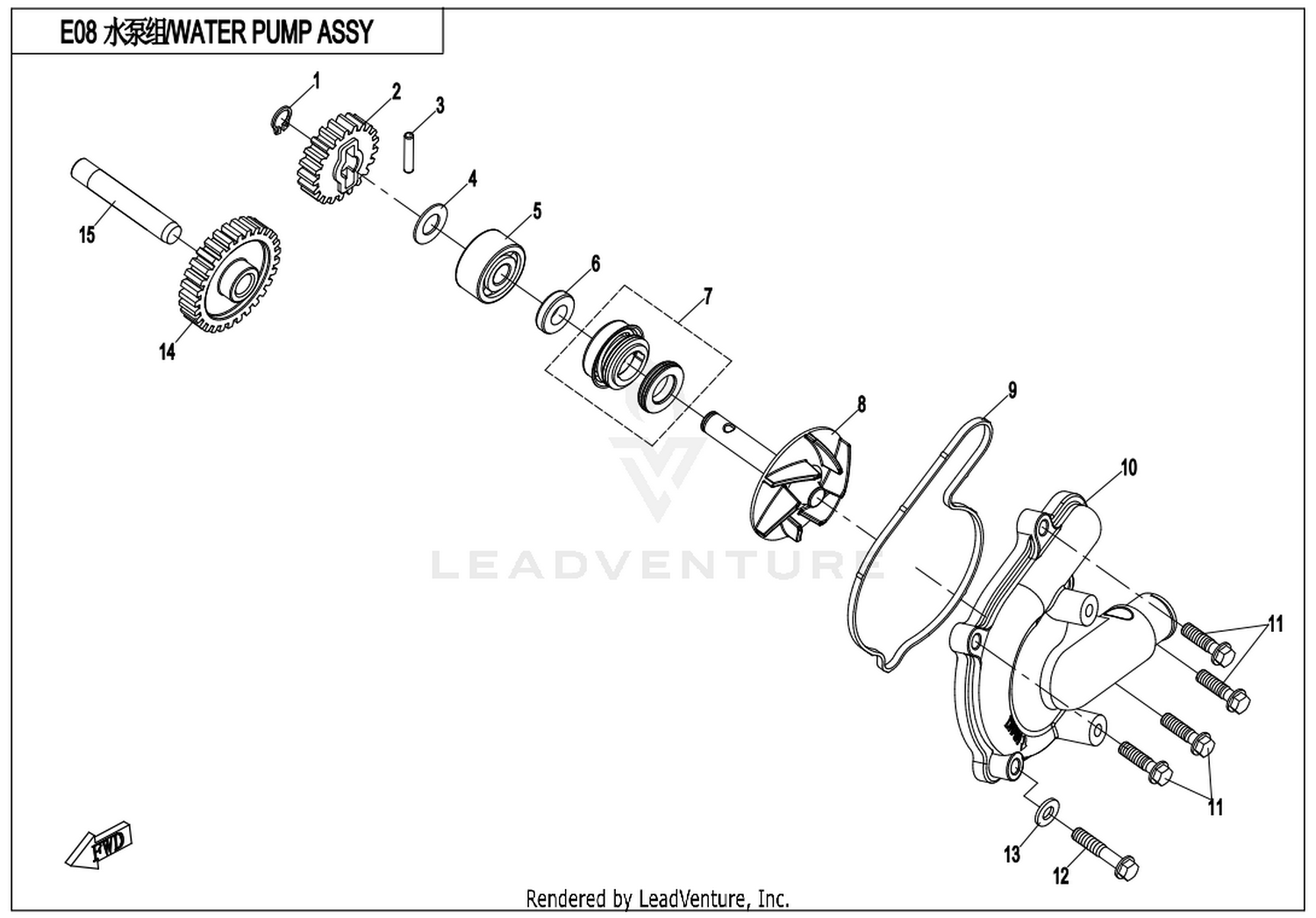

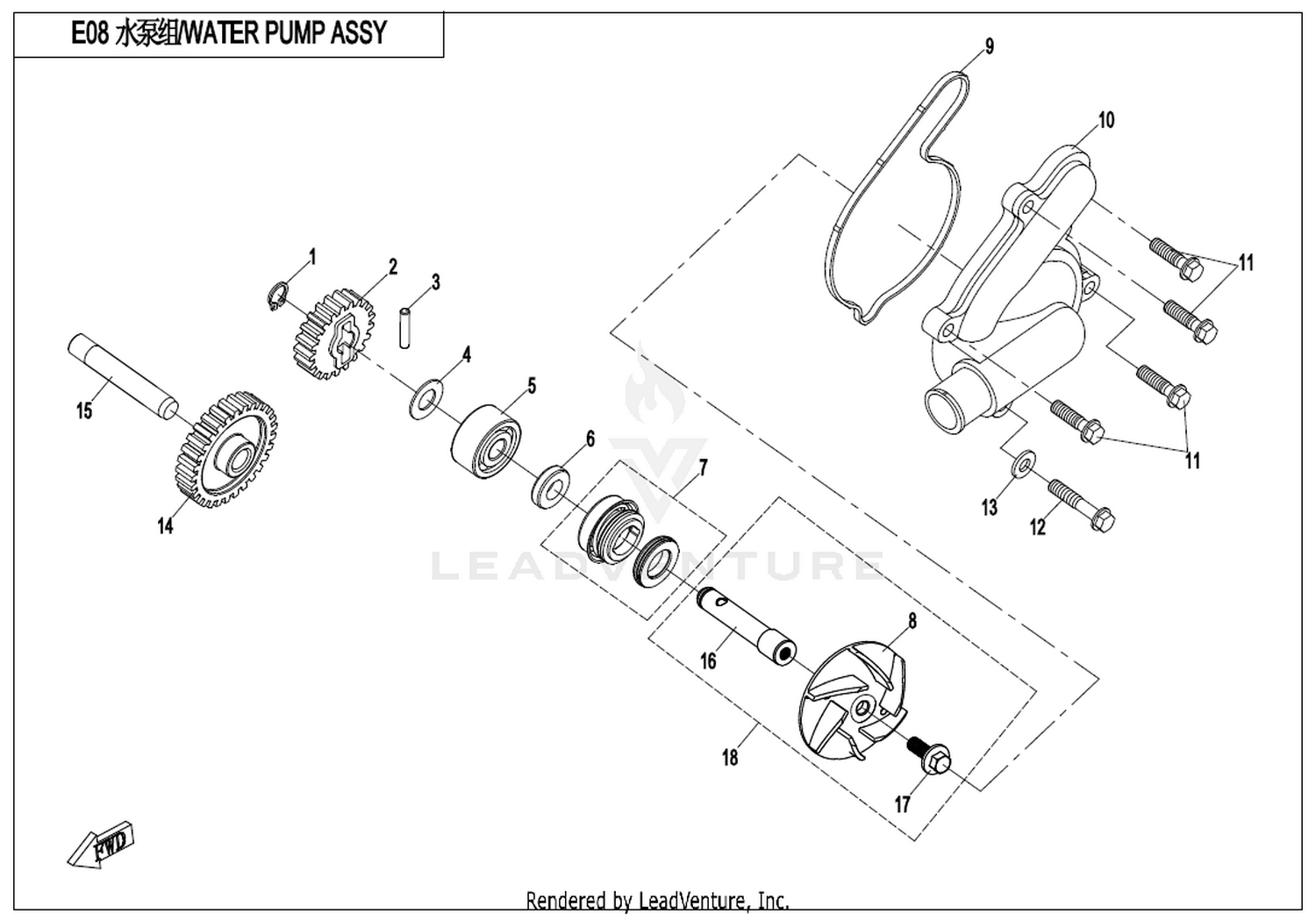

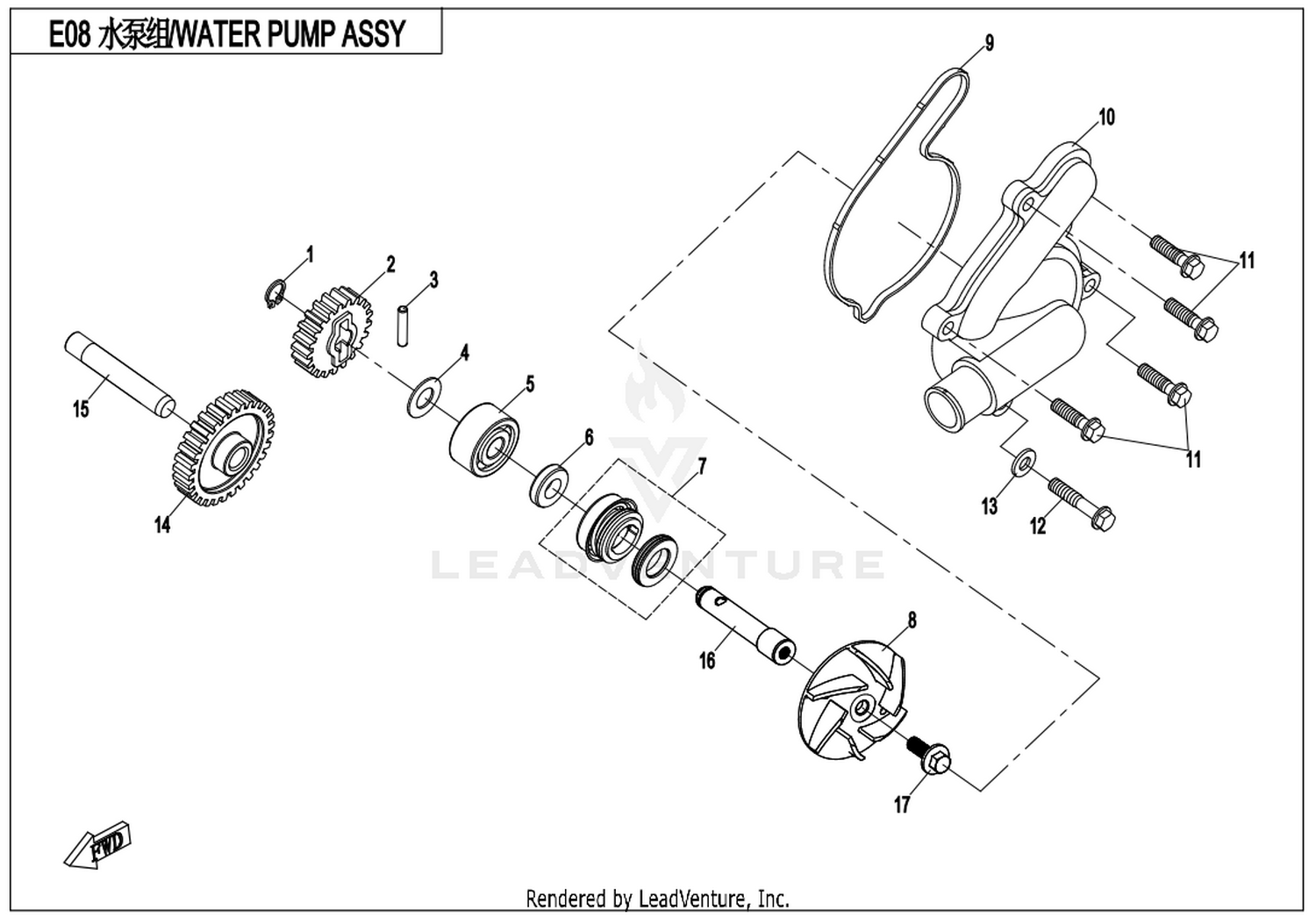

Other parts on this diagram — Water Pump Assy
- #08 0800-011005 — Washer 10 10
- #16 0800-080006 — Shaft, Water Pump
- #05 30408-01000 — Bearing 10
- #22 0010-080013-0010 — Bolt M6X22 Galvanized Trivalent Chromium
- #17 0JWA-080007-00001 — Bolt
- #05 0110-080005 — Oil Seal 10X20X5
- #18 0010-060012-0010 — Bolt M6X30 Galvanized Trivalent Chromium
- #08 0800-0800A0 — Impeller, Water Pump
- #07 30801-01005 — Circlips For Shaft 10
- #04 0700-081200 — Water Seal Assy
- #11 0010-060009 — Washer 6 6
- #02 0800-080002 — Water Pump Gear
- #08 0800-080005-00001 — Water Pump Impeller
- #14 0800-080001 — Idle Gear, Water Pump
- #09 30406-00402 — Roller Needle P4X21.8 P4X21.8
- #09 0800-080004 — Seal Ring, Water Pump Cover
- #15 0800-011202 — Breather Shaft
