0800-061006OUTPUT GEAR, COUNTERSHAFT — Genuine CF MOTO Part
CF MOTOoem
0800-061006 - OUTPUT GEAR, COUNTERSHAFT #12
Verified fitment — 1 vehicle
Fitment is sourced from official parts catalogues, listed per catalogue market.
Australia (1)

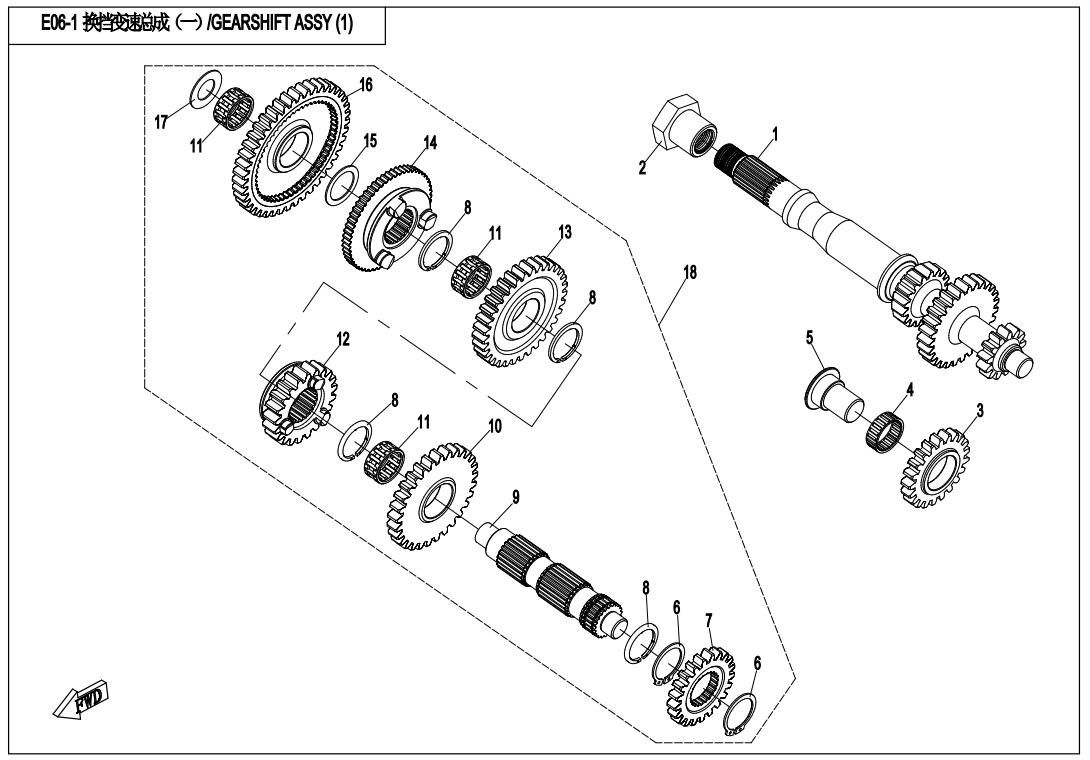

Location in exploded diagrams
Other parts on this diagram — GEARSHIFT ASSY (1)
- #5 0800-060002 — INTERMEDIATE GEAR SHAFT, REVER
- #1 0800-054001 — SPLIT WASHER
- #1 0800-060004-10001 — MAIN SHAFT, GEARSHIFT Replacing: 0800-060004 - MAIN SHAFT
- #2 0180-054002-0003 — SIDE WASHER
- #2 0800-060001-00001 — NUT, MAIN DRIVE SHAFT Replacing: 0800-060001 - NUT, MAIN SHAFT NLA USE 0800-060001-00001
- #3 0800-060003 — INTERMEDIATE GEAR, REVERSE
- #3 0180-054004-0003 — CIRCLIP
- #4 30402-02500 — NEEDLE BEARING, K25X29X10
- #4 0180-054003 — SPRING SEAT Replacing: 0180-054003-0003 - SPRING SEAT
- #5 0800-054200 — WEIGHT SLIDER ASSY
- #6 30801-02905 — CIRCLIPS FOR SHAFT 29
- #6 0180-054001-0003 — RETURN SPRING, CLUTCH
- #7 0800-061009 — GEAR, PARKING
- #7 0800-054100 — FIXING PLATE ASSY
- #8 0800-061007 — CIRCLIP 29
- #9 0800-061001 — DRIVEN SHAFT
- #10 0800-061008 — DRIVEN GEAR, REVERSE
- #11 30402-02402 — NEEDLE BEARING, K24X29X13
- #14 0JWA-0610B0-30000 — GEARSHIFT GEAR ASSY Replacing: 0800-061004 - SLIDING BUSH, GEARSHIFT
- #15 0800-061003 — WASHER 24.5X33.5X1
- #16 0800-061100-10000 — DRIVEN GEAR, LOW RANGE Replacing: 0800-061100 - DRIVEN GEAR, LOW RANGE
- #17 0800-061002 — WASHER 17.5X32X1
- #18 0800-061000-2000 — COUNTERSHAFT ASSY
