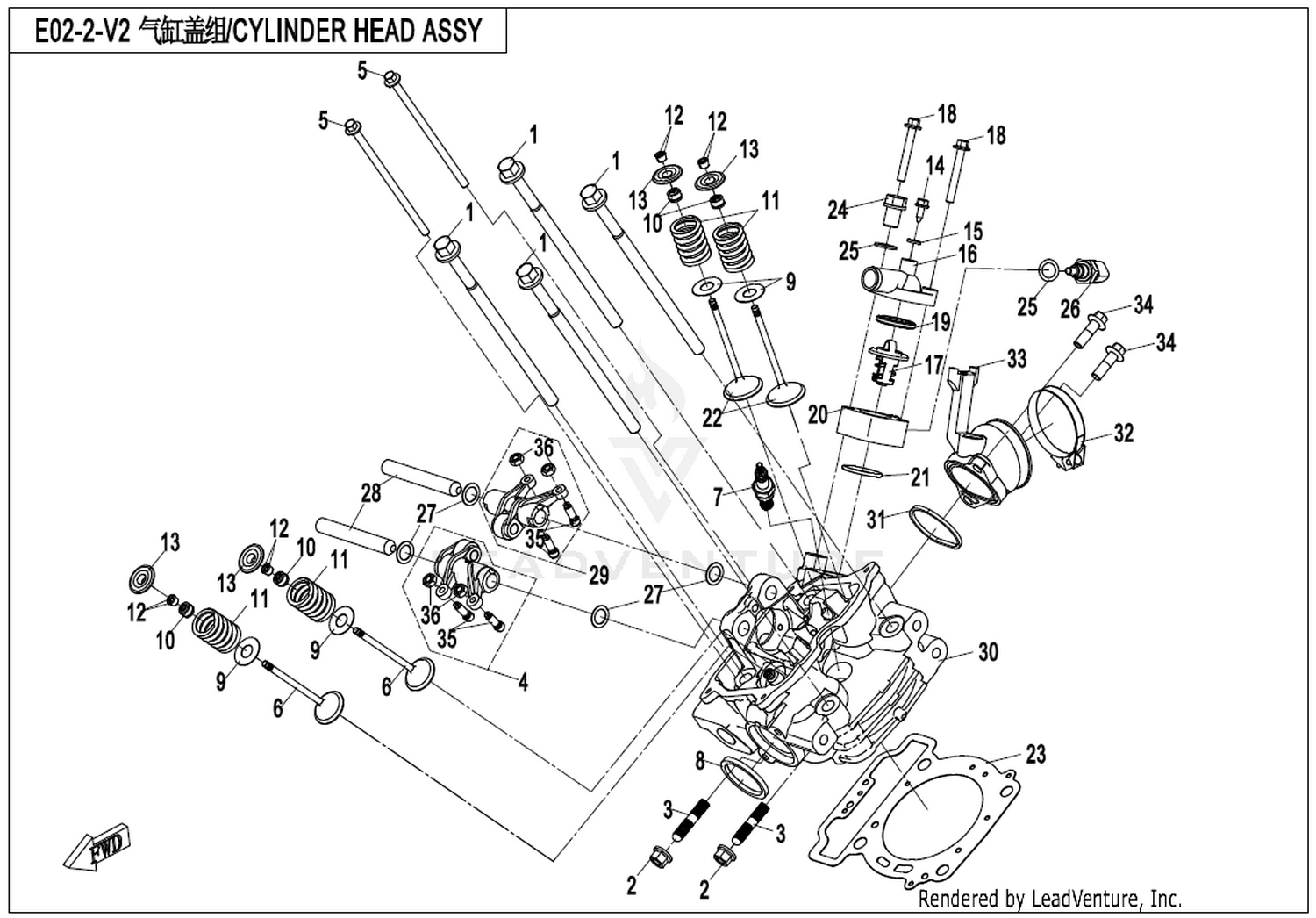

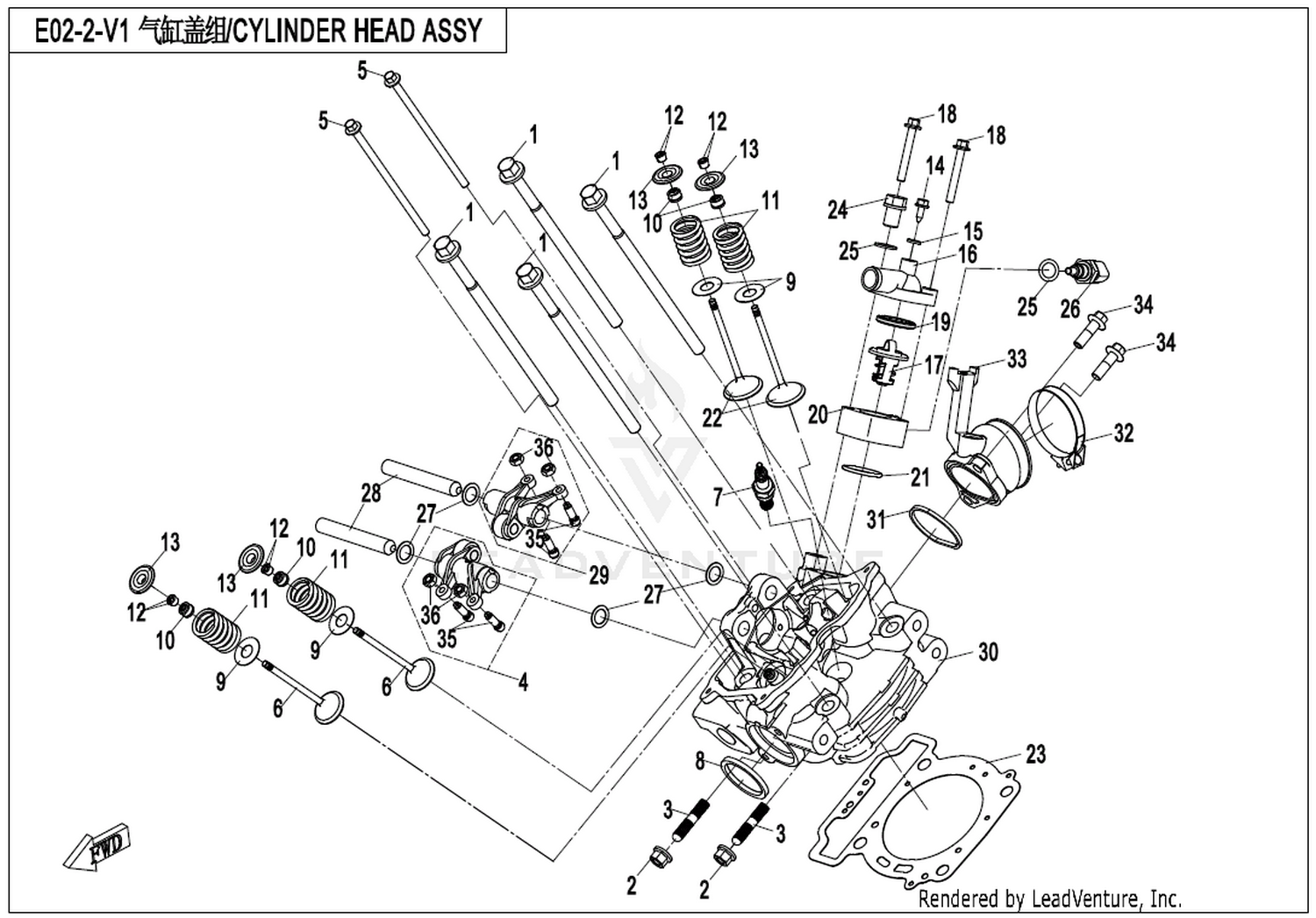

Location in exploded diagrams
Other parts on this diagram — Cylinder Head Assy. 1
- #11 0800-022600-20000 — Rocker Arm Assy, Air Exhaust
- #15 0010-022500 — Valve Stem Seal Ring Assy
- #17 0800-022004 — Valve, Intake
- #07 0800-022001 — Rocker Arm Shaft
- #03 0130-011114-0010 — Bolt M8X25 M8X25
- #05 0GR0-022002 — Bolt M6X132 M6X132
- #14 0800-022006 — Spring, Valve
- #25 0800-022700 — Thermostat
- #03 0800-022200 — Cylinder Head Gasket
- #13 0800-022500-20000 — Rocker Arm Assy, Air Intake
- #10 0800-022510 — Adjust Screw, Valve Clearance
- #06 0800-022005 — Exhaust Valve
- #02 0800-022016 — Lock Clip, Valve
- #20 0180-013208-0010 — Bolt M6X45 Galvanized Trivalent Chromium
- #25 0800-022015-00001 — Screw Plug M12X1.5
- #30 0JY0-022100-10000 — Cylinder Head Assy
- #09 0800-022506 — Adjust Nut, Valve Clearance
- #01 0GR0-022001 — Cylinder Bolt
- #16 0800-022800 — Spark Plug
- #01 0800-022007 — Upper Seat, Valve Spring
- #24 0010-022802 — Seal Ring
- #19 0800-022014 — Washer 12.2X18X1.5
- #01 0800-025002 — Inlet Air Hose Seal Ring
- #36 0010-011700-0010 — Stop Nut M8 M8
