Verified fitment — 3 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (3)
Location in exploded diagrams

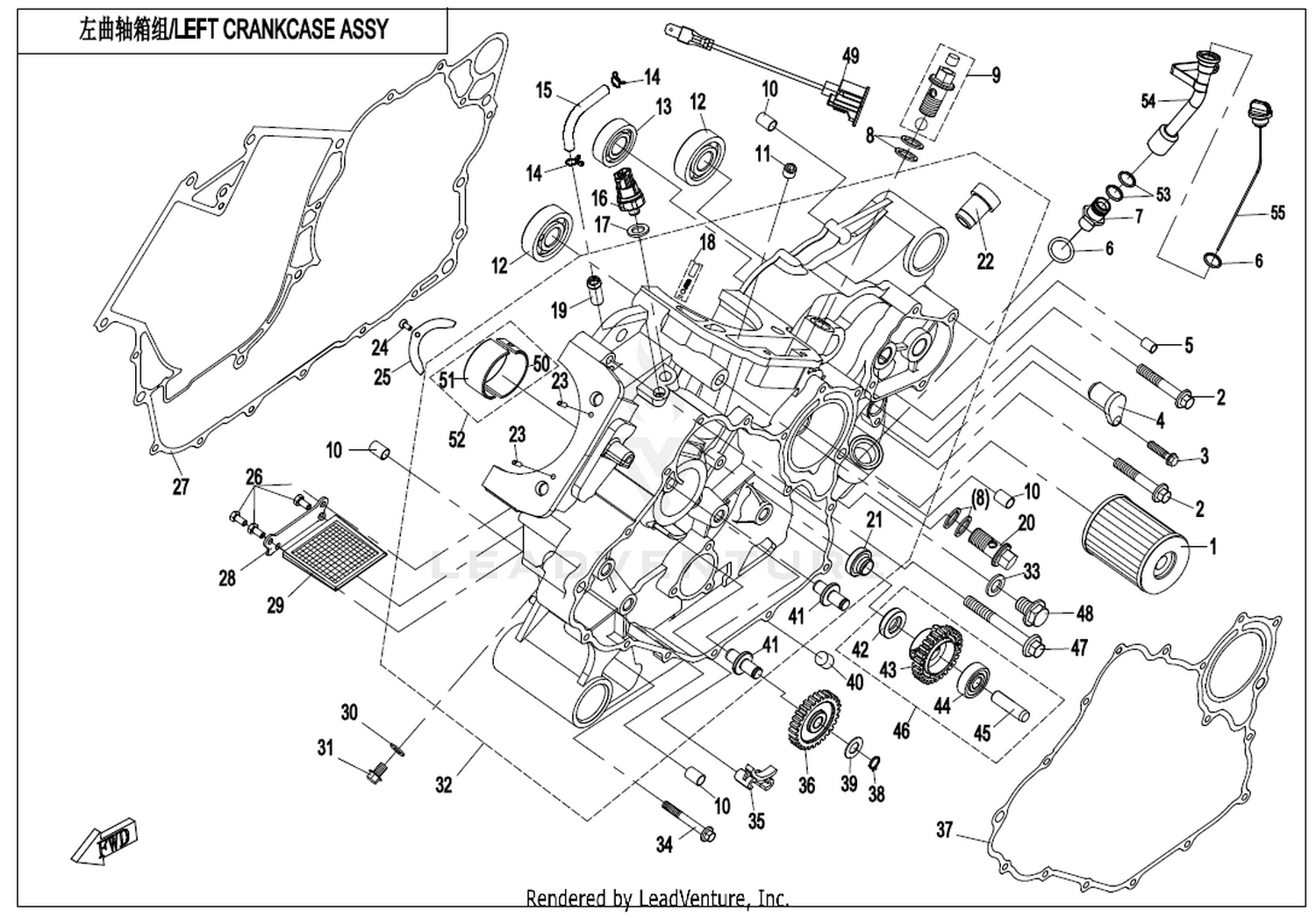

Other parts on this diagram — Left Crankcase Assy 3
- #04 0010-080008 — Dowel Pin 8X14
- #41 0800-011104 — Breather Idle Gear Shaft
- #29 0800-011003 — Thrust Washer, Crankcase
- #10 0800-012400 — Oil Pressure Switch
- #34 0130-011303 — O-Seal Ring 14X1.4
- #15 0800-011202 — Breather Shaft
- #08 0800-011005 — Washer 10 10
- #52 0JWA-011002 — Outer Plate,Oil Strainer
- #18 0800-011103-00011 — Plain Bearing 2 Red@Thin
- #61 0JYA-014410-10000 — Oil Dipstick Assy
- #22 0010-080013-0010 — Bolt M6X22 Galvanized Trivalent Chromium
- #31 0180-332002-0010 — Flange Bolt M8X12.5@@Galvanized Trivalent Chromium
- #28 30122-040010850 — Screw M4X10@Black Oxidation
- #05 0010-060010 — Washer 10 10
- #16 0110-013030 — O-Ring 18X3.55
- #12 0040-012006-0010 — Bolt M8X50 Galvanized Trivalent Chromium
- #05 0800-011007 — Chain Guard
- #07 30801-01005 — Circlips For Shaft 10
- #53 30017-060022110 — Stud M6×22
- #18 0800-011103-00021 — Plain Bearing 2 Blue@Thick
- #40 0700-022018 — Solid Pin 8X14 8X14
- #30 0010-023305 — Washer 8.5 8.5
- #12 30499-01700 — Bearing 6303C3@Ntn
- #11 0800-011013-00001 — Restriction Plug
