Verified fitment — 1 vehicle
Fitment is sourced from official parts catalogues, listed per catalogue market.
China (1)

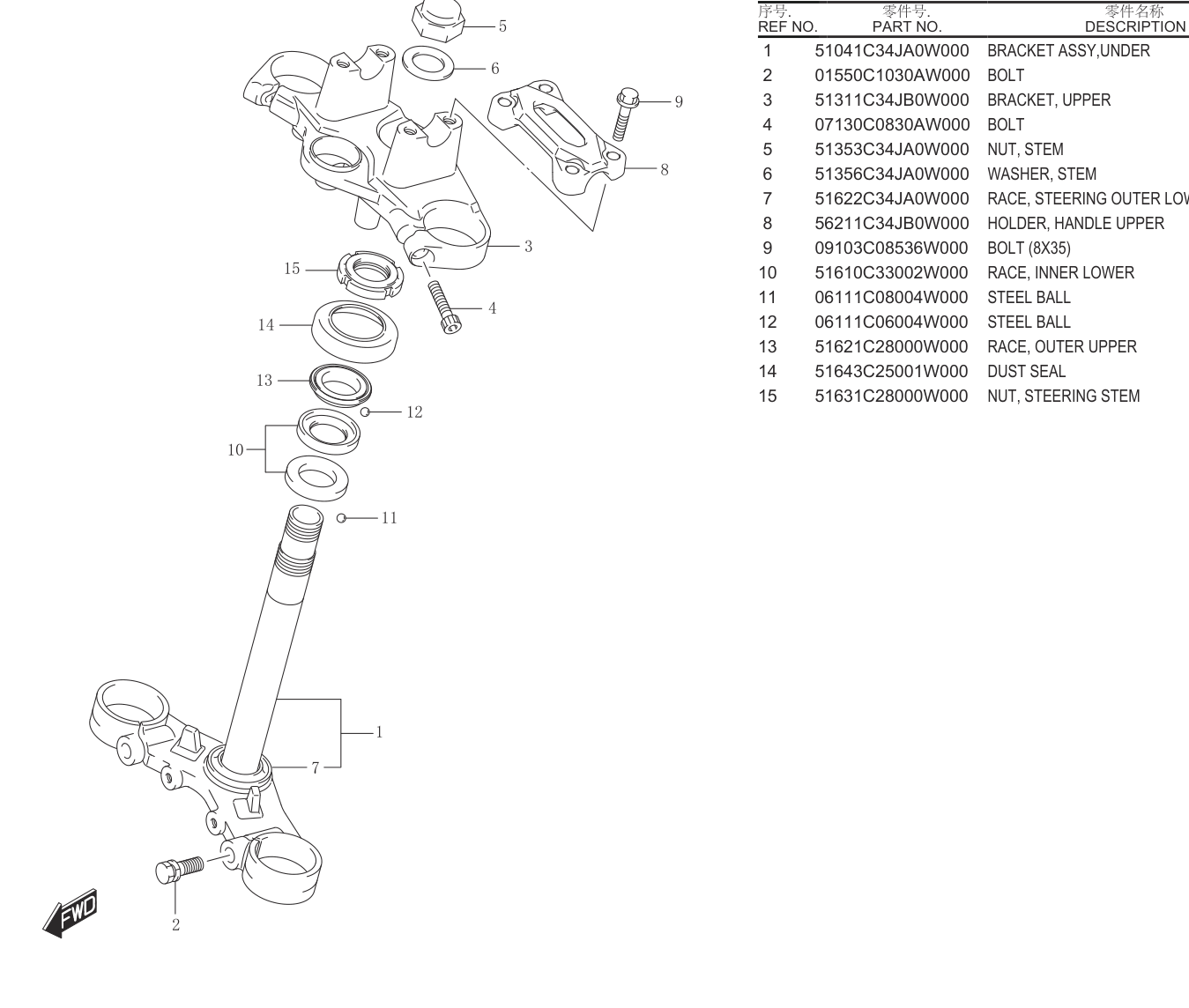

Location in exploded diagrams
Other parts on this diagram — STEERING STEM................. 65
- #1 51041C34JA0W000 — BRACKET ASSY,UNDER
- #2 01550C1030AW000 — BOLT
- #3 51311C34JB0W000 — BRACKET, UPPER
- #5 51353C34JA0W000 — NUT, STEM
- #6 51356C34JA0W000 — WASHER, STEM
- #7 51622C34JA0W000 — RACE, STEERING OUTER LOWER
- #8 56211C34JB0W000 — HOLDER, HANDLE UPPER
- #9 09103C08536W000 — BOLT (8X35)
- #10 51610C33002W000 — RACE, INNER LOWER
- #11 06111C08004W000 — STEEL BALL LOWER 12
- #13 06111C06004W000 — STEEL BALL UPPER
- #14 51621C28000W000 — RACE, OUTER UPPER
- #15 51643C25001W000 — DUST SEAL
- #1 51631C28000W000 — NUT, STEERING STEM
