Verified fitment — 1 vehicle
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (1)
Location in exploded diagrams

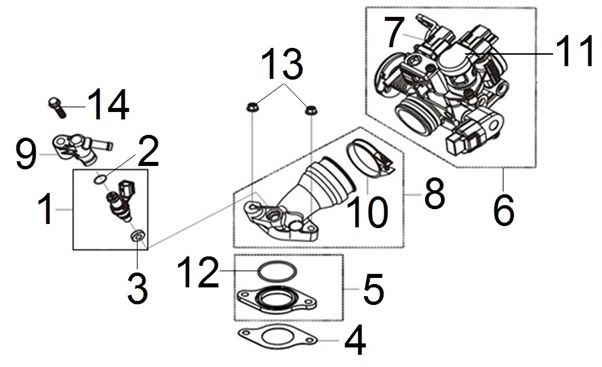

Other parts on this diagram — Inlet Pipe And Throttle Body
- 960010604007 — Sym Joymax Z+ 125 E5 FLANGE BOLT SH 6X40
- 9405006000 — Sym Joymax Z+ 125 E5 FLANGE NUT 6MM
- 91308HNS000 — Sym Joymax Z+ 125 E5 O-RING 31*2.0
- 3700A35B0100 — Sym Joymax Z+ 125 E5 IDLE SPEED CONTROL
- 16219HNS000 — Sym Joymax Z+ 125 E5 INLET PIPE BAND
- 17256M9Q000 — Sym Joymax Z+ 125 E5 INSULATOR BANO
- 17120HNS010 — Sym Joymax Z+ 125 E5 FUEL INJECTOR CUP ASSY
- 1711AL1N000 — Sym Joymax Z+ 125 E5 INLET PIPE ASSY
- 37660L5B000 — Sym Joymax Z+ 125 E5 THB.M.A.P.SENSOR SERVICE PARTS
- 16403F6K000 — Sym Joymax Z+ 125 E5 THB.M.A.P.SENSOR SERVICE PARTS
- 16406F6K000 — Sym Joymax Z+ 125 E5 THB. ISC VALVE O-RING SERVICE PARTS
- 16401F6K000 — Sym Joymax Z+ 125 E5 THROTTLE BODY ASSY
- 1621AL1N000 — Sym Joymax Z+ 125 E5 CARB. INSULATOR ASSY
- 16201L1N000 — Sym Joymax Z+ 125 E5 CARB. INSULATOR GASKET
- 06416HNS000 — Sym Joymax Z+ 125 E5 SEAL-RING
- 06415HNS000 — Sym Joymax Z+ 125 E5 O-RING
- 06414FDA000A — Sym Joymax Z+ 125 E5 FUEL INJECTER
