Verified fitment — 9 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (8)
- 2021–2024 Leoncino 500 E5 (2021 – 2024)
- 2021–2024 Leoncino 500 Trail E5 (2021 – 2024)
- 2021–2024 TRK 502 E5 (2021 – 2024)
- 2021–2024 TRK 502 X E5 (2021 – 2024)
- 2022–2024 502c E5 (2022 – 2024)
- 2022–2024 752s E5 (2022 – 2024)
- 2022–2024 Leoncino 800 E5 (2022 – 2024)
- 2022–2024 Leoncino 800 Trail E5 (2022 – 2024)
China (1)
Manufacturer reference prices
Catalogue / RRP reference only — the live MotoDoc price is on the product page.
| Currency | Reference price | Type | Source |
|---|---|---|---|
| GBP | 7.81 | listing | motogbshop.co.uk |

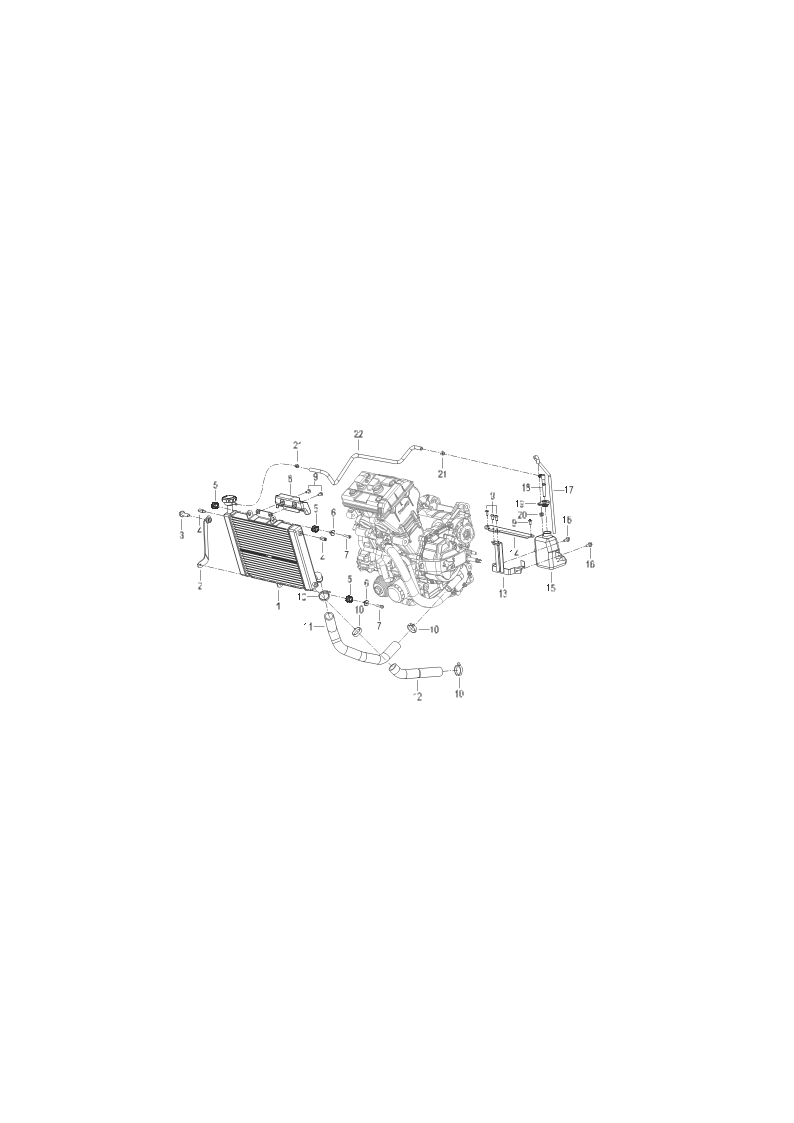

Location in exploded diagrams
Other parts on this diagram — COOLING SYSTEM ASSY.
- #1 279126340000 — FAN ASSY
- #2 58850P080000 — WELDING COMPONENTS FOR FIXATION BRACKET UNDER WATER TANK
- #3 B0159100356H — BOLT M10×1.25×35
- #4 05301T850000 — REAR GUARD MOUNTING BOLTS
- #5 65821S010000 — RUBBER PIECES
- #6 59452P250000 — EVERY SET INSTALLATION RADIATOR
- #7 B0205060256H — SCREW M6×25
- #8 49033P080000 — AIR FILTER BAFFLE
- #9 B0283060146H — SCREW M6×14
- #11 06211P080000 — ENGINE FEED LINE
- #12 06251P080000 — ENGINE OUTLET PIPE
- #13 06150P360000 — EXPANSION KETTLE BRACKET WELDING ASSEMBLY
- #14 58781P080000 — ELECTRICAL INSTALLATION PANEL
- #15 06111P250000 — INFLATION KETTLE
- #16 B0109060166H — BOLT M6×16
- #17 06224P360000 — WATERPROOF
- #18 14039S040000 — GUIDE TUBE
- #19 14030S040000 — VICE WATER TANK COVER
- #20 43038P250000 — BUSH,RUBBER
- #21 50376S010000 — CLAMP Φ10
- #22 06223P250000 — WATERPROOF
