Verified fitment — 1 vehicle
Fitment is sourced from official parts catalogues, listed per catalogue market.
China (1)

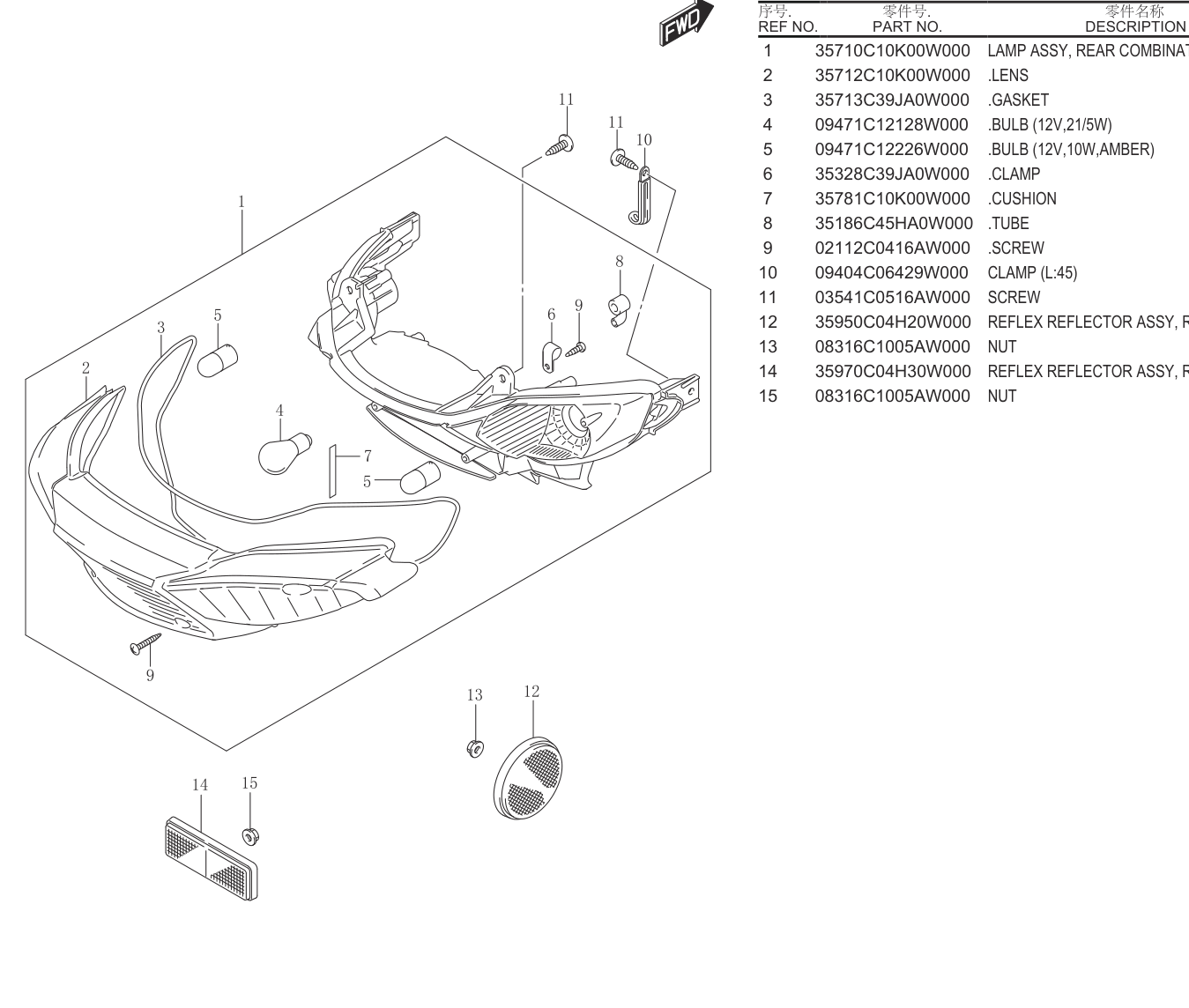

Location in exploded diagrams
Other parts on this diagram — 后尾灯
- #1 35710C10K00W000 — LAMP ASSY, REAR COMBINATION
- #2 35712C10K00W000 — .LENS
- #3 35713C39JA0W000 — .GASKET
- #4 09471C12128W000 — .BULB (12V,21/5W)
- #5 09471C12226W000 — .BULB (12V,10W,AMBER)
- #6 35328C39JA0W000 — .CLAMP
- #7 35781C10K00W000 — .CUSHION
- #8 35186C45HA0W000 — .TUBE
- #10 09404C06429W000 — CLAMP (L:45)
- #11 03541C0516AW000 — SCREW
- #12 35950C04H20W000 — REFLEX REFLECTOR ASSY, RR SIDE
- #13 08316C1005AW000 — NUT
- #14 35970C04H30W000 — REFLEX REFLECTOR ASSY, REAR
