Verified fitment — 10 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
Manufacturer reference prices
Catalogue / RRP reference only — the live MotoDoc price is on the product page.
| Currency | Reference price | Type | Source |
|---|---|---|---|
| EUR | 38.92 | listing | cfmoto.quadzillaparts.co.uk |
| GBP | 35.99 | listing | cfmoto.quadzillaparts.co.uk |

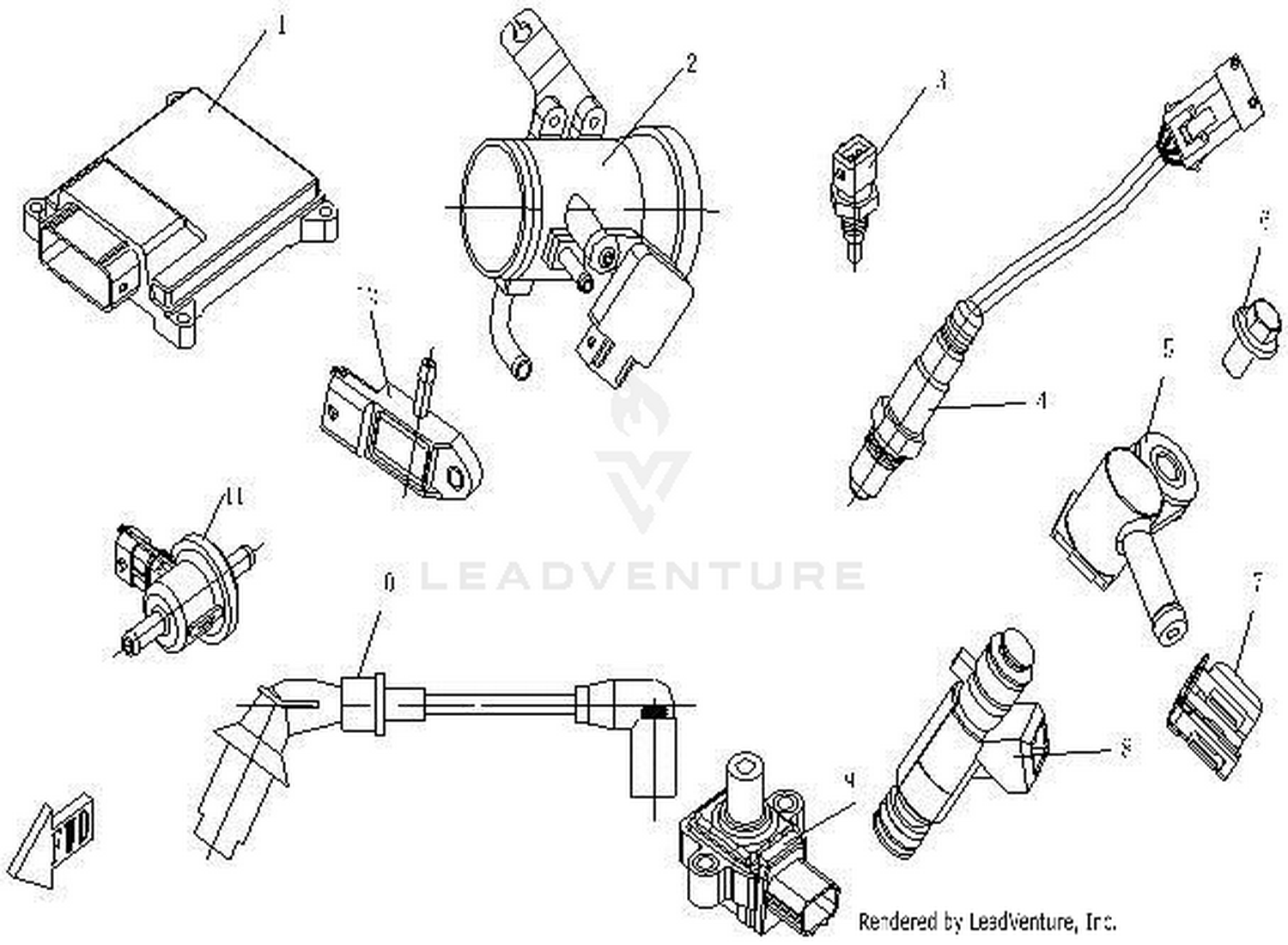

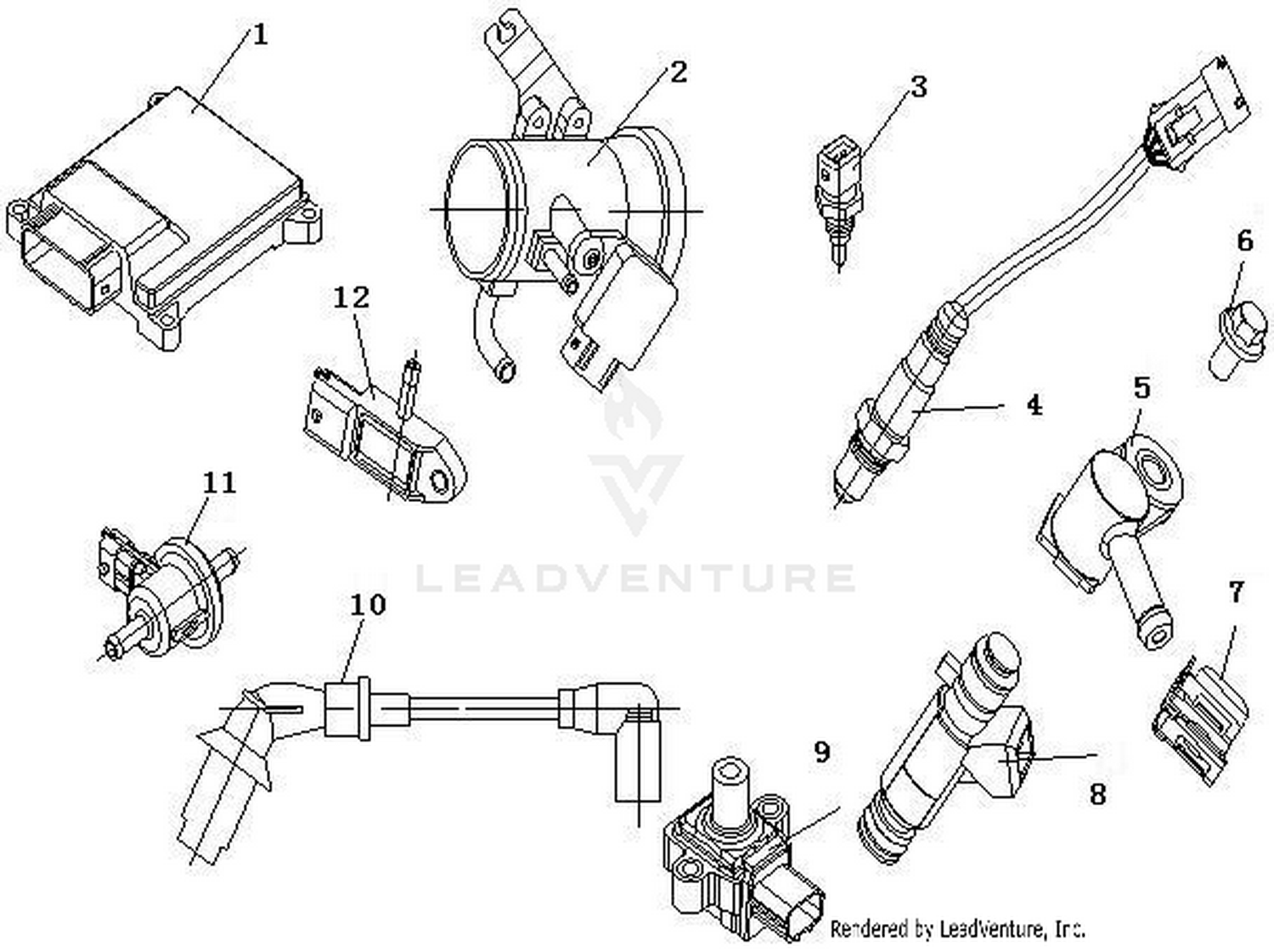

Location in exploded diagrams
Other parts on this diagram — Efi System
- #38 060C-174000 — Ecu Bosch Mse3.0
- #34 018B-178000 — Ignition Coil
- #01 060C-174000-1000 — Ecu Bosch Mse3.0
- #14 018B-176000 — Oxygen Sensor
- #05 01AA-178200-10000 — High-Tension Ignition Cable
- #02 060B-173000 — Throttle Body Assy Limited Power
- #05 018B-170002 — Fuel Injector Cap
- #13 018B-172000 — Idle Air Control Valve
- #02 060B-173000-0001 — Throttle Body Assy No Power Limit
- #50 0010-023008-00001 — Bolt
- #36 018B-175000 — Air Intake Pressure Sensor
- #02 060C-173000 — Throttle Body
- #07 011F-170001 — Fuel Injector Cap Clamp
- #02 060C-173000-0001 — Throttle Body
- #08 018B-171000 — Fuel Injector
