Verified fitment — 5 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.

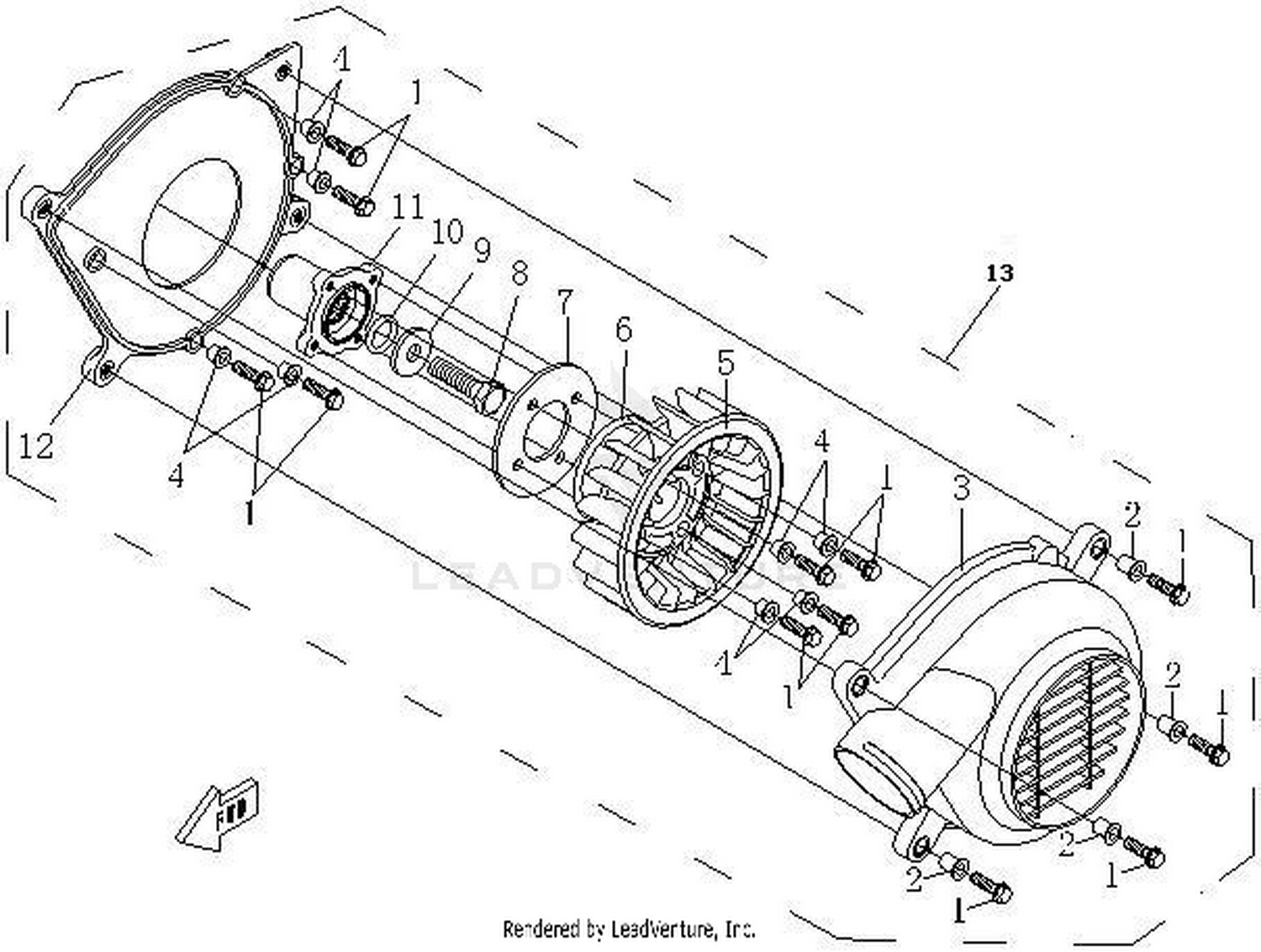

Location in exploded diagrams
Other parts on this diagram — Cooling Fan Assy. ( Goes )
- #18 0180-331004 — O-Ring 64.5X3
- #18 0010-023010-0010 — Bolt M6X20 Galvanized Trivalent Chromium
- #03 018A-180002 — Gasket Plate
- #13 018A-180000 — Fan Assy
- #12 018A-180007 — Long Spacer
- #24 0180-092001-00001 — Bolt M10X40
- #03 018A-180006 — Fan Housing
- #25 018A-180004 — Gasket 10.2X28X3
- #35 018A-180001 — Sleeve
- #14 30502-017000F — O-Ring 17X2.5
- #09 018A-180005 — Fan Impeller
- #11 018A-180003 — Fan Connection Flange
