Location in exploded diagrams

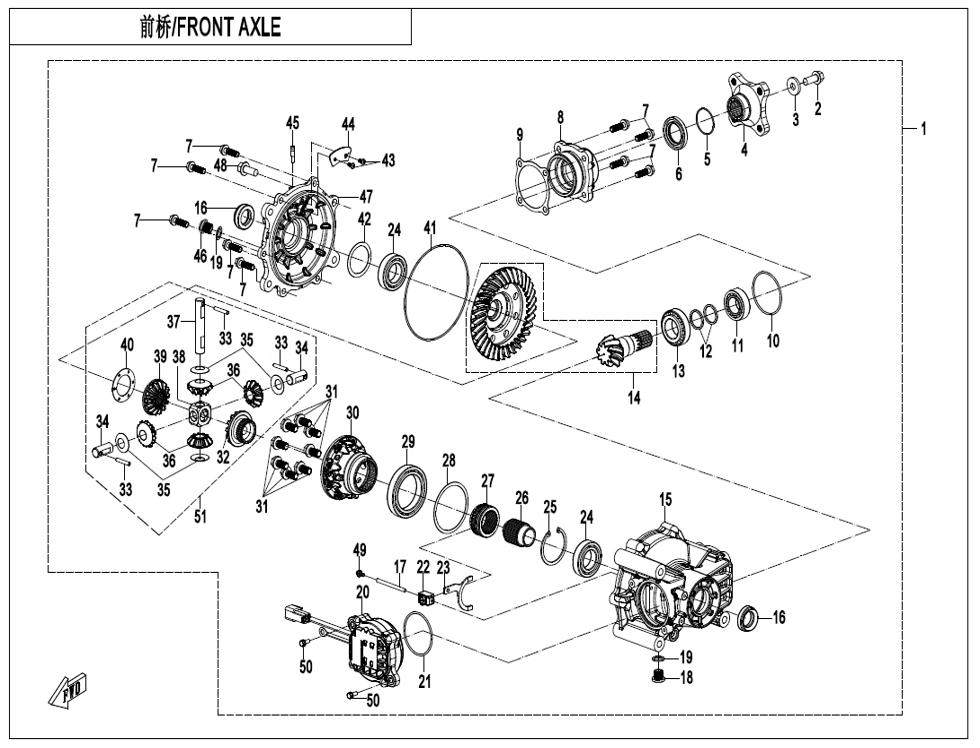

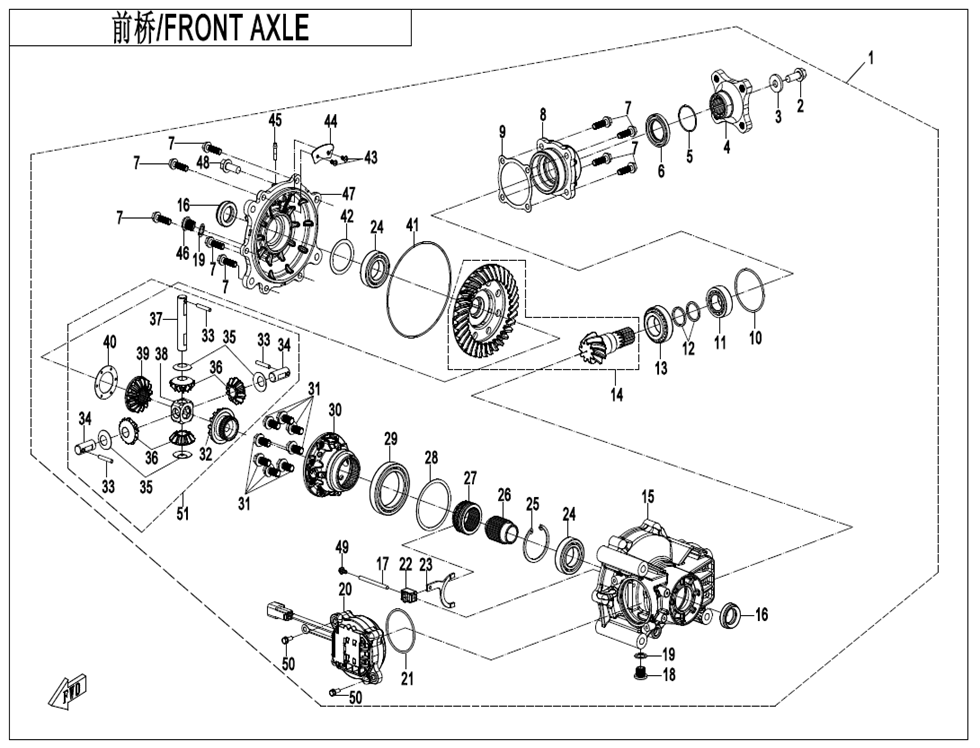

Other parts on this diagram — F31 Front Axle
- #15 0180-332100 — Magnetic Drain Bolt M14×1.25×12 M14X1.25X12
- #24 30400-03001 — Roller Bearing 30×55×13
- #02 0GR0-062203 — Bolt M10×1.25×20
- #28 Q830-310015-00500 — Adjusting Washer 79.5X68 T=0.50
- #08 0110-060011-0010 — Bolt M8×28 M8X28
- #34 Q820-333005 — Short Planet Gear Shaft
- #37 Q820-333006 — Planet Gear Shaft
- #39 0180-313006-00001 — Differential Driven Gear
- #12 Q830-311003-00001-00900 — Adjusting Washer 32×25.4 T=2.50
- #12 Q830-311003-00001-01400 — Adjusting Washer 32×25.4 T=3.00
- #42 Q830-310009-00200 — Adjusting Washer 54.5X43 T=0.20 T=0.20
- #42 Q830-310009-00600 — Adjusting Washer 54.5X43 T=1.00 T=1.00
- #48 0180-330004-0010 — Bolt M10×1.25×25 M10X1.25X25
- #21 Q830-310012-10000 — O-Seal Ring 67.5×2 67.5X2
- #16 0180-311001 — Oil Seal 24X38X8
- #13 30409-03000 — Tapered Roller Bearing Gb & T297 32006 & 30×55×17
- #16 0180-011006 — Gasket 14 14
- #25 30800-05505 — Circlip For Hole Black
- #28 Q830-310015-00200 — Adjusting Washer 79.5X68 T=0.20
- #05 0800-062205 — O-Ring 25X2
- #10 Q830-310023-00200 — Adjusting Washer T=0.30
- #12 Q830-311003-00001-00100 — Adjusting Washer 32×25.4 T=2.10
- #12 Q830-311003-00001-00500 — Adjusting Washer 32×25.4 T=2.42
- #12 Q830-311003-00001-01000 — Adjusting Washer 32×25.4 T=2.60
