Verified fitment — 6 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.

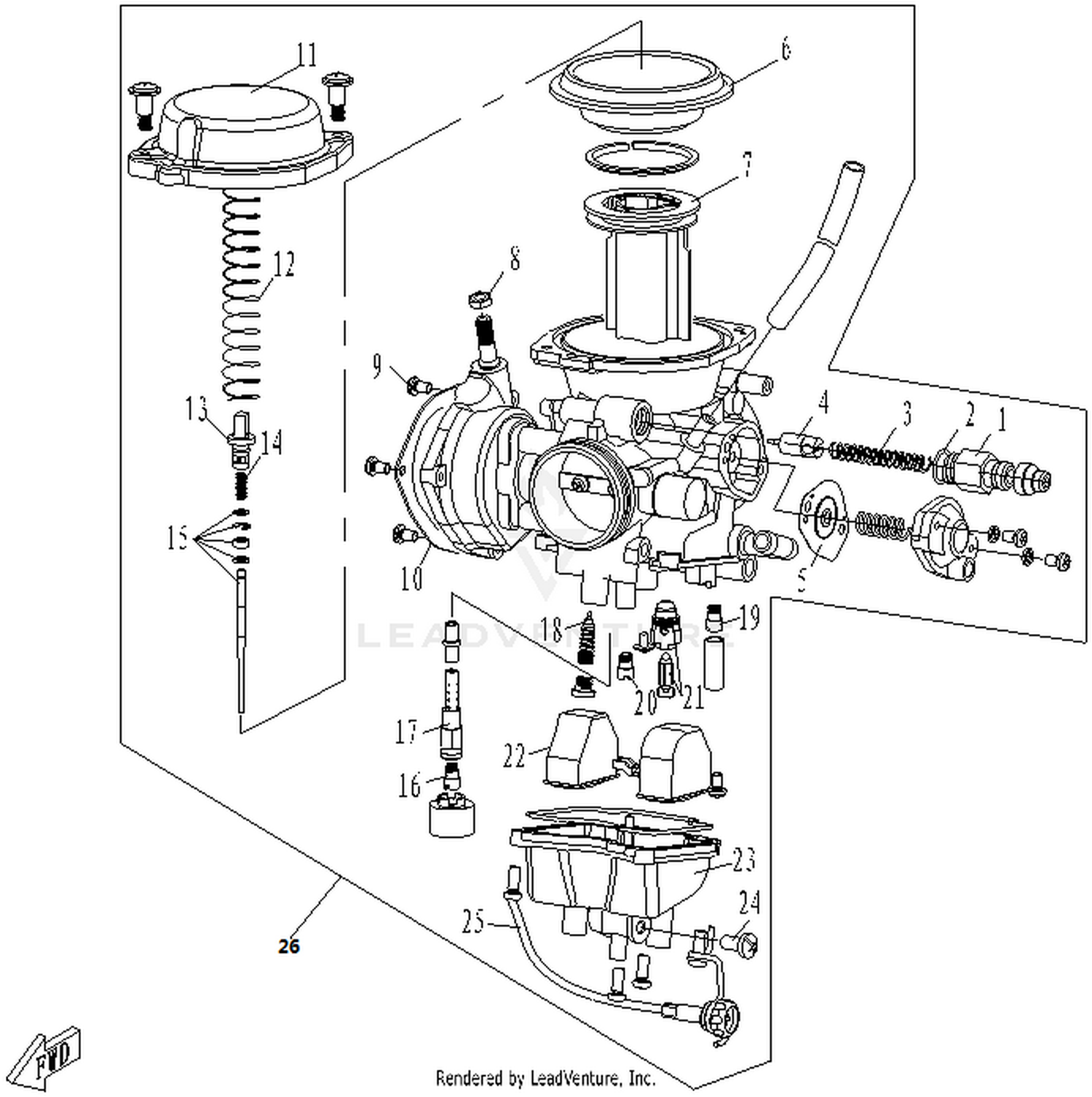

Location in exploded diagrams

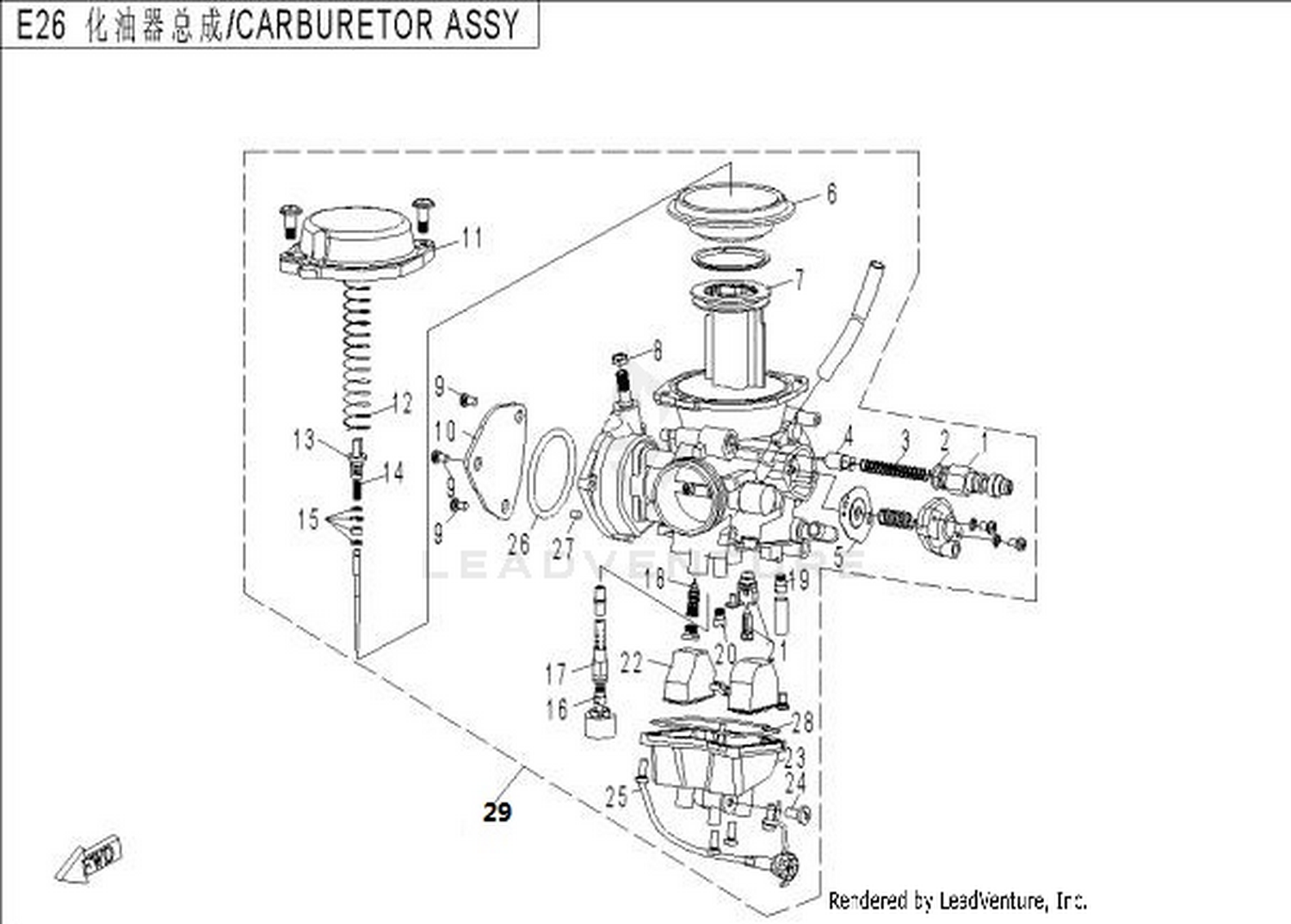

Other parts on this diagram — Carburetor
- #05 0180-100007 — Fuel Enrich Vavle
- #15 0180-100100 — Fuel Needle Assy (Jn)
- #21 0180-100200 — Fuel Needle Valve Assy
- #27 0180-100026 — Clip, Throttle Cable
- #06 0180-100008 — Vacuum Diaphram
- #10 0180-100002-0001 — Throttle Cover
- #16 0180-100015 — Main Jet(Mj)
- #22 0180-100020 — Float
- #28 0180-100027 — Float Chamber O-Ring
- #01 0180-100003 — Guide Rod Bracket Assy
- #07 0180-100009 — Plunger Valve
- #11 0180-100011 — Vacuum Cover
- #17 0180-100016 — Main Nozzle(Nj)
- #23 0180-100021 — Float Chamber
- #29 0180-100000 — Carburetor Assy
- #02 0180-100004 — O-Ring
- #08 0180-100010 — Nut Vm13 & 43
- #12 0180-100012 — Spring
- #18 0180-100017 — Idle Air Jet(Paj)
- #24 0180-100022 — Drain Bolt
- #03 0180-100005 — Assyression Spring
- #09 30105-040006420 — Screw M4X6@White Zinc-Plated
- #13 0180-100013 — Bracket, Fuel Needle
- #19 0180-100018 — Idle Jet(Pj)
