Verified fitment — 16 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
Manufacturer reference prices
Catalogue / RRP reference only — the live MotoDoc price is on the product page.
| Currency | Reference price | Type | Source |
|---|---|---|---|
| EUR | 7.77 | listing | cfmoto.quadzillaparts.co.uk |
| GBP | 7.19 | listing | cfmoto.quadzillaparts.co.uk |

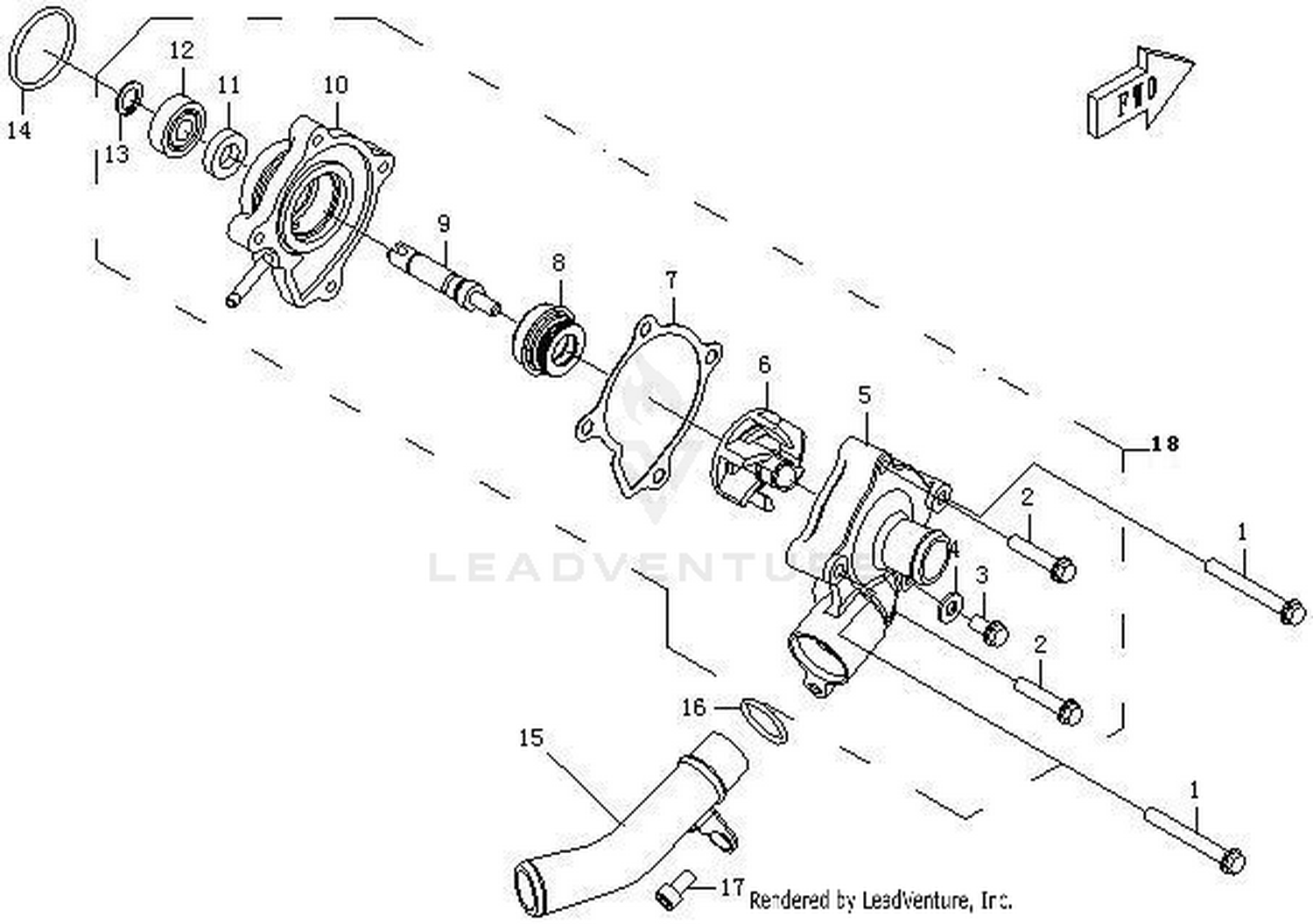

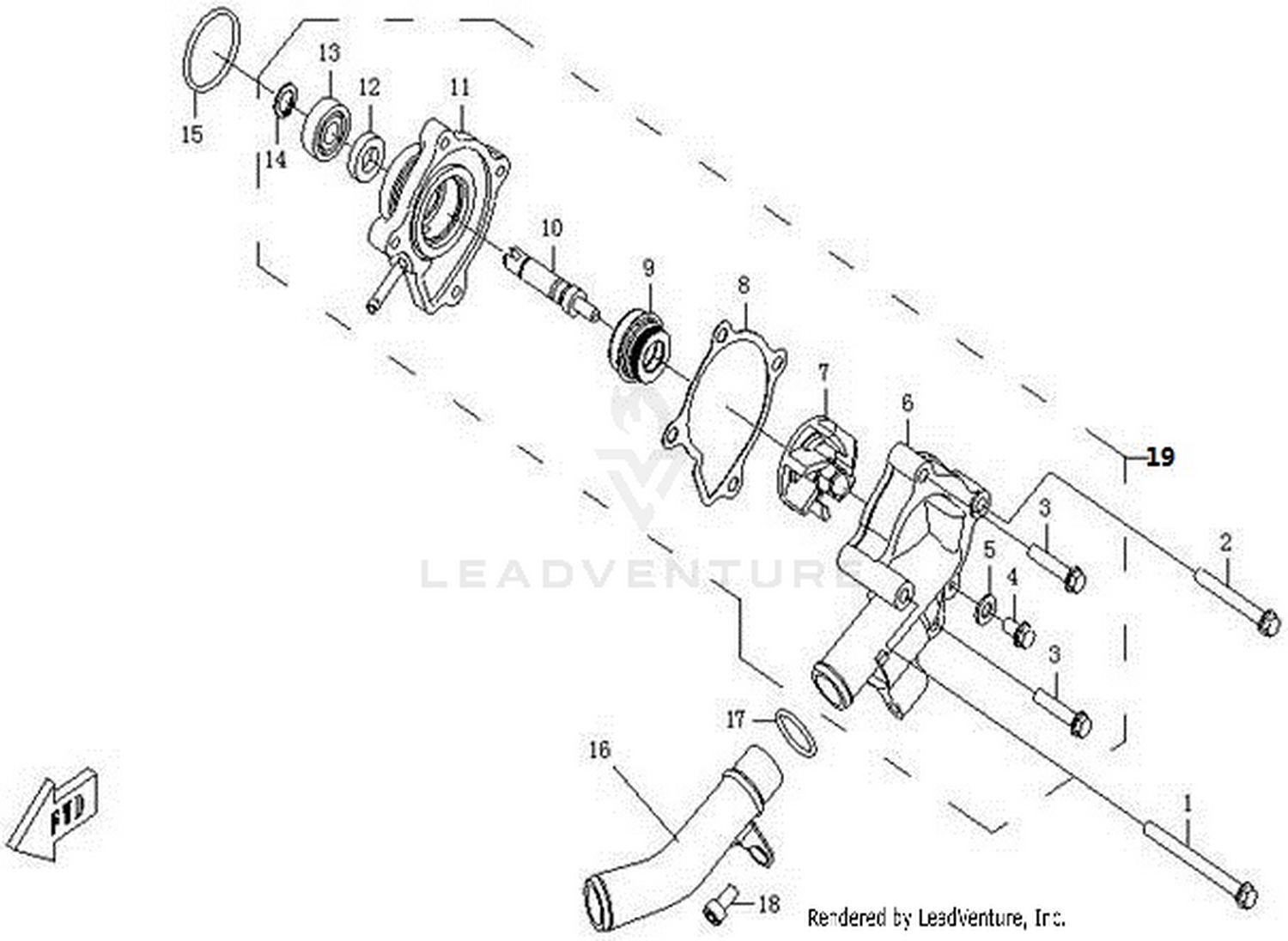

Location in exploded diagrams
Other parts on this diagram — Water Pump Assy
- #10 0010-021019-0010 — Bolt M6X12 Galvanized Trivalent Chromium
- #08 0180-081004-0050 — Water Pump Shaft
- #11 0010-060009 — Washer 6 6
- #10 0180-081100 — Housing, Water Pump
- #14 0180-080001 — O-Ring 21X2.5
- #05 0180-081002-0080 — Water Pump Cover
- #05 0110-080005 — Oil Seal 10X20X5
- #11 0180-080003-10000 — Hose, Overfilling
- #33 0020-011018-00001 — Bolt
- #02 0180-081001-00001 — Water Pump Impeller
- #06 30400-01000 — Bearing 10×26×8
- #18 0180-081000 — Water Pump Sub Assy
- #09 0010-013010-0010 — Bolt M6X50 Galvanized Trivalent Chromium
- #07 0180-081006 — Water Pump Cover Gasket
- #07 30801-01005 — Circlips For Shaft 10
- #18 0010-060012-0010 — Bolt M6X30 Galvanized Trivalent Chromium
- #04 0700-081200 — Water Seal Assy
- #18 0180-080002 — O-Ring 34X2.5
