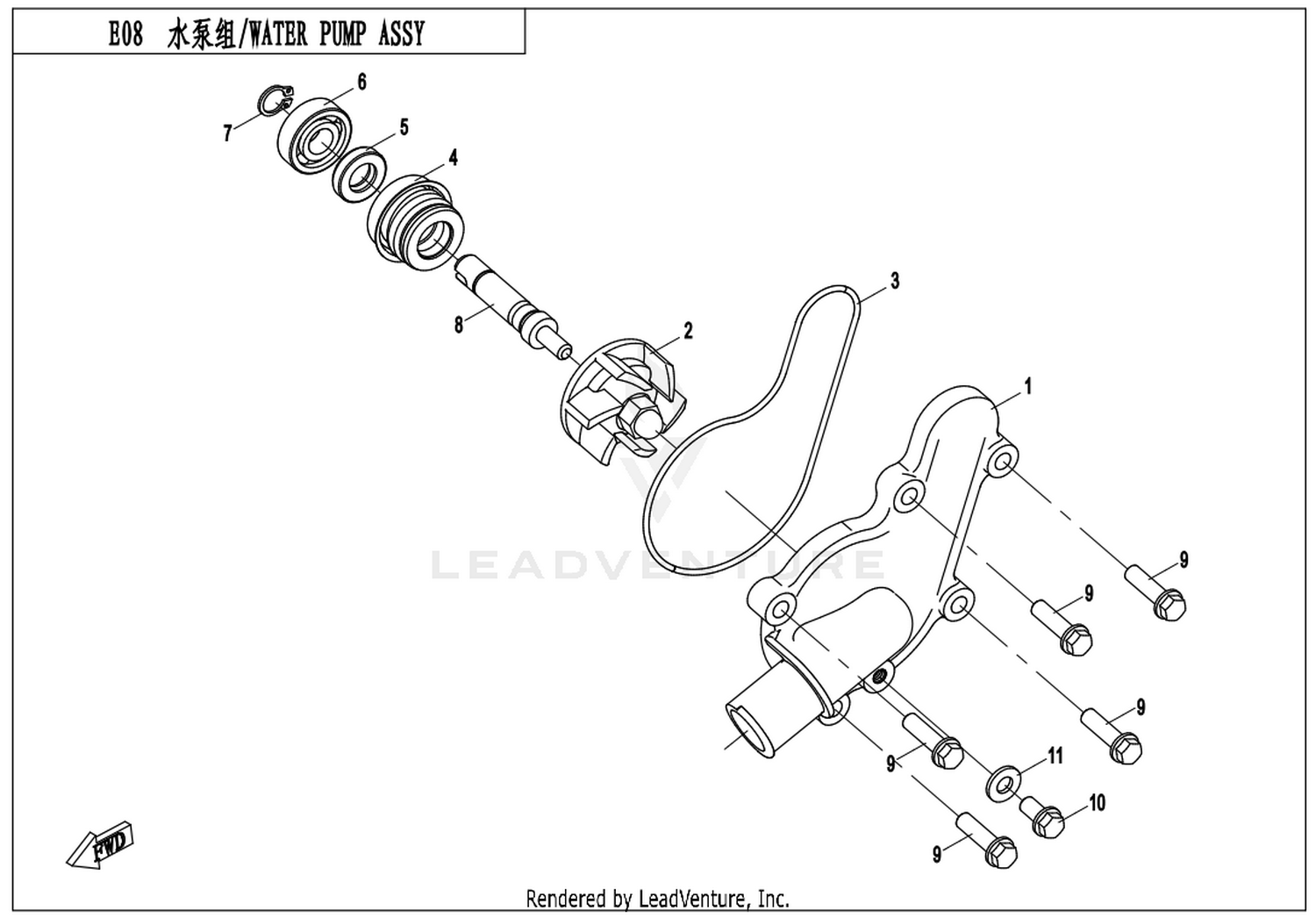

Location in exploded diagrams



Other parts on this diagram — Water Pump Assy
- #01 0GR0-080001 — Water Pump Cover
- #05 0110-080005 — Oil Seal 10X20X5
- #11 0010-060009 — Washer 6 6
- #06 30400-01000 — Bearing 10×26×8
- #02 0180-081001-00001 — Water Pump Impeller
- #07 30801-01005 — Circlips For Shaft 10
- #03 0GR0-080002 — Water Pump Seal Ring
- #08 0180-081004-0050 — Water Pump Shaft
- #07 0010-081000-0002 — Water Seal Assy Nso:10604
- #22 0010-080013-0010 — Bolt M6X22 Galvanized Trivalent Chromium
- #04 0700-081200 — Water Seal Assy
- #10 0010-021019-0010 — Bolt M6X12 Galvanized Trivalent Chromium
