Verified fitment — 2 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (2)

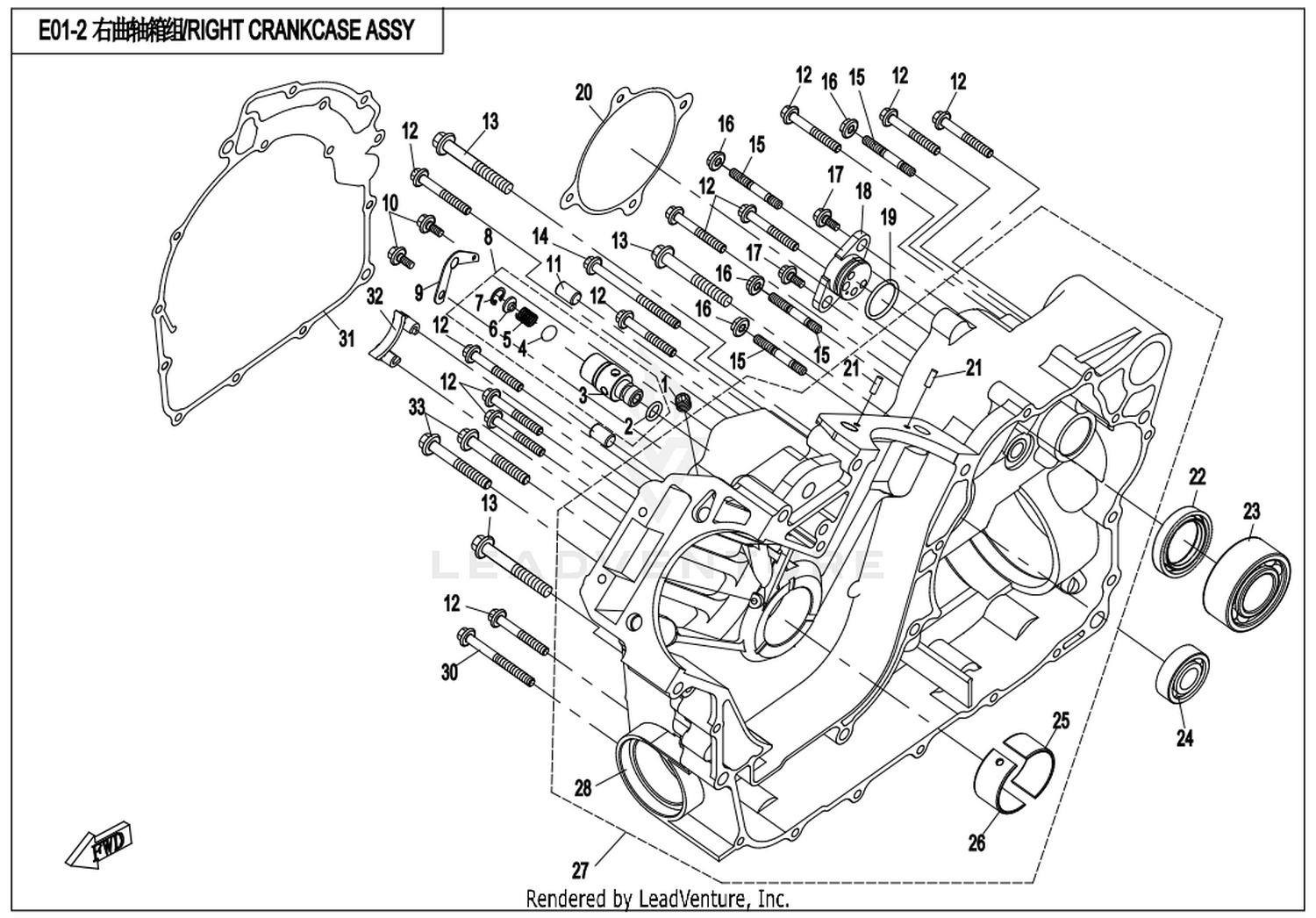

Location in exploded diagrams
Other parts on this diagram — Right Crankcase Assy
- #08 0800-073000-20001 — Relief Valve Assy Color Zinc Trivalent Chromium
- #10 0010-021019-0010 — Bolt M6X12 Galvanized Trivalent Chromium
- #14 30204-060810 — Nut M6
- #21 0180-012006-00001 — Oil Seal 30X45X8
- #18 0800-011103-00011 — Plain Bearing 2 Red@Thin
- #25 0800-012001 — Gasket 1, Cvt Case
- #09 0010-021005 — Dowel Pin 10X14
- #06 0010-090005-0010 — Bolt M6X16 Galvanized Trivalent Chromium
- #03 30499-03000 — Bearing 5206
- #28 0800-012100-0002 — Rh Crankcase Assy Group B & For Blue Bearing Sleeve
- #05 0800-011007 — Chain Guard
- #05 0180-073004-0050 — Relief Valve Spring
- #20 0180-013208-0010 — Bolt M6X45 Galvanized Trivalent Chromium
- #17 0800-012200 — Gear Sensor Ordinary Plug
- #04 30400-01704 — Bearing 10
- #28 0800-012100-0001 — Rh Crankcase Assy Group A & For Red Bearing Sleeve
- #12 0040-012006-0010 — Bolt M8X50 Galvanized Trivalent Chromium
- #06 0180-073005-0010 — Spring Retainer
- #12 0130-011109-0010 — Bolt M8X60 Galvanized Trivalent Chromium
- #08 0180-023002 — O-Seal Ring 24X2.5
- #17 0800-011102-00011 — Plain Bearing 1 Red@Thin
- #31 0800-011101-30010 — Lh Crankcase A
- #19 01A0-012010-00001 — Screw
- #07 30800-01205 — Circlip For Hole 12 12
