Verified fitment — 16 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.

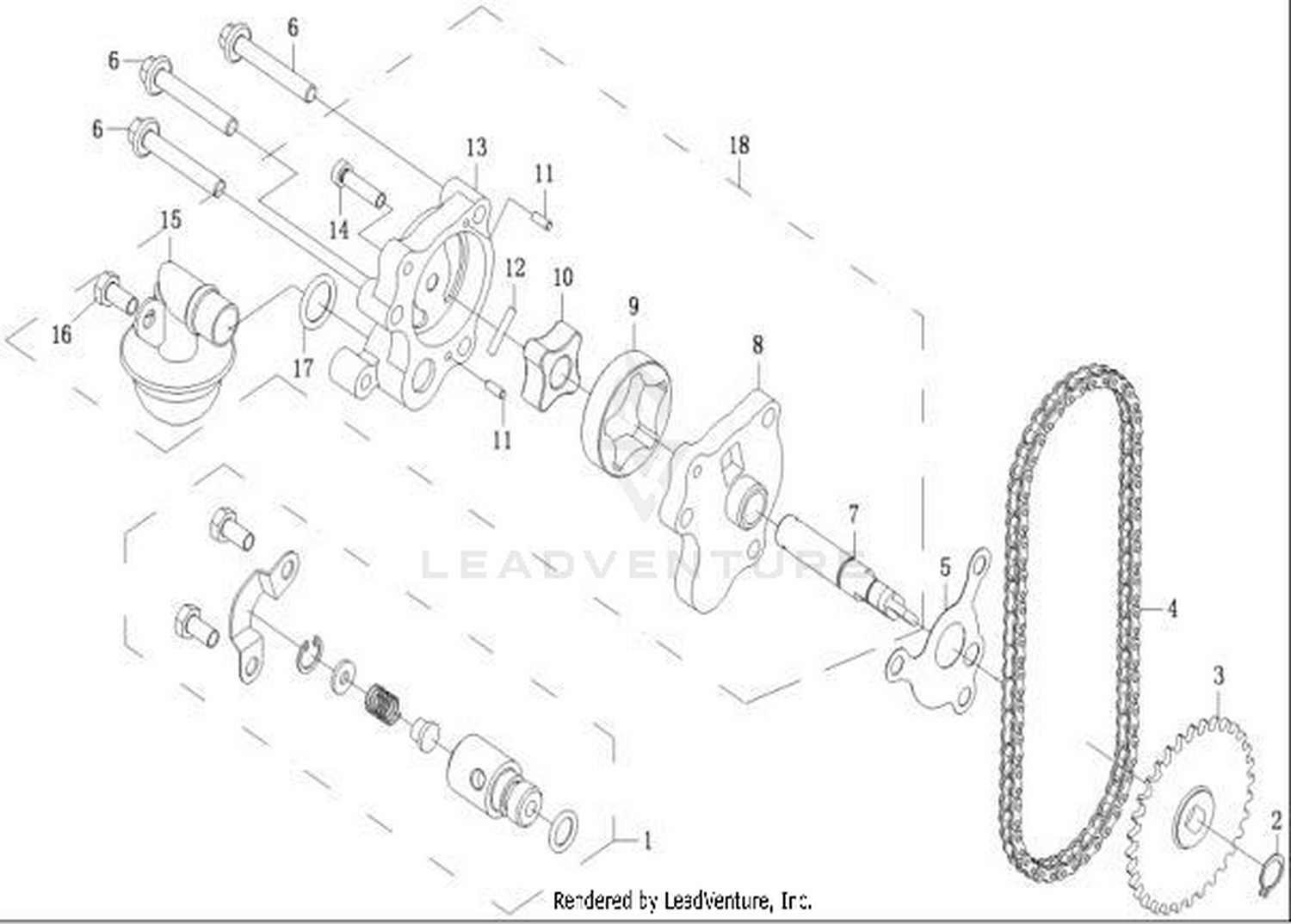

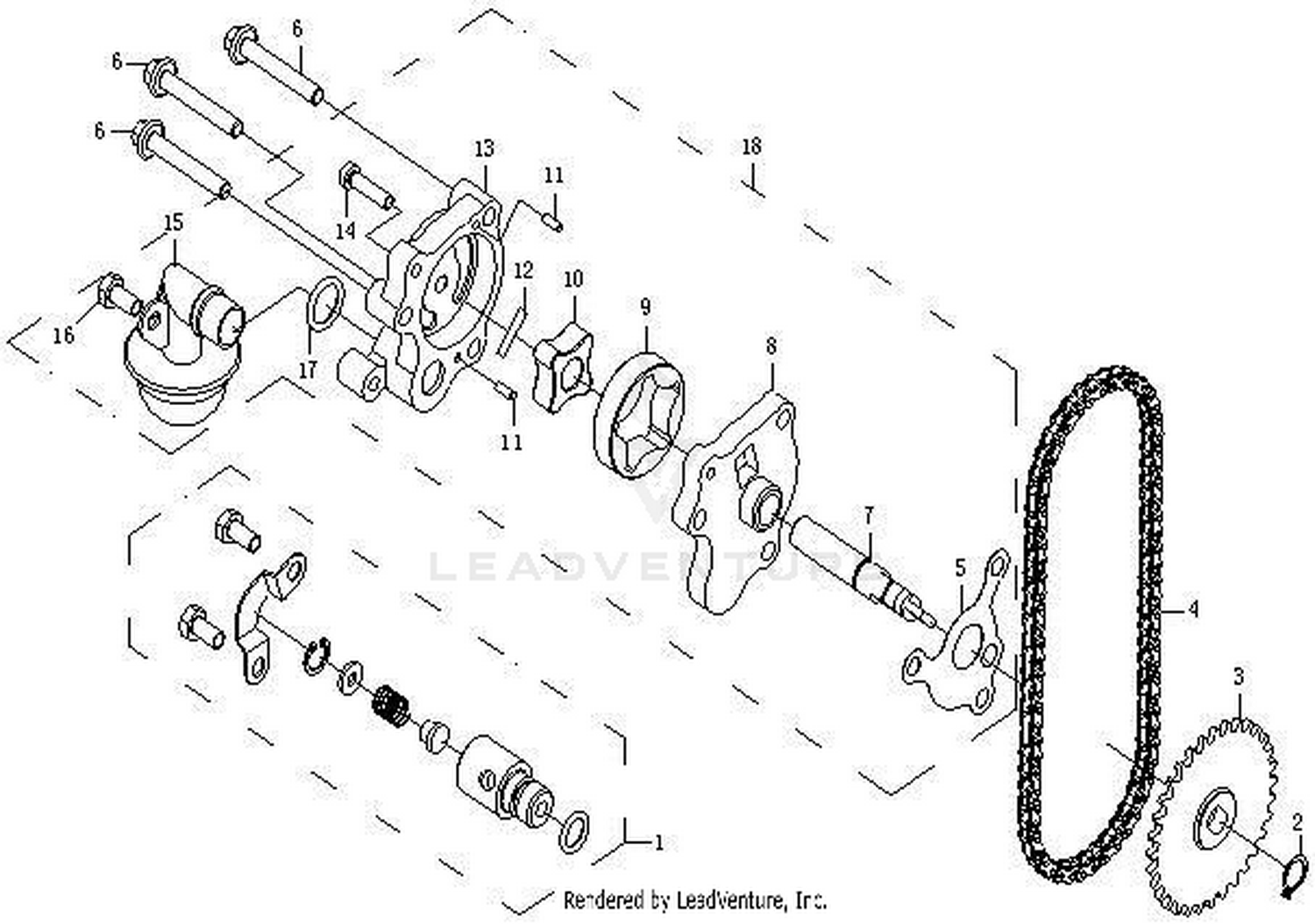

Location in exploded diagrams
Other parts on this diagram — Oil Pump
- #01 0180-073000 — Relief Valve Assy
- #13 0180-071004 — Oil Pump
- #02 30801-01100 — Circlips For Shaft 11 & Gb & T894.1 & 11
- #08 0180-071002 — Cover, Oil Pump
- #14 30129-050020420 — Screw M5X20
- #03 0180-070003 — Sprocket, Oil Pump
- #09 0180-071005 — Outer Rotor, Oil Pump
- #15 0180-072000 — Filter Assy
- #04 0180-074000 — Chain, Oil Pump
- #10 0180-071006 — Inner Rotor, Oil Pump
- #05 0110-090008-0030 — Bolt M6X14 M6X14
- #05 0180-070002 — Gasket, Oil Pump
- #11 0180-071003 — Dowel Pin
- #17 0180-071008 — O-Ring 14X2.5
- #06 0180-070004-00001 — Bolt M6×40
- #12 0180-071007 — Pin
- #18 0180-071000 — Oil Pump Sub Assy
