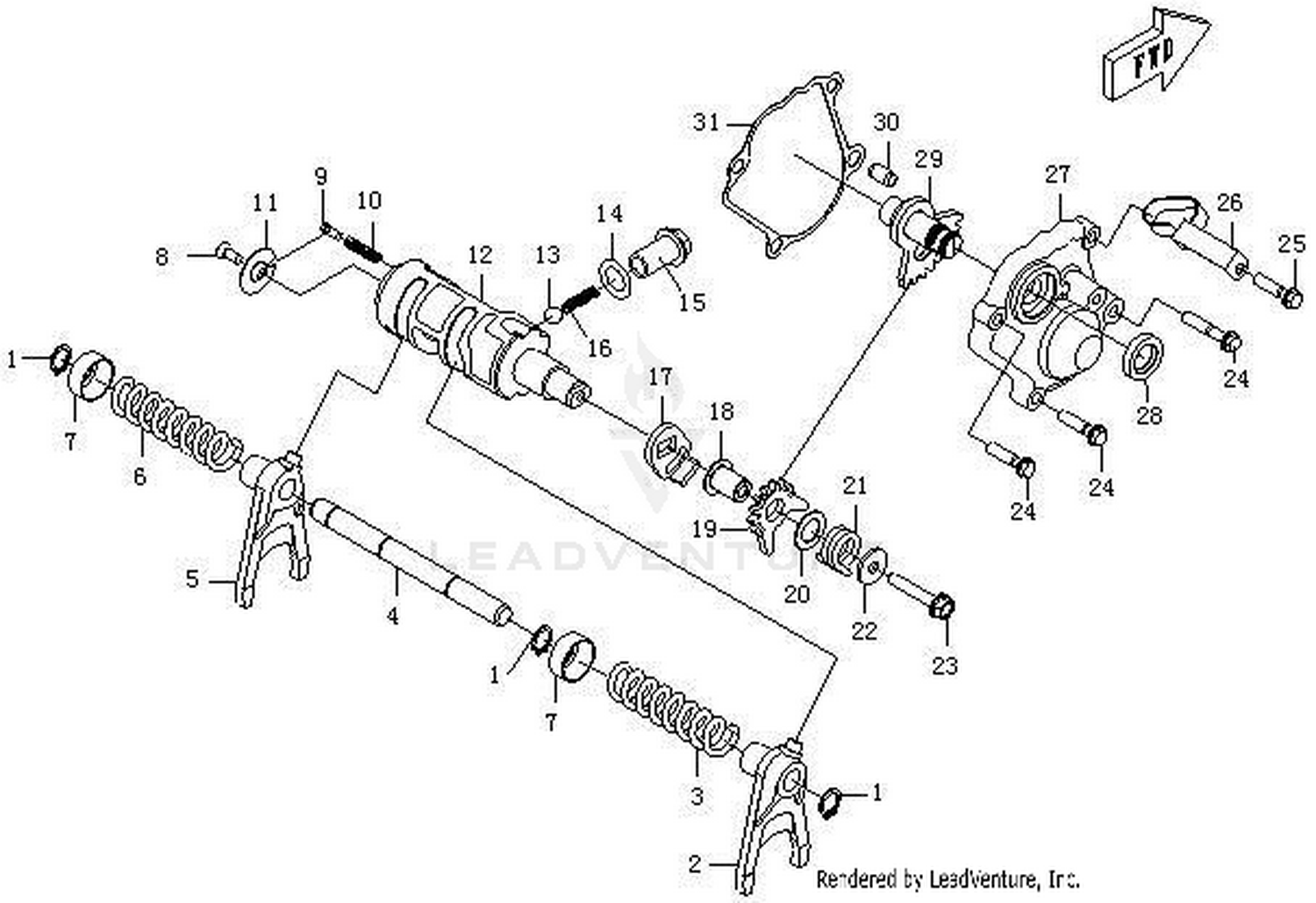

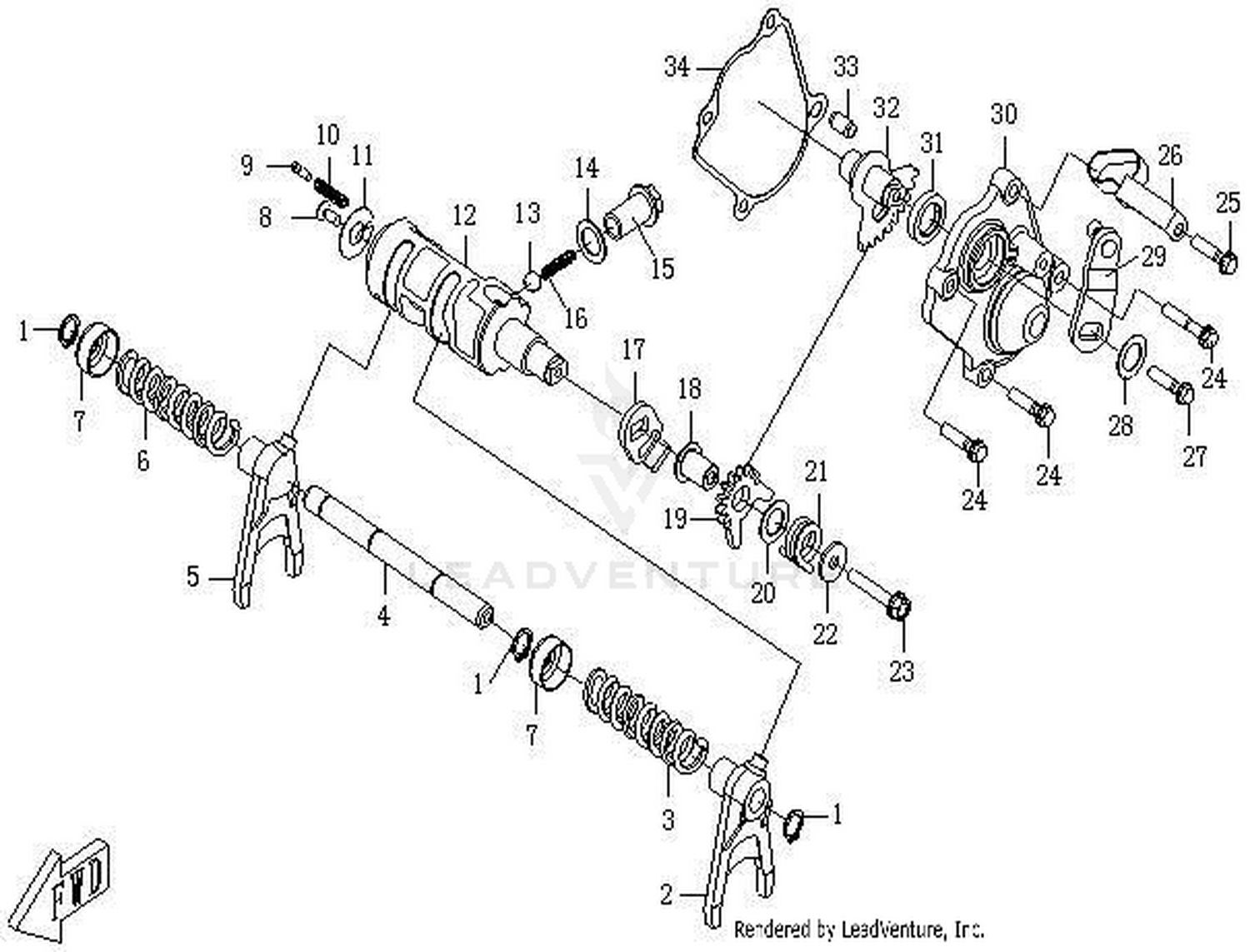

Location in exploded diagrams
Other parts on this diagram — Transmission System(3)
- #12 0180-064002-00001 — Lock Screw T25
- #16 0180-068002 — Gasket 14.4X22X1
- #19 0180-065204-0050 — Gasket 13.5X22X1 13.5X22X1
- #26 0180-065004-0030 — Clip
- #25 0GR0-065003 — Gearshift Sector Gear Metal Gasket
- #05 0180-063003-0050 — Fork Spring, Thin
- #13 0180-064003-0050 — Gear Contactor
- #15 0180-068001-00100 — Hollow Bolt M14X1.5 M14X1.5
- #18 0180-065205-0010 — Torsion Spring, Driven Sector Gear
- #27 0180-065001-0080 — Gearshift Sector Gear Housing Cover
- #04 0180-063001 — Shaft, Shift Fork
- #14 0180-064004-0050 — Spring, Gear Contactor
- #17 0180-068003-0050 — Spring, Limit
- #17 0180-065206-0010 — Gasket 6.6X22X2
- #24 0180-065002 — Oil Seal Sd15X25X5
- #05 0180-063004 — Shift Fork, Rh
- #11 0180-064001-0010 — Limit Gasket
- #22 0180-065201-0010 — Washer, Driven Sector Gear
- #27 0010-013008-0010 — Bolt M6X35 Galvanized Trivalent Chromium
- #21 9010-320200-2000 — Gearshift Swing Arm Assy
- #06 0180-063005-0050 — Fork Spring, Thick
- #12 0180-064005 — Shift Drum
- #21 0180-065202-0050 — Shaft, Driven Sector Gear
- #19 0010-021017-0010 — Bolt M6X25 Galvanized Trivalent Chromium
