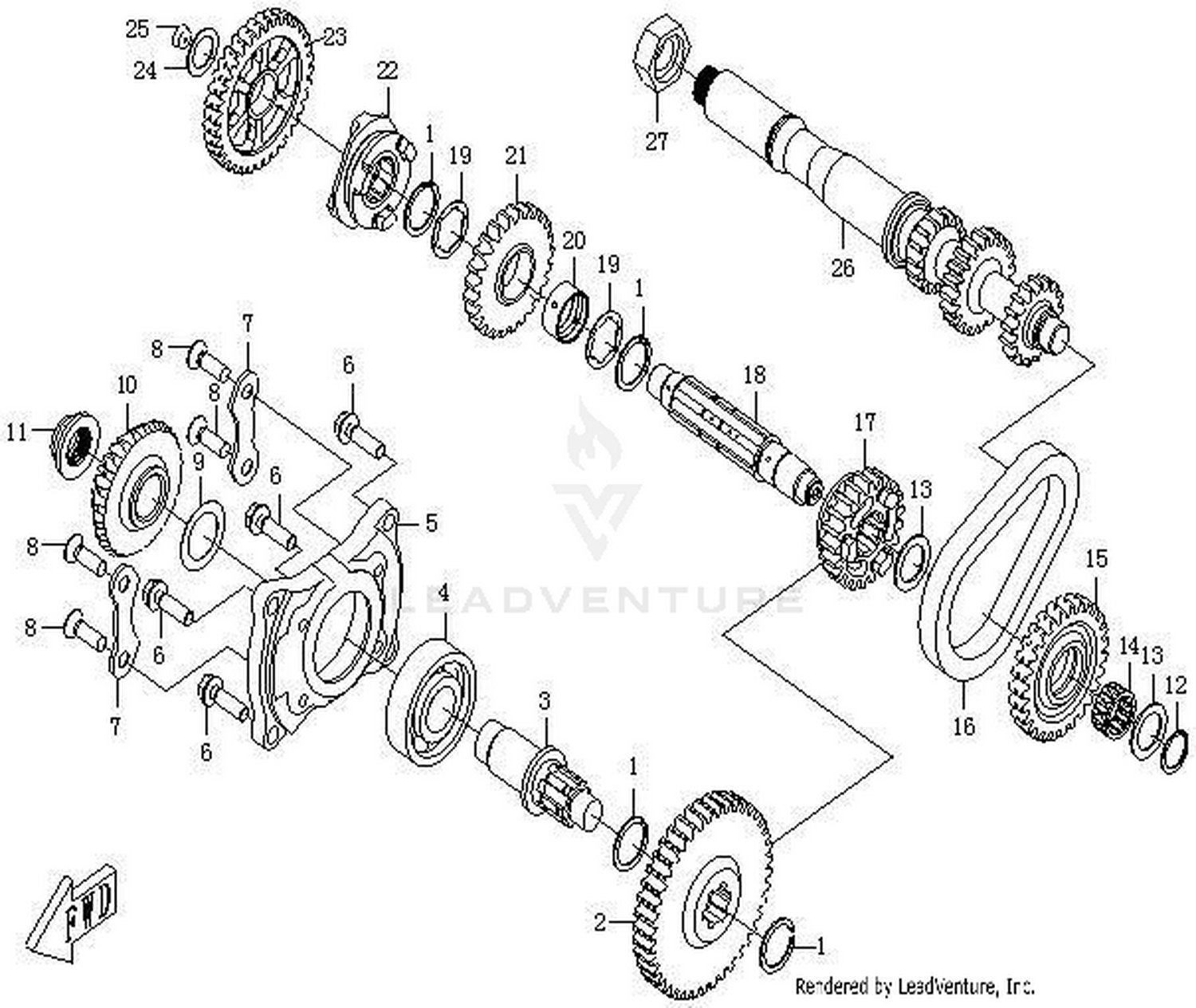

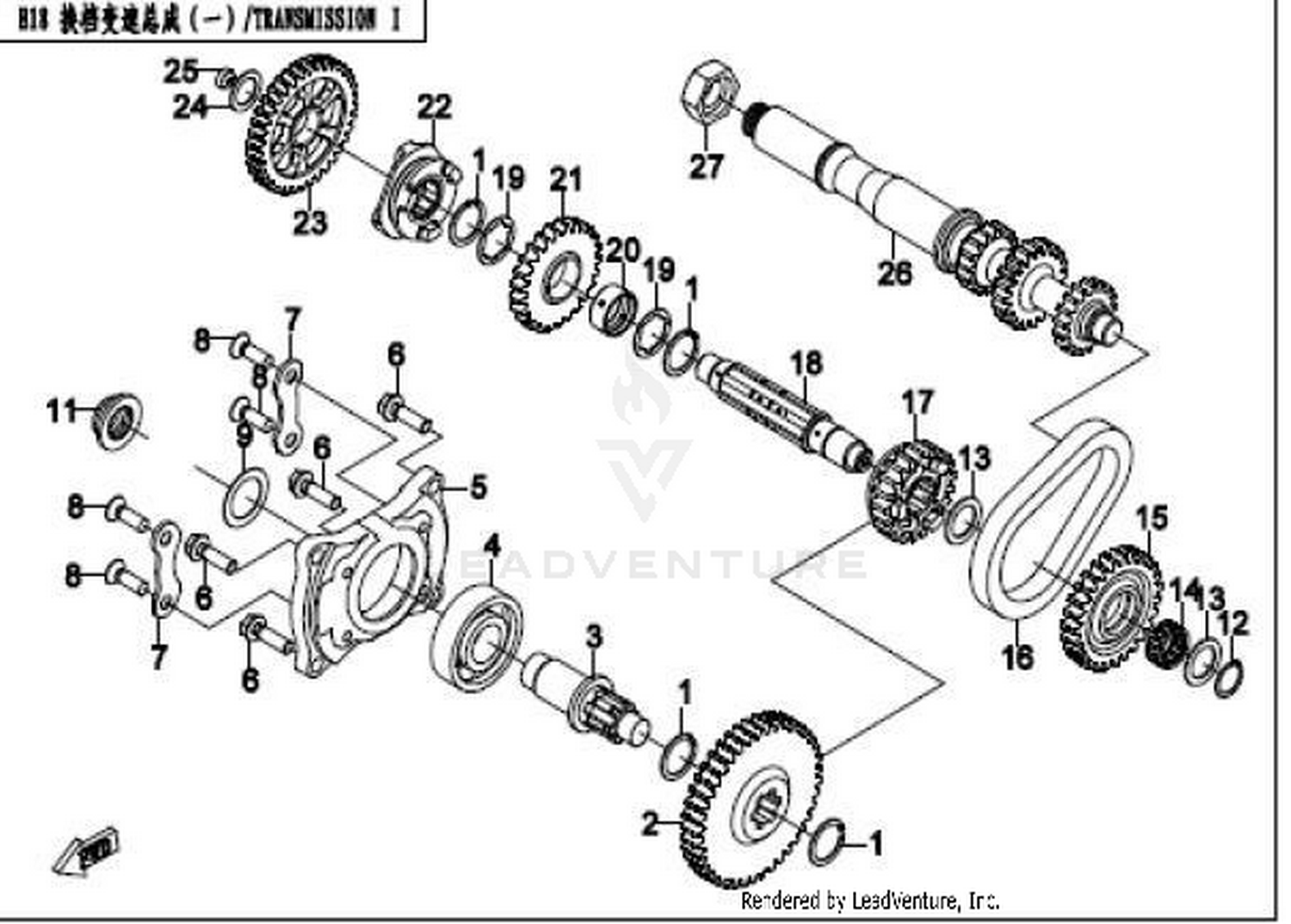

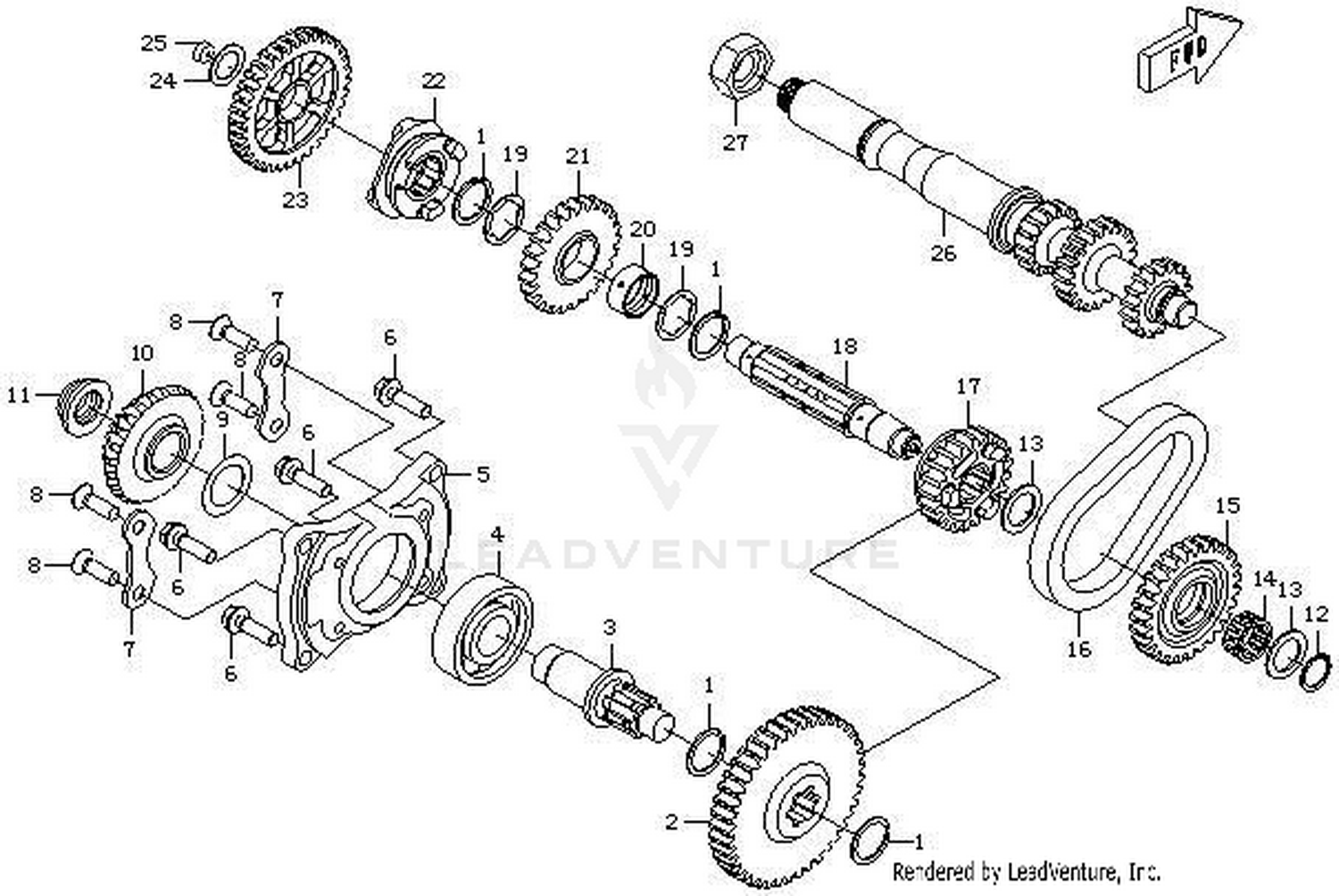

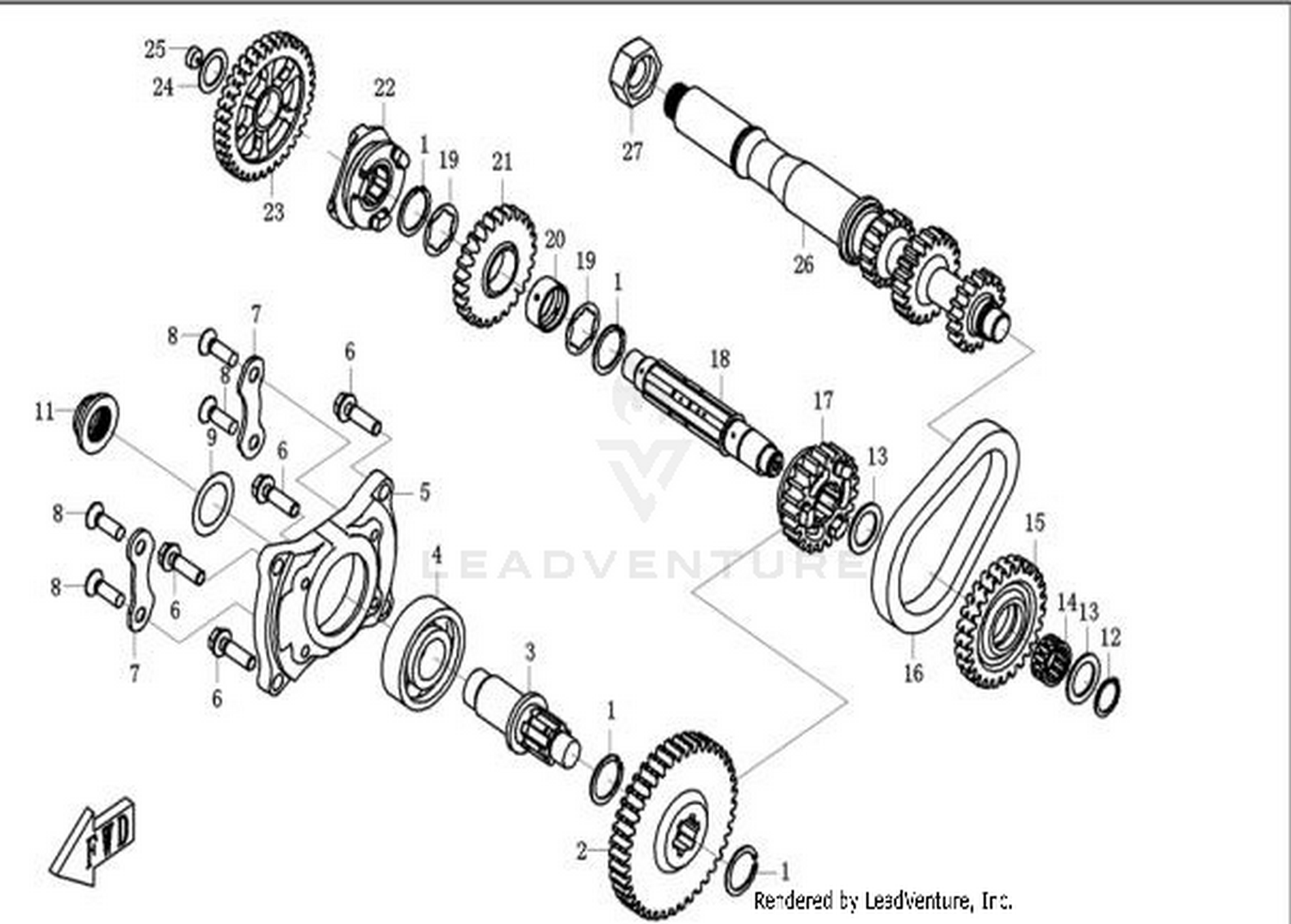

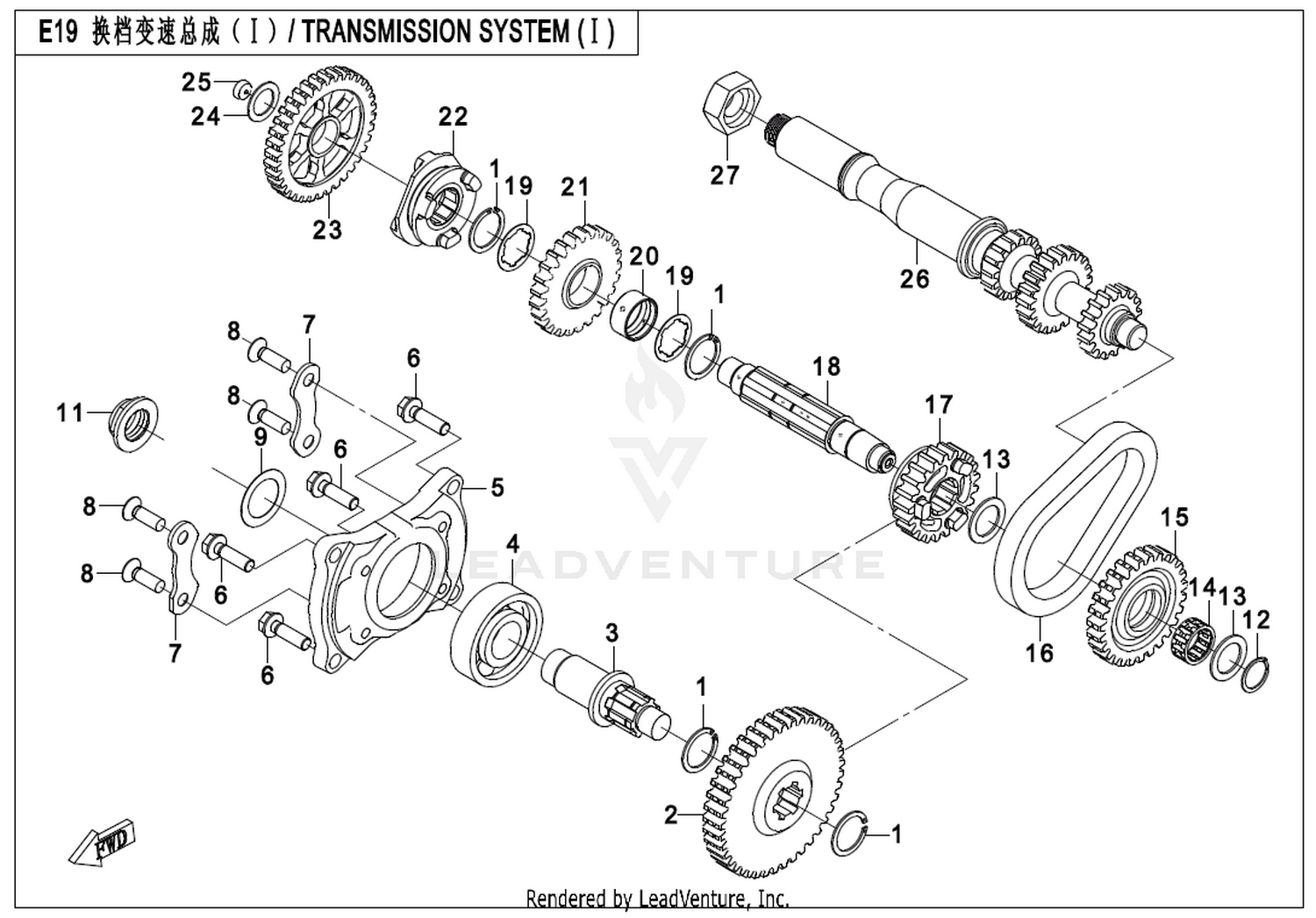

Location in exploded diagrams
Other parts on this diagram — Transmission System(1)
- #03 0180-062102-00001 — Output Driven Gear
- #07 30124-080025810 — Screw M8X25@Color Zinc-Plated
- #14 30400-02000 — Bearing 20×47×14
- #20 0180-061009 — Bushing, Driven High Range Gear
- #01 0180-062101 — Drive Bevel Gear Shaft
- #09 0180-062105 — Adjusting Gasket, Drive Bevel Gear T=0.15 T=0.15
- #15 0180-061013 — Reverse Sprocket
- #21 0180-061010 — Driven Gear, High Range
- #04 0180-060003-00001 — Nut, Main Drive Shaft
- #05 30499-02501 — Bearing 6305C3@Ntn
- #08 0180-0622A0-00001 — Bevel Gear Assy
- #16 0180-069000 — Reverse Gear Chain
- #22 0180-061006 — Gearshift Sliding Bushing
- #04 0180-062103-10000 — Bearing Seat, Drive Bevel Gear
- #11 0180-062107-00001 — Bevel Gear Lock Nut
- #17 0180-061011 — Output Gear, Countershaft
- #23 0180-061005 — Driven Gear, Low Range
- #08 0JYA-062104 — Bolt M8X28 M8X28
- #09 30801-02005 — Circlips For Shaft 20
- #18 0180-061001 — Driven Shaft
- #24 0180-061003-0010 — Gasket 17.5X26X1
- #02 0180-061007-0050 — Circlip 25 25
- #06 0180-062104-0010 — Limitator, Bearing
- #03 0180-061012 — Gasket 20.5X30X1.5
