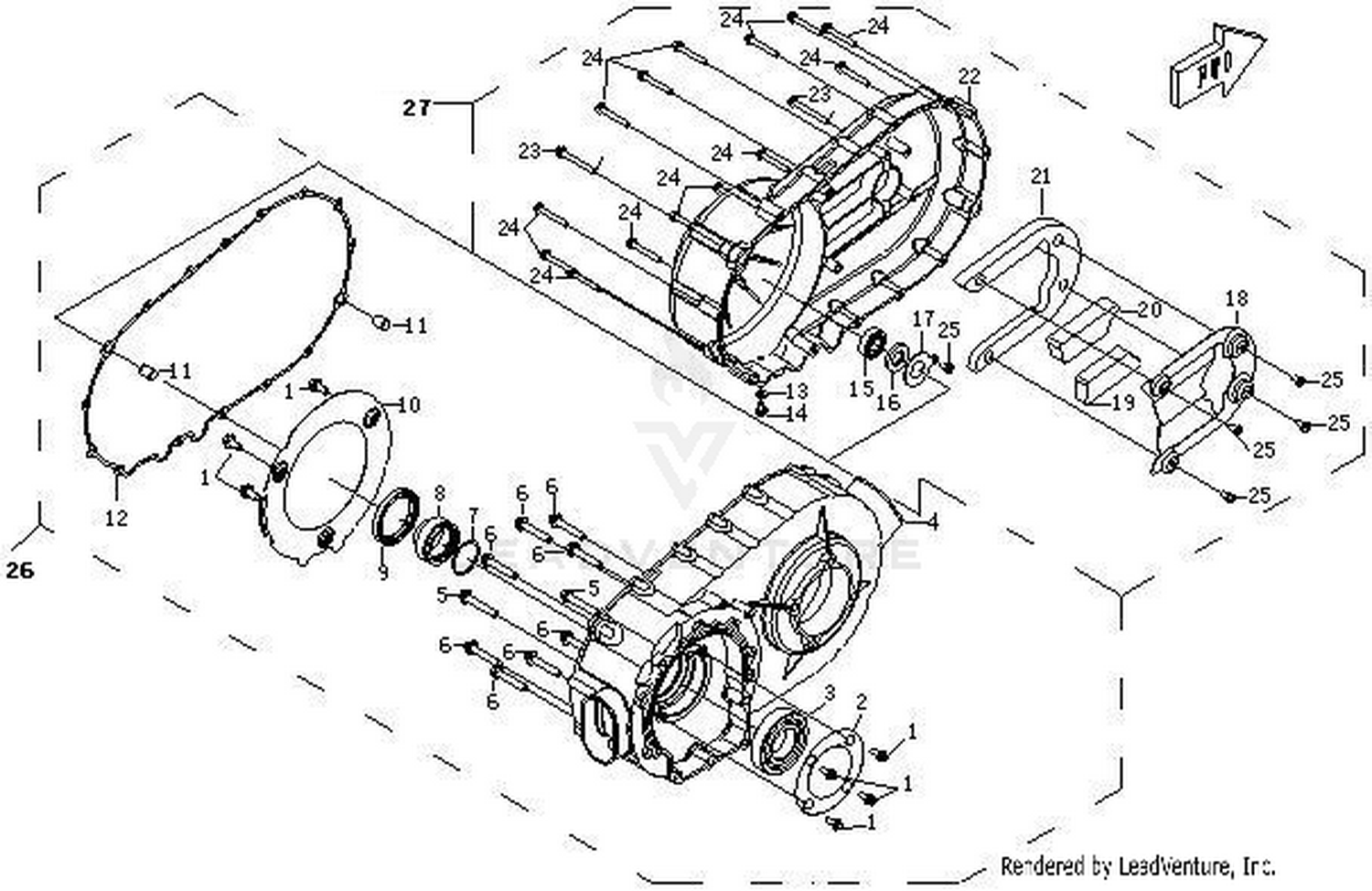

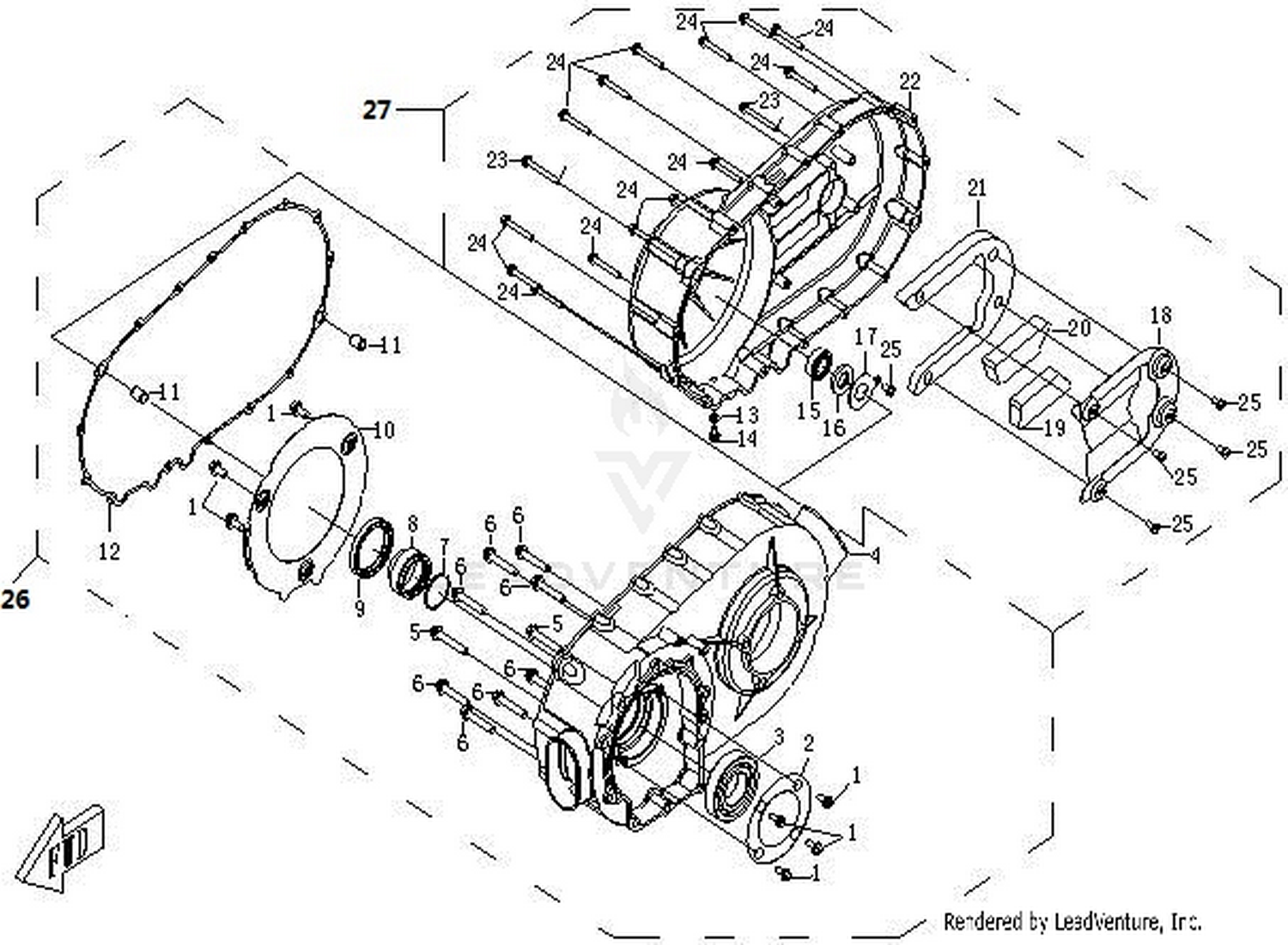

Location in exploded diagrams
Other parts on this diagram — Cvt Housing
- #03 30499-04001 — Bearing 6208
- #09 0180-013105 — Oil Seal 54X70X8
- #04 30400-01702 — Bearing 6003
- #26 0180-013100-0001 — Cvt Case Sub Assy For Cvtech
- #04 0180-013101-0080 — Cvt Case For Cvtech
- #10 0180-013102-0010 — Cvt Wind Guard
- #03 0180-013207 — Oil Seal 17X35X5
- #22 0180-013201-10000 — Cvt Cover
- #27 0180-013200-0001 — Cvt Cover Sub Assy. Goes
- #12 0040-012006-0010 — Bolt M8X50 Galvanized Trivalent Chromium
- #09 0180-011005 — Dowel Pin Dia 13X18 Dia13X18
- #02 0180-013206-0010 — Oil Seal Limitator
- #22 0180-013201-0B05 — Cvt Cover Black
- #27 0180-013200-10000 — Cvt Cover Sub Assy
- #06 0040-012005-0010 — Bolt M8X45 M8X45
- #12 0180-013103 — Gasket, Cvt Cover
- #18 0180-013205-0010 — Damper Plate
- #34 0010-021018-0010 — Bolt M6X55 Galvanized Trivalent Chromium
- #10 0010-021019-0010 — Bolt M6X12 Galvanized Trivalent Chromium
- #15 0180-022011 — O-Ring 40X2.4
- #11 0010-060009 — Washer 6 6
- #19 0180-013204 — Damper Rubber Block 2
- #20 0180-013208-0010 — Bolt M6X45 Galvanized Trivalent Chromium
- #02 0180-013108-0010 — Bearing Retainer, Cvt
