Location in exploded diagrams

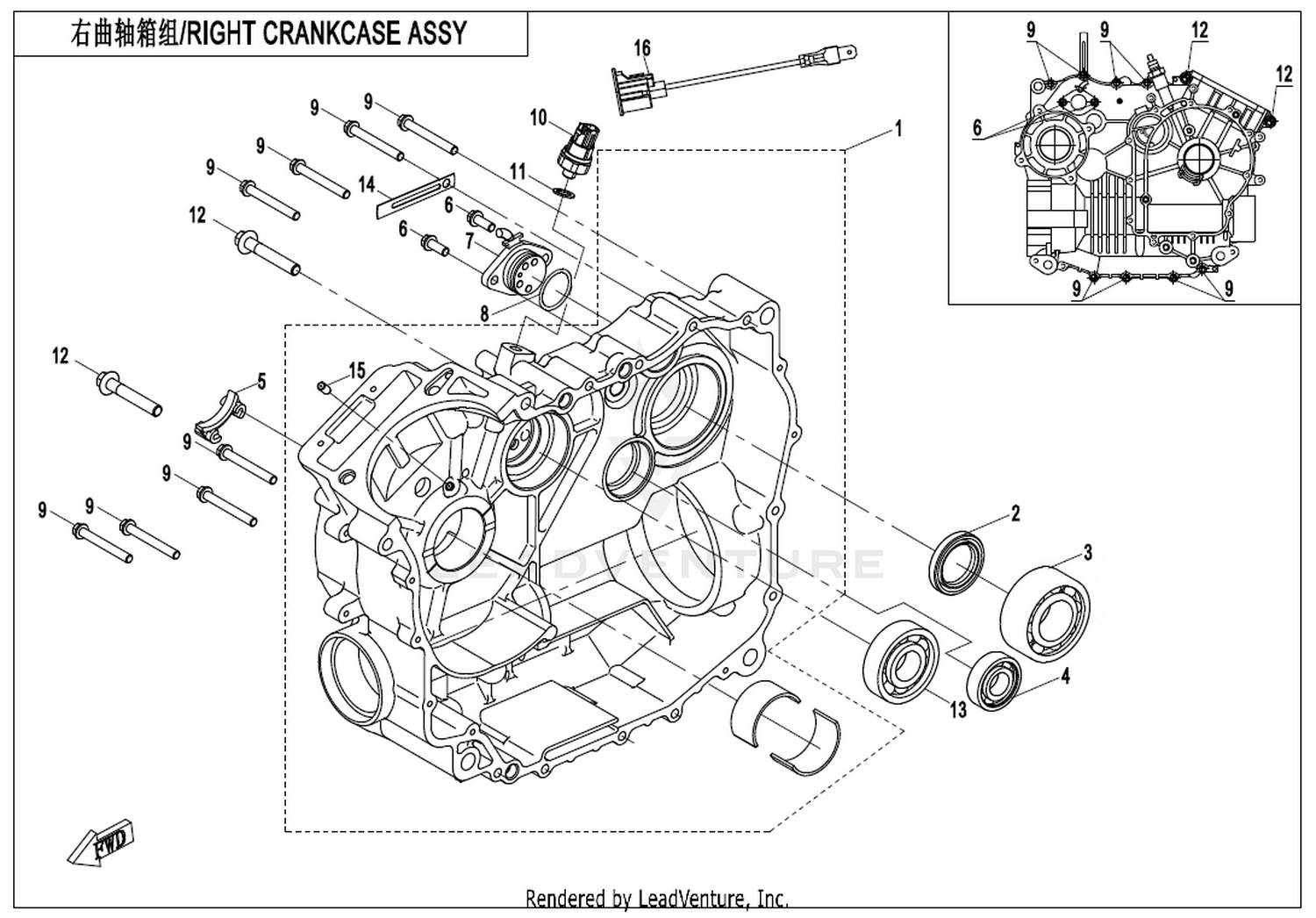

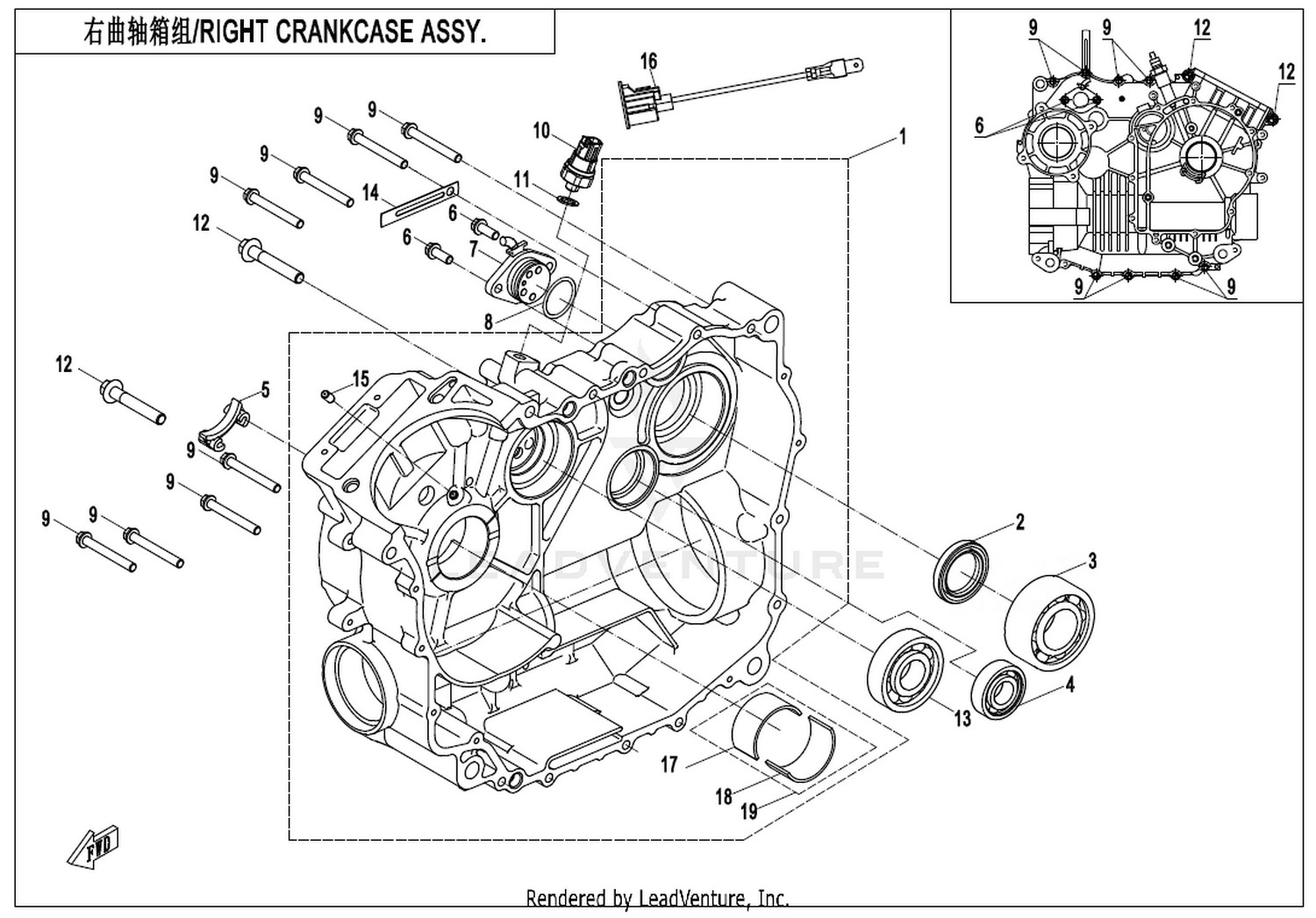

Other parts on this diagram — Right Crankcase Assy. 1
- #17 0800-012200 — Gear Sensor Ordinary Plug
- #13 30400-02201 — Bearing
- #03 30499-03000 — Bearing 5206
- #08 0180-023002 — O-Seal Ring 24X2.5
- #16 0180-014010 — Wire Clamp
- #04 30400-01704 — Bearing 10
- #09 0010-013010-0010 — Bolt M6X50 Galvanized Trivalent Chromium
- #15 01A0-011003 — Nozzle
- #05 0800-011007 — Chain Guard
- #10 0800-012400 — Oil Pressure Switch
- #16 0800-012401 — Oil Pressure Switch Adaptor Cable
- #06 0010-090005-0010 — Bolt M6X16 Galvanized Trivalent Chromium
- #05 0010-060010 — Washer 10 10
- #01 0GR0-012100-10000 — Rh Crankcase Assy
- #17 0800-012200-1000 — Gear Sensor Sumitomo Plug
- #12 0040-012006-0010 — Bolt M8X50 Galvanized Trivalent Chromium
