Verified fitment — 8 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
Location in exploded diagrams

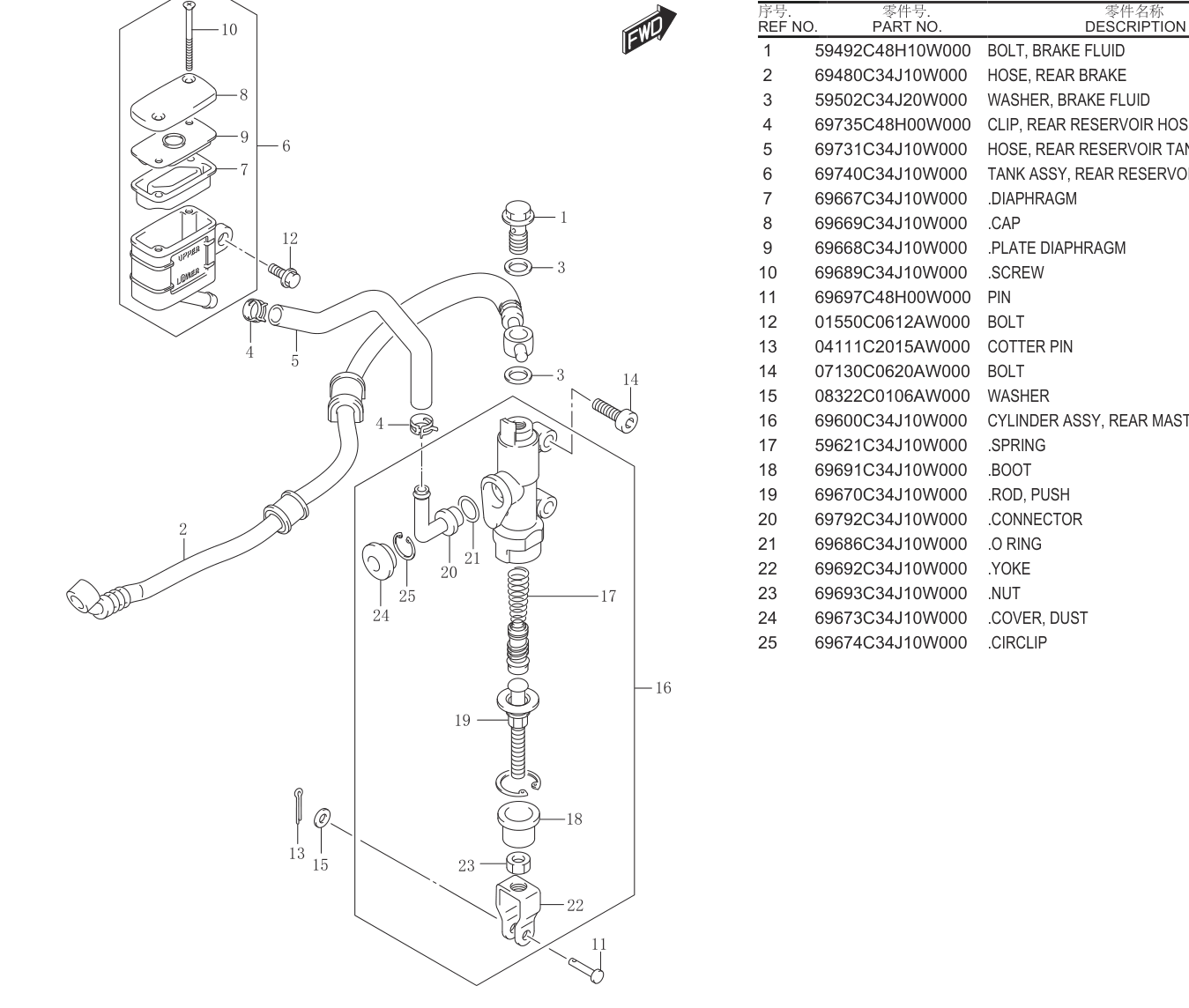

Other parts on this diagram — REAR MASTER CYLINDER.......... 73
- #10 69689C34J10W000 — .SCREW
- #11 69697C48H00W000 — PIN
- #1 59492C48H10W000 — BOLT, BRAKE FLUID
- #2 69480C34J10W000 — HOSE, REAR BRAKE
- #3 59502C34J20W000 — WASHER, BRAKE FLUID
- #4 69735C48H00W000 — CLIP, REAR RESERVOIR HOSE
- #5 69731C34J10W000 — HOSE, REAR RESERVOIR TANK
- #6 69740C34J10W000 — TANK ASSY, REAR RESERVOIR
- #7 69667C34J10W000 — .DIAPHRAGM
- #8 69669C34J10W000 — .CAP
- #13 04111C2015AW000 — COTTER PIN
- #14 07130C0620AW000 — BOLT
- #15 08322C0106AW000 — WASHER
- #19 69670C34J10W000 — .ROD, PUSH
- #20 69792C34J10W000 — .CONNECTOR
- #21 69686C34J10W000 — .O RING
- #22 69692C34J10W000 — .YOKE
- #23 69693C34J10W000 — .NUT
- #24 69673C34J10W000 — .COVER, DUST
- #16 69600C34J10W000 — CYLINDER ASSY, REAR MASTER
- #17 59621C34J10W000 — .SPRING
- #18 69691C34J10W000 — .BOOT
- #25 69674C34J10W000 — .CIRCLIP
- #9 69668C34J10W000 — .PLATE DIAPHRAGM
