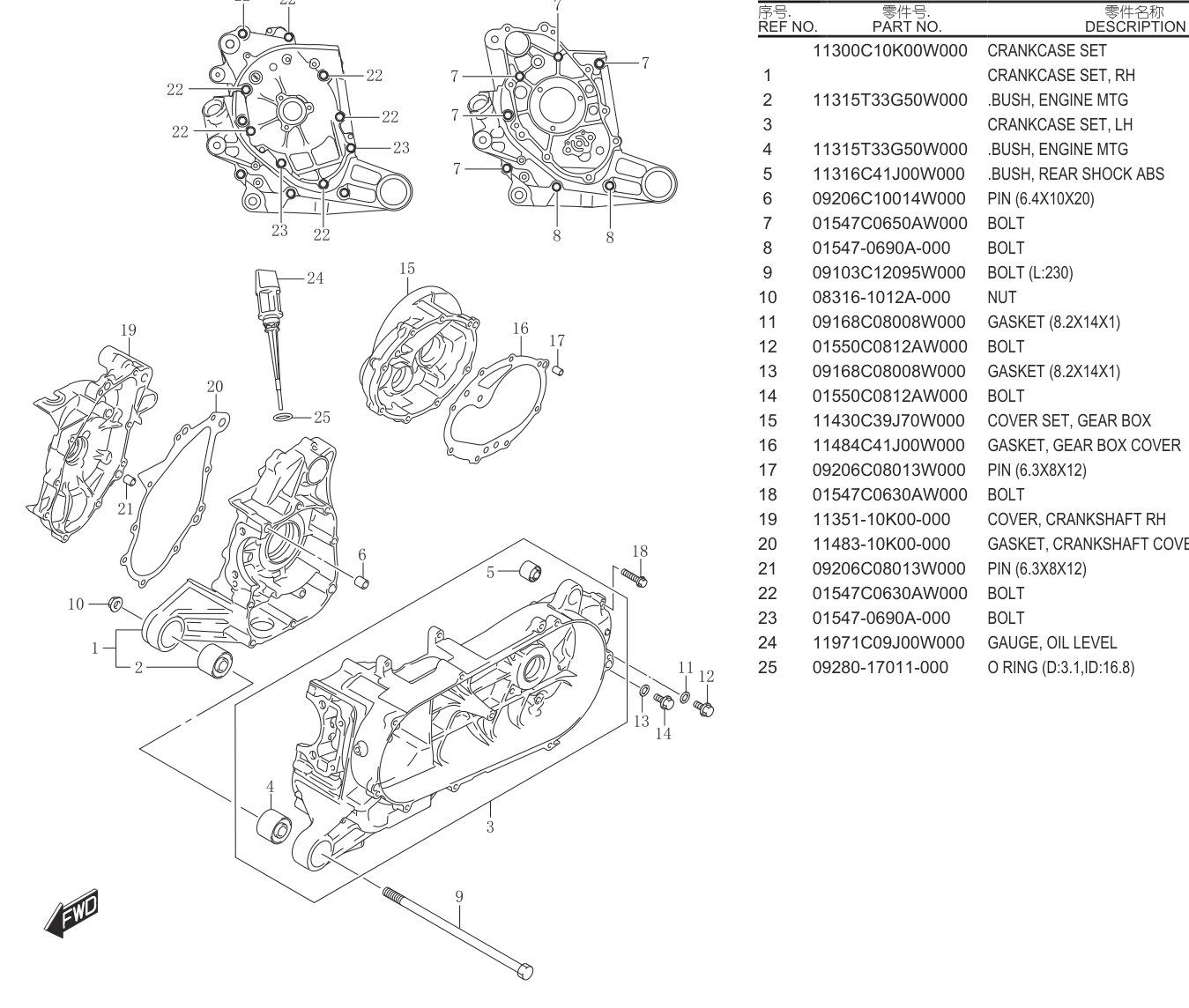

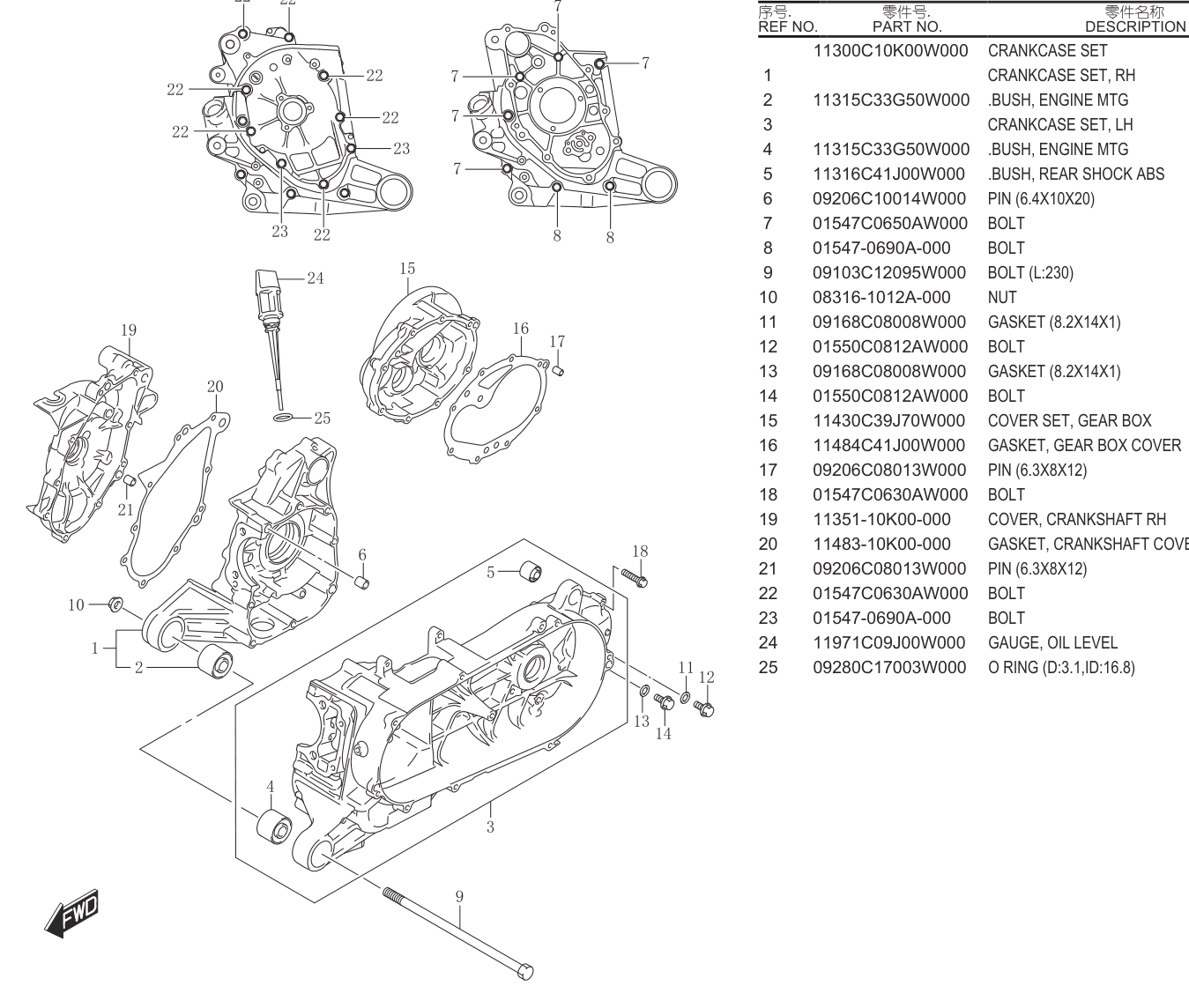

Location in exploded diagrams
Other parts on this diagram — 箱体
- #2 11315C33G50W000 — .BUSH, ENGINE MTG 3 CRANKCASE SET, LH 1
- #5 11316C41J00W000 — .BUSH, REAR SHOCK ABS
- #6 09206C10014W000 — PIN (6.4X10X20)
- #8 01547-0690A-000 — BOLT
- #9 09103C12095W000 — BOLT (L:230)
- #10 08316-1012A-000 — NUT
- #11 09168C08008W000 — GASKET (8.2X14X1)
- #16 11484C41J00W000 — GASKET, GEAR BOX COVER
- #17 09206C08008W000 — PIN (6.3X8X12)
- #18 01547C0630AW000 — BOLT
- #19 11351-10K00-000 — COVER, CRANKSHAFT RH
- #20 11483-10K00-000 — GASKET, CRANKSHAFT COVER RH
- #24 11971C09J00W000 — GAUGE, OIL LEVEL
- #25 09280C17011W000 — O RING (D:3.1,ID:16.8) 11300C10K00W000 CRANKCASE SET
- #12 01550C0812AW000 — BOLT
- #15 11430C39J70W000 — COVER SET, GEAR BOX
