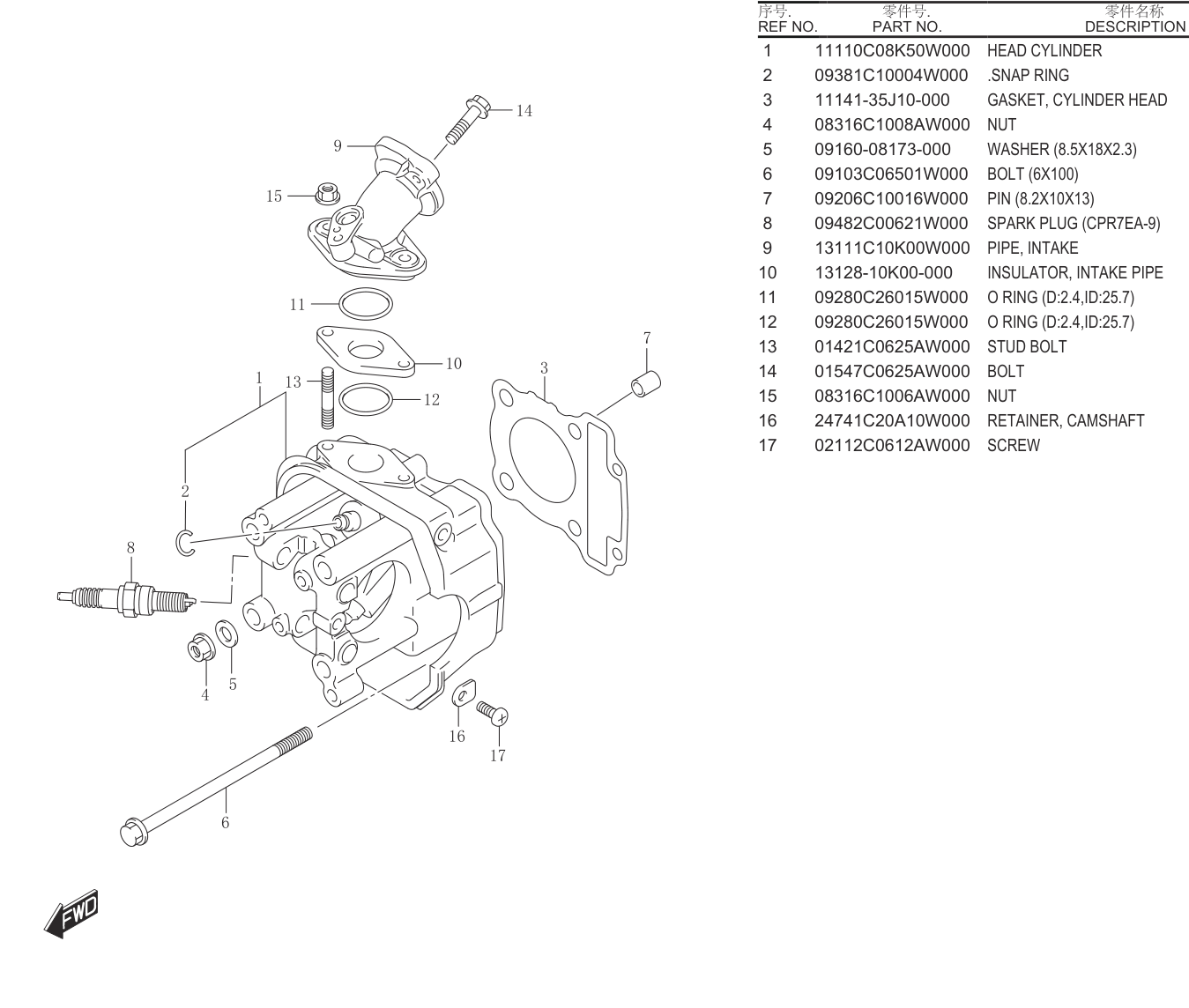

Location in exploded diagrams
Other parts on this diagram — 汽缸头
- #11 09280C26015W000 — O RING (D:2.4,ID:25.7)
- #13 01421C0625AW000 — STUD BOLT
- #1 11110C08K50W000 — HEAD CYLINDER
- #2 09381C10004W000 — .SNAP RING
- #3 11141-35J10-000 — GASKET, CYLINDER HEAD
- #4 08316C1008AW000 — NUT
- #5 09160-08173-000 — WASHER (8.5X18X2.3)
- #6 09103C06501W000 — BOLT (6X100)
- #15 08316C1006AW000 — NUT
- #7 09206C10016W000 — PIN (8.2X10X13)
- #8 09482C00621W000 — SPARK PLUG (CPR7EA-9)
- #9 13111C10K00W000 — PIPE, INTAKE
- #10 13128-10K00-000 — INSULATOR, INTAKE PIPE
- #16 24741C20A10W000 — RETAINER, CAMSHAFT
- #17 02112C0612AW000 — SCREW
