2025 CF MOTO 700 MT — Engine Hardware parts

MY market119 genuine parts12 diagrams

Part numbers

Every genuine engine hardware part fitted to the 2025 CF MOTO 700 MT. Each number opens its cross-reference & fitment page.

Part numberDescriptionDiagramPrice
6NT1-000221FRONT RH BUSHING, ENGINEFRAME ASSYEnquire
30001-102110110BOLTFRAME ASSYEnquire
6WWV-046702-5000INNER HEX SCREW M6x12FRAME ASSYEnquire
30105-040008470SCREWSTEERING SYSTEMEnquire
30137-250120010SCREWSTEERING SYSTEMEnquire
30105-040030410SCREWSTEERING SYSTEMEnquire
A000-100002CLUTCH CABLE CLIPSTEERING SYSTEMEnquire
30903-0403510COTTER PINREAR WHEELEnquire
30800-05205CIRCLIP FOR HOLEREAR WHEELEnquire
30020-102025410STUDREAR WHEELEnquire
6070-120400CLAMP(Φ14.5)FUEL TANKEnquire
30601-111010CLAMPFUEL TANKEnquire
6NTG-200424INNER HEX SCREW M6x25SEAT ASSYEnquire
30105-050014470SCREWFOOTRESTEnquire
30102-080025810SCREWFOOTRESTEnquire
30802-00603SPLIT WASHER 6FOOTRESTEnquire
30903-0322210COTTER PINFOOTRESTEnquire
30110-421130010SELF-TAPPING SCREWELECTRIC SYSTEMEnquire
30102-080020810SCREWLOCK KITEnquire
30102-050012810SCREWLOCK KITEnquire
CFCV-CAC002-2000-M1CLIPLOCK KITEnquire
30102-050008900INNER HEX SCREWLOCK KITEnquire
30102-050025900INNER HEX SCREWLOCK KITEnquire
CFCV-CBC005-2000-M1CLIPMUFFLEREnquire
A000-030001LH CLAMP, MAIN CABLEFRAME ASSYEnquire
30102-060012810SCREWFRAME ASSYEnquire
6NT1-000282REAR UPPER RUBBER BUSHING, ENGINEFRAME ASSYEnquire
6WWV-046802-5000INNER HEX SCREW M6x16FRAME ASSYEnquire
A000-040702INNER HEX SCREW M6x12GEARSHIFT LEVEREnquire
6WWV-046602-5000INNER HEX STEPPED SCREW M6x14PLASTICSⅠEnquire
8080-041130EXPANSION RIVET ASSYPLASTICSⅠEnquire
30102-080060810SCREWPLASTICS ⅡEnquire
6WWV-046502-5000STEPPED SCREW M5PLASTICS ⅡEnquire
30110-481130010SELF-TAPPING SCREWPLASTICS ⅢEnquire
9060-040310CLAMP ASSYPLASTICS ⅢEnquire
6WWV-046902-5000INNER HEX SCREW M6x20PLASTICS ⅣEnquire
6KMV-050003-M300UPPER TRIPLE CLAMP SCREWFRONT SUSPENSIONEnquire
A000-050018INNER HEX SCREW M8x35FRONT SUSPENSIONEnquire
A000-050011RUBBER PLUG 2FRONT SUSPENSIONEnquire
6NT1-060002DUST CAP,BIGREAR SUSPENSIONEnquire
6NT1-060003DUST CAP, SMALLREAR SUSPENSIONEnquire
A000-060002CHAIN GUARD SCREWREAR SUSPENSIONEnquire
30800-04205CIRCLIP FOR HOLE 42REAR SUSPENSIONEnquire
30800-04705CIRCLIP FOR HOLE 47FRONT WHEELEnquire
6NQ#-000206-6001INNER HEX SCREW M6x16BRAKE SYSTEMEnquire
6WWV-050009-5000SCREW M8x25STEERING SYSTEMEnquire
30110-480160010SELF-TAPPING SCREWLIGHTSEnquire
6GU#-150001-6000-M1CLASPLIGHTSEnquire
30601-110010CLAMPCOOLING SYSTEMEnquire
6AQV-180110-1000RESERVOIR CAPCOOLING SYSTEMEnquire
30601-212530CLAMP B12.5COOLING SYSTEMEnquire
A000-180006CLAMP B30COOLING SYSTEMEnquire
A000-180400WATER FILLING PORT CAP ASSYCOOLING SYSTEMEnquire
30102-080030810SCREWSIDE BOX BRACKETEnquire
30601-109010CLAMPFUEL VAPORIZATION SYSTEMEnquire
30601-108010CLAMPFUEL VAPORIZATION SYSTEMEnquire
30110-480200040SELF-TAPPING SCREW ST4.8x20-F-HAIR FILTEREnquire
30601-124020CLAMPAIR FILTEREnquire
0700-111011AIR INLET PIPE CLAMP ASSYAIR FILTEREnquire
30601-118010CLAMPAIR FILTEREnquire
0700-011102-00001STUD M10x57UPPER & LOWER CRANKCASEEnquire
0700-066006-00002OIL LIMIT PLUGUPPER & LOWER CRANKCASEEnquire
0700-012105-00001PLUG, MAIN OIL RAILUPPER & LOWER CRANKCASEEnquire
0HU0-011106PLUG, UPPER CRANKCASEUPPER & LOWER CRANKCASEEnquire
0180-014010WIRE CLAMPUPPER & LOWER CRANKCASEEnquire
0010-021019-0010BOLT M6x12UPPER & LOWER CRANKCASEEnquire
0700-066004-00001BOLT M7x30UPPER & LOWER CRANKCASEEnquire
0700-066007-00001BOLT M7x26UPPER & LOWER CRANKCASEEnquire
0700-011105-00002BOLTUPPER & LOWER CRANKCASEEnquire
0700-012012-00002SCREWUPPER & LOWER CRANKCASEEnquire
30601-211550CLAMPUPPER & LOWER CRANKCASEEnquire
0700-012104-00002SCREW PLUG M6, OIL PASSAGEUPPER & LOWER CRANKCASEEnquire
0700-022018SOLID PIN 8x14UPPER & LOWER CRANKCASEEnquire
0700-066005PLUG 6UPPER & LOWER CRANKCASEEnquire
0700-012007-00001BOLT M7x40UPPER & LOWER CRANKCASEEnquire
0700-012004-00002BOLTUPPER & LOWER CRANKCASEEnquire
0700-012003-00002BOLTUPPER & LOWER CRANKCASEEnquire
0700-012011-00001BOLT M8x50UPPER & LOWER CRANKCASEEnquire
0700-012009-00001BOLT M7x34UPPER & LOWER CRANKCASEEnquire
0700-012005-00001BOLT M7x47UPPER & LOWER CRANKCASEEnquire
0700-011001-00001BOLTUPPER & LOWER CRANKCASEEnquire
0700-011002-00001BOLT M8x120UPPER & LOWER CRANKCASEEnquire
0700-012001-00003BOLT M9x113UPPER & LOWER CRANKCASEEnquire
0700-012008-00002BOLT M9x83UPPER & LOWER CRANKCASEEnquire
01A0-056004DOWEL PIN Φ6×12UPPER & LOWER CRANKCASEEnquire
0180-011500MAGNETIC DRAIN BOLTOIL PANEnquire
0010-021017-0010BOLT M6x25OIL PANEnquire
0010-023010-0010BOLT M6x20CYLINDER HEAD COVEREnquire
0HU0-022002INNER HEX SCREW M6x30CYLINDER HEAD (1)Enquire
30102-060016810SCREWCYLINDER HEAD (1)Enquire
0180-022003-00002STUDCYLINDER HEAD (1)Enquire
0010-080008DOWEL PINCYLINDER HEAD (1)Enquire
0700-022236PLUG, PT1/2CYLINDER HEAD (1)Enquire
0700-022204HEX FLANGE BOLT M6x45CYLINDER HEAD (1)Enquire
0700-022330CLAMP, AIR INLET PIPECYLINDER HEAD (1)Enquire
0HU0-022009-0BP00THERMOSTAT CAP (MAUD SPIRIT BLACK)CYLINDER HEAD (1)Enquire
0700-022004LOCK CLIP, VALVECYLINDER HEAD (2)Enquire
0060-030003-00001INNER HEX BOLTCYLINDER BODYEnquire
0700-023003-00002BOLTCYLINDER BODYEnquire
0700-023005RESTRICTION PLUGCYLINDER BODYEnquire
30004-060010150BOLT M6x10CAMSHAFTEnquire
0MQ0-024001SCREW PLUG M16x14CAMSHAFTEnquire
0A70-012007PLUGCAMSHAFTEnquire
0110-090009-00002INNER HEX SCREWMAGNETOEnquire
0700-040001-20000BOLT M12x1.25x45MAGNETOEnquire
0010-090006-00001SCREWMAGNETOEnquire
0700-012013-00002BOLTCRANKSHAFT &CONNECTING ROD (2)Enquire
0700-040003-00001BOLT M8x23CRANKSHAFT &CONNECTING ROD (2)Enquire
0700-061003CIRCLIP 20CLUTCH (SLIPPING CLUTCH)Enquire
0700-066010-00001SCREW, BEARING PLATETRANSMISSION SYSTEM (1)Enquire
30128-060040700SCREW M6X40-HTRANSMISSION SYSTEM (1)Enquire
30801-03005CIRCLIP30 S=1.5TRANSMISSION SYSTEM (2)Enquire
0180-014009-00001SCREW, PRESS PLATETRANSMISSION SYSTEM (2)Enquire
0700-061016CIRCLIPS FOR SHAFT20TRANSMISSION SYSTEM (2)Enquire
0700-061009CIRCLIPS FOR SHAFT28TRANSMISSION SYSTEM (2)Enquire
0700-012106-00002OIL FILTER BOLTLUBRICATION SYSTEMEnquire
30406-00400ROLLER PINLUBRICATION SYSTEMEnquire
0700-070005BOLT M6×20(LH)LUBRICATION SYSTEMEnquire
0700-070002-00001SCREW M6x9LUBRICATION SYSTEMEnquire

Exploded diagrams — Engine Hardware

2025 CF MOTO 700 MT UPPER & LOWER CRANKCASE exploded diagram
UPPER & LOWER CRANKCASE · 25
2025 CF MOTO 700 MT CYLINDER HEAD (1) exploded diagram
CYLINDER HEAD (1) · 10
2025 CF MOTO 700 MT FRAME ASSY exploded diagram
FRAME ASSY · 7
2025 CF MOTO 700 MT COOLING SYSTEM exploded diagram
COOLING SYSTEM · 6
2025 CF MOTO 700 MT AIR FILTER exploded diagram
AIR FILTER · 6
2025 CF MOTO 700 MT LUBRICATION SYSTEM exploded diagram
LUBRICATION SYSTEM · 6
2025 CF MOTO 700 MT STEERING SYSTEM exploded diagram
STEERING SYSTEM · 5

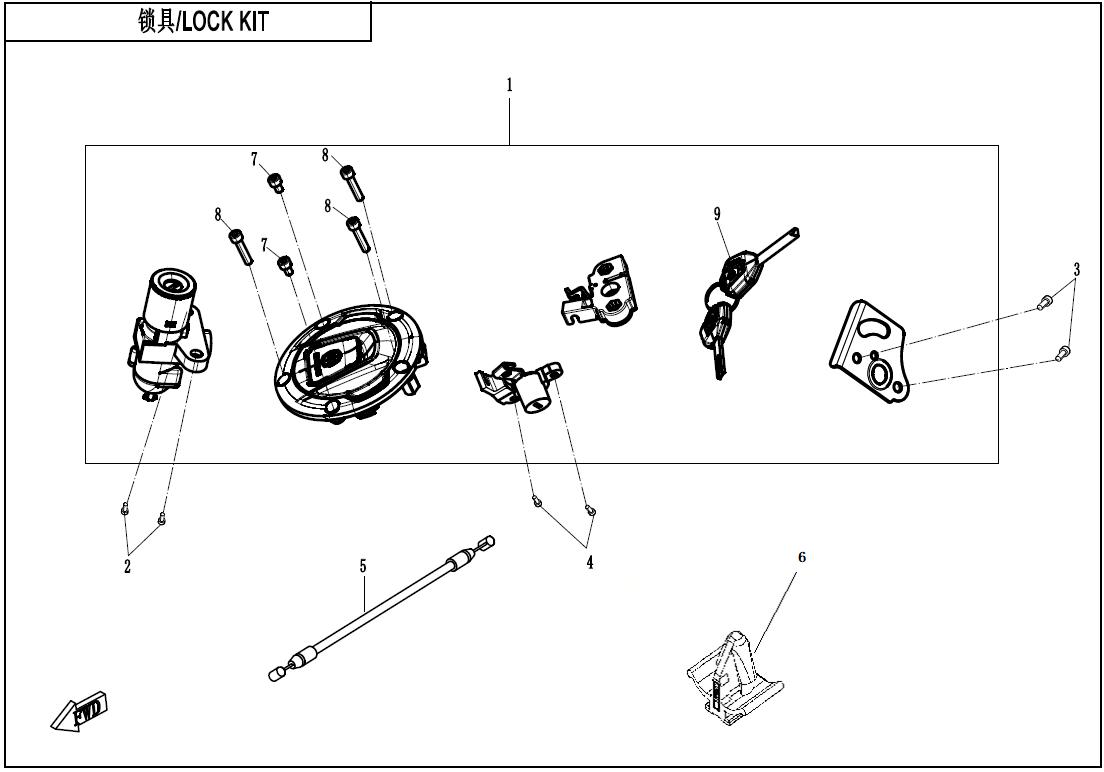

2025 CF MOTO 700 MT LOCK KIT exploded diagram
LOCK KIT · 5
2025 CF MOTO 700 MT PLASTICSⅠ exploded diagram
PLASTICSⅠ · 5

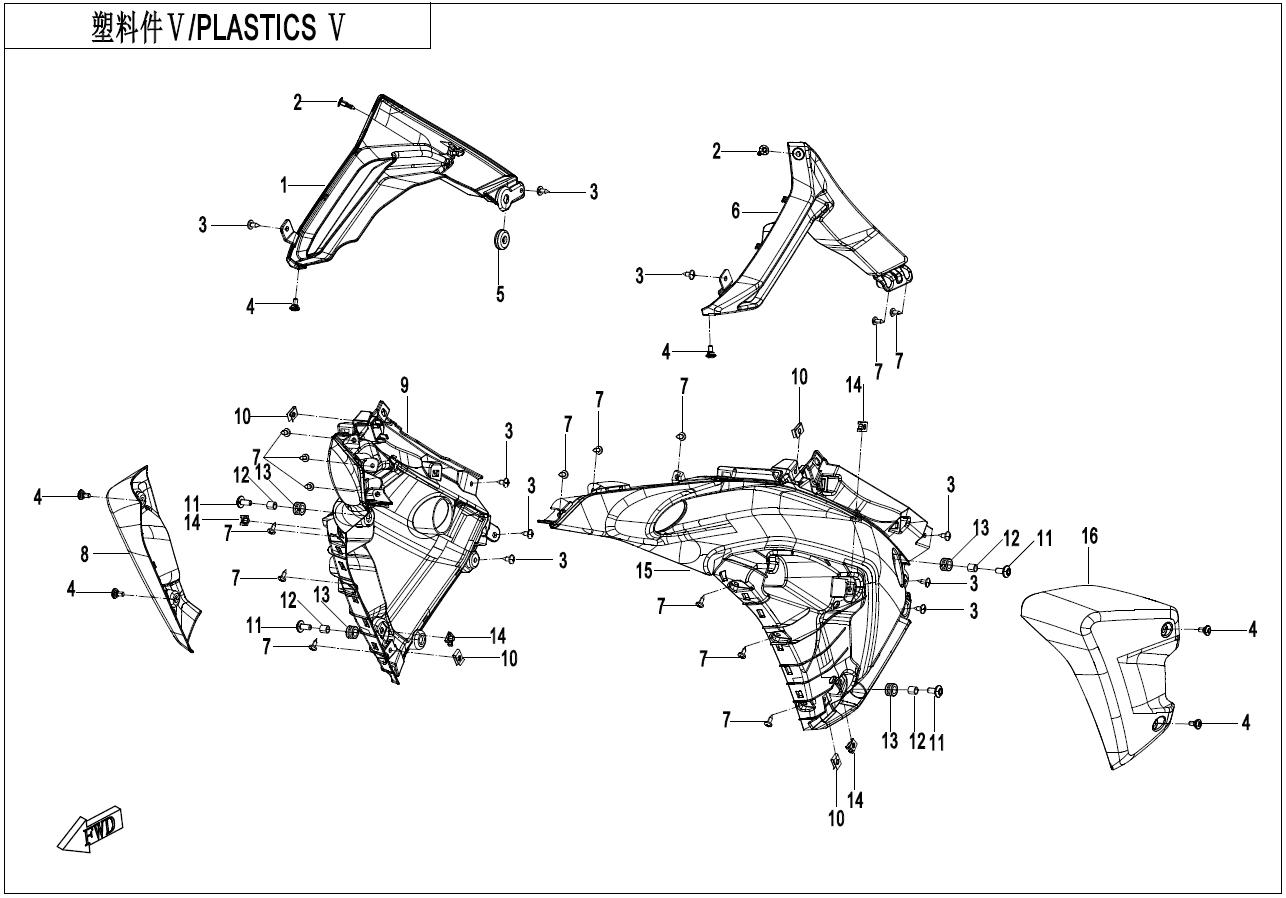

2025 CF MOTO 700 MT PLASTICS Ⅴ exploded diagram
PLASTICS Ⅴ · 5
2025 CF MOTO 700 MT PLASTICS Ⅵ exploded diagram
PLASTICS Ⅵ · 5
2025 CF MOTO 700 MT FOOTREST exploded diagram
FOOTREST · 4
