2022 CF MOTO 650MT — Engine Hardware parts
MY market132 genuine parts12 diagrams
Part numbers
Every genuine engine hardware part fitted to the 2022 CF MOTO 650MT. Each number opens its cross-reference & fitment page.
| Part number | Description | Diagram | Price | |
|---|---|---|---|---|
| 0700-022018 | SOLID PIN 8x14 | CYLINDER BODY ASSY | Enquire | |
| 6NT1-000120 | RH BRACKET, LOWER BASE PLATE | ENGINE FITTINGS (FOR PLASTIC LOWER GUARD) | Enquire | |
| A000-060002 | CHAIN GUARD SCREW | ENGINE FITTINGS (FOR PLASTIC LOWER GUARD) | Enquire | |
| 6NT1-000110 | LH BRACKET, LOWER BASE PLATE | ENGINE FITTINGS (FOR PLASTIC LOWER GUARD) | Enquire | |
| 6NT1-000221 | FRONT RH BUSHING, ENGINE | ENGINE FITTINGS (FOR PLASTIC LOWER GUARD) | Enquire | |
| 30001-102110110 | BOLT | ENGINE FITTINGS (FOR PLASTIC LOWER GUARD) | Enquire | |
| 6NT1-000210-0BB00 | FRONT BRACKET, ENGINE | ENGINE FITTINGS (FOR PLASTIC LOWER GUARD) | Enquire | |
| 6NT1-000282 | REAR UPPER RUBBER BUSHING, ENGINE | ENGINE FITTINGS (FOR PLASTIC LOWER GUARD) | Enquire | |
| 30105-050012410 | SCREW | LOCK KIT | Enquire | |
| 30102-060020810 | SCREW | LOCK KIT | Enquire | |
| A000-020600 | CLAMP 2 | MUFFLER | Enquire | |
| A000-030001 | LH CLAMP, MAIN CABLE | FRAME | Enquire | |
| 30102-060012810 | SCREW | FRAME | Enquire | |
| 6KM#-040702-8000 | SCREW | FRAME | Enquire | |
| 6NQ#-000206-6001 | INNER HEX SCREW M6x16 | FRAME | Enquire | |
| 30110-420130070 | SELF-TAPPING SCREW | FRAME | Enquire | |
| 6NT1-041402-0V100 | RH BRACKET, WINDSHIELD SILVER WHITE | PLASTICS 1 (BIG WINDSHIELD) | Enquire | |
| A010-100102 | INNER HEX SCREW M4x8 | PLASTICS 1 (BIG WINDSHIELD) | Enquire | |
| 6NT1-041302-0V100 | LH BRACKET, WINDSHIELD SILVER WHITE | PLASTICS 1 (BIG WINDSHIELD) | Enquire | |
| 30110-481130010 | SELF-TAPPING SCREW | PLASTICS 2 | Enquire | |

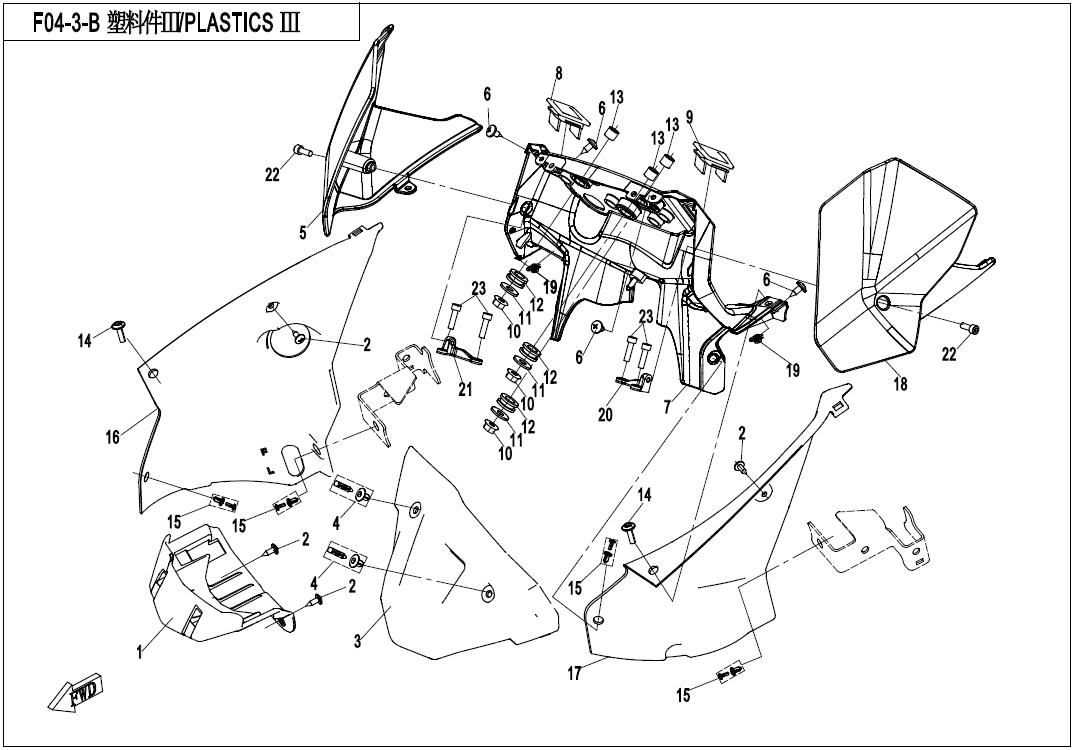

| 8080-041130 | EXPANSION RIVET ASSY | PLASTICS 3 (BIG WINDSHIELD) | Enquire | |
| A000-040703 | INNER HEX SCREW | PLASTICS 3 (BIG WINDSHIELD) | Enquire | |
| 9060-040310 | CLAMP ASSY | PLASTICS 3 (BIG WINDSHIELD) | Enquire | |
| 30102-060016810 | SCREW | PLASTICS 3 (BIG WINDSHIELD) | Enquire | |
| 9060-040312 | SEAT, PLASTIC CLIP | PLASTICS 5 | Enquire | |
| 9060-040311 | PLASTIC CLIP | PLASTICS 5 | Enquire | |
| A000-040202 | INNER HEX SCREW M5x14 | PLASTICS 5 | Enquire | |
| 8030-040020-1000 | SCREW M6x17.5 | PLASTICS 6 | Enquire | |
| 6KM#-040082-8000 | SCREW KIT M5 | PLASTICS 6 | Enquire | |

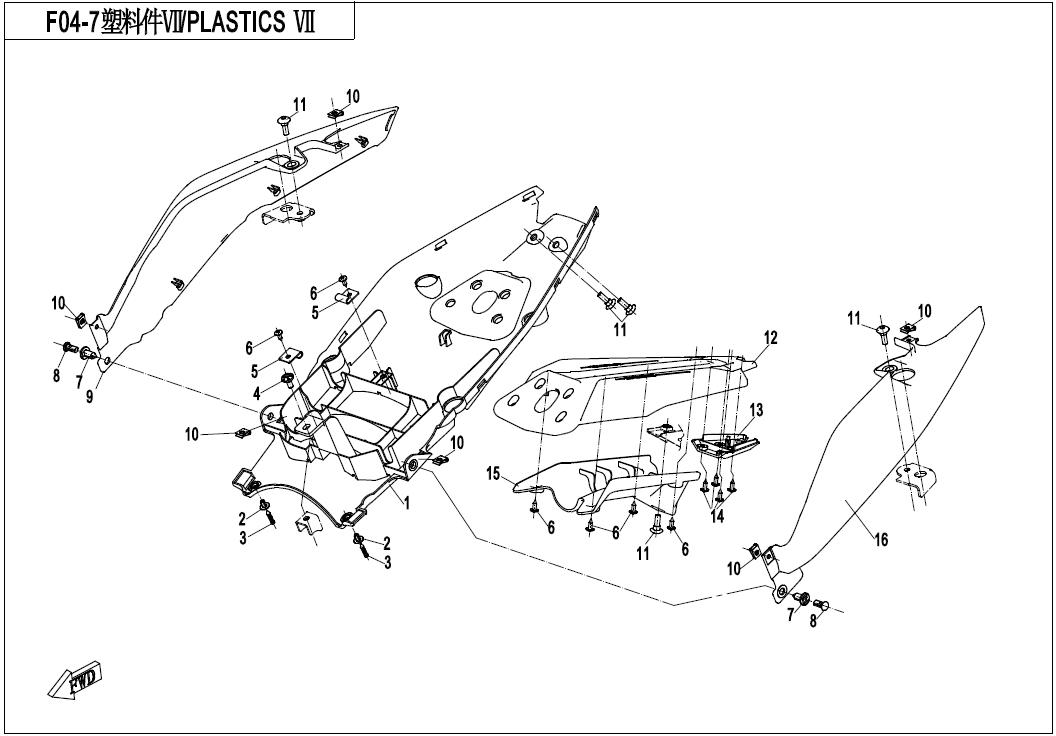

| 30110-420095010 | SELF-TAPPING SCREW | PLASTICS 7 | Enquire | |
| A000-050018 | INNER HEX SCREW M8x35 | FRONT SUSPENSION | Enquire | |
| 6NTA-050003 | LOCK SCREW, UPPER TRIPLE CLAMP | FRONT SUSPENSION | Enquire | |
| 6NTA-100118-0B200 | CLIP MATTE BLACK | FRONT SUSPENSION | Enquire | |
| 6NTV-050001-B100 | UPPER TRIPLE CLAMP | FRONT SUSPENSION | Enquire | |
| A000-050011 | RUBBER PLUG 2 | FRONT SUSPENSION | Enquire | |
| 30800-04205 | CIRCLIP FOR HOLE 42 | REAR SUSPENSION | Enquire | |
| 6NT1-060002 | DUST CAP,BIG | REAR SUSPENSION | Enquire | |
| A000-040702 | INNER HEX SCREW M6x12 | REAR SUSPENSION | Enquire | |
| 6NT1-060003 | DUST CAP, SMALL | REAR SUSPENSION | Enquire | |
| 30102-080025810 | SCREW | REAR BRAKE | Enquire | |
| 30102-080030810 | SCREW | STEERING SYSTEM (WITHOUT HAND GUARD) | Enquire | |
| 30805-02005 | CIRCLIP 20 | STEERING SYSTEM (WITHOUT HAND GUARD) | Enquire | |
| A000-100002 | CLUTCH CABLE CLIP | STEERING SYSTEM (WITHOUT HAND GUARD) | Enquire | |
| 30020-102025410 | STUD | REAR WHEEL | Enquire | |
| 30800-05205 | CIRCLIP FOR HOLE | REAR WHEEL | Enquire | |
| 30903-0403510 | COTTER PIN | REAR WHEEL | Enquire | |
| 6070-120400 | CLAMP(Φ14.5) | FUEL TANK | Enquire | |
| 30601-111010 | CLAMP | FUEL TANK | Enquire | |
| 30105-050016410 | SCREW M5X16 | FOOTREST & REAR HANDRAIL | Enquire | |
| 30802-00603 | SPLIT WASHER 6 | FOOTREST & REAR HANDRAIL | Enquire | |
| 6WWV-030080-8000 | CLIP | ELECTRIC SYSTEM | Enquire | |
| 30118-420130010 | SELF-TAPPING SCREW. ST4.2X13 | ELECTRIC SYSTEM | Enquire | |
| 30601-212530 | CLAMP B12.5 | COOLING SYSTEM | Enquire | |
| 30601-207050 | CLAMP B7 | COOLING SYSTEM | Enquire | |
| 6KJ0-180302 | RESERVOIR CAP | COOLING SYSTEM | Enquire | |
| A000-180400 | WATER FILLING PORT CAP ASSY | COOLING SYSTEM | Enquire | |
| A000-180006 | CLAMP B30 | COOLING SYSTEM | Enquire | |
| 30102-080045810 | SCREW | SIDE BOXES | Enquire | |
| 30102-060025810 | SCREW M6X25 | SIDE BOXES | Enquire | |
| 6NT1-250001-0BP00 | COVER, CLAMP BRACKET MAUD SPIRIT BLACK | FRONT BUMPER ASSY | Enquire | |
| 30102-080020870 | SCREW | FRONT BUMPER ASSY | Enquire | |
| 30601-108010 | CLAMP | FUEL VAPORIZATION SYSTEM | Enquire | |
| 30601-109010 | CLAMP | FUEL VAPORIZATION SYSTEM | Enquire | |
| 30601-112010 | CLAMP | FUEL VAPORIZATION SYSTEM | Enquire | |
| 30110-480200040 | SELF-TAPPING SCREW ST4.8x20-F-H | AIR FILTER ASSY | Enquire | |
| 30601-124020 | CLAMP | AIR FILTER ASSY | Enquire | |
| 30601-110010 | CLAMP | AIR FILTER ASSY | Enquire | |
| 0700-111011 | AIR INLET PIPE CLAMP ASSY | AIR FILTER ASSY | Enquire | |
| 30601-118010 | CLAMP | AIR FILTER ASSY | Enquire | |
| 0700-011102-00001 | STUD M10x57 | UPPER & LOWER CRANKCASE ASSY | Enquire | |
| 0700-066006-00002 | OIL LIMIT PLUG | UPPER & LOWER CRANKCASE ASSY | Enquire | |
| 0700-012105-00001 | PLUG, MAIN OIL RAIL | UPPER & LOWER CRANKCASE ASSY | Enquire | |
| 0700-011106 | PLUG, UPPER CRANKCASE | UPPER & LOWER CRANKCASE ASSY | Enquire | |
| 0010-021019-0010 | BOLT M6x12 | UPPER & LOWER CRANKCASE ASSY | Enquire | |
| 0700-066004-00001 | BOLT M7x30 | UPPER & LOWER CRANKCASE ASSY | Enquire | |
| 0700-066007-00001 | BOLT M7x26 | UPPER & LOWER CRANKCASE ASSY | Enquire | |
| 0700-011105-00002 | BOLT | UPPER & LOWER CRANKCASE ASSY | Enquire | |
| 0700-012012-00002 | SCREW | UPPER & LOWER CRANKCASE ASSY | Enquire | |
| 30601-211550 | CLAMP | UPPER & LOWER CRANKCASE ASSY | Enquire | |
| 0700-012104-00002 | SCREW PLUG M6, OIL PASSAGE | UPPER & LOWER CRANKCASE ASSY | Enquire | |
| 0700-066005 | PLUG 6 | UPPER & LOWER CRANKCASE ASSY | Enquire | |
| 0700-012007-00001 | BOLT M7x40 | UPPER & LOWER CRANKCASE ASSY | Enquire | |
| 0700-012004-00002 | BOLT | UPPER & LOWER CRANKCASE ASSY | Enquire | |
| 0700-012003-00002 | BOLT | UPPER & LOWER CRANKCASE ASSY | Enquire | |
| 0700-012011-00001 | BOLT M8x50 | UPPER & LOWER CRANKCASE ASSY | Enquire | |
| 0700-012009-00001 | BOLT M7x34 | UPPER & LOWER CRANKCASE ASSY | Enquire | |
| 0700-012005-00001 | BOLT M7x47 | UPPER & LOWER CRANKCASE ASSY | Enquire | |
| 0700-011001-00001 | BOLT | UPPER & LOWER CRANKCASE ASSY | Enquire | |
| 0700-011002-00001 | BOLT M8x120 | UPPER & LOWER CRANKCASE ASSY | Enquire | |
| 0700-012001-00003 | BOLT M9x113 | UPPER & LOWER CRANKCASE ASSY | Enquire | |
| 0700-012008-00002 | BOLT M9x83 | UPPER & LOWER CRANKCASE ASSY | Enquire | |
| 01A0-056004 | DOWEL PIN Φ6×12 | UPPER & LOWER CRANKCASE ASSY | Enquire | |
| 0010-023010-0010 | BOLT M6x20 | RIGHT & LEFT SIDE COVER | Enquire | |
| 0700-013008 | OIL FILLING PLUG | RIGHT & LEFT SIDE COVER | Enquire | |
| 30128-060016830 | SCREW | RIGHT & LEFT SIDE COVER | Enquire | |
| 0010-080008 | DOWEL PIN | RIGHT & LEFT SIDE COVER | Enquire | |
| 0700-013003-10000 | HOLE CAP, TIMING INSPECTION | RIGHT & LEFT SIDE COVER | Enquire | |
| 0010-021017-0010 | BOLT M6x25 | RIGHT & LEFT SIDE COVER | Enquire | |
| 0700-014003 | WIRE CLIP | RIGHT & LEFT SIDE COVER | Enquire | |
| 0700-015006 | DRAIN BOLT, M12x22 | OIL PAN ASSY | Enquire | |
| 0700-021002 | BRACKET, CLUTCH CABLE | CYLINDER HEAD COVER | Enquire | |
| 0HU0-022002 | INNER HEX SCREW M6x30 | CYLINDER HEAD ASSY (1) | Enquire | |
| 0180-022003-00002 | STUD | CYLINDER HEAD ASSY (1) | Enquire | |
| 0700-022236 | PLUG, PT1/2 | CYLINDER HEAD ASSY (1) | Enquire | |
| 0700-022204 | HEX FLANGE BOLT M6x45 | CYLINDER HEAD ASSY (1) | Enquire | |
| 0700-022330 | CLAMP, AIR INLET PIPE | CYLINDER HEAD ASSY (1) | Enquire | |
| 0700-022009-1B200 | THERMOSTAT CAP | CYLINDER HEAD ASSY (1) | Enquire | |
| 0700-022004 | LOCK CLIP, VALVE | CYLINDER HEAD ASSY (2) | Enquire | |
| 0060-030003-00001 | INNER HEX BOLT | CYLINDER BODY ASSY | Enquire | |
| 0700-023003-00002 | BOLT | CYLINDER BODY ASSY | Enquire | |
| 0700-023005 | RESTRICTION PLUG | CYLINDER BODY ASSY | Enquire | |
| 30004-060010150 | BOLT M6x10 | CAMSHAFT | Enquire | |
| 0MQ0-024001 | SCREW PLUG M16X14 | CAMSHAFT | Enquire | |
| 0A70-012007 | PLUG | CAMSHAFT | Enquire | |
| 0110-090009-00002 | INNER HEX SCREW | MAGNETO | Enquire | |
| 0700-040001-20000 | BOLT M12x1.25x45 | MAGNETO | Enquire | |
| 0010-090006-00001 | SCREW | MAGNETO | Enquire | |
| 0700-012013-00002 | BOLT | CRANKSHAFT & CONNECTING ROD (2) | Enquire | |
| 0700-040003-00001 | BOLT M8x23 | CRANKSHAFT & CONNECTING ROD (2) | Enquire | |
| 0700-061003 | CIRCLIP 20 | CLUTCH ASSY | Enquire | |
| 0700-066010-00001 | SCREW, BEARING PLATE | TRANSMISSION SYSTEM (1) | Enquire | |
| 30801-03005 | CIRCLIP30 S=1.5 | TRANSMISSION SYSTEM (2) | Enquire | |
| 0180-014009-00001 | SCREW, PRESS PLATE | TRANSMISSION SYSTEM (2) | Enquire | |
| 0700-061016 | CIRCLIPS FOR SHAFT20 | TRANSMISSION SYSTEM (2) | Enquire | |
| 0700-061009 | CIRCLIPS FOR SHAFT28 | TRANSMISSION SYSTEM (2) | Enquire | |
| 30801-01305 | CIRCLIP13 | TRANSMISSION SYSTEM (3) | Enquire | |
| 0700-012106-00002 | OIL FILTER BOLT | LUBRICATION SYSTEM | Enquire | |
| 30406-00400 | ROLLER PIN | LUBRICATION SYSTEM | Enquire | |
| 0700-070005 | BOLT M6X20 (LH) | LUBRICATION SYSTEM | Enquire | |
| 0700-070002-00001 | SCREW M6x9 | LUBRICATION SYSTEM | Enquire | |
| 0MQ0-171001 | CIRCLIP | THROTTLE & INJECTOR | Enquire | |
| 0MQ0-173100 | IDLE STEPPING MOTOR | THROTTLE & INJECTOR | Enquire |
Exploded diagrams — Engine Hardware
