2023 CF MOTO 250SR — Engine parts
MY market132 genuine parts12 diagrams
Subgroups
Crankcase & Crankshaft · 25Cylinder Head & Parts · 16Seals & Gaskets · 24Lubrication System · 2Belt/Chain Drive · 6Engine Hardware · 117
Part numbers
Every genuine engine part fitted to the 2023 CF MOTO 250SR. Each number opens its cross-reference & fitment page.
| Part number | Description | Diagram | Price | |
|---|---|---|---|---|
| 30105-050012410 | SCREW | 锁具 LOCK KIT | Enquire | |
| 30102-050008900 | INNER HEX SCREW | 锁具 LOCK KIT | Enquire | |
| 30102-050025900 | INNER HEX SCREW | 锁具 LOCK KIT | Enquire | |
| 6NQ#-000206-6001 | INNER HEX SCREW M6x16 | 变档杆 GEARSHIFT LEVER | Enquire | |
| 30118-420095010 | SELF-TAPPING SCREW | 塑料件1(仪表-TFT) PLASTICS1(DASHBOARD-TFT） | Enquire | |
| 30110-421130010 | SELF-TAPPING SCREW | 塑料件1(仪表-TFT) PLASTICS1(DASHBOARD-TFT） | Enquire | |
| 9060-040310 | CLAMP ASSY | 塑料件1(仪表-TFT) PLASTICS1(DASHBOARD-TFT） | Enquire | |
| 6KM#-040702-8000 | SCREW | 塑料件1(仪表-TFT) PLASTICS1(DASHBOARD-TFT） | Enquire | |
| 6KM#-040082-8000 | SCREW KIT M5 | 塑料件2 PLASTICS2 | Enquire | |
| 6NQ#-000205-6001 | CHAIN GUARD SCREW | 塑料件3 PLASTICS3 | Enquire | |
| 30110-420130070 | SELF-TAPPING SCREW | 塑料件4 PLASTICS4 | Enquire | |
| 6WWV-046901-5000 | INNER HEX SCREW M6X20 | 塑料件4 PLASTICS4 | Enquire | |

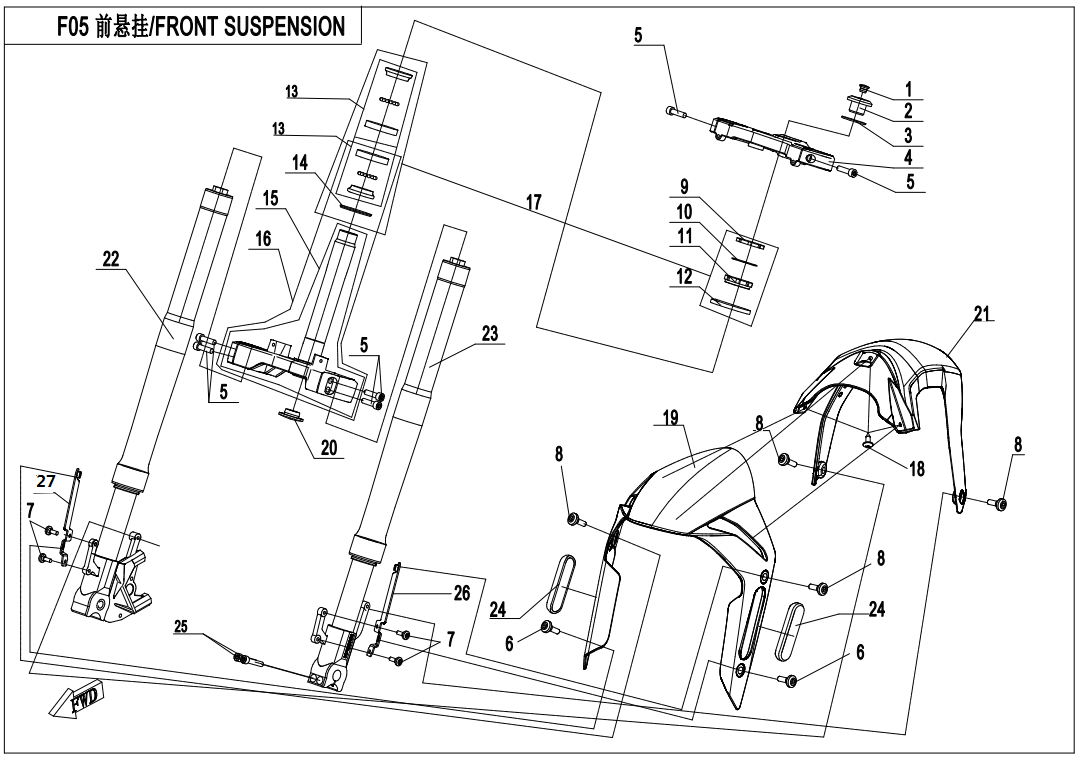

| A000-050005 | RUBBER PLUG 1 | 前悬架(星光白/星光黑) FRONT SUSPENSION（NEBULA WHITE/NEBULA BLACK） | Enquire | |
| A000-050003 | FIXING SCREW, UPPER TRIPLE CLAMP | 前悬架(星光白/星光黑) FRONT SUSPENSION（NEBULA WHITE/NEBULA BLACK） | Enquire | |
| 6KMV-050001-8102 | UPPER TRIPLE CLAMP | 前悬架(星光白/星光黑) FRONT SUSPENSION（NEBULA WHITE/NEBULA BLACK） | Enquire | |
| 30102-080030860 | SCREW | 前悬架(星光白/星光黑) FRONT SUSPENSION（NEBULA WHITE/NEBULA BLACK） | Enquire | |
| A000-040702 | INNER HEX SCREW M6x12 | 后悬架(钣金) REAR SUSPENSION(SHEET METAL) | Enquire | |
| 6KM0-060002 | CHAIN GUARD SCREW | 后悬架(钣金) REAR SUSPENSION(SHEET METAL) | Enquire | |
| 6KJ0-070024 | OIL SEAL | 前轮 FRONT WHEEL | Enquire | |
| 30102-060045870 | SCREW | 转向系统 STEERING SYSTEM | Enquire | |
| 30102-060025870 | SCREW | 转向系统 STEERING SYSTEM | Enquire | |
| 30500-027800N | OIL SEAL | 后轮 REAR WHEEL | Enquire | |
| 6070-120400 | CLAMP(Φ14.5) | 油箱 FUEL TANK | Enquire | |
| 30601-111010 | CLAMP | 油箱 FUEL TANK | Enquire | |
| 6NTG-200424 | INNER HEX SCREW M6x25 | 座垫(星光白) SEAT（NEBULA WHITE） | Enquire | |
| 6KM0-130106 | DAMPING RUBBER SLEEVE | 座垫(星光白) SEAT（NEBULA WHITE） | Enquire | |
| 30102-060012810 | SCREW | 脚蹬 FOOTREST | Enquire | |
| 0180-014010 | WIRE CLAMP | 脚蹬 FOOTREST | Enquire | |
| 30802-00605 | SPLIT WASHER | 脚蹬 FOOTREST | Enquire | |
| 30110-481130010 | SELF-TAPPING SCREW | 电器系统 ELECTRIC SYSTEM | Enquire | |
| 30102-060016810 | SCREW | 仪表(TFT) DASHBOARD( TFT） | Enquire | |
| 6KM#-181001-8000 | DAMPING RUBBER MAT | 冷却系统 COOLING SYSTEM | Enquire | |
| 6100-180001 | CLAMP B24 | 冷却系统 COOLING SYSTEM | Enquire | |
| 6KM0-180004 | CLAMP B28 | 冷却系统 COOLING SYSTEM | Enquire | |
| 30601-113010 | CLAMP | 冷却系统 COOLING SYSTEM | Enquire | |
| 8010-180024 | CAP, WATER FILLER | 冷却系统 COOLING SYSTEM | Enquire | |
| 30601-112010 | CLAMP | 燃油蒸发系统 FUEL VAPORIZATION SYSTEM | Enquire | |
| 30601-108010 | CLAMP | 燃油蒸发系统 FUEL VAPORIZATION SYSTEM | Enquire | |
| 30601-109010 | CLAMP | 燃油蒸发系统 FUEL VAPORIZATION SYSTEM | Enquire | |
| 30601-110010 | CLAMP | 燃油蒸发系统 FUEL VAPORIZATION SYSTEM | Enquire | |
| 30114-060025470 | SCREW ASSY | 空滤器 AIR FILTER | Enquire | |
| 0DM0-110200 | CLAMP ASSY | 空滤器 AIR FILTER | Enquire | |
| 30601-210530 | CLAMP | 空滤器 AIR FILTER | Enquire | |
| 0DM0-110012 | PLUG, OIL STORAGE HOSE | 空滤器 AIR FILTER | Enquire | |
| 30601-116010 | CLAMP D16 | 空滤器 AIR FILTER | Enquire | |
| 30601-118010 | CLAMP | 空滤器 AIR FILTER | Enquire | |

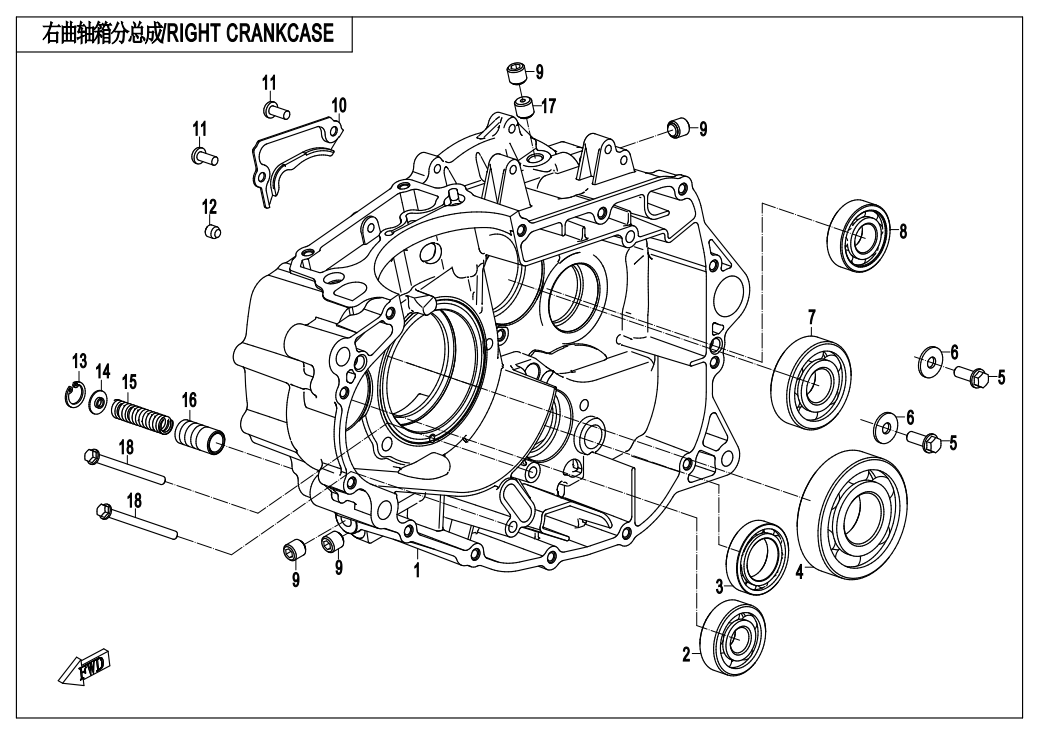

| 0DM0-012010-0B203 | RH CRANKCASE ASSY, MATTE BLACK | 右曲轴箱分总成 RIGHT CRANKCASE | Enquire | |
| 30499-01507 | BEARING | 右曲轴箱分总成 RIGHT CRANKCASE | Enquire | |
| 30499-02506 | BEARING | 右曲轴箱分总成 RIGHT CRANKCASE | Enquire | |
| 30499-03001 | BEARING | 右曲轴箱分总成 RIGHT CRANKCASE | Enquire | |
| 30499-02005 | BEARING | 右曲轴箱分总成 RIGHT CRANKCASE | Enquire | |
| 30499-01700 | BEARING 6303 | 右曲轴箱分总成 RIGHT CRANKCASE | Enquire | |
| 01A0-012010-00001 | SCREW | 右曲轴箱分总成 RIGHT CRANKCASE | Enquire | |
| 30105-050012890 | SCREW M5x12 | 右曲轴箱分总成 RIGHT CRANKCASE | Enquire | |
| 0A70-013004 | PLUG | 右曲轴箱分总成 RIGHT CRANKCASE | Enquire | |
| 30800-01405 | CIRCLIP FOR HOLE | 右曲轴箱分总成 RIGHT CRANKCASE | Enquire | |
| 0DM0-012002 | RESTRICTION PLUG | 右曲轴箱分总成 RIGHT CRANKCASE | Enquire | |
| 0DM0-011010-0B202 | LH CRANKCASE ASSY, MATTE BLACK | 左曲轴箱分总成 LEFT CRANKCASE | Enquire | |
| 0DM0-011010-0BP03 | LH CRANKCASE ASSY | 左曲轴箱分总成 LEFT CRANKCASE | Enquire | |
| 01A0-012003 | O-RING | 左曲轴箱分总成 LEFT CRANKCASE | Enquire | |
| 0700-065220 | OIL SEAL | 左曲轴箱分总成 LEFT CRANKCASE | Enquire | |
| 30403-01300 | BEARING | 左曲轴箱分总成 LEFT CRANKCASE | Enquire | |
| 0180-011500 | MAGNETIC DRAIN BOLT | 左曲轴箱分总成 LEFT CRANKCASE | Enquire | |
| 30800-04005 | CIRCLIP FOR HOLE | 左曲轴箱分总成 LEFT CRANKCASE | Enquire | |
| 0DM0-011007 | OIL SEAL | 左曲轴箱分总成 LEFT CRANKCASE | Enquire | |
| 0DM0-011050 | BEARING 17x27x13 | 左曲轴箱分总成 LEFT CRANKCASE | Enquire | |
| 30499-02201 | BEARING | 左曲轴箱分总成 LEFT CRANKCASE | Enquire | |
| 30499-03501 | BEARING | 左曲轴箱分总成 LEFT CRANKCASE | Enquire | |
| 0DM0-011006 | O-RING | 左曲轴箱分总成 LEFT CRANKCASE | Enquire | |
| 30502-018000F | O-RING | 右侧盖分总成(滑动离合) RIGHT SIDE COVER(SLIPPING CLUTCH ) | Enquire | |
| 30800-02205 | CIRCLIP FOR HOLE | 右侧盖分总成(滑动离合) RIGHT SIDE COVER(SLIPPING CLUTCH ) | Enquire | |
| 0DM0-013007 | OIL SEAL,CRANKCASE | 右侧盖分总成(滑动离合) RIGHT SIDE COVER(SLIPPING CLUTCH ) | Enquire | |
| 30403-01200 | BEARING | 右侧盖分总成(滑动离合) RIGHT SIDE COVER(SLIPPING CLUTCH ) | Enquire | |
| 0010-080009 | OIL SEAL | 右侧盖分总成(滑动离合) RIGHT SIDE COVER(SLIPPING CLUTCH ) | Enquire | |
| 0110-013030 | O-RING | 右侧盖分总成(滑动离合) RIGHT SIDE COVER(SLIPPING CLUTCH ) | Enquire | |
| 0700-013008 | OIL FILLING PLUG | 右侧盖分总成(滑动离合) RIGHT SIDE COVER(SLIPPING CLUTCH ) | Enquire | |
| 0010-023010-0010 | BOLT M6x20 | 右侧盖分总成(滑动离合) RIGHT SIDE COVER(SLIPPING CLUTCH ) | Enquire | |
| 30502-057000F | O-RING 57x3 | 右侧盖分总成(滑动离合) RIGHT SIDE COVER(SLIPPING CLUTCH ) | Enquire | |
| 0DM0-013200 | OIL FILTER ASSY, ENGINE | 右侧盖分总成(滑动离合) RIGHT SIDE COVER(SLIPPING CLUTCH ) | Enquire | |
| 0700-012201 | O-RING | 右侧盖分总成(滑动离合) RIGHT SIDE COVER(SLIPPING CLUTCH ) | Enquire | |
| 0DM0-013011-20000 | BRACKET, CLUTCH CABLE | 右侧盖分总成(拉索版) RIGHT SIDE COVER(CABLE VERSION) | Enquire | |

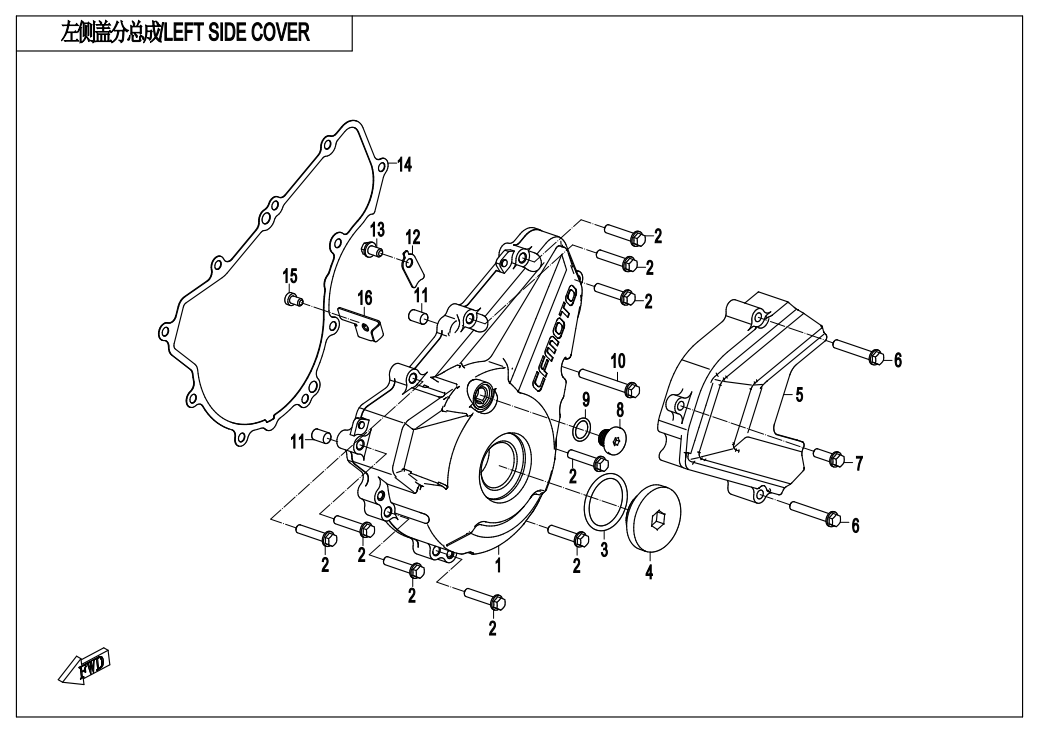

| 01A0-013005 | O-SEAL RING | 左侧盖分总成 LEFT SIDE COVER | Enquire | |
| 30102-050012810 | SCREW | 左侧盖分总成 LEFT SIDE COVER | Enquire | |
| 0A80-014005 | WIRE PRESS PLATE | 左侧盖分总成 LEFT SIDE COVER | Enquire | |

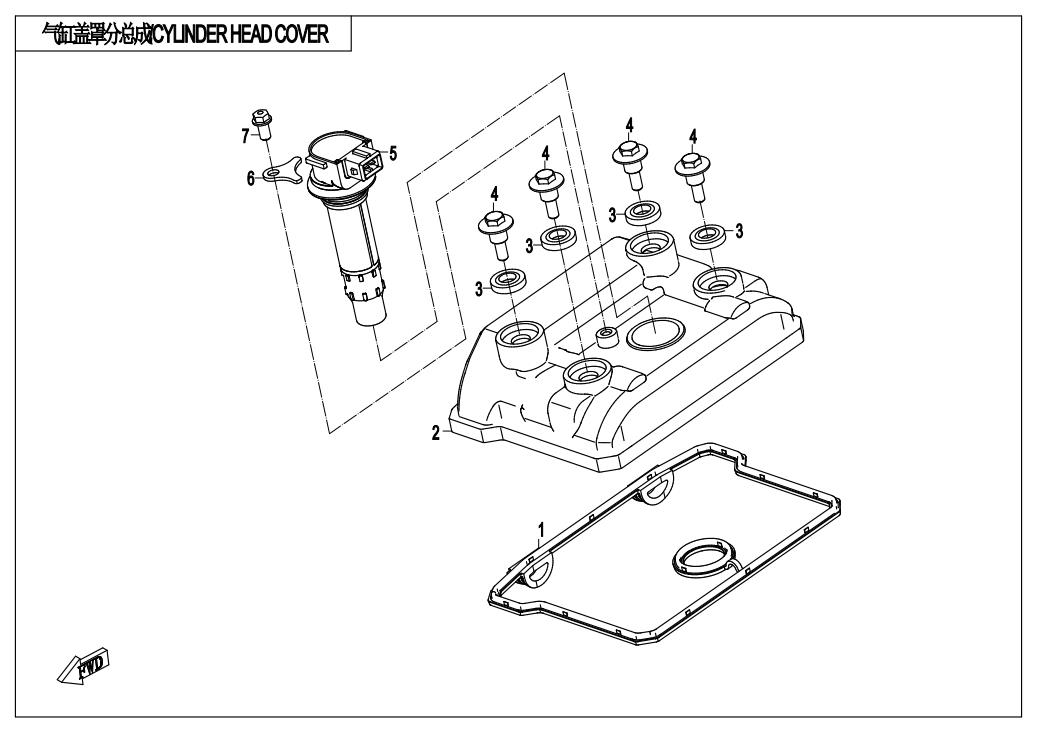

| 0DM0-021100 | CYLINDER HEAD COVER SEAL RING ASSY | 气缸盖罩分总成 CYLINDER HEAD COVER | Enquire | |
| 0DM0-021001-0HA00 | CYLINDER HEAD COVER | 气缸盖罩分总成 CYLINDER HEAD COVER | Enquire | |
| 0DM0-021001-0HB00 | CYLINDER HEAD COVER | 气缸盖罩分总成 CYLINDER HEAD COVER | Enquire | |
| 0700-021200 | CYLINDER HEAD COVER BOLT SEAL RING | 气缸盖罩分总成 CYLINDER HEAD COVER | Enquire | |
| 0700-021003-00001 | CYLINDER HEAD COVER BOLT | 气缸盖罩分总成 CYLINDER HEAD COVER | Enquire | |
| 0010-021019-0010 | BOLT M6x12 | 气缸盖罩分总成 CYLINDER HEAD COVER | Enquire | |

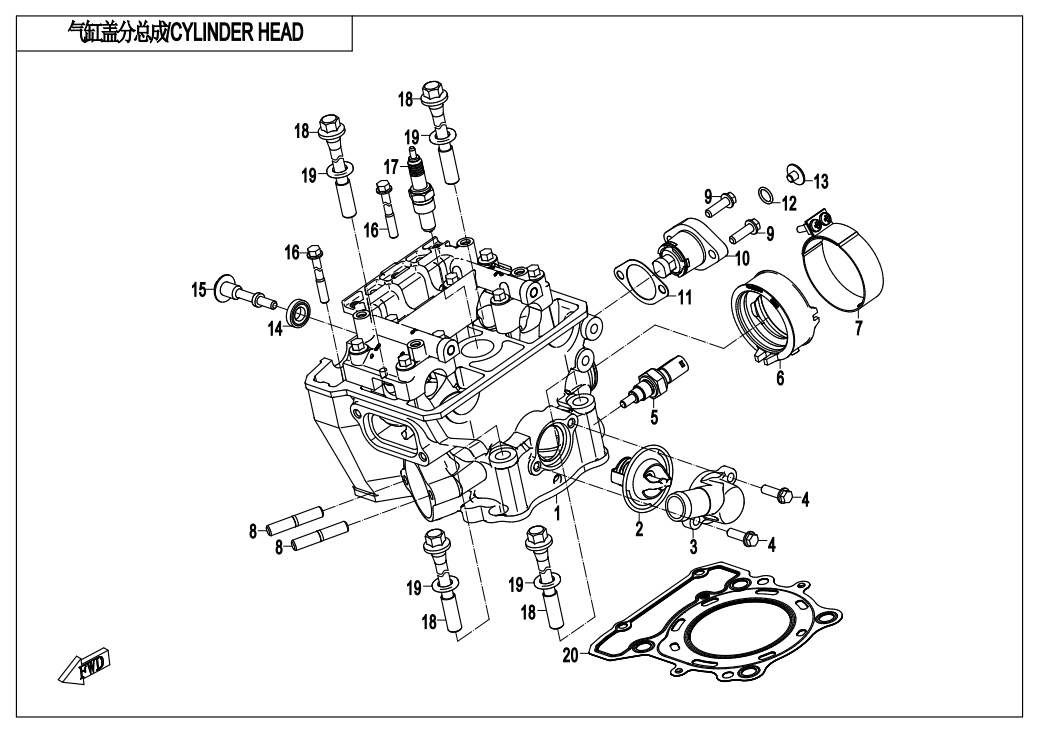

| 0DM0-022200-1BP00 | CYLINDER BODY ASSY | 气缸盖分总成 CYLINDER COVER | Enquire | |
| 0DM0-022400 | THERMOSTAT ASSY | 气缸盖分总成 CYLINDER COVER | Enquire | |
| 0DM0-022005-0B200 | THERMOSTAT CAP | 气缸盖分总成 CYLINDER COVER | Enquire | |
| 018B-022810 | COOLANT TEMP. SENSOR | 气缸盖分总成 CYLINDER COVER | Enquire | |
| 0DM0-022300 | CLAMP, CONNECTING PIPE | 气缸盖分总成 CYLINDER COVER | Enquire | |
| 0180-022003-00001 | STUD | 气缸盖分总成 CYLINDER COVER | Enquire | |
| 0DM0-024500 | TENSIONER ASSY | 气缸盖分总成 CYLINDER COVER | Enquire | |
| 0060-022001 | O-SEAL RING | 气缸盖分总成 CYLINDER COVER | Enquire | |
| 0JYA-023001-00001 | HEX FLANGE BOLT M6x6 | 气缸盖分总成 CYLINDER COVER | Enquire | |
| 0DM0-022008-00001 | CYLINDER HEAD DAMPING BOLT | 气缸盖分总成 CYLINDER COVER | Enquire | |
| 0010-011016-00001 | BOLT | 气缸盖分总成 CYLINDER COVER | Enquire | |
| 0700-170200 | SPARK PLUG | 气缸盖分总成 CYLINDER COVER | Enquire | |
| 0700-022013-00001 | CYLINDER HEAD BOLT M10x158 | 气缸盖分总成 CYLINDER COVER | Enquire | |
| 0DM0-022100 | CYLINDER HEAD GASKET ASSY | 气缸盖分总成 CYLINDER COVER | Enquire | |
| 0DM0-023001-10000 | SEAL GASKET, CYLINDER | 气缸和活塞 CYLINDER & PISTON | Enquire | |
| 0DM0-023100-0BP11 | CYLINDER BODY ASSY | 气缸和活塞 CYLINDER & PISTON | Enquire | |
| 0DM0-023100-0BP21 | CYLINDER BODY ASSY | 气缸和活塞 CYLINDER & PISTON | Enquire | |
| 0110-040006-0050 | CIRCLIP, PISTON PIN | 气缸和活塞 CYLINDER & PISTON | Enquire | |
| 0DM0-024002 | STOPPER, CHAIN GUIDE | 配气传动分总成 CAMSHAFT | Enquire | |
| 0DM0-024008 | CHAIN GUIDE | 配气传动分总成 CAMSHAFT | Enquire | |
| 0DMB-024002 | TENSIONER PLATE | 配气传动分总成 CAMSHAFT | Enquire | |
| 0DM0-024300 | TIMING CHAIN | 配气传动分总成 CAMSHAFT | Enquire | |
| 0DM0-024200-10000 | CAMSHAFT, AIR EXHAUST | 配气传动分总成 CAMSHAFT | Enquire | |
| 0060-030003-0030 | INNER HEX BOLT | 磁电机总成 MAGNETO | Enquire | |

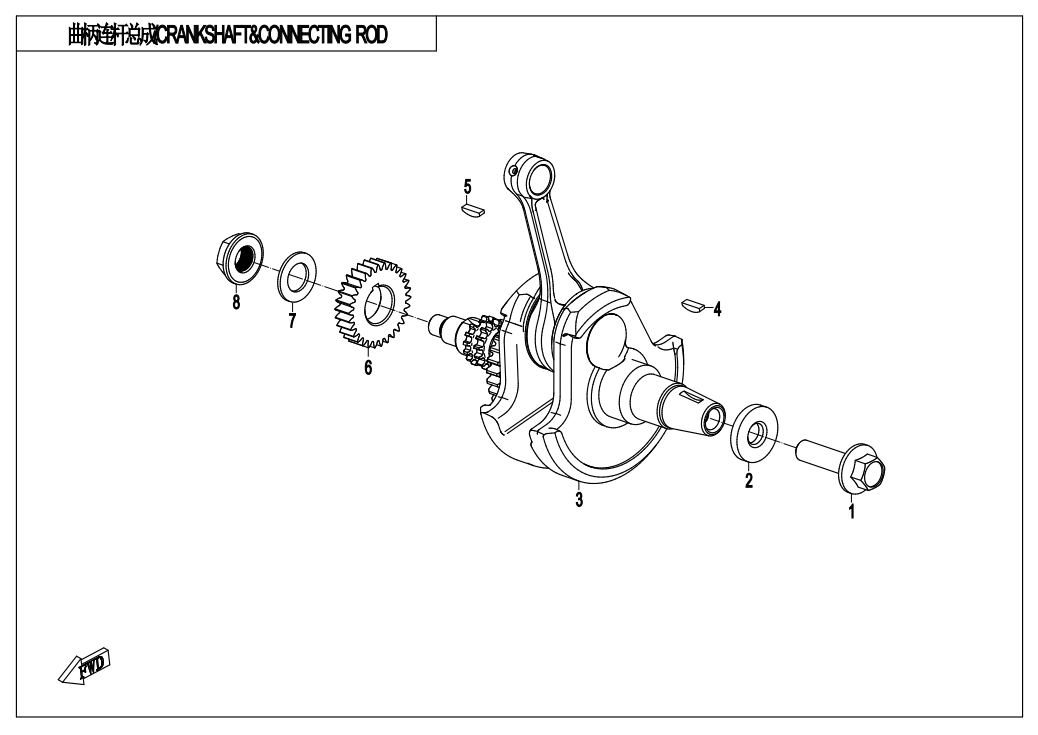

| 0700-040001-20000 | BOLT M12x1.25x45 | 曲轴连杆总成 CRANKSHAFT&CONNECTING ROD | Enquire | |
| 0DM0-041000-00014 | CRANK CONNECTING ROD SUB ASSY | 曲轴连杆总成 CRANKSHAFT&CONNECTING ROD | Enquire | |
| 0010-040006 | WOODRUFF KEY | 曲轴连杆总成 CRANKSHAFT&CONNECTING ROD | Enquire | |
| 0DM0-040009 | WOODRUFF KEY | 曲轴连杆总成 CRANKSHAFT&CONNECTING ROD | Enquire | |
| 0DM0-040002 | OUTPUT GEAR | 曲轴连杆总成 CRANKSHAFT&CONNECTING ROD | Enquire | |
| 0DM0-040003 | CIRCLIP16 | 曲轴连杆总成 CRANKSHAFT&CONNECTING ROD | Enquire | |
| 30400-01207 | ROLLER BEARING | 离合器总成（滑动离合） CLUTCH (SLIPPING CLUTCH) | Enquire | |
| 0DM0-050002 | BEARING SEAT | 离合器总成（拉索版） CLUTCH (CABLE VERSION) | Enquire | |
| 30400-00802 | BEARING | 离合器总成（拉索版） CLUTCH (CABLE VERSION) | Enquire | |
| 30406-00303 | NEEDLE BEARING | 换档变速总成(1) TRANSMISSION(1) | Enquire | |
| 0A70-060014 | O-RING | 换档变速总成(1) TRANSMISSION(1) | Enquire | |
| 30116-050020410 | SCREW ASSY | 换档变速总成(1) TRANSMISSION(1) | Enquire | |
| 30801-01405 | CIRCLIPS FOR SHAFT | 换档变速总成(1) TRANSMISSION(1) | Enquire | |
| 0010-021017-0010 | BOLT M6x25 | 起动系统 STARTING SYSTEM | Enquire | |
| 0DM0-173002 | CIRCLIP | 节气门体和喷油器(CF250-6使用) THROTTLE&INJECTOR（ONLY FOR CF250-6） | Enquire | |
| 0DM0-173001 | FUEL INJECTOR CAP | 节气门体和喷油器(CF250-6使用) THROTTLE&INJECTOR（ONLY FOR CF250-6） | Enquire | |
| 0700-012013-00001 | BOLT M5x12 | 节气门体和喷油器(CF250-6使用) THROTTLE&INJECTOR（ONLY FOR CF250-6） | Enquire | |
| 0DM0-173200-10000 | STEPPER MOTOR | 节气门体和喷油器(CF250-6使用) THROTTLE&INJECTOR（ONLY FOR CF250-6） | Enquire |
Exploded diagrams — Engine
Browse the catalogue interactively
Open Engine in the interactive 2023 CF MOTO 250SR catalogue to drill into diagrams, check availability and add parts to your cart.
