2025 CF MOTO 450SR — Engine parts

MY market181 genuine parts12 diagrams

Subgroups

Crankcase & Crankshaft · 28Cylinder Head & Parts · 14Seals & Gaskets · 24Lubrication System · 5Belt/Chain Drive · 16Engine Hardware · 148

Part numbers

Every genuine engine part fitted to the 2025 CF MOTO 450SR. Each number opens its cross-reference & fitment page.

Part numberDescriptionDiagramPrice
0SQV-072200-1001-M1TIE BANDLUBRICATION SYSTEMEnquire
30102-080020810SCREWLOCK KITEnquire
30102-050008900INNER HEX SCREWLOCK KITEnquire
30102-050025900INNER HEX SCREWLOCK KITEnquire
CFCV-CBC005-2000-M1CLIPMUFFLEREnquire
6AQV-021500-1000CLAMP KITMUFFLEREnquire
6WWV-046802-5000INNER HEX SCREW M6x16MUFFLEREnquire
6AQV-030093-1000INNER HEX SCREWFRAME-1Enquire
6AQV-030092-1000ADJUSTING SCREW, ENGINEFRAME-1Enquire
6WWV-030011-5000INNER HEX SCREW M10x45FRAME-1Enquire
6WWV-046902-5000INNER HEX SCREW M6x20FRAME-1Enquire
30121-080025160SCREWGEARSHIFT LEVEREnquire
30110-481130070SELF-TAPPING SCREWPLASTICS 1Enquire
8080-041130EXPANSION RIVET ASSYPLASTICS 1Enquire
6KM#-160420-8001SPONGE MATPLASTICS 1Enquire
6WWV-046502-5000STEPPED SCREW M5PLASTICS 1Enquire
6WWV-047102-5000INNER HEX SCREW M5x14PLASTICS 1Enquire
6WWV-046602-5000INNER HEX STEPPED SCREW M6x14PLASTICS 1Enquire
6AQV-050004-1000GUARD, LOWER TRIPLE CLAMPPLASTICS 1Enquire
KSQV-046502-1000STEP SCREWPLASTICS 1Enquire
6WWV-046702-5000INNER HEX SCREW M6x12PLASTICS 2Enquire
9060-040310CLAMP ASSYPLASTICS 2Enquire
30110-350130010SELF-TAPPING SCREWPLASTICS 2Enquire
6WWV-047002-5000INNER HEX SCREW M6x25PLASTICS 4Enquire
30110-421130010SELF-TAPPING SCREWPLASTICS 6Enquire
6AQV-050500-1000-27DUST CAPFRONT SUSPENSIONEnquire
30102-080025810SCREWFRONT SUSPENSIONEnquire
6L30-050002LOCK SCREW, UPPER TRIPLE CLAMPFRONT SUSPENSIONEnquire
30102-080030860SCREWFRONT SUSPENSIONEnquire
6AQV-050001-1001-0VR00UPPER TRIPLE CLAMPFRONT SUSPENSIONEnquire
6L30-050200STEERING BEARING ASSYFRONT SUSPENSIONEnquire
6AQV-050500-1000-32O-RINGFRONT SHOCK ABSORBEREnquire
6AQV-050500-1000-24OIL SEAL CIRCLIPFRONT SHOCK ABSORBEREnquire
6WWV-060030-5000-10OIL SEALREAR SUSPENSIONEnquire
30403-02280NEEDLE BEARINGREAR SUSPENSIONEnquire
6AQV-070200-1000-20OIL SEALFRONT WHEELEnquire
30102-060012810SCREWBRAKE SYSTEMEnquire
30102-060016870SCREWBRAKE SYSTEMEnquire
30137-250120010SCREWSTEERING SYSTEMEnquire
30105-040030410SCREWSTEERING SYSTEMEnquire
30102-060025870SCREWSTEERING SYSTEMEnquire
CFCV-CCA001-2000-M1CLIPSTEERING SYSTEMEnquire
30500-027800NOIL SEALREAR WHEELEnquire
30006-060035810BOLTFUEL TANKEnquire
30601-111010CLAMPFUEL TANKEnquire
6WWV-030080-8000CLIPFUEL TANKEnquire
6070-120400CLAMP(Φ14.5)FUEL TANKEnquire
6GU#-000201-6000INNER HEX SCREW M6x25SEATEnquire
6AQV-140620-1000LIMIT SCREWFOOTRESTEnquire
6WWV-046703-5000INNER HEX SCREW M6x12FOOTRESTEnquire
6HVV-140006-1000LOCATING GASKETⅠFOOTRESTEnquire
30802-00603SPLIT WASHER 6FOOTRESTEnquire
0010-030002-00001BOLTELECTRIC SYSTEMEnquire
CFCV-156103-2000PLUG, T-BOX CONNECTORELECTRIC SYSTEMEnquire
30110-480160010SELF-TAPPING SCREWLIGHTSEnquire
6WWV-180008-5000BOLTCOOLING SYSTEMEnquire
30601-229060CLAMPCOOLING SYSTEMEnquire
6GUV-181010-6001WATER FILLING PORT CAP ASSYCOOLING SYSTEMEnquire
30601-212570CLAMPCOOLING SYSTEMEnquire
6AQV-180110-1000RESERVOIR CAPCOOLING SYSTEMEnquire
30601-110010CLAMPCOOLING SYSTEMEnquire
6KM#-200003-8001PLUGTOOLSEnquire
30102-060016810SCREWTOOLSEnquire
30601-109010CLAMPFUEL VAPORIZATION SYSTEMEnquire
30601-112010CLAMPFUEL VAPORIZATION SYSTEMEnquire
30601-108010CLAMPFUEL VAPORIZATION SYSTEMEnquire
0120-110003CLAMP 52AIR FILTER ASSYEnquire
6NTA-040202INNER HEX SCREWAIR FILTER ASSYEnquire
0SQV-110000-1000-20SEAL RINGAIR FILTER ASSYEnquire
30601-118010CLAMPAIR FILTER ASSYEnquire
30601-117010CLAMPAIR FILTER ASSYEnquire
0SQV-011102-1000OIL NOZZLEUPPER & LOWER CRANKCASE ASSYEnquire
0SQV-011104-1000FILLER SEAL RINGUPPER & LOWER CRANKCASE ASSYEnquire
0SQV-011105-1000LH BEARING PLATEUPPER & LOWER CRANKCASE ASSYEnquire
0SQV-01FZ01-1003-0BP00CRANKCASE ASSYUPPER & LOWER CRANKCASE ASSYEnquire
0SQV-012400-1000OIL PRESSURE SWITCHUPPER & LOWER CRANKCASE ASSYEnquire
0SQV-011107-1000O-RINGUPPER & LOWER CRANKCASE ASSYEnquire
30403-01400NEEDLE BEARINGUPPER & LOWER CRANKCASE ASSYEnquire
1F30-011600-10000OIL SEALUPPER & LOWER CRANKCASE ASSYEnquire
30403-02500NEEDLE BEARINGUPPER & LOWER CRANKCASE ASSYEnquire
0SQV-011103-1000RESTRICTION PLUGUPPER & LOWER CRANKCASE ASSYEnquire
0SQV-011106-1000RH BEARING PLATEUPPER & LOWER CRANKCASE ASSYEnquire
0SQV-012700-1000BOLT ASSYUPPER & LOWER CRANKCASE ASSYEnquire
0SQV-012200-1000BOLT ASSYUPPER & LOWER CRANKCASE ASSYEnquire
0SQV-011004-1000BEARING RETAINERUPPER & LOWER CRANKCASE ASSYEnquire
0SQV-011003-1000BEARING RETAINERUPPER & LOWER CRANKCASE ASSYEnquire
30410-01000ROLLER 10x14UPPER & LOWER CRANKCASE ASSYEnquire
0SQV-012003-1000BOLTUPPER & LOWER CRANKCASE ASSYEnquire
0700-012105-00001PLUG, MAIN OIL RAILUPPER & LOWER CRANKCASE ASSYEnquire
0700-012106-00002OIL FILTER BOLTUPPER & LOWER CRANKCASE ASSYEnquire
0SQV-012002-1000BOLTUPPER & LOWER CRANKCASE ASSYEnquire
0SQV-012500-1000BOLT ASSYUPPER & LOWER CRANKCASE ASSYEnquire
0SQV-010001-1000-M1COUNTERSHAFT OIL SEALUPPER & LOWER CRANKCASE ASSYEnquire
0010-021017-0010BOLT M6x25LEFT & RIGHT SIDE COVEREnquire
0700-012201O-RINGLEFT & RIGHT SIDE COVEREnquire
0SQV-013001-1000RETAINERLEFT & RIGHT SIDE COVEREnquire
30403-01200BEARINGLEFT & RIGHT SIDE COVEREnquire
0010-080009OIL SEALLEFT & RIGHT SIDE COVEREnquire
0700-013008OIL FILLING PLUGLEFT & RIGHT SIDE COVEREnquire
0110-013030O-RINGLEFT & RIGHT SIDE COVEREnquire
01A0-012003O-RINGLEFT & RIGHT SIDE COVEREnquire
0DM0-011006O-RINGLEFT & RIGHT SIDE COVEREnquire
0SQV-015001-1001-0BP00OIL PANOIL PANEnquire
0180-011500MAGNETIC DRAIN BOLTOIL PANEnquire
0010-021019-0010BOLT M6x12CYLINDER HEAD COVEREnquire
0700-021003-00001CYLINDER HEAD COVER BOLTCYLINDER HEAD COVEREnquire
0700-021200CYLINDER HEAD COVER BOLT SEAL RINGCYLINDER HEAD COVEREnquire
0SQV-021010-1001-0BP00CYLINDER HEAD COVER ASSYCYLINDER HEAD COVEREnquire
0SQV-021002-1000CYLINDER HEAD COVER SEAL RINGCYLINDER HEAD COVEREnquire
0HU0-021002-00001GULP PINCYLINDER HEAD COVEREnquire
0SQV-170200-1000SPARK PLUG ASSYCYLINDER HEAD COVEREnquire
0SQV-022105-1000BOLTCYLINDER HEAD (1)Enquire
0SQV-022106-1001HEX FLANGE BOLTCYLINDER HEAD (1)Enquire
0DM0-022201-10000DOWEL PINCYLINDER HEAD (1)Enquire
0SQV-022008-1000CYLINDER HEAD BOLTCYLINDER HEAD (1)Enquire
0SQV-022011-1000BOLTCYLINDER HEAD (1)Enquire
0010-023010-0010BOLT M6x20CYLINDER HEAD (1)Enquire
0SQV-022200-1000CONNECTOR ASSYCYLINDER HEAD (1)Enquire
1F30-024016SURFACE OIL SEALCYLINDER HEAD (1)Enquire
018B-022810COOLANT TEMP. SENSORCYLINDER HEAD (1)Enquire
0MQ0-022500THERMOSTATCYLINDER HEAD (1)Enquire
0SQV-022002-1000THERMOSTAT CAP SEAL RINGCYLINDER HEAD (1)Enquire
0SQV-022001-1000-0BP00THERMOSTAT CAPCYLINDER HEAD (1)Enquire
0180-022003-00002STUDCYLINDER HEAD (1)Enquire
0DM0-022008-00001CYLINDER HEAD DAMPING BOLTCYLINDER HEAD (1)Enquire
0SQV-022100-1006-0BP00CYLINDER HEAD ASSYCYLINDER HEAD (1)Enquire
0700-066005PLUG 6CYLINDER HEAD (1)Enquire
0700-022004LOCK CLIP, VALVECYLINDER HEAD (2)Enquire
0700-022400-1000SEAL RING, VALVE STEMCYLINDER HEAD (2)Enquire
0SQV-023001-1000-0BP00CYLINDER BODYCYLINDER HEAD (3)Enquire
30004-060012150BOLTCAMSHAFTEnquire
1F30-024012BOLTCAMSHAFTEnquire
0700-024003RETAINERCAMSHAFTEnquire
0SQV-024013-1001CENTRIFUGAL WHEELCAMSHAFTEnquire
0SQV-024002-1000AIR OUTLET TIMING SPROCKETCAMSHAFTEnquire
0SQV-024001-1000AIR INLET TIMING SPROCKETCAMSHAFTEnquire
0SQV-024200-1000TIMING CHAINCAMSHAFTEnquire
0SQV-024600-1001CAMSHAFT, AIR EXHAUSTCAMSHAFTEnquire
0SQV-024500-1001CAMSHAFT, AIR INLETCAMSHAFTEnquire
0SQV-024008-1000TIMING CHAIN PLATECAMSHAFTEnquire
0SQV-024400-1001HYDRAULIC TENSIONOR ASSYCAMSHAFTEnquire
0SQV-024401-1000HYDRAULIC TENSIONER SEAL RINGCAMSHAFTEnquire
0SQV-024003-1001CHAIN GUIDECAMSHAFTEnquire
0110-040006-0050CIRCLIP, PISTON PINCRANKSHAFT & CONNECTING ROD (1)Enquire
0SQV-040008-1000PISTON PINCRANKSHAFT & CONNECTING ROD (1)Enquire
0SQV-042000-1002-Q0-00001CONNECTING ROD ASSYCRANKSHAFT & CONNECTING ROD (1)Enquire
0SQV-042000-1002-Q0-00002CONNECTING ROD ASSYCRANKSHAFT & CONNECTING ROD (1)Enquire
0SQV-040009-1001-Q0-00001CONNECTING ROD BEARINGCRANKSHAFT & CONNECTING ROD (1)Enquire
0SQV-040009-1001-Q0-00002CONNECTING ROD BEARINGCRANKSHAFT & CONNECTING ROD (1)Enquire
0SQV-040009-1001-Q0-00003CONNECTING ROD BEARINGCRANKSHAFT & CONNECTING ROD (1)Enquire
0SQV-040001-1000BOLTCRANKSHAFT & CONNECTING ROD (2)Enquire
0180-040007WOODRUFF KEYCRANKSHAFT & CONNECTING ROD (2)Enquire
0SQV-041000-1000-Q1-00001CRANKSHAFT ASSYCRANKSHAFT & CONNECTING ROD (2)Enquire
0SQV-041000-1000-Q1-00002CRANKSHAFT ASSYCRANKSHAFT & CONNECTING ROD (2)Enquire
30400-01207ROLLER BEARINGCLUTCHEnquire
30406-00303NEEDLE BEARINGTRANSMISSION SYSTEM (1)Enquire
30400-02505BEARINGTRANSMISSION SYSTEM (1)Enquire
0SQV-060012-1000O-RINGTRANSMISSION SYSTEM (1)Enquire
0SQV-060015-1001LOCATING PINTRANSMISSION SYSTEM (1)Enquire
30801-01405CIRCLIPS FOR SHAFTTRANSMISSION SYSTEM (1)Enquire
0700-061003CIRCLIP 20TRANSMISSION SYSTEM (2)Enquire
0SQV-061012-1000-10MAIN SHAFT BEARINGTRANSMISSION SYSTEM (2)Enquire
0DM0-062017CIRCLIPS FOR SHAFT 25TRANSMISSION SYSTEM (2)Enquire
30499-02004NEEDLE BEARINGTRANSMISSION SYSTEM (2)Enquire
0700-061016CIRCLIPS FOR SHAFT20TRANSMISSION SYSTEM (2)Enquire
30801-02805CIRCLIPS FOR SHAFT 28TRANSMISSION SYSTEM (2)Enquire
0SQV-062003-1000-10COUNTERSHAFT BEARINGTRANSMISSION SYSTEM (2)Enquire
0800-062205O-RINGTRANSMISSION SYSTEM (2)Enquire
0SQV-060011-1000BEARING SLEEVETRANSMISSION SYSTEM (2)Enquire
30801-01100CIRCLIPS FOR SHAFTLUBRICATION SYSTEMEnquire
30406-00402ROLLER NEEDLE P4x21.8LUBRICATION SYSTEMEnquire
30406-00400ROLLER PINLUBRICATION SYSTEMEnquire
0SQV-073100-1001FILTER ASSYLUBRICATION SYSTEMEnquire
0700-070200-00001OIL FILTER ASSYLUBRICATION SYSTEMEnquire
0SQV-072003-1000OIL COOLER SEAL RINGLUBRICATION SYSTEMEnquire
0SQV-028002-1000-M1CLAMPLUBRICATION SYSTEMEnquire
0SQV-081009-1000O-RINGWATER PUMPEnquire
0SQV-080002-1000O-RINGWATER PUMPEnquire
30400-02010ROLLER BEARINGBALANCER SHAFTEnquire
0SQV-022410-1000CLAMPTHROTTLE & INJECTOREnquire
0SQV-022009-1000O-RINGTHROTTLE & INJECTOREnquire

Exploded diagrams — Engine

2025 CF MOTO 450SR UPPER & LOWER CRANKCASE ASSY exploded diagram
UPPER & LOWER CRANKCASE ASSY · 22

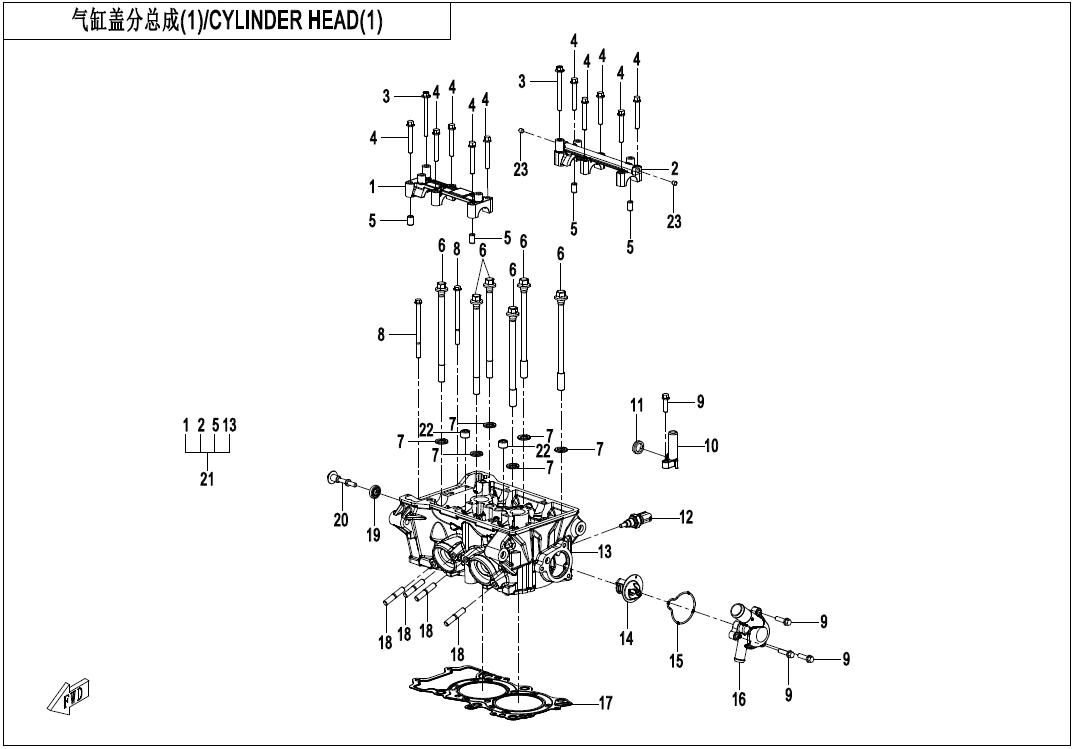

2025 CF MOTO 450SR CYLINDER HEAD (1) exploded diagram
CYLINDER HEAD (1) · 18

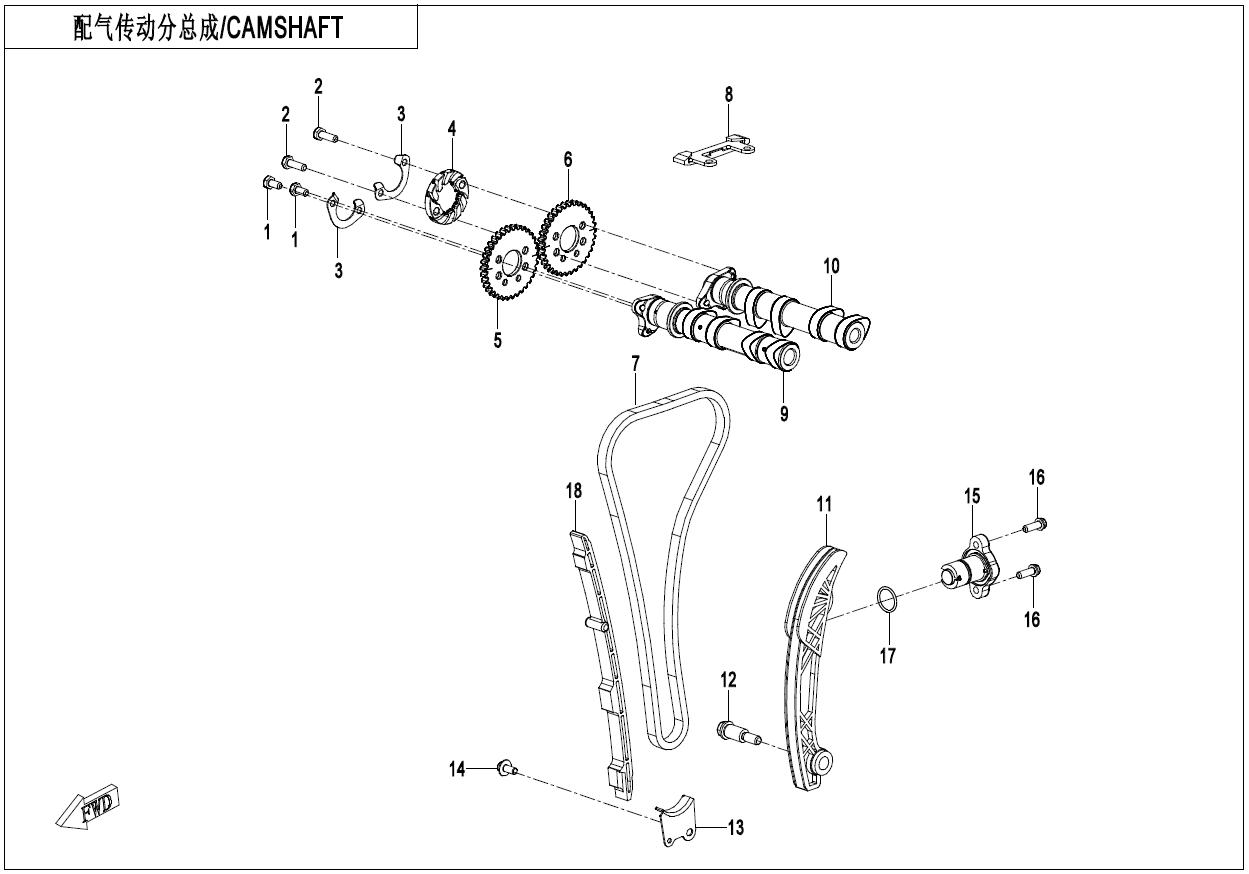

2025 CF MOTO 450SR CAMSHAFT exploded diagram
CAMSHAFT · 15
2025 CF MOTO 450SR PLASTICS 4 exploded diagram
PLASTICS 4 · 10

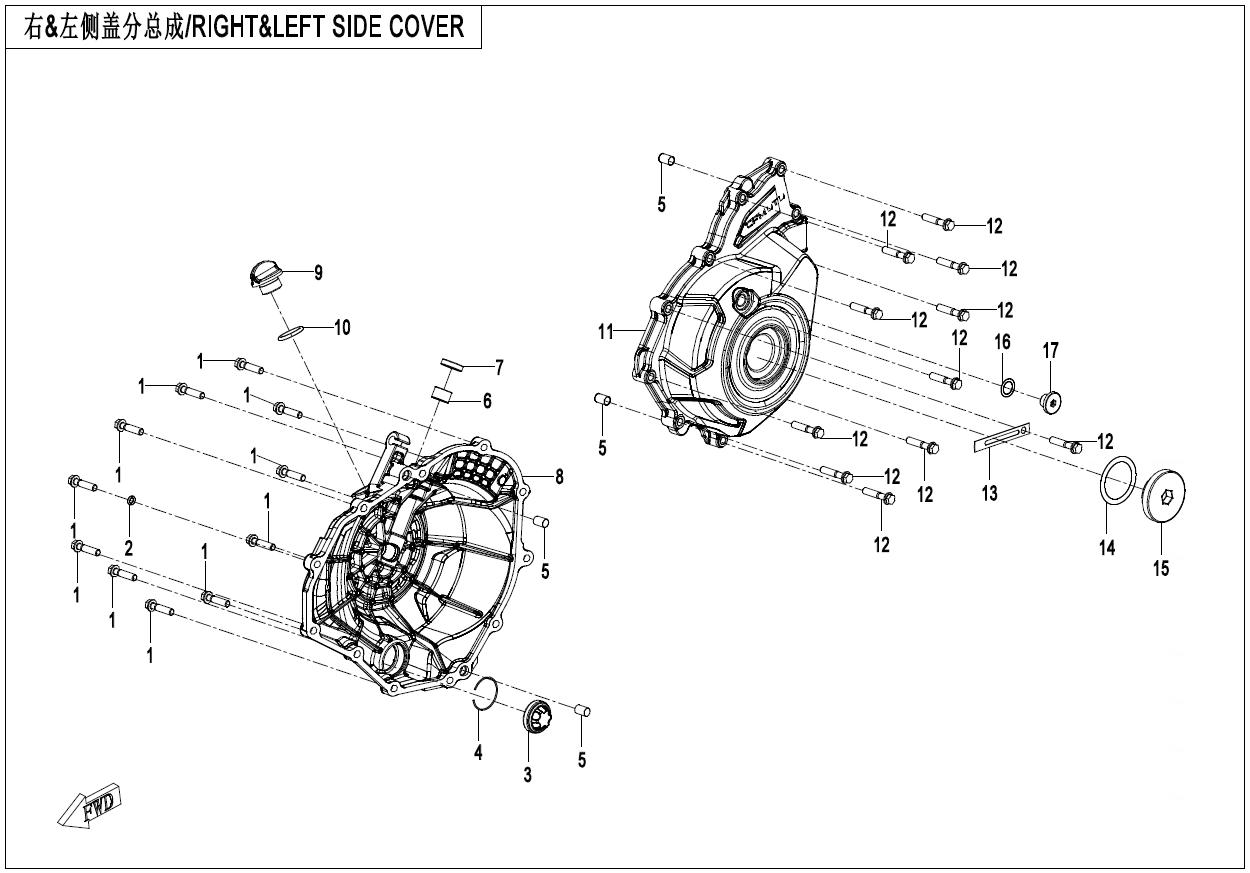

2025 CF MOTO 450SR LEFT & RIGHT SIDE COVER exploded diagram
LEFT & RIGHT SIDE COVER · 10
2025 CF MOTO 450SR TRANSMISSION SYSTEM (2) exploded diagram
TRANSMISSION SYSTEM (2) · 9
2025 CF MOTO 450SR LUBRICATION SYSTEM exploded diagram
LUBRICATION SYSTEM · 8
2025 CF MOTO 450SR PLASTICS 1 exploded diagram
PLASTICS 1 · 8

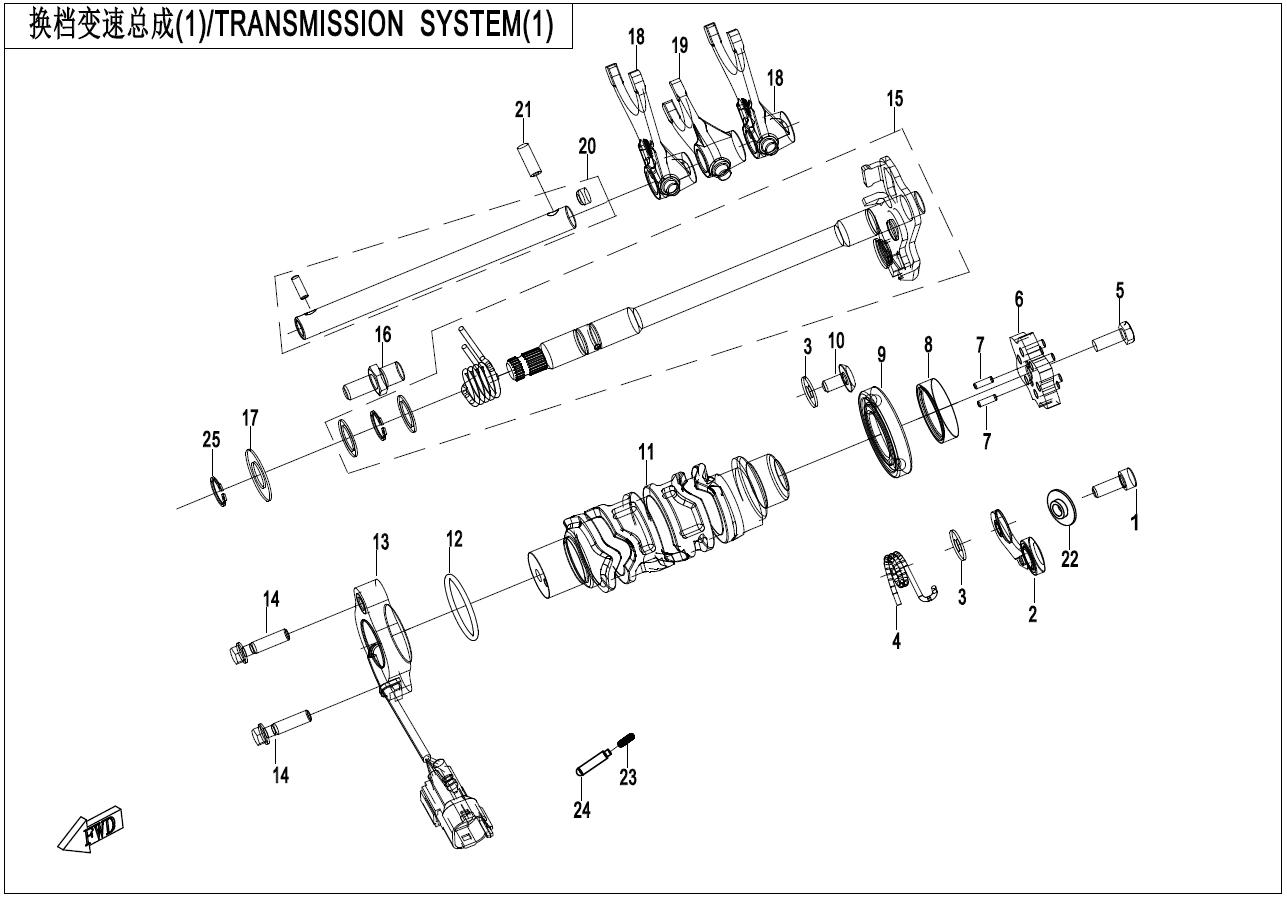

2025 CF MOTO 450SR TRANSMISSION SYSTEM (1) exploded diagram
TRANSMISSION SYSTEM (1) · 8
2025 CF MOTO 450SR PLASTICS 2 exploded diagram
PLASTICS 2 · 7
2025 CF MOTO 450SR PLASTICS 3 exploded diagram
PLASTICS 3 · 7
2025 CF MOTO 450SR AIR FILTER ASSY exploded diagram
AIR FILTER ASSY · 7
