2023 CF MOTO 450SR — Engine parts

MY market202 genuine parts12 diagrams

Subgroups

Crankcase & Crankshaft · 38Cylinder Head & Parts · 15Seals & Gaskets · 25Lubrication System · 5Belt/Chain Drive · 16Engine Hardware · 154

Part numbers

Every genuine engine part fitted to the 2023 CF MOTO 450SR. Each number opens its cross-reference & fitment page.

Part numberDescriptionDiagramPrice
6WWV-030080-8000CLIPFUEL TANKEnquire
30102-050008900INNER HEX SCREWLOCK KITEnquire
30102-050025900INNER HEX SCREWLOCK KITEnquire
CFCV-CAC002-2000-M1CLIPLOCK KITEnquire
30102-050012810SCREWLOCK KITEnquire
6AQV-021500-1000CLAMP KITMUFFLEREnquire
6WWV-046802-5000INNER HEX SCREW M6x16MUFFLEREnquire
6AQV-030093-1000INNER HEX SCREWFRAME-1Enquire
6AQV-030092-1000ADJUSTING SCREW, ENGINEFRAME-1Enquire
6WWV-030011-5000INNER HEX SCREW M10x45FRAME-1Enquire
30121-080025160SCREWGEARSHIFT LEVEREnquire
30400-00880BEARINGGEARSHIFT LEVEREnquire
30121-060016700SCREWGEARSHIFT LEVEREnquire
8080-041130EXPANSION RIVET ASSYPLASTICS 1Enquire
6WWV-047102-5000INNER HEX SCREW M5x14PLASTICS 1Enquire
6WWV-046502-5000STEPPED SCREW M5PLASTICS 1Enquire
6KM#-160420-8001SPONGE MATPLASTICS 1Enquire
30110-481130010SELF-TAPPING SCREWPLASTICS 1Enquire
6AQV-050004-1000GUARD, LOWER TRIPLE CLAMPPLASTICS 1Enquire
6WWV-046602-5000INNER HEX STEPPED SCREW M6x14PLASTICS 1Enquire
6WWV-046702-5000INNER HEX SCREW M6x12PLASTICS 2Enquire
9060-040310CLAMP ASSYPLASTICS 2Enquire
30110-350130010SELF-TAPPING SCREWPLASTICS 2Enquire
6WWV-046902-5000INNER HEX SCREW M6x20PLASTICS 3Enquire
30110-481130070SELF-TAPPING SCREWPLASTICS 3Enquire
6WWV-047002-5000INNER HEX SCREW M6x25PLASTICS 4Enquire
30110-421130010SELF-TAPPING SCREWPLASTICS 6Enquire
6L30-050002LOCK SCREW, UPPER TRIPLE CLAMPFRONT SUSPENSIONEnquire
6AQV-050001-1001-0VR00UPPER TRIPLE CLAMPFRONT SUSPENSIONEnquire
30102-080030860SCREWFRONT SUSPENSIONEnquire
30102-080020810SCREWFRONT SUSPENSIONEnquire
6L30-050200STEERING BEARING ASSYFRONT SUSPENSIONEnquire
6AQV-0503A0LOWER TRIPLE CLAMPFRONT SUSPENSIONEnquire
6WWV-050011-5000INNER HEX SCREW M8x30FRONT SUSPENSIONEnquire
30102-080025810SCREWFRONT SUSPENSIONEnquire
6WWV-060030-5000-10OIL SEALREAR SUSPENSIONEnquire
30403-02200BEARINGREAR SUSPENSIONEnquire
30403-02280NEEDLE BEARINGREAR SUSPENSIONEnquire
6GU#-060302-6000-M1OIL SEAL, TIE-RODREAR SUSPENSIONEnquire
30403-01680NEEDLE BEARINGREAR SUSPENSIONEnquire
6GU#-060204-6001-M1A-ARM OIL SEALREAR SUSPENSIONEnquire
30403-01880NEEDLE BEARINGREAR SUSPENSIONEnquire
6AQV-070200-1000-20OIL SEALFRONT WHEELEnquire
30102-060016870SCREWBRAKE SYSTEM (ABS)Enquire
A000-040702INNER HEX SCREW M6x12BRAKE SYSTEM (ABS)Enquire
30102-060016810SCREWBRAKE SYSTEM (ABS)Enquire
6100-120005INNER HEX SCREW M6x8BRAKE SYSTEM (ABS)Enquire
A000-040703INNER HEX SCREWBRAKE SYSTEM (ABS)Enquire
30102-060025870SCREWSTEERING SYSTEMEnquire
30105-040030410SCREWSTEERING SYSTEMEnquire
30500-027800NOIL SEALREAR WHEELEnquire
30800-05205CIRCLIP FOR HOLEREAR WHEELEnquire
6AQV-110300-1000-21OIL SEALREAR WHEELEnquire
30006-060035810BOLTFUEL TANKEnquire
30601-111010CLAMPFUEL TANKEnquire
6070-120400CLAMP(Φ14.5)FUEL TANKEnquire
6GU#-000201-6000INNER HEX SCREW M6x25SEATEnquire
6AQV-140620-1000LIMIT SCREWFOOTRESTEnquire
30903-0322210COTTER PINFOOTRESTEnquire
30121-080035160SCREWFOOTRESTEnquire
6HVV-140006-1000LOCATING GASKETⅠFOOTRESTEnquire
30802-00603SPLIT WASHER 6FOOTRESTEnquire
6WWV-046801-5000SCREWLIGHTSEnquire
30110-480160010SELF-TAPPING SCREWLIGHTSEnquire
6WWV-180008-5000BOLTCOOLING SYSTEMEnquire
30601-229060CLAMPCOOLING SYSTEMEnquire
6GUV-181010-6001WATER FILLING PORT CAP ASSYCOOLING SYSTEMEnquire
30601-212570CLAMPCOOLING SYSTEMEnquire
6AQV-180110-1000RESERVOIR CAPCOOLING SYSTEMEnquire
6KM#-200003-8001PLUGTOOLSEnquire
30601-109010CLAMPFUEL VAPORIZATION SYSTEMEnquire
30601-110010CLAMPFUEL VAPORIZATION SYSTEMEnquire
30601-112010CLAMPFUEL VAPORIZATION SYSTEMEnquire
30601-108010CLAMPFUEL VAPORIZATION SYSTEMEnquire
6NTA-040202INNER HEX SCREWAIR FILTER ASSYEnquire
0SQV-110000-1000-20SEAL RINGAIR FILTER ASSYEnquire
30601-118010CLAMPAIR FILTER ASSYEnquire
30601-117010CLAMPAIR FILTER ASSYEnquire
0120-110003CLAMP 52AIR FILTER ASSYEnquire
0SQV-011102-1000OIL NOZZLEUPPER & LOWER CRANKCASE ASSYEnquire
0SQV-011104-1000FILLER SEAL RINGUPPER & LOWER CRANKCASE ASSYEnquire
0SQV-011105-1000LH BEARING PLATEUPPER & LOWER CRANKCASE ASSYEnquire
0SQV-01FZ01-1003-0BP00CRANKCASE ASSYUPPER & LOWER CRANKCASE ASSYEnquire
0SQV-01FZ01-1002-0D300CRANKCASEUPPER & LOWER CRANKCASE ASSYEnquire
0SQV-060011-1000BEARING SLEEVEUPPER & LOWER CRANKCASE ASSYEnquire
0SQV-011107-1000O-RINGUPPER & LOWER CRANKCASE ASSYEnquire
30403-01400NEEDLE BEARINGUPPER & LOWER CRANKCASE ASSYEnquire
1F30-011600-10000OIL SEALUPPER & LOWER CRANKCASE ASSYEnquire
30403-02500NEEDLE BEARINGUPPER & LOWER CRANKCASE ASSYEnquire
0SQV-011103-1000RESTRICTION PLUGUPPER & LOWER CRANKCASE ASSYEnquire
0SQV-011106-1000RH BEARING PLATEUPPER & LOWER CRANKCASE ASSYEnquire
0180-021008-00001BOLTUPPER & LOWER CRANKCASE ASSYEnquire
0SQV-011004-1000BEARING RETAINERUPPER & LOWER CRANKCASE ASSYEnquire
0SQV-011003-1000BEARING RETAINERUPPER & LOWER CRANKCASE ASSYEnquire
30410-01000ROLLER 10x14UPPER & LOWER CRANKCASE ASSYEnquire
0SQV-012003-1000BOLTUPPER & LOWER CRANKCASE ASSYEnquire
0700-012105-00001PLUG, MAIN OIL RAILUPPER & LOWER CRANKCASE ASSYEnquire
0700-012106-00002OIL FILTER BOLTUPPER & LOWER CRANKCASE ASSYEnquire
0SQV-012002-1000BOLTUPPER & LOWER CRANKCASE ASSYEnquire
0SQV-012500-1000BOLT ASSYUPPER & LOWER CRANKCASE ASSYEnquire
0SQV-010001-1000-M1COUNTERSHAFT OIL SEALUPPER & LOWER CRANKCASE ASSYEnquire
0SQV-012400-1000OIL PRESSURE SWITCHUPPER & LOWER CRANKCASE ASSYEnquire
0SQV-012700-1000BOLT ASSYUPPER & LOWER CRANKCASE ASSYEnquire
0SQV-012200-1000BOLT ASSYUPPER & LOWER CRANKCASE ASSYEnquire
0010-021017-0010BOLT M6x25LEFT & RIGHT SIDE COVEREnquire
0700-012201O-RINGLEFT & RIGHT SIDE COVEREnquire
0SQV-013001-1000RETAINERLEFT & RIGHT SIDE COVEREnquire
30403-01200BEARINGLEFT & RIGHT SIDE COVEREnquire
0010-080009OIL SEALLEFT & RIGHT SIDE COVEREnquire
0700-013008OIL FILLING PLUGLEFT & RIGHT SIDE COVEREnquire
0110-013030O-RINGLEFT & RIGHT SIDE COVEREnquire
01A0-012003O-RINGLEFT & RIGHT SIDE COVEREnquire
0DM0-011006O-RINGLEFT & RIGHT SIDE COVEREnquire
0700-013003-10000HOLE CAP, TIMING INSPECTIONLEFT & RIGHT SIDE COVEREnquire
0SQV-015001-1001-0BP00OIL PANOIL PANEnquire
0180-011500MAGNETIC DRAIN BOLTOIL PANEnquire
0010-021019-0010BOLT M6x12CYLINDER HEAD COVEREnquire
0700-021003-00001CYLINDER HEAD COVER BOLTCYLINDER HEAD COVEREnquire
0700-021200CYLINDER HEAD COVER BOLT SEAL RINGCYLINDER HEAD COVEREnquire
0SQV-021010-1000-0D300CYLINDER HEAD COVERCYLINDER HEAD COVEREnquire
0SQV-021010-1001-0BP00CYLINDER HEAD COVER ASSYCYLINDER HEAD COVEREnquire
0SQV-021002-1000CYLINDER HEAD COVER SEAL RINGCYLINDER HEAD COVEREnquire
0HU0-021002-00001GULP PINCYLINDER HEAD COVEREnquire
0SQV-170200-1000SPARK PLUG ASSYCYLINDER HEAD COVEREnquire
0SQV-022105-1000BOLTCYLINDER HEAD (1)Enquire
0SQV-022106-1001HEX FLANGE BOLTCYLINDER HEAD (1)Enquire
0010-080008DOWEL PINCYLINDER HEAD (1)Enquire
0DM0-022201-10000DOWEL PINCYLINDER HEAD (1)Enquire
0SQV-022008-1000CYLINDER HEAD BOLTCYLINDER HEAD (1)Enquire
0SQV-022011-1000BOLTCYLINDER HEAD (1)Enquire
0SQV-022200-1000CONNECTOR ASSYCYLINDER HEAD (1)Enquire
1F30-024016SURFACE OIL SEALCYLINDER HEAD (1)Enquire
018B-022810COOLANT TEMP. SENSORCYLINDER HEAD (1)Enquire
0MQ0-022500THERMOSTATCYLINDER HEAD (1)Enquire
0SQV-022002-1000THERMOSTAT CAP SEAL RINGCYLINDER HEAD (1)Enquire
0SQV-022001-1000-0BP00THERMOSTAT CAPCYLINDER HEAD (1)Enquire
0SQV-022001-1000-0D300THERMOSTAT CAPCYLINDER HEAD (1)Enquire
0180-022003-00002STUDCYLINDER HEAD (1)Enquire
0DM0-022008-00001CYLINDER HEAD DAMPING BOLTCYLINDER HEAD (1)Enquire
0SQV-022100-1006-0BP00CYLINDER HEAD ASSYCYLINDER HEAD (1)Enquire
0700-066005PLUG 6CYLINDER HEAD (1)Enquire
0700-022004LOCK CLIP, VALVECYLINDER HEAD (2)Enquire
0700-022400-1000SEAL RING, VALVE STEMCYLINDER HEAD (2)Enquire
0SQV-023001-1000-0BP00CYLINDER BODYCYLINDER HEAD (3)Enquire
30004-060012150BOLTCAMSHAFTEnquire
1F30-024012BOLTCAMSHAFTEnquire
0700-024003RETAINERCAMSHAFTEnquire
0SQV-024013-1001CENTRIFUGAL WHEELCAMSHAFTEnquire
0SQV-024002-1000AIR OUTLET TIMING SPROCKETCAMSHAFTEnquire
0SQV-024001-1000AIR INLET TIMING SPROCKETCAMSHAFTEnquire
0SQV-024200-1000TIMING CHAINCAMSHAFTEnquire
0SQV-024600-1001CAMSHAFT, AIR EXHAUSTCAMSHAFTEnquire
0SQV-024500-1001CAMSHAFT, AIR INLETCAMSHAFTEnquire
0SQV-024008-1000TIMING CHAIN PLATECAMSHAFTEnquire
0SQV-024400-1001HYDRAULIC TENSIONOR ASSYCAMSHAFTEnquire
0010-023010-0010BOLT M6x20CAMSHAFTEnquire
0SQV-024401-1000HYDRAULIC TENSIONER SEAL RINGCAMSHAFTEnquire
0SQV-024003-1001CHAIN GUIDECAMSHAFTEnquire
0180-030001-00001BOLTMAGNETOEnquire
0010-030002-00001BOLTMAGNETOEnquire
0110-040006-0050CIRCLIP, PISTON PINCRANKSHAFT & CONNECTING ROD (1)Enquire
0SQV-040008-1000PISTON PINCRANKSHAFT & CONNECTING ROD (1)Enquire
0SQV-042000-1002-Q0-00001CONNECTING ROD ASSYCRANKSHAFT & CONNECTING ROD (1)Enquire
0SQV-042000-1002-Q0-00002CONNECTING ROD ASSYCRANKSHAFT & CONNECTING ROD (1)Enquire
0SQV-040009-1001-Q0-00001CONNECTING ROD BEARINGCRANKSHAFT & CONNECTING ROD (1)Enquire
0SQV-040009-1001-Q0-00002CONNECTING ROD BEARINGCRANKSHAFT & CONNECTING ROD (1)Enquire
0SQV-040009-1001-Q0-00003CONNECTING ROD BEARINGCRANKSHAFT & CONNECTING ROD (1)Enquire
0SQV-040001-1000BOLTCRANKSHAFT & CONNECTING ROD (2)Enquire
0180-040007WOODRUFF KEYCRANKSHAFT & CONNECTING ROD (2)Enquire
0SQV-041000-1000-Q1-00001CRANKSHAFT ASSYCRANKSHAFT & CONNECTING ROD (2)Enquire
0SQV-041000-1000-Q1-00002CRANKSHAFT ASSYCRANKSHAFT & CONNECTING ROD (2)Enquire
30400-01207ROLLER BEARINGCLUTCHEnquire
30406-00303NEEDLE BEARINGTRANSMISSION SYSTEM (1)Enquire
30400-02505BEARINGTRANSMISSION SYSTEM (1)Enquire
0SQV-060012-1000O-RINGTRANSMISSION SYSTEM (1)Enquire
0SQV-060015-1001LOCATING PINTRANSMISSION SYSTEM (1)Enquire
30801-01405CIRCLIPS FOR SHAFTTRANSMISSION SYSTEM (1)Enquire
0700-061003CIRCLIP 20TRANSMISSION SYSTEM (2)Enquire
0SQV-061012-1000-10MAIN SHAFT BEARINGTRANSMISSION SYSTEM (2)Enquire
0DM0-062017CIRCLIPS FOR SHAFT 25TRANSMISSION SYSTEM (2)Enquire
30499-02004NEEDLE BEARINGTRANSMISSION SYSTEM (2)Enquire
0700-061016CIRCLIPS FOR SHAFT20TRANSMISSION SYSTEM (2)Enquire
30801-02805CIRCLIPS FOR SHAFT 28TRANSMISSION SYSTEM (2)Enquire
0SQV-062003-1000-10COUNTERSHAFT BEARINGTRANSMISSION SYSTEM (2)Enquire
0800-062205O-RINGTRANSMISSION SYSTEM (2)Enquire
30801-01100CIRCLIPS FOR SHAFTLUBRICATION SYSTEMEnquire
30406-00402ROLLER NEEDLE P4x21.8LUBRICATION SYSTEMEnquire
30406-00400ROLLER PINLUBRICATION SYSTEMEnquire
0SQV-073100-1001FILTER ASSYLUBRICATION SYSTEMEnquire
0700-070200-00001OIL FILTER ASSYLUBRICATION SYSTEMEnquire
0SQV-072003-1000OIL COOLER SEAL RINGLUBRICATION SYSTEMEnquire
0SQV-028002-1000-M1CLAMPLUBRICATION SYSTEMEnquire
0SQV-072200-1001-M1TIE BANDLUBRICATION SYSTEMEnquire
0SQV-081009-1000O-RINGWATER PUMPEnquire
0SQV-080002-1000O-RINGWATER PUMPEnquire
30102-060012810SCREWSTARTING SYSTEMEnquire
0SQV-011002-1000-Q0-00001BALANCER SHAFT BEARINGBALANCER SHAFTEnquire
0SQV-011002-1000-Q0-00002BALANCER SHAFT BEARINGBALANCER SHAFTEnquire
0SQV-011002-1000-Q0-00003BALANCER SHAFT BEARINGBALANCER SHAFTEnquire
30400-02010ROLLER BEARINGBALANCER SHAFTEnquire
0SQV-022009-1000O-RINGBALANCER SHAFTEnquire
0SQV-022410-1000CLAMPBALANCER SHAFTEnquire

Exploded diagrams — Engine

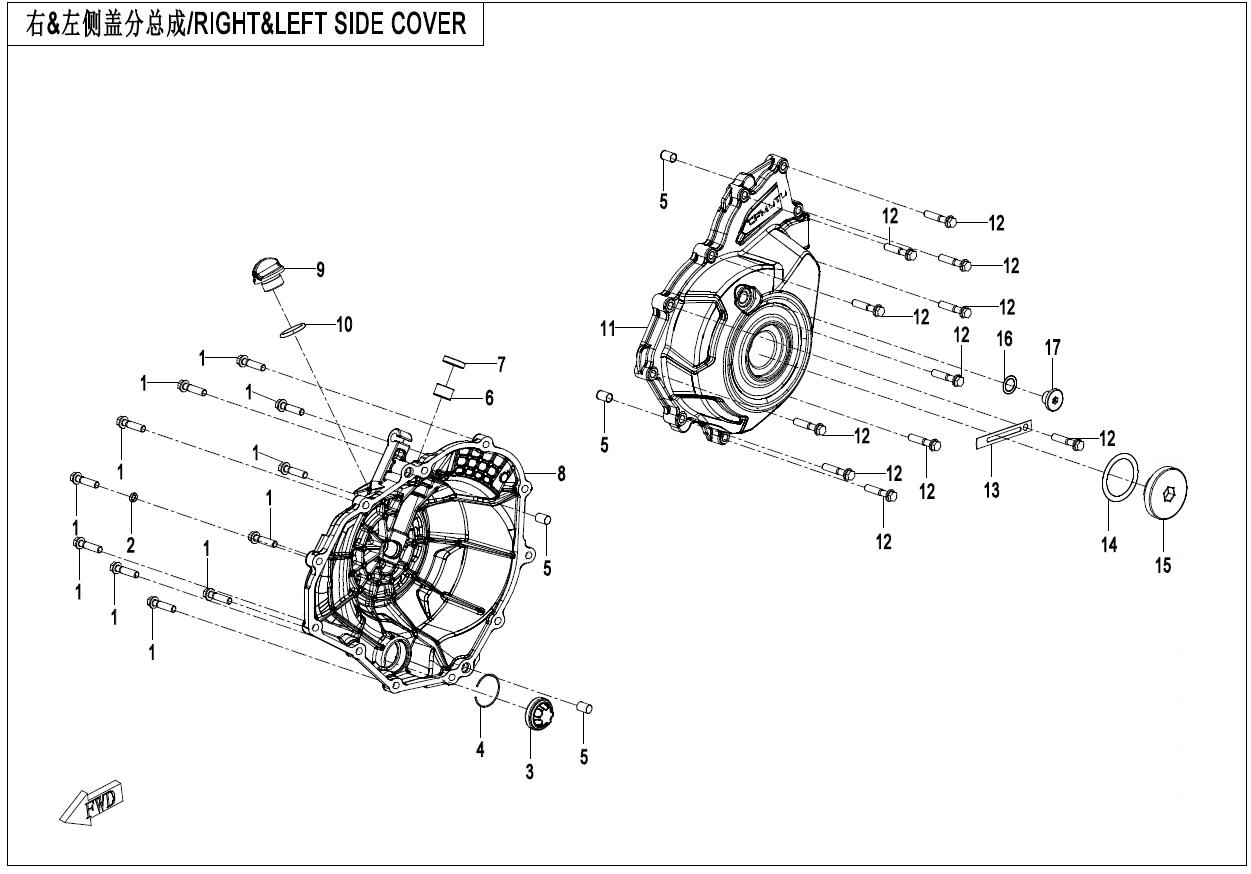

2023 CF MOTO 450SR UPPER & LOWER CRANKCASE ASSY exploded diagram
UPPER & LOWER CRANKCASE ASSY · 25
2023 CF MOTO 450SR CYLINDER HEAD (1) exploded diagram
CYLINDER HEAD (1) · 19

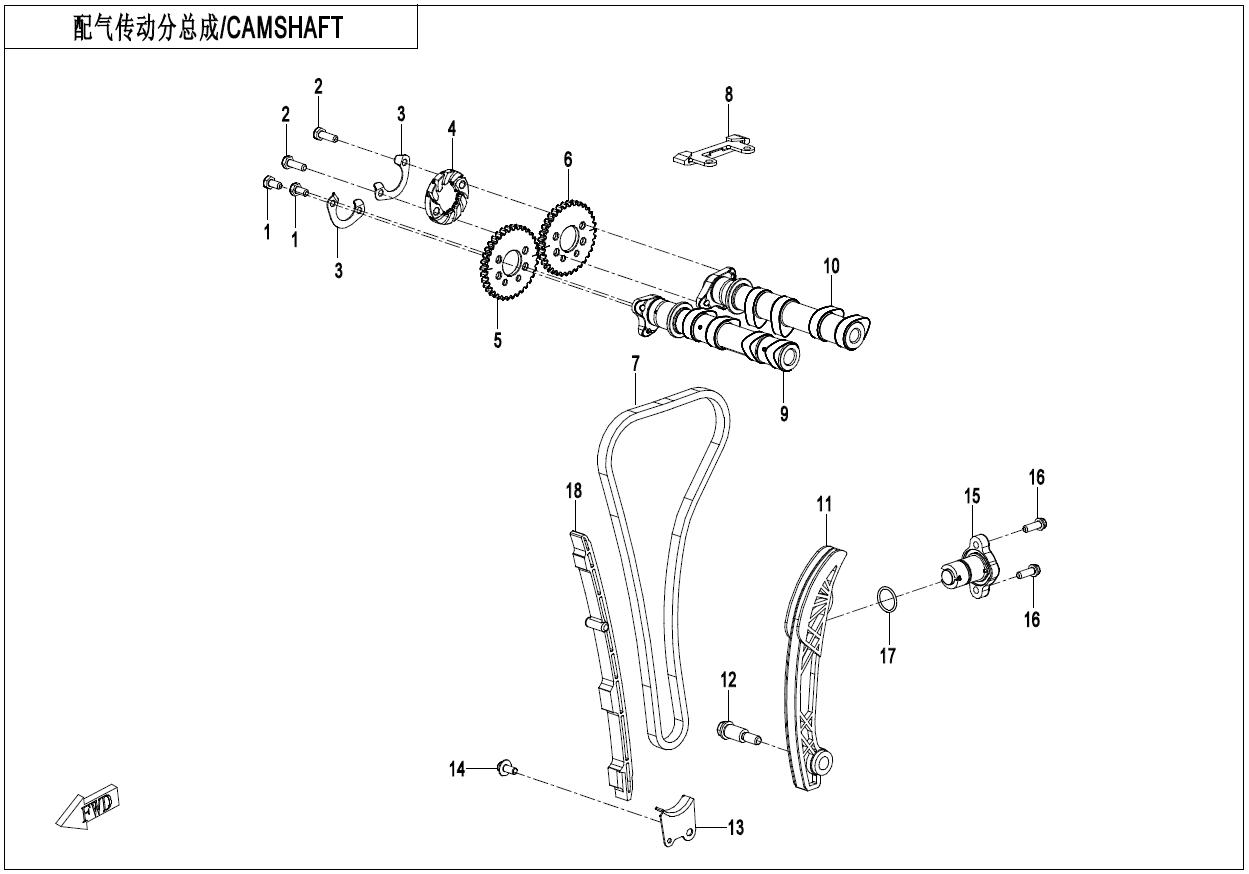

2023 CF MOTO 450SR CAMSHAFT exploded diagram
CAMSHAFT · 15
2023 CF MOTO 450SR LEFT & RIGHT SIDE COVER exploded diagram
LEFT & RIGHT SIDE COVER · 11
2023 CF MOTO 450SR PLASTICS 4 exploded diagram
PLASTICS 4 · 10
2023 CF MOTO 450SR TRANSMISSION SYSTEM (2) exploded diagram
TRANSMISSION SYSTEM (2) · 9

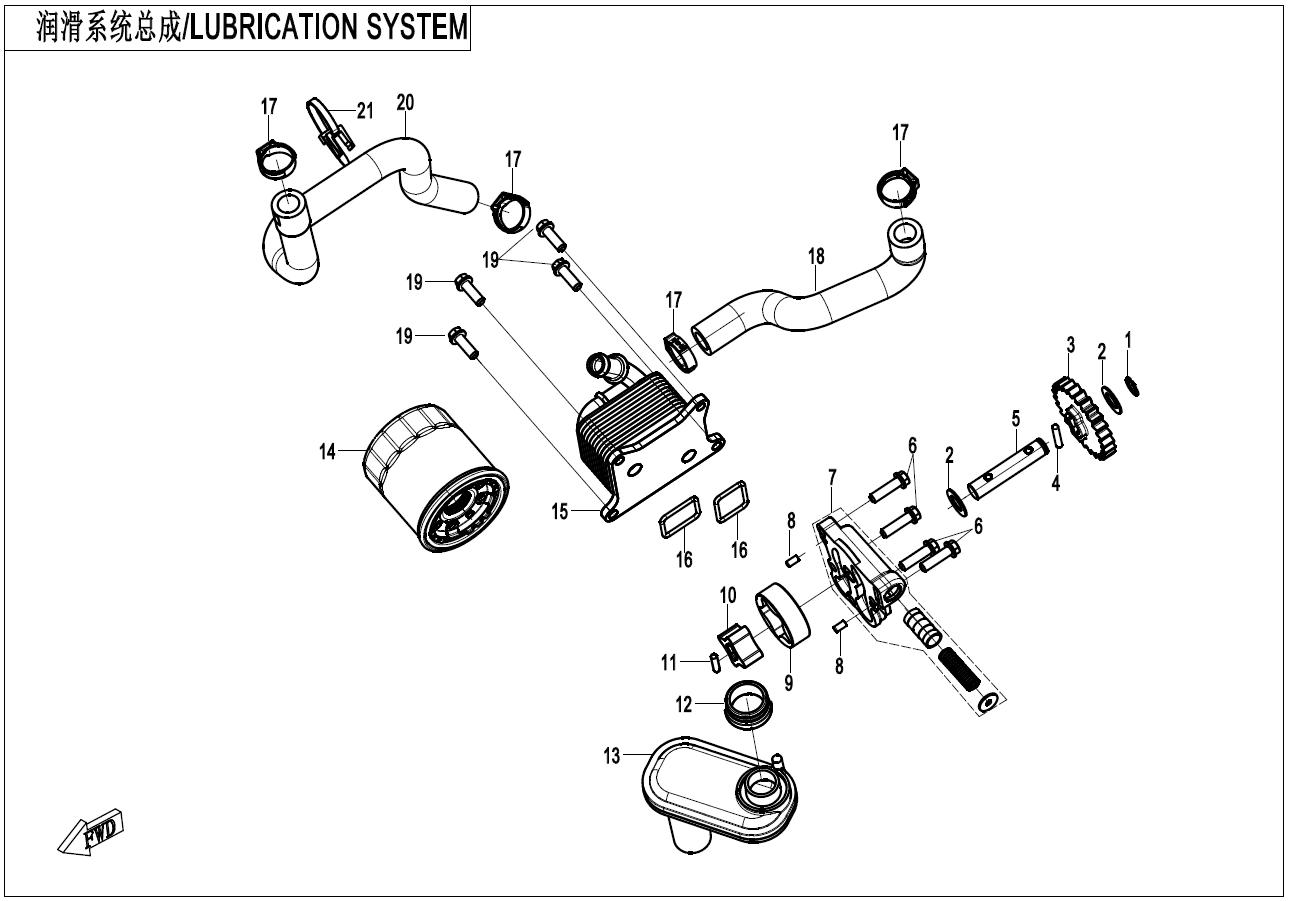

2023 CF MOTO 450SR LUBRICATION SYSTEM exploded diagram
LUBRICATION SYSTEM · 9
2023 CF MOTO 450SR PLASTICS 2 exploded diagram
PLASTICS 2 · 8

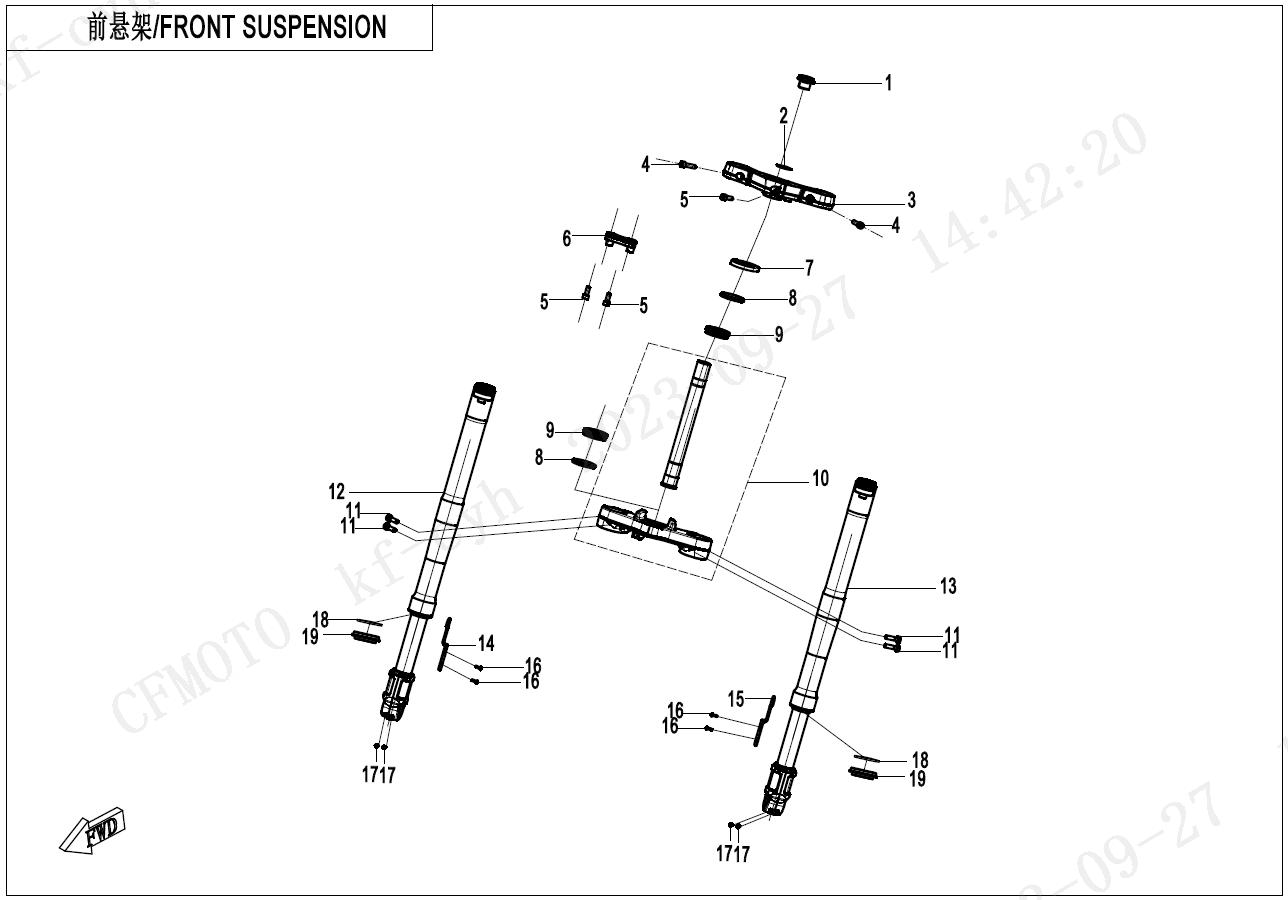

2023 CF MOTO 450SR FRONT SUSPENSION exploded diagram
FRONT SUSPENSION · 8
2023 CF MOTO 450SR REAR SUSPENSION exploded diagram
REAR SUSPENSION · 8
2023 CF MOTO 450SR CYLINDER HEAD COVER exploded diagram
CYLINDER HEAD COVER · 8
2023 CF MOTO 450SR PLASTICS 1 exploded diagram
PLASTICS 1 · 7

Browse the catalogue interactively

Open Engine in the interactive 2023 CF MOTO 450SR catalogue to drill into diagrams, check availability and add parts to your cart.

Other assembly groups on this vehicle

Body · 185Gearbox · 79Electrical System · 58Brake System · 53Suspension · 47Wheels & Tyres · 30Cooling System · 26Fuel Supply System · 21Clutch & Parts · 18Steering System · 10Exhaust System · 9Filters · 8Interior · 3Final Drive · 3Unclassified · 113
