2023 CF MOTO 250NK (N1) — Engine parts

MY market132 genuine parts12 diagrams

Subgroups

Crankcase & Crankshaft · 20Cylinder Head & Parts · 17Seals & Gaskets · 13Lubrication System · 2Belt/Chain Drive · 8Engine Hardware · 105

Part numbers

Every genuine engine part fitted to the 2023 CF MOTO 250NK (N1). Each number opens its cross-reference & fitment page.

Part numberDescriptionDiagramPrice
30102-050025900INNER HEX SCREWLOCK KITSEnquire
30102-050008900INNER HEX SCREWLOCK KITSEnquire
30110-421130010SELF-TAPPING SCREWLOCK KITSEnquire
6NQ#-000206-6001INNER HEX SCREW M6x16GEARSHIFT LEVEREnquire
30805-01005CIRCLIP 10GEARSHIFT LEVEREnquire
6NQ#-000205-6001CHAIN GUARD SCREWPLASTIC 1Enquire
30102-050012810SCREWPLASTIC 1Enquire
30110-420160010SELF-TAPPING SCREWPLASTIC 1Enquire
30110-481130070SELF-TAPPING SCREWPLASTIC 2Enquire
8080-041130EXPANSION RIVET ASSYPLASTIC 2Enquire
9060-040310CLAMP ASSYPLASTIC 2Enquire
30110-481130010SELF-TAPPING SCREWPLASTIC 3Enquire
30118-420095010SELF-TAPPING SCREWPLASTIC 3Enquire
30110-480160010SELF-TAPPING SCREWPLASTIC 6Enquire
6WWV-046702-5000INNER HEX SCREW M6x12PLASTIC 6Enquire
6WWV-030080-8000CLIPPLASTIC 6Enquire
A000-040703INNER HEX SCREWPLASTIC 6Enquire
A000-050005RUBBER PLUG 1FRONT SUSPENSIONEnquire
6NTA-050003LOCK SCREW, UPPER TRIPLE CLAMPFRONT SUSPENSIONEnquire
6KMV-050001-B000UPPER TRIPLE CLAMPFRONT SUSPENSIONEnquire
30102-080030860SCREWFRONT SUSPENSIONEnquire
A000-050100-10000STEERING BEARING ASSYFRONT SUSPENSIONEnquire
6KJ0-050300-0BP00FORNT FORK AND LOWER TRIPLE CLAMP ASSYFRONT SUSPENSIONEnquire
A000-0501B0STEERING BEARING ASSYFRONT SUSPENSIONEnquire
A000-050011RUBBER PLUG 2FRONT SUSPENSIONEnquire
6KJ0-0500A0LOWER TRIPLE CLAMP RETAINER ASSYFRONT SUSPENSIONEnquire
30102-080040810SCREW M8x40FRONT SUSPENSIONEnquire
6KJ0-070024OIL SEALFRONT WHEELEnquire
30102-060045870SCREWSTEERING SYSTEMEnquire
30500-027800NOIL SEALREAR WHEELEnquire
6070-120400CLAMP(Φ14.5)FUEL TANKEnquire
30601-111010CLAMPFUEL TANKEnquire
30102-060012810SCREWFOOTRESTEnquire
30105-050014410SCREWFOOTRESTEnquire
30105-050014470SCREWFOOTRESTEnquire
30802-00605SPLIT WASHERFOOTRESTEnquire
30102-080020810SCREWFOOTRESTEnquire
30102-050030860SCREWFOOTRESTEnquire
6KM#-181001-8001DAMPER RUBBER MATCOOLING SYSTEMEnquire
30601-113010CLAMPCOOLING SYSTEMEnquire
6KJ0-180302RESERVOIR CAPCOOLING SYSTEMEnquire
30601-109010CLAMPCOOLING SYSTEMEnquire
30601-223050CLAMP D23COOLING SYSTEMEnquire
6100-180001CLAMP B24COOLING SYSTEMEnquire
6KM0-180004CLAMP B28COOLING SYSTEMEnquire
30601-112010CLAMPFUEL EVAPORATION SYSTEMEnquire
30601-107010CLAMP A7FUEL EVAPORATION SYSTEMEnquire
30601-110010CLAMPFUEL EVAPORATION SYSTEMEnquire
30114-060025470SCREW ASSYAIR FILTEREnquire
0DM0-110200CLAMP ASSYAIR FILTEREnquire
30601-210530CLAMPAIR FILTEREnquire
0DM0-110012PLUG, OIL STORAGE HOSEAIR FILTEREnquire
30601-116010CLAMP D16AIR FILTEREnquire
30601-118010CLAMPAIR FILTEREnquire
0DM0-012010-0BP03RH CRANKCASE ASSYRIGHT CRANKCASEEnquire
30498-01500ROLLER BEARING 15X42X13RIGHT CRANKCASEEnquire
30499-02506BEARINGRIGHT CRANKCASEEnquire
30499-03001BEARINGRIGHT CRANKCASEEnquire
30499-02010BEARINGRIGHT CRANKCASEEnquire
30499-01700BEARING 6303RIGHT CRANKCASEEnquire
01A0-012010-00001SCREWRIGHT CRANKCASEEnquire
30105-050012890SCREW M5x12RIGHT CRANKCASEEnquire
0A70-013004PLUGRIGHT CRANKCASEEnquire
30800-01405CIRCLIP FOR HOLERIGHT CRANKCASEEnquire
0DM0-012002RESTRICTION PLUGRIGHT CRANKCASEEnquire
01A0-012003O-RINGLEFT CRANKCASEEnquire
0700-065220OIL SEALLEFT CRANKCASEEnquire
30403-01300BEARINGLEFT CRANKCASEEnquire
0NYV-073001-3000DRAIN BOLT Replacing: 0180-011500 - DRAIN BOLT MAGNETIC (M12X1.25)LEFT CRANKCASEEnquire
30800-04005CIRCLIP FOR HOLELEFT CRANKCASEEnquire
0DM0-011007OIL SEALLEFT CRANKCASEEnquire
0DM0-011050BEARING 17x27x13LEFT CRANKCASEEnquire
30499-02201BEARINGLEFT CRANKCASEEnquire
30499-03501BEARINGLEFT CRANKCASEEnquire
0DM0-011006O-RINGLEFT CRANKCASEEnquire
01A0-013005O-SEAL RINGLEFT SIDE COVEREnquire
0A80-014005WIRE PRESS PLATELEFT SIDE COVEREnquire
0DM0-021100CYLINDER HEAD COVER SEAL RING ASSYCYLINDER HEAD COVEREnquire
0DM0-021001-0HA00CYLINDER HEAD COVERCYLINDER HEAD COVEREnquire
0DM0-021001-0HB00CYLINDER HEAD COVERCYLINDER HEAD COVEREnquire
0700-021200CYLINDER HEAD COVER BOLT SEAL RINGCYLINDER HEAD COVEREnquire
0700-021003-00001CYLINDER HEAD COVER BOLTCYLINDER HEAD COVEREnquire
0010-021019-0010BOLT M6x12CYLINDER HEAD COVEREnquire
0DM0-022200-1BP00CYLINDER BODY ASSYCYLINDER COVEREnquire
0DM0-022400THERMOSTAT ASSYCYLINDER COVEREnquire
0DM0-022005-0B200THERMOSTAT CAPCYLINDER COVEREnquire
0DM0-022005-0BP00THERMOSTAT CAPCYLINDER COVEREnquire
018B-022810COOLANT TEMP. SENSORCYLINDER COVEREnquire
0DM0-022300CLAMP, CONNECTING PIPECYLINDER COVEREnquire
0180-022003-00002STUDCYLINDER COVEREnquire
0DM0-024500-10001TENSIONER ASSYCYLINDER COVEREnquire
0060-022001O-SEAL RINGCYLINDER COVEREnquire
0JYA-023001-00001HEX FLANGE BOLT M6x6CYLINDER COVEREnquire
0DM0-022008-00001CYLINDER HEAD DAMPING BOLTCYLINDER COVEREnquire
0010-011016-00001BOLTCYLINDER COVEREnquire
0700-170200SPARK PLUGCYLINDER COVEREnquire
0700-022013-00001CYLINDER HEAD BOLT M10x158CYLINDER COVEREnquire
0DM0-022100CYLINDER HEAD GASKET ASSYCYLINDER COVEREnquire
0DM0-023001-10000SEAL GASKET, CYLINDERCYLINDER & PISTONEnquire
0DM0-023100-0BP11CYLINDER BODY ASSYCYLINDER & PISTONEnquire
0DM0-023100-0BP21CYLINDER BODY ASSYCYLINDER & PISTONEnquire
0110-040006-0050CIRCLIP, PISTON PINCYLINDER & PISTONEnquire
0DM0-024002STOPPER, CHAIN GUIDECAMSHAFTEnquire
0DM0-024008CHAIN GUIDECAMSHAFTEnquire
0DMB-024002TENSIONER PLATECAMSHAFTEnquire
0DM0-024300TIMING CHAINCAMSHAFTEnquire
0DM0-024200-10000CAMSHAFT, AIR EXHAUSTCAMSHAFTEnquire
0700-022004LOCK CLIP, VALVECAMSHAFTEnquire
0700-022400-1000SEAL RING, VALVE STEMCAMSHAFTEnquire
0DM0-024100-10000CAMSHAFT, AIR INTAKECAMSHAFTEnquire
0060-030003-00001INNER HEX BOLTMAGNETOEnquire
0700-040001-20000BOLT M12x1.25x45CRANKSHAFT & CONNECTING RODEnquire
0DM0-041000-00014CRANK CONNECTING ROD SUB ASSYCRANKSHAFT & CONNECTING RODEnquire
0DM0-041000-00024CRANK CONNECTING ROD SUB ASSYCRANKSHAFT & CONNECTING RODEnquire
0010-040006WOODRUFF KEYCRANKSHAFT & CONNECTING RODEnquire
0DM0-040009WOODRUFF KEYCRANKSHAFT & CONNECTING RODEnquire
0DM0-040002OUTPUT GEARCRANKSHAFT & CONNECTING RODEnquire
0DM0-040003CIRCLIP16CRANKSHAFT & CONNECTING RODEnquire
30406-00303NEEDLE BEARINGTRANSMISSION (1)Enquire
0A70-060014O-RINGTRANSMISSION (1)Enquire
30116-050020410SCREW ASSYTRANSMISSION (1)Enquire
30801-01405CIRCLIPS FOR SHAFTTRANSMISSION (1)Enquire
0DM0-061012CIRCLIPS FOR SHAFT 20TRANSMISSION (2)Enquire
0DM0-062017CIRCLIPS FOR SHAFT 25TRANSMISSION (2)Enquire
30004-060010850BOLT M6X10TRANSMISSION (2)Enquire
30406-00300ROLLER NEEDLEOIL PUMPEnquire
30406-00304ROLLER NEEDLEOIL PUMPEnquire
0010-080009OIL SEALWATER PUMPEnquire
30400-01207ROLLER BEARINGWATER PUMPEnquire
30102-060016810SCREWSTARTING SYSTEMEnquire
0010-021017-0010BOLT M6x25STARTING SYSTEMEnquire
0DM0-0222B0CYLINDER HEADCYLINDER HEADEnquire

Exploded diagrams — Engine

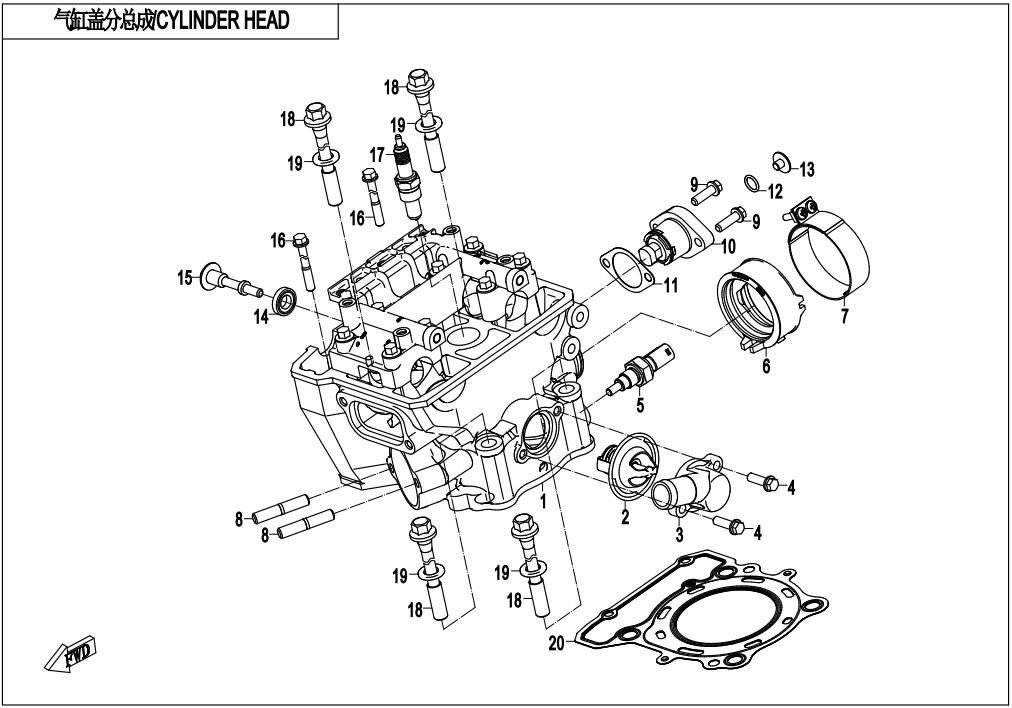

2023 CF MOTO 250NK (N1) CYLINDER COVER exploded diagram
CYLINDER COVER · 16
2023 CF MOTO 250NK (N1) LEFT CRANKCASE exploded diagram
LEFT CRANKCASE · 12
2023 CF MOTO 250NK (N1) FRONT SUSPENSION exploded diagram
FRONT SUSPENSION · 11
2023 CF MOTO 250NK (N1) RIGHT CRANKCASE exploded diagram
RIGHT CRANKCASE · 11
2023 CF MOTO 250NK (N1) CAMSHAFT exploded diagram
CAMSHAFT · 9

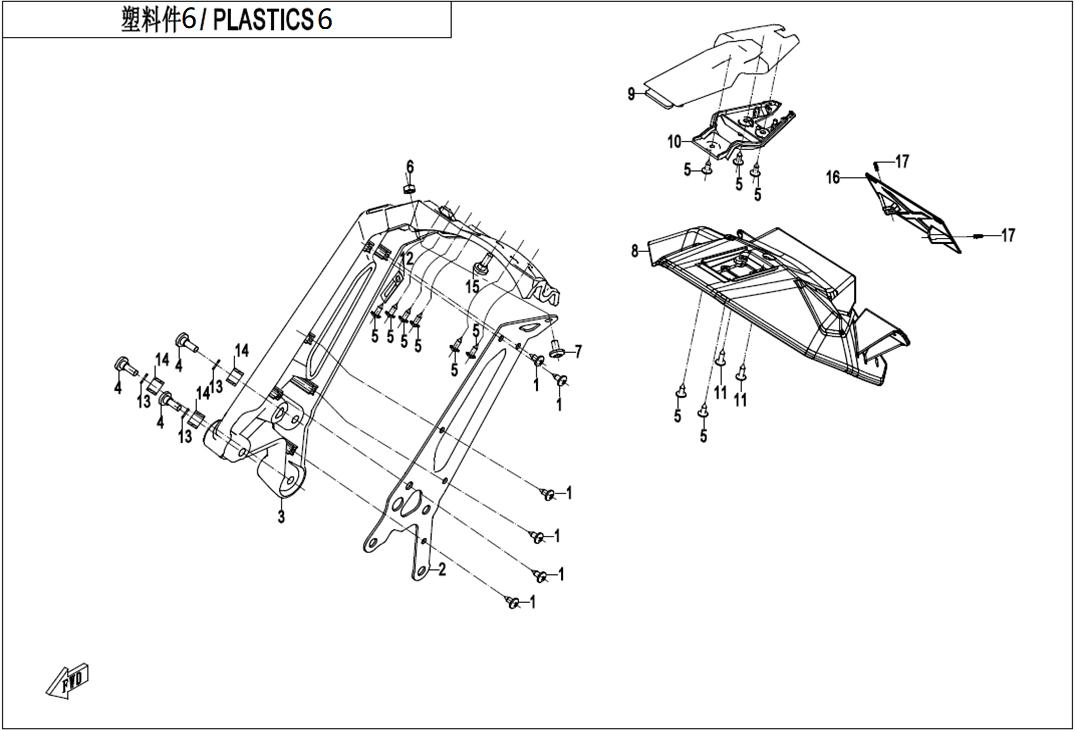

2023 CF MOTO 250NK (N1) PLASTIC 6 exploded diagram
PLASTIC 6 · 7
2023 CF MOTO 250NK (N1) FOOTREST exploded diagram
FOOTREST · 7
2023 CF MOTO 250NK (N1) COOLING SYSTEM exploded diagram
COOLING SYSTEM · 7

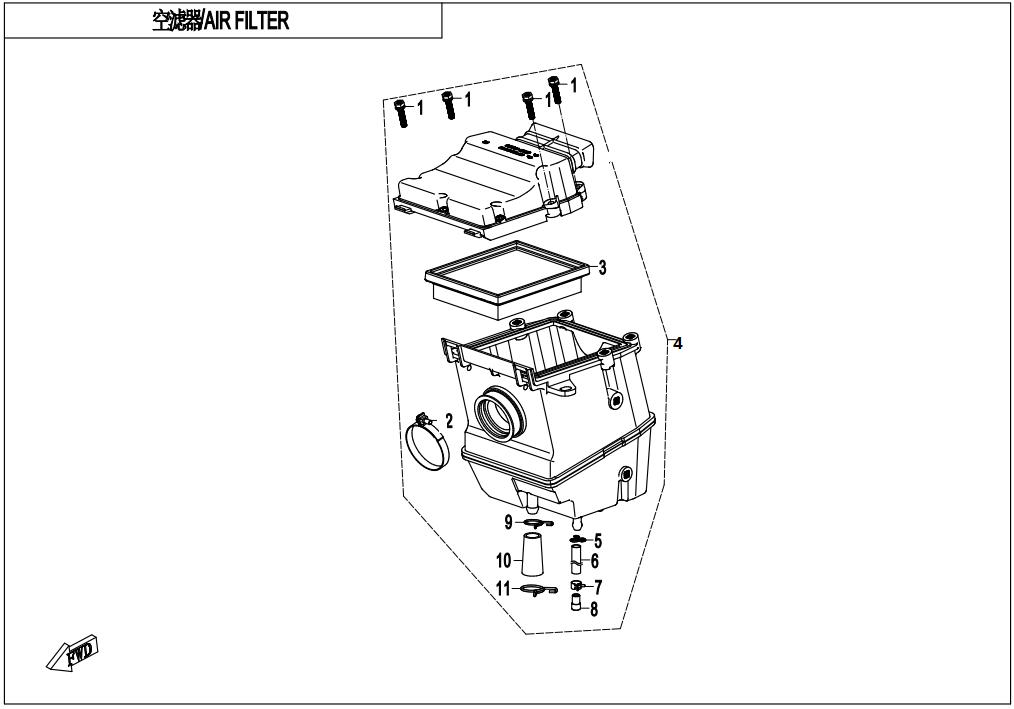

2023 CF MOTO 250NK (N1) AIR FILTER exploded diagram
AIR FILTER · 7

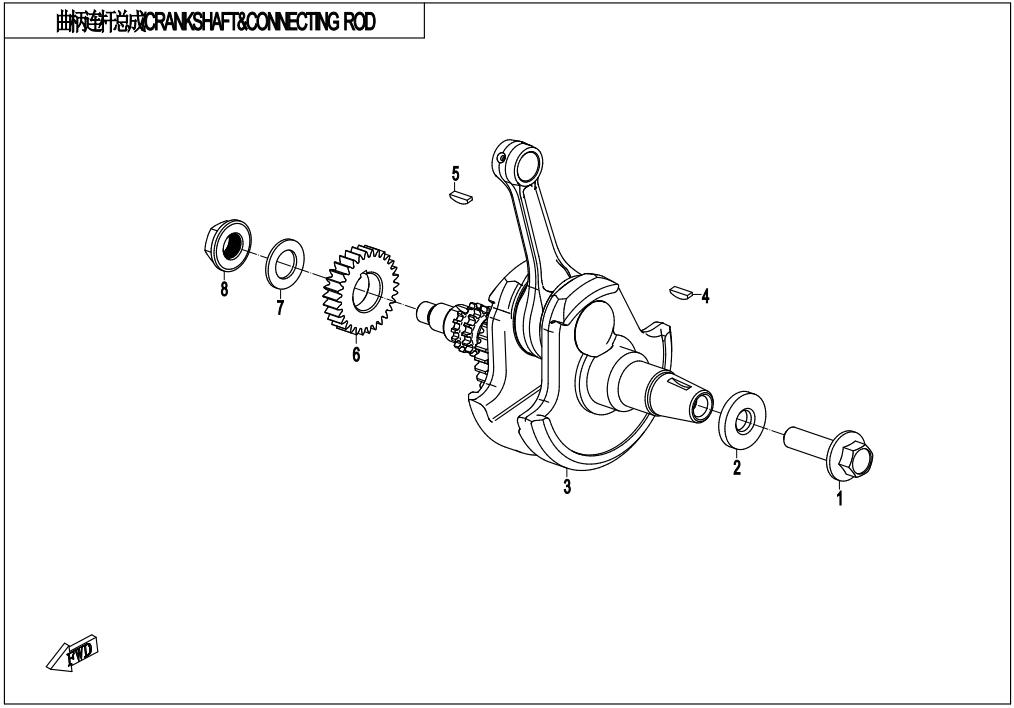

2023 CF MOTO 250NK (N1) CRANKSHAFT & CONNECTING ROD exploded diagram
CRANKSHAFT & CONNECTING ROD · 7
2023 CF MOTO 250NK (N1) PLASTIC 3 exploded diagram
PLASTIC 3 · 6

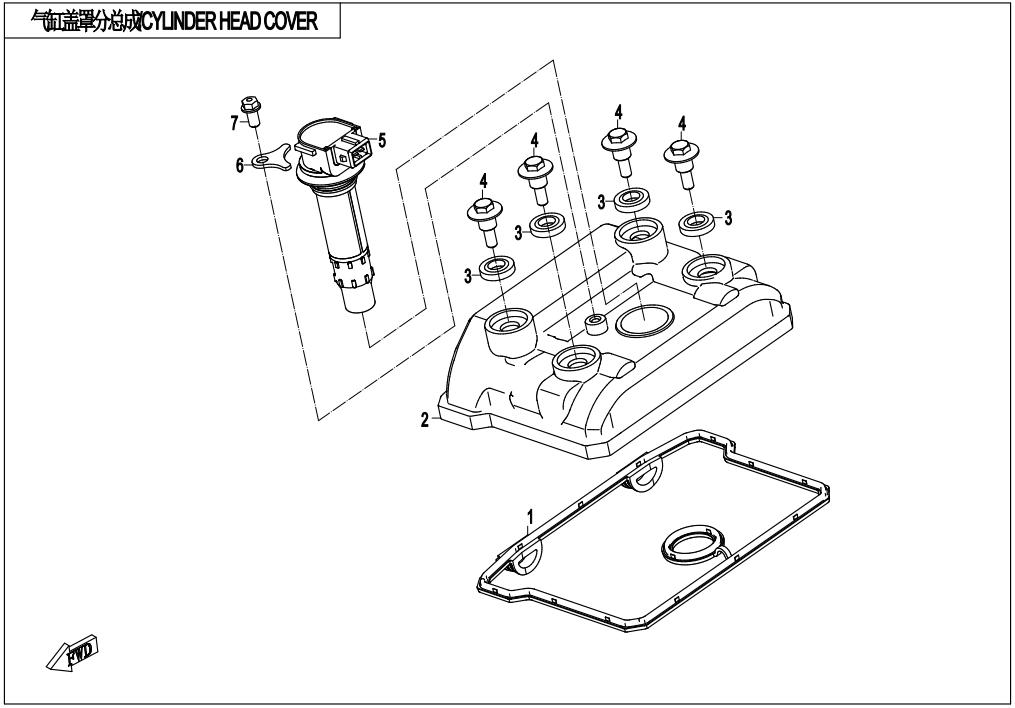

2023 CF MOTO 250NK (N1) CYLINDER HEAD COVER exploded diagram
