2022 CF MOTO CF650-3F — Electrical System parts

EE market44 genuine parts10 diagrams

Subgroups

Lights · 4Relay · 3Controller/ECU · 41

Part numbers

Every genuine electrical system part fitted to the 2022 CF MOTO CF650-3F. Each number opens its cross-reference & fitment page.

Part numberDescriptionDiagramPrice
6NTV-011000-B201-M1LOCK KITLOCK KIT - F01Enquire
6NT1-010010SEAT CABLELOCK KIT - F01Enquire
A000-010600LOCK SEAT, SEATLOCK KIT - F01Enquire
6KJ0-041801-00001GUARD, SEAT LOCKPLASTICS 6 - F04-6Enquire
6NT1-100600CLUTCH CABLESTEERING SYSTEM(NON HAND GUARD) - F10-AEnquire
6NTV-100500-2700THROTTLE CABLE 2STEERING SYSTEM(NON HAND GUARD) - F10-AEnquire
6NTV-100400-2700THROTTLE CABLE 1STEERING SYSTEM(NON HAND GUARD) - F10-AEnquire
6NQV-170200-2800FUEL LEVEL SENSORFUEL TANK - F12Enquire
6NQV-170200-2801FUEL LEVEL SENSORFUEL TANK - F12Enquire
6NTV-150100-B201MAIN CABLEELECTRIC SYSTEM - F15Enquire
A000-150800AUXILIARY RELAYELECTRIC SYSTEM - F15Enquire
6NT1-150600HORNELECTRIC SYSTEM - F15Enquire
6NTV-161000-2701FLASHERELECTRIC SYSTEM - F15Enquire
6KMV-151200-8500SIDE STAND SWITCHELECTRIC SYSTEM - F15Enquire
8010-090005BOLT M6x16ELECTRIC SYSTEM - F15Enquire
6NQV-177000-2800REGULATORELECTRIC SYSTEM - F15Enquire
6NTV-151000-3000REGULATORELECTRIC SYSTEM - F15Enquire
6NTV-150310-2700POSITIVE CABLE, STARTER MOTORELECTRIC SYSTEM - F15Enquire
6NTV-150420-2700NEGATIVE CABLE, BATTERYELECTRIC SYSTEM - F15Enquire
9CR6-150310STARTER RELAYELECTRIC SYSTEM - F15Enquire
31021200BATTERYELECTRIC SYSTEM - F15Enquire
6WWV-045901-5000AUXILIARY RELAY RUBBER BUSHINGELECTRIC SYSTEM - F15Enquire
6KJ0-150600ROLL-OVER SENSORELECTRIC SYSTEM - F15Enquire
6NTV-151200-2700USB OUTLET SOCKETELECTRIC SYSTEM - F15Enquire
5270-150002BATTERY FOAM MAT FRONT AND REARELECTRIC SYSTEM - F15Enquire
801F-100101TIE BANDELECTRIC SYSTEM - F15Enquire
6NTV-001000-D200ECU ASSY 650ELECTRIC SYSTEM - F15Enquire
6NTV-150430-2700FRAME GROUND CABLEELECTRIC SYSTEM - F15Enquire
6NTV-041105-2700WATER-PROOF GUARD, RELAYELECTRIC SYSTEM - F15Enquire
6GUV-151800-6800-M1T-BOXELECTRIC SYSTEM - F15Enquire
6GUV-151800-6900-M1T-BOXELECTRIC SYSTEM - F15Enquire
6GUV-151800-7100-M1T-BOXELECTRIC SYSTEM - F15Enquire
6GUV-151800-7300-M1INTELLIGENT CONTROLLERELECTRIC SYSTEM - F15Enquire
6GUV-151800-7500-M1T-BOX (AU MARKET)ELECTRIC SYSTEM - F15Enquire
6GUV-151800-7101-M1T-BOXELECTRIC SYSTEM - F15Enquire
6GUV-151800-7301-M1T-BOXELECTRIC SYSTEM - F15Enquire
6GUV-151800-7501-M1T-BOXELECTRIC SYSTEM - F15Enquire
6NQV-152700-B100GEAR CONTROL UNITELECTRIC SYSTEM - F15Enquire
6KM0-160400-00004FRONT TURN LIGHT, LHLIGHT - F16Enquire
6KM0-160500-00004FRONT RH TURN LIGHTLIGHT - F16Enquire
6NTV-163100-2700FRONT LH TURN LIGHTLIGHT - F16Enquire
6NTV-163200-2700FRONT RH TURN LIGHTLIGHT - F16Enquire
6NTV-001000-C200ECU ASSYEU5 A2 PARTS - F88Enquire
30006-080014810BOLTELECTRIC SYSTEM - F15Enquire

Exploded diagrams — Electrical System

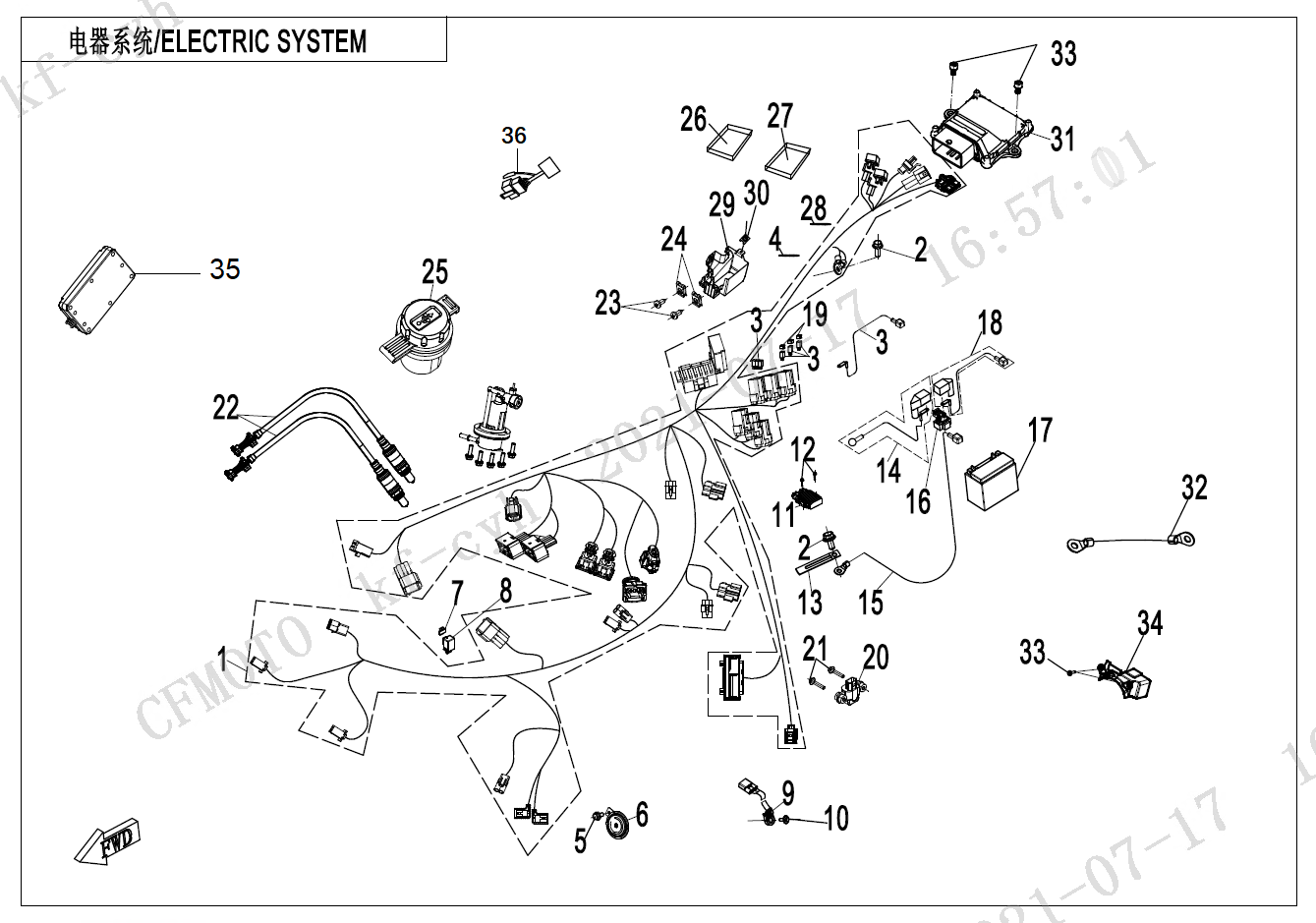

2022 CF MOTO CF650-3F ELECTRIC SYSTEM - F15 exploded diagram
ELECTRIC SYSTEM - F15 · 30
2022 CF MOTO CF650-3F LIGHT - F16 exploded diagram
LIGHT - F16 · 4
2022 CF MOTO CF650-3F LOCK KIT - F01 exploded diagram
LOCK KIT - F01 · 3

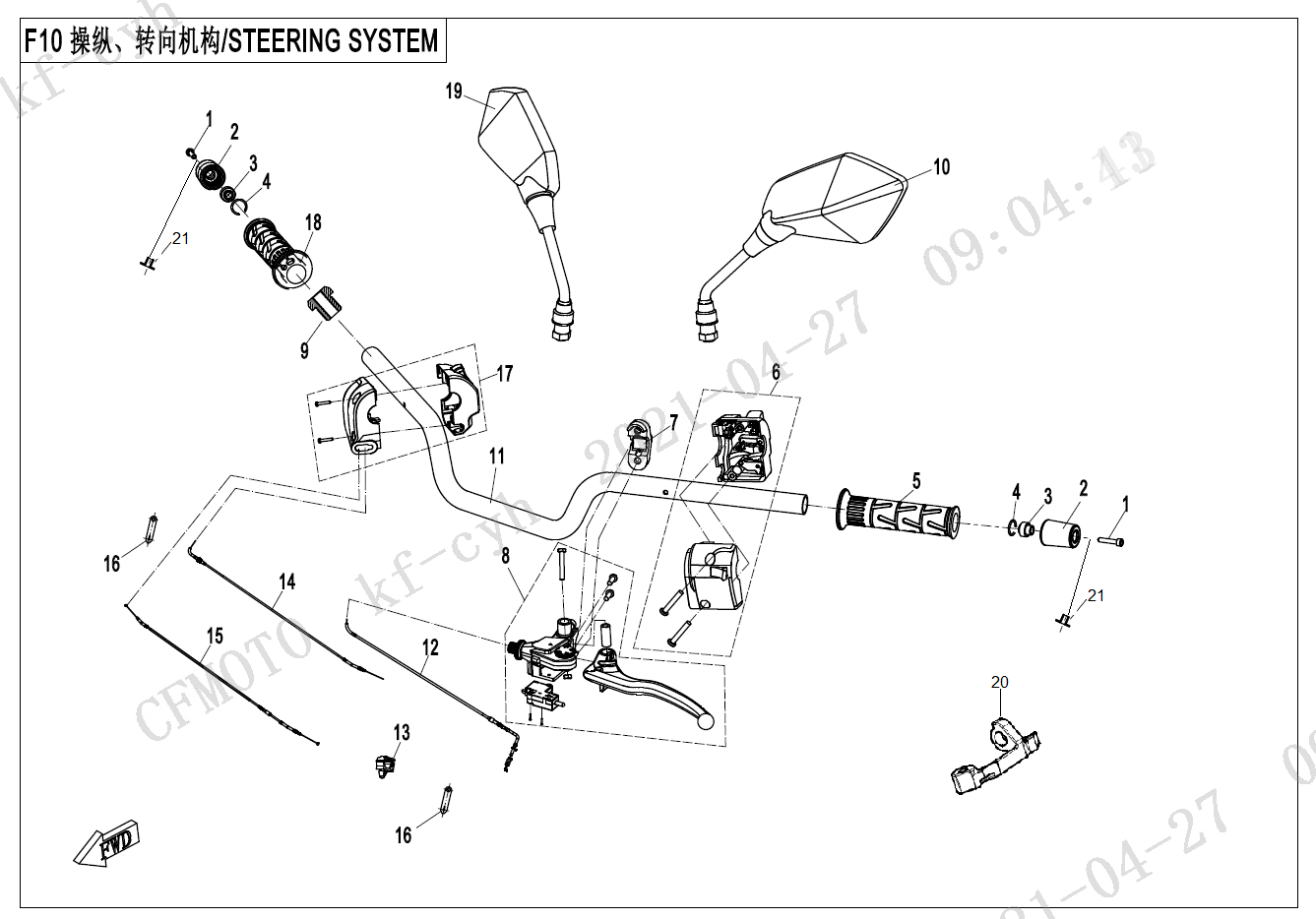

2022 CF MOTO CF650-3F STEERING SYSTEM(NON HAND GUARD) - F10-A exploded diagram
STEERING SYSTEM(NON HAND GUARD) - F10-A · 3

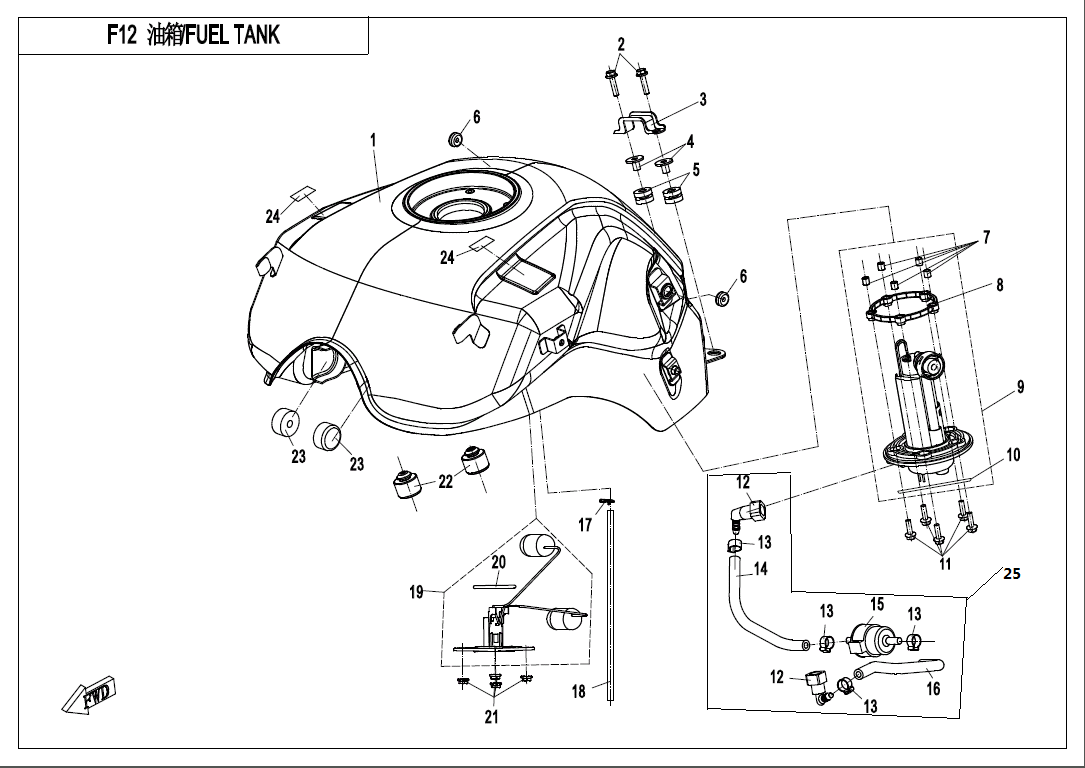

2022 CF MOTO CF650-3F FUEL TANK - F12 exploded diagram
FUEL TANK - F12 · 2
2022 CF MOTO CF650-3F FUEL TANK - F12-V1 exploded diagram
FUEL TANK - F12-V1 · 2

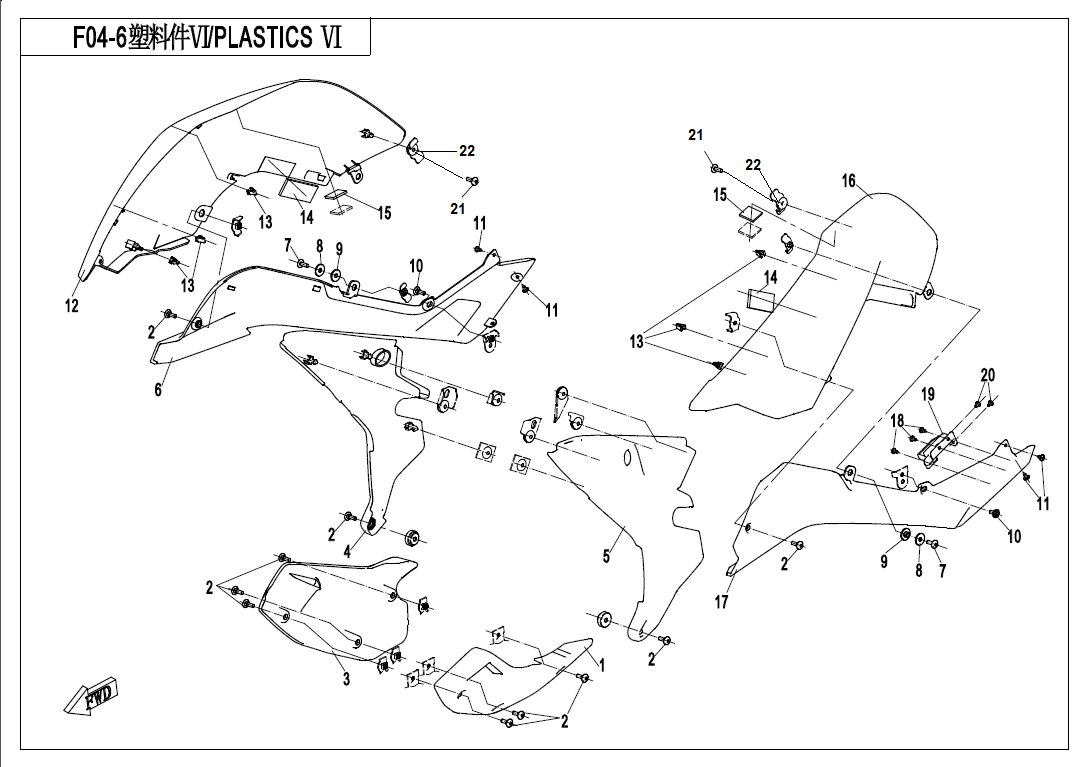

2022 CF MOTO CF650-3F PLASTICS 6 - F04-6 exploded diagram
PLASTICS 6 - F04-6 · 1
2022 CF MOTO CF650-3F EU5 A2 PARTS - F88 exploded diagram
EU5 A2 PARTS - F88 · 1

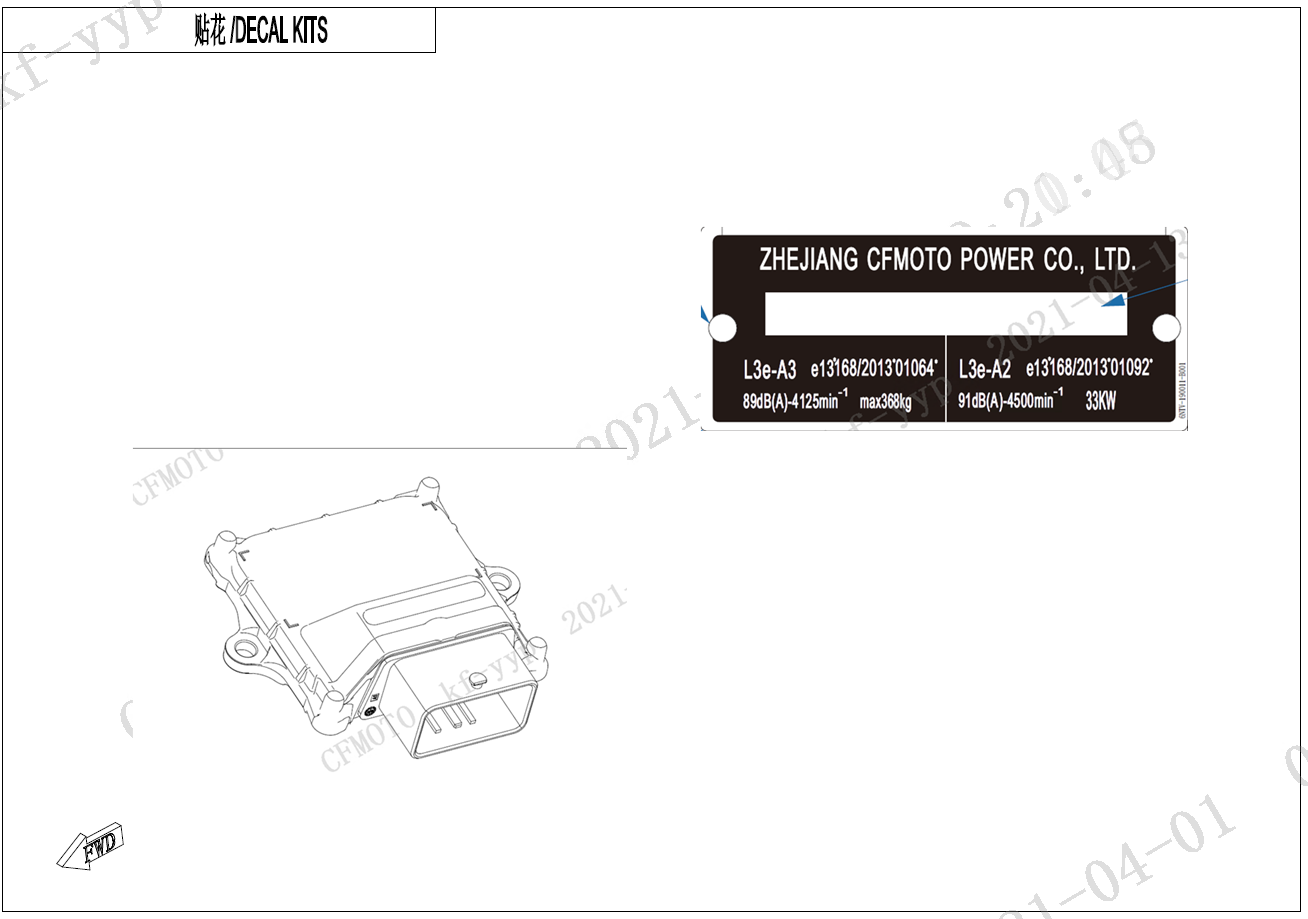

2022 CF MOTO CF650-3F EU5 A3 PARTS - F89 exploded diagram
EU5 A3 PARTS - F89 · 1

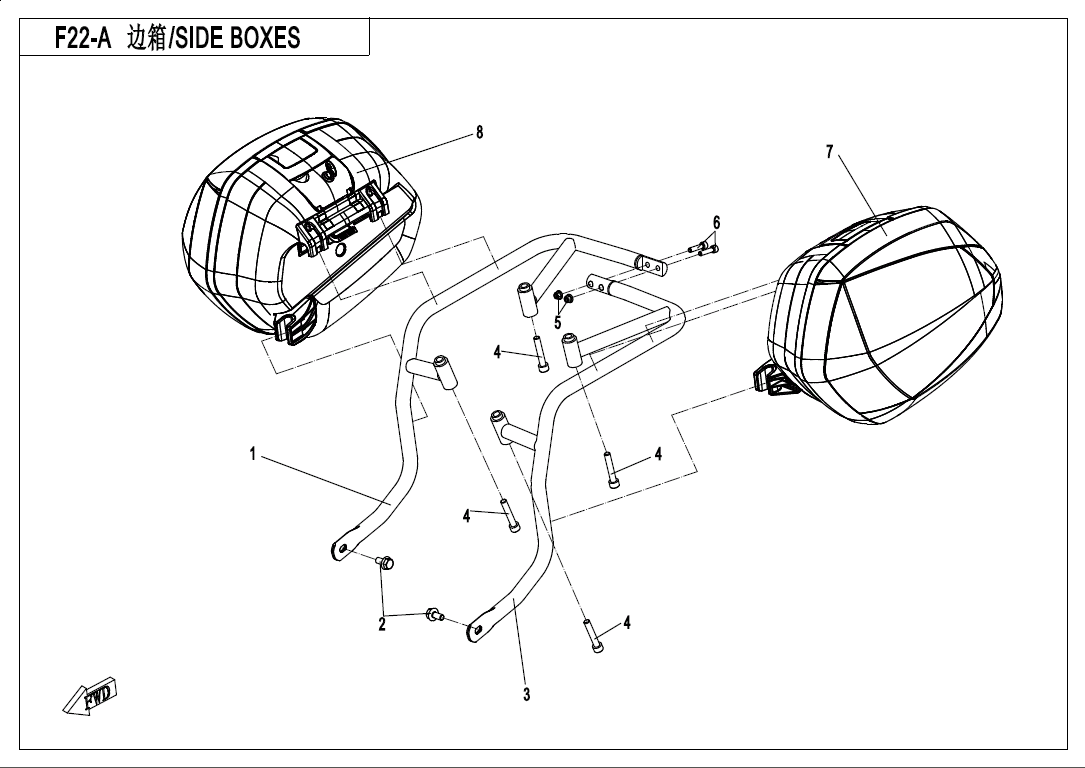

2022 CF MOTO CF650-3F SIDE BOXES(PLASTIC) - F22-A exploded diagram
SIDE BOXES(PLASTIC) - F22-A · 1
