2024 CF MOTO 1250 TRG — Electrical System parts
MY market19 genuine parts6 diagrams
Subgroups
Part numbers
Every genuine electrical system part fitted to the 2024 CF MOTO 1250 TRG. Each number opens its cross-reference & fitment page.
| Part number | Description | Diagram | Price | |
|---|---|---|---|---|
| A000-010600 | LOCK SEAT, SEAT | LOCK KIT | Enquire | |
| 6NT1-010010 | SEAT CABLE | LOCK KIT | Enquire | |
| 6L30-030720 | SELF-LOCK RETAINER KIT | FRAME ASSY 3 | Enquire | |
| 6NQV-150521-J000 | AUXILIARY RELAY | ELECTRIC SYSTEM | Enquire | |
| 30006-080014810 | BOLT | ELECTRIC SYSTEM | Enquire | |
| 6NT1-150600 | HORN | ELECTRIC SYSTEM | Enquire | |
| 6L30-080040 | 6D SENSOR | ELECTRIC SYSTEM | Enquire | |
| 5270-150002 | BATTERY FOAM MAT FRONT AND REAR | ELECTRIC SYSTEM | Enquire | |
| 9DSV-151000-4000 | REGULATOR Replacing: 0800-177000-30000 - REGULATOR | ELECTRIC SYSTEM | Enquire | |
| 8010-090005 | BOLT M6x16 | ELECTRIC SYSTEM | Enquire | |
| 6KMV-151200-8501 | SIDE STAND SWITCH | ELECTRIC SYSTEM | Enquire | |
| 6L30-150003 | TIE BAND | ELECTRIC SYSTEM | Enquire | |
| 801F-100101 | TIE BAND | ELECTRIC SYSTEM | Enquire | |
| SN1V-691100-1201-11 | T-BOX AUST ONLY | ELECTRIC SYSTEM | Enquire | |
| 6KMV-150901-B002 | T-BOX RUBBER RING | ELECTRIC SYSTEM | Enquire | |
| 6100-150500 | RUBBER SLEEVE, FLASHER | ELECTRIC SYSTEM | Enquire | |
| 6WWV-150420-5000-10 | VEHICLE CONTROL UNIT BUSHING | ELECTRIC SYSTEM | Enquire | |
| 0010-080013-0010 | BOLT M6x22 | OIL PUMP ASSY | Enquire | |

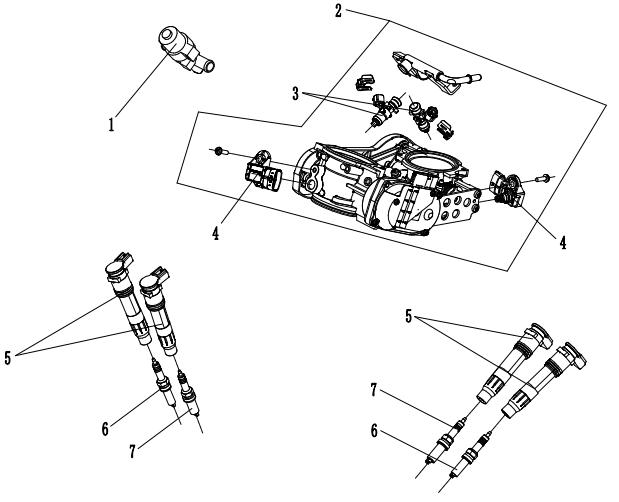

| 0JY0-175000 | T-MAP | ELECTRICAL PARTS | Enquire |
Exploded diagrams — Electrical System
Browse the catalogue interactively
Open Electrical System in the interactive 2024 CF MOTO 1250 TRG catalogue to drill into diagrams, check availability and add parts to your cart.
