2023 CF MOTO CF300-5F(EU5)OEM parts & exploded diagrams
EE market461 parts15 groups12+ diagrams
Vehicle #2040
- CC
- —
- HP
- —
- 年款
- —

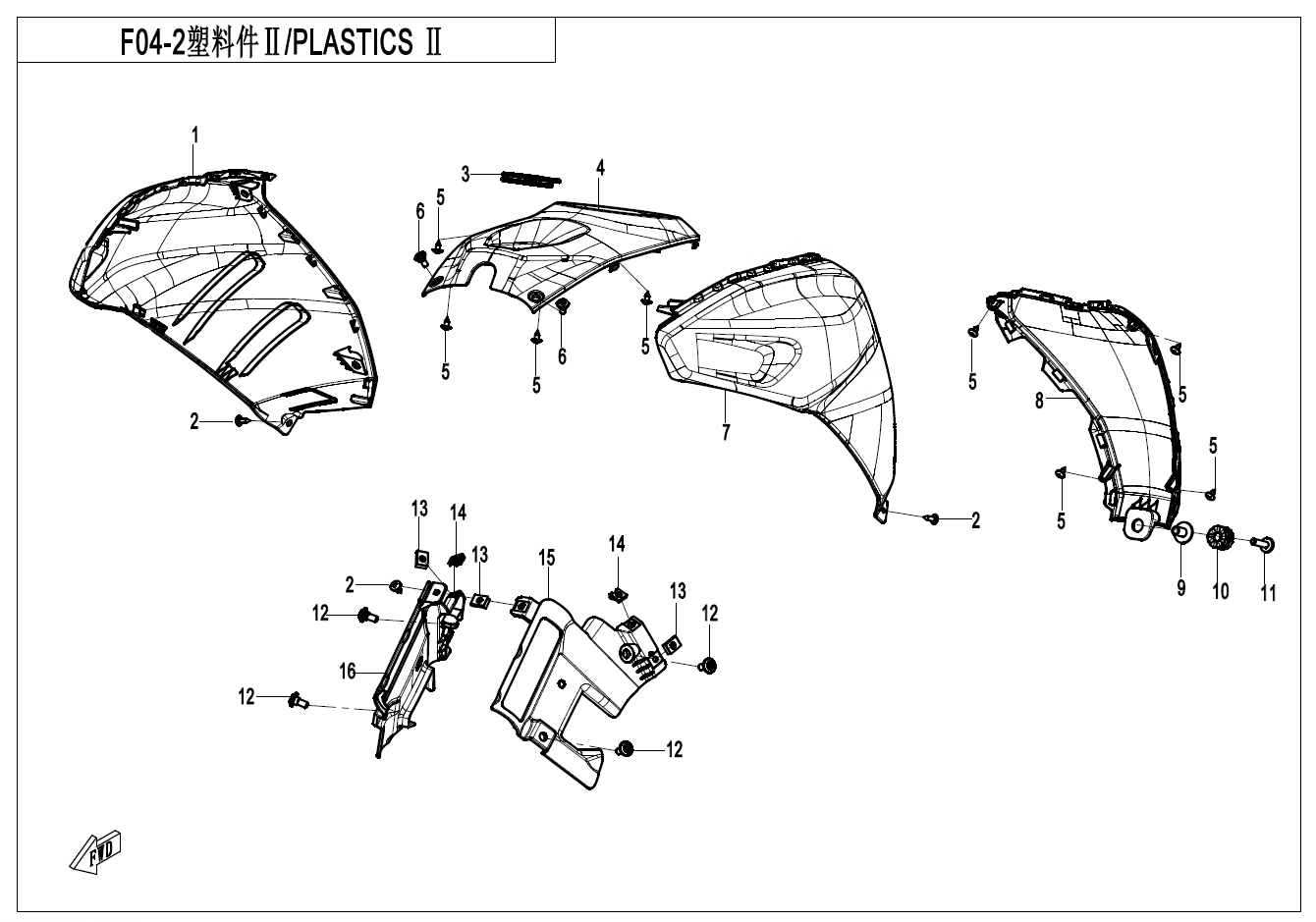

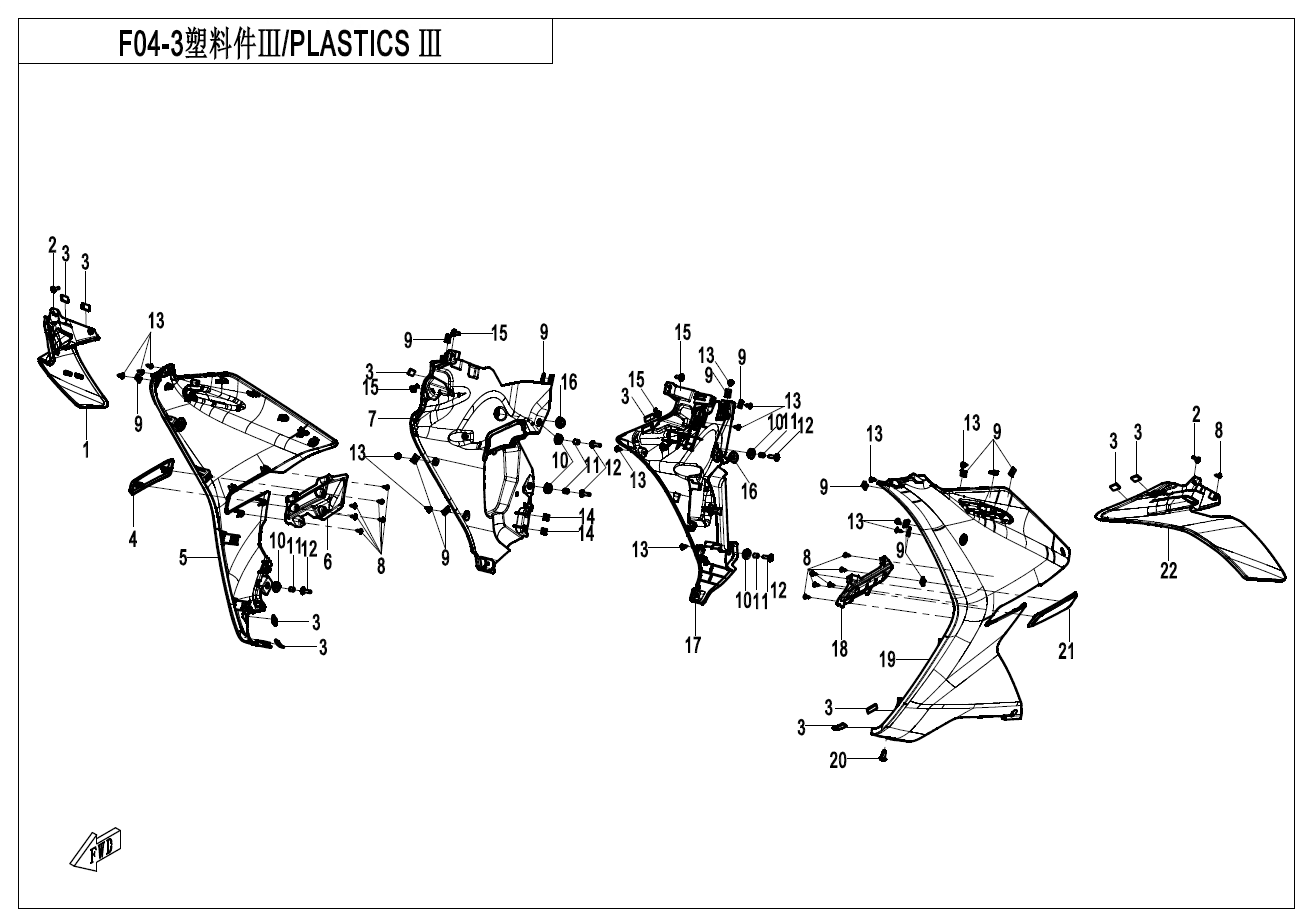

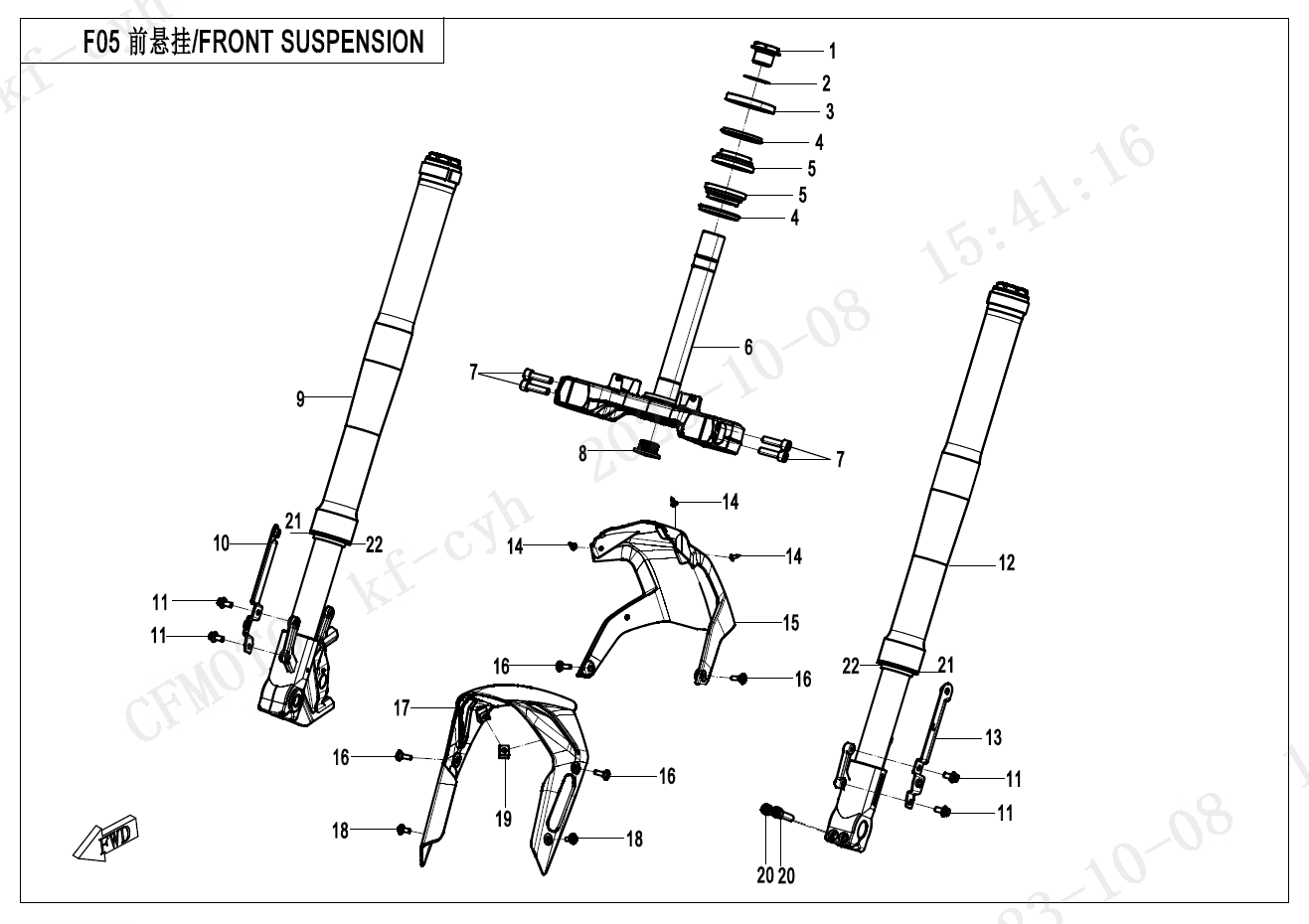

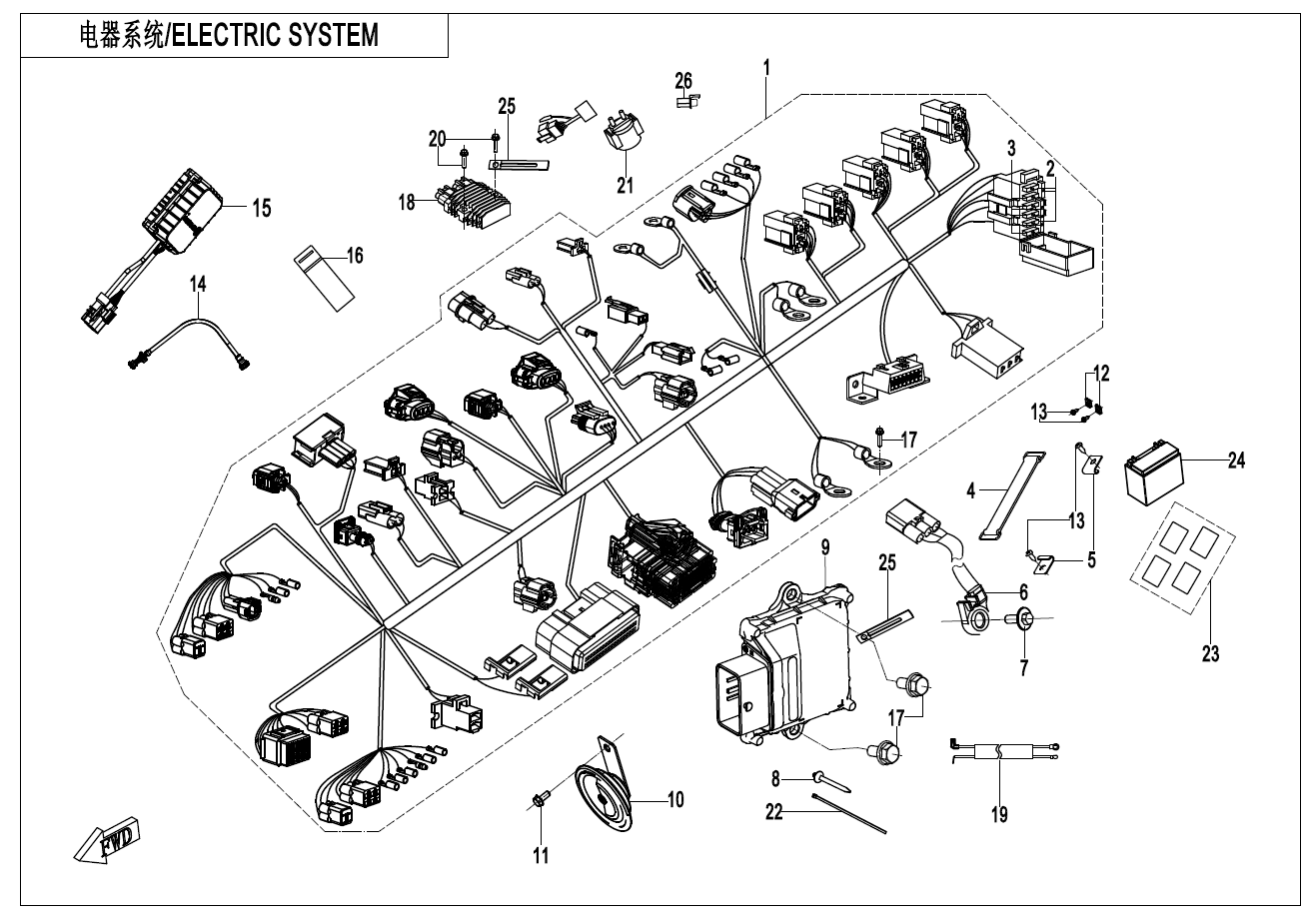

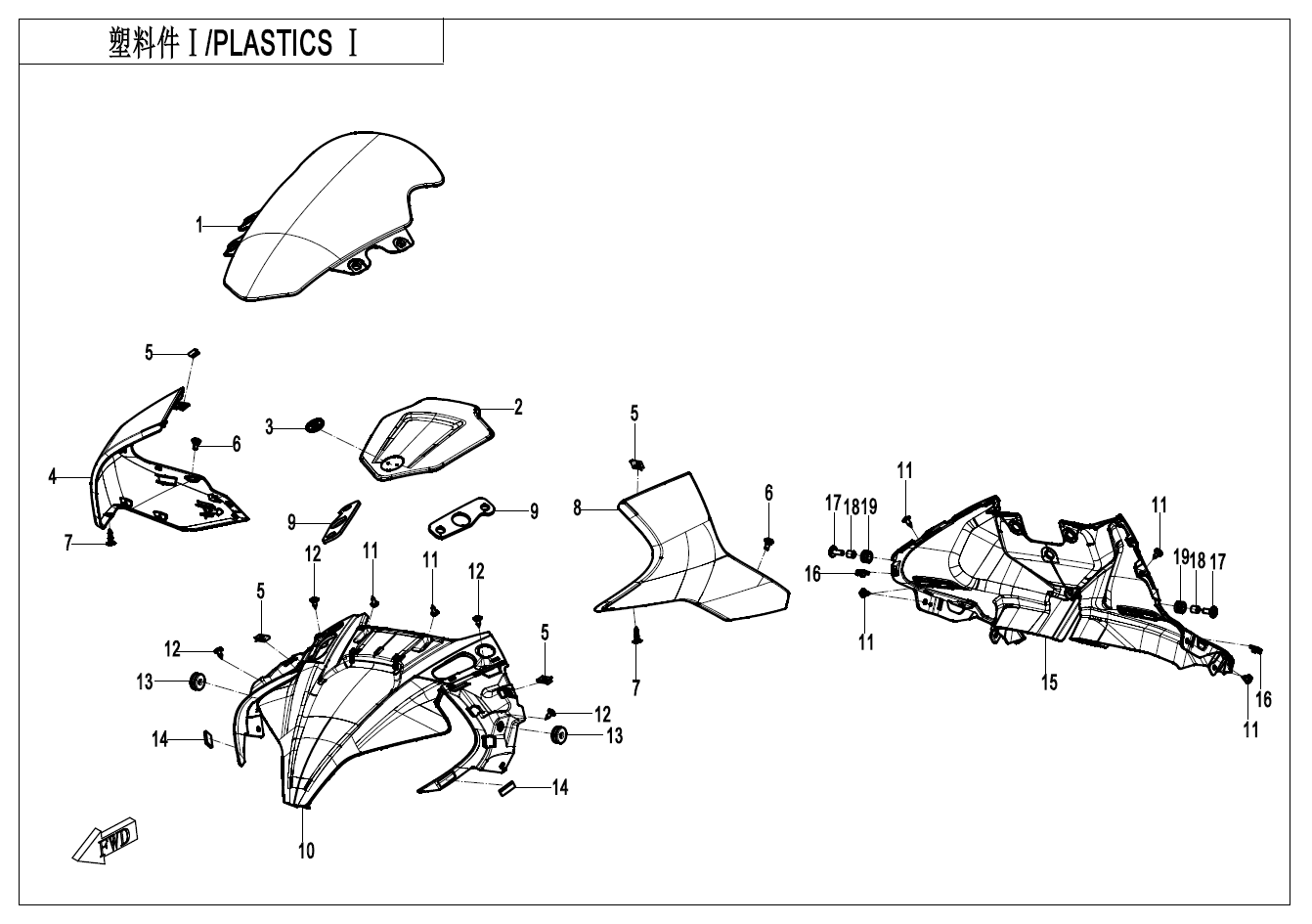

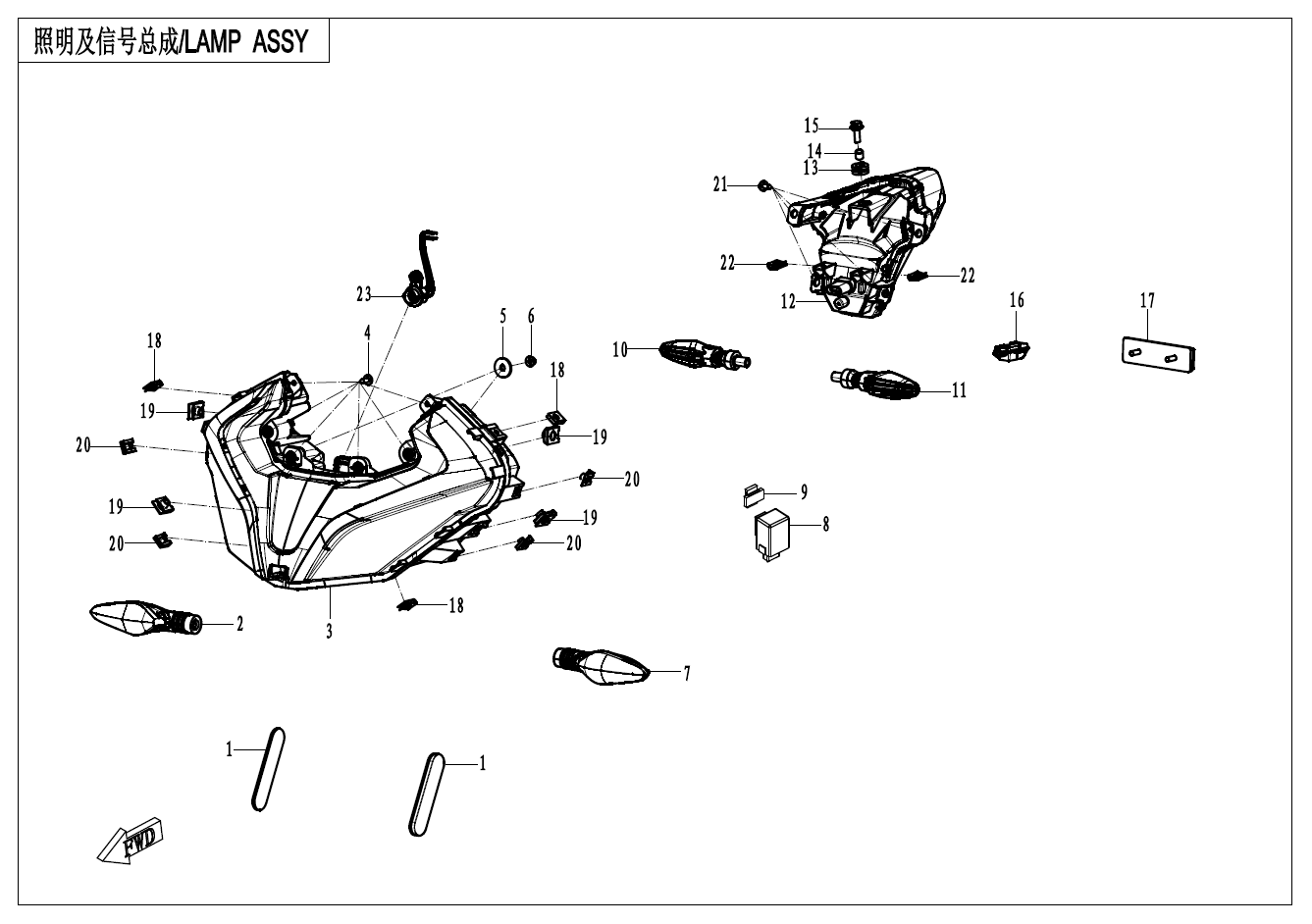

Exploded diagrams — 2023 CF MOTO CF300-5F(EU5)
Part numbers on the 2023 CF MOTO CF300-5F(EU5)
Each number has a dedicated cross-reference & fitment page.
- 0010-013009-0010 — BOLT M6x40
- 0DM0-014100 — REAR COVER ASSY, LH
- 0010-023010-0010 — BOLT M6x20
- 6KMV-011000-B001 — LOCK KIT
- 6KJ0-010001 — BOLT
- 6KMV-040902-3000 — RH LOWER GUARD, ENGINE
- 6KM0-140103 — BOLT

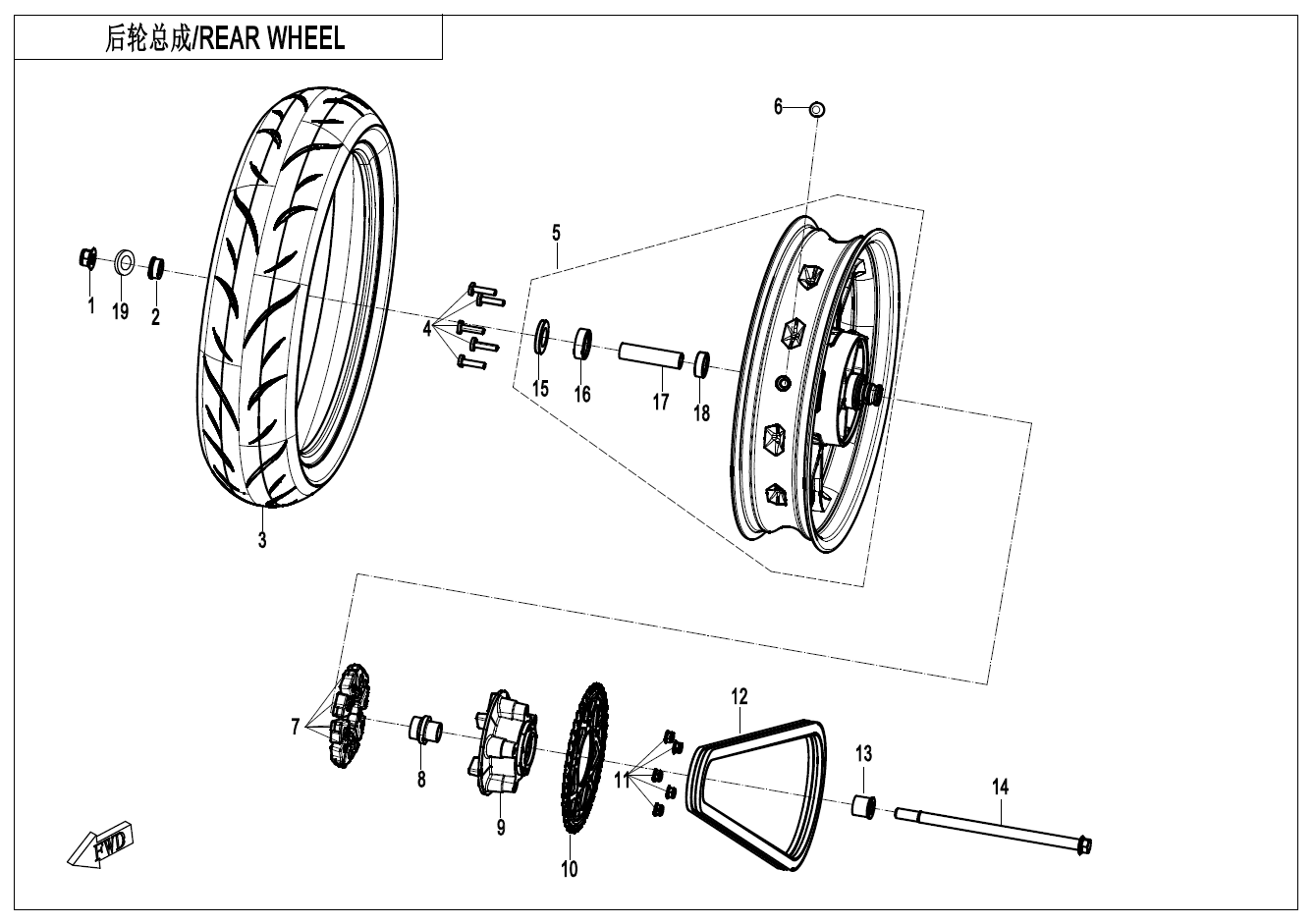

- 6KM0-110002-10000 — REAR WHEEL SHAFT SLEEVE
- 6KJ0-110005-20000 — REAR WHEEL SHAFT
- 30500-027800N — OIL SEAL
- 30400-01583 — BEARING
- 6KM#-110103-6001 — REAR RIM MIDDLE SPACER
- 30105-050012410 — SCREW
- 30006-060012870 — BOLTM6x12
- 6KM#-010010-8000 — SEAT CABLE
- 6KMV-011020-B001 — KEY
- 8010-020001 — NUT M8, MUFFLER JOINT
- 6KNV-021100-7301 — EXHAUST PIPE ASSY
- 6KM0-020010 — SEAL WASHER, EXHAUST PORT
- 6WWV-020002-5001 — BUSHING, MUFFLER BODY
- 6WWV-020003-5000 — RUBBER SLEEVE, MUFFLER BODY
- 30204-080810 — LOCK NUT
- 6AQV-021500-1000 — CLAMP KIT
- 6AQV-021400-1000 — GRAPHITE SEAL BUSHING
- 6KNV-021200-7000 — MUFFLER BODY
- 6KNV-021001-7000 — MUFFLER GUARD
- 6KNV-021300-7000 — MUFFLER BODY ASSY
- 6KMV-031000-3601-0BP00 — FRAME ASSY
- 6KNV-190011-7301 — VIN PLATE
- 6KMV-030400-3000 — FRONT FRAME ASSY
- 6090-040302 — CUSHION SLEEVE
- 6090-040303 — BUSHING
- 9010-160101 — HEADLIGHT RUBBER DAMPER
- 30006-080020810 — BOLT
- 30001-102150110 — BOLT M10x1.25x150
- 6KMV-030030-3000 — ENGINE FRONT BUSHING
- 6KMV-030020-3000 — ENGINE RH CONNECTING BRACKET
- 6KMV-030010-3000 — ENGINE LH CONNECTING BRACKET
- 0010-021019-0010 — BOLT M6x12
- 6KMV-030060-3000 — ENGINE DEFLECTOR RH FRONT BRACKET
- 6KMV-030070-3000 — ENGINE DEFLECTOR RH REAR BRACKET
- 6KMV-030040-3000 — ENGINE DEFLECTOR LH FRONT BRACKET
- 6KMV-030050-3000 — ENGINE DEFLECTOR LH REAR BRACKET
- A000-030004 — SPRING COLLAR, SIDE STAND
- 6KMV-030060-C000 — SIDE STAND SPRING ASSY
- 6KMV-030300-3000-0BP00 — SIDE BRACKET ASSY
- A000-030006 — SIDE BRACKET BOLT
- 6KMV-041112-3000 — M6 RUBBER SLEEVE
- 6KWV-041114-1000 — RUBBER HEAD
- 6KMV-030110-3000 — BRACKET, OIL CUP
- 6KM0-030100-2B200 — REAR MOUNTING ASSY,FUEL TANK
- 6WWV-047002-5000 — INNER HEX SCREW M6x25
- 6GU#-000202-6000 — T-TYPE BUSHING ASSY
- 5020-031001 — RUBBER SLEEVE, FRONT LICENSE BRACKET
- 5BY0-040010 — RUBBER SLEEVE
- 6WWV-046702-5000 — INNER HEX SCREW M6x12
- 30306-100112 — WASHER
- 6KNV-030010-7000 — ECU BRACKET
- 6KM#-140700-8000 — GEARSHIFT PEDAL ASSY
- 6WWV-046802-5000 — INNER HEX SCREW M6x16
