2022 CF MOTO CF700-2A — Engine parts

EE market79 genuine parts12 diagrams

Subgroups

Crankcase & Crankshaft · 5Seals & Gaskets · 5Belt/Chain Drive · 3Engine Hardware · 90

Part numbers

Every genuine engine part fitted to the 2022 CF MOTO CF700-2A. Each number opens its cross-reference & fitment page.

Part numberDescriptionDiagramPrice
A000-000201BUSHING, ENGINEENGINE FITTINGS - F00Enquire
30102-050012810SCREWLOCK KIT - F01-BEnquire
6GU#-021500-6002CLAMP 2MUFFLER - F02Enquire
6GU#-021312-6000SCREWMUFFLER - F02Enquire
30102-060016810SCREWFRAME - F03-1-BEnquire
30102-080020870SCREWFRAME - F03-1-BEnquire
6KM#-040702-8000SCREWFRAME - F03-1-BEnquire
6GU#-140140-6001BEARINGGEARSHIFT LEVER - F03-2Enquire
6GU#-140160-6001BEARINGGEARSHIFT LEVER - F03-2Enquire
6NQ#-000206-6001INNER HEX SCREW M6x16GEARSHIFT LEVER - F03-2Enquire
6KM#-040082-8000SCREW KIT M5PLASTICS1 - F04-1Enquire
30110-420095010SELF-TAPPING SCREWPLASTICS1 - F04-1Enquire
6GU#-000201-6000INNER HEX SCREW M6x25PLASTICS1 - F04-1Enquire
30110-420130070SELF-TAPPING SCREWPLASTICS1 - F04-1Enquire
30110-420130010SELF-TAPPING SCREW_ST4.2x13PLASTICS1 - F04-1Enquire
6KM#-160420-8001SPONGE MATPLASTICS1 - F04-1Enquire
30110-421130010SELF-TAPPING SCREWPLASTICS2 - F04-2Enquire
6GU#-040031-6000CAP, RESERVOIRPLASTICS2 - F04-2Enquire
30105-050016410SCREW M5X16PLASTICS2 - F04-2Enquire
9060-040310CLAMP ASSYPLASTICS2 - F04-2Enquire
6NQ#-000205-6001CHAIN GUARD SCREWPLASTICS3 - F04-3-AEnquire
6L30-050020SCREW KIT M5X12PLASTICS3 - F04-3-AEnquire
30118-420095010SELF-TAPPING SCREWPLASTICS5 - F04-5Enquire
A000-040703INNER HEX SCREWPLASTICS5 - F04-5Enquire
A000-0501B0STEERING BEARING ASSYFRONT SUSPENSION - F05Enquire
6NTA-050003LOCK SCREW, UPPER TRIPLE CLAMPFRONT SUSPENSION - F05Enquire
6GUV-050003-6001UPPER TRIPLE CLAMPFRONT SUSPENSION - F05Enquire
6GUV-050003-6002UPPER TRIPLE CLAMPFRONT SUSPENSION - F05Enquire
A000-050100-10000STEERING BEARING ASSYFRONT SUSPENSION - F05Enquire
6GU#-050030-6000LOWER TRIPLE CLAMP ASSYFRONT SUSPENSION - F05Enquire
A000-050011RUBBER PLUG 2FRONT SUSPENSION - F05Enquire
30102-080040870SCREWFRONT SUSPENSION - F05Enquire
6GU#-050100-6001-24OIL SEALFRONT SUSPENSION - F05Enquire
6NT1-060003DUST CAP, SMALLREAR SUSPENSION - F06Enquire
30102-122120110SCREW M12X1.25X120REAR SUSPENSION - F06Enquire
30102-122060110SCREW M12X1.25X60REAR SUSPENSION - F06Enquire
6L30-060030OIL SEAL, REAR FORKREAR SUSPENSION - F06Enquire
6L30-060007CAP, REAR FORK LINERREAR SUSPENSION - F06Enquire
6L30-060020BEARING, REAR FORKREAR SUSPENSION - F06Enquire
30501-030800NOIL SEALFRONT WHEEL - F07Enquire
30102-060020810SCREWBRAKE ASSY(ABS) - F08Enquire
30105-040030410SCREWSTEERING SYSTEM - F10Enquire
30020-102025410STUDREAR WHEEL - F11Enquire
30800-05205CIRCLIP FOR HOLEREAR WHEEL - F11Enquire
30501-028800NOIL SEALREAR WHEEL - F11Enquire
30903-0403510COTTER PINREAR WHEEL - F11Enquire
30601-111010CLAMPFUEL TANK - F12Enquire
6070-120400CLAMP(Φ14.5)FUEL TANK - F12Enquire
6GU#-140202-6000LIMIT BOLTFOOTREST - F14Enquire
30903-0322210COTTER PINFOOTREST - F14Enquire
30121-080030170SCREW M8X30FOOTREST - F14Enquire
30105-050010410SCREWFOOTREST - F14Enquire
30802-00605SPLIT WASHERFOOTREST - F14Enquire
30802-00603SPLIT WASHER 6FOOTREST - F14Enquire
30118-420130010SELF-TAPPING SCREW. ST4.2X13ELECTRIC SYSTEM - F15Enquire
6GU#-150001-6000-M1CLASPELECTRIC SYSTEM - F15Enquire
30110-350095010SELF-TAPPING SCREW ST3.5X9.5LIGHTS - F16Enquire
A000-040702INNER HEX SCREW M6x12DASHBOARD - F17Enquire
9010-180007CLAMP, WATER HOSECOOLING SYSTEM - F18Enquire
A000-180006CLAMP B30COOLING SYSTEM - F18Enquire
30601-212570CLAMPCOOLING SYSTEM - F18Enquire
6GUV-181010-6001WATER FILLING PORT CAP ASSYCOOLING SYSTEM - F18Enquire
30601-108010CLAMPFUEL VAPORIZATION SYSTEM - F36Enquire
30601-110010CLAMPFUEL VAPORIZATION SYSTEM - F36Enquire
30601-112010CLAMPFUEL VAPORIZATION SYSTEM - F36Enquire
30601-120030CLAMP A20AIR FILTER - F41Enquire
30601-117020CLAMP D17AIR FILTER - F41Enquire
30112-050012410SCREW ASSY M5X12AIR FILTER - F41Enquire
30601-118021CLAMP D18AIR FILTER - F41Enquire
30105-050014470SCREWFOOTREST - F14Enquire
30102-050008900INNER HEX SCREWLOCK KIT - F01-BEnquire
30102-050025900INNER HEX SCREWLOCK KIT - F01-BEnquire
6NTA-040202INNER HEX SCREWMUFFLER - F02Enquire
30102-050016870SCREWMUFFLER - F02Enquire
30110-420160010SELF-TAPPING SCREWPLASTICS5 - F04-5Enquire
30102-080025870SCREWFRONT SUSPENSION - F05Enquire
30102-060012810SCREWBRAKE ASSY(ABS) - F08Enquire
30501-035800NOIL SEALREAR WHEEL - F11Enquire
30006-060035810BOLTELECTRIC SYSTEM - F15Enquire

Exploded diagrams — Engine

2022 CF MOTO CF700-2A FRONT SUSPENSION - F05 exploded diagram
FRONT SUSPENSION - F05 · 10
2022 CF MOTO CF700-2A FOOTREST - F14 exploded diagram
FOOTREST - F14 · 9
2022 CF MOTO CF700-2A PLASTICS1 - F04-1 exploded diagram
PLASTICS1 - F04-1 · 7
2022 CF MOTO CF700-2A PLASTICS5 - F04-5 exploded diagram
PLASTICS5 - F04-5 · 7
2022 CF MOTO CF700-2A REAR SUSPENSION - F06 exploded diagram
REAR SUSPENSION - F06 · 7

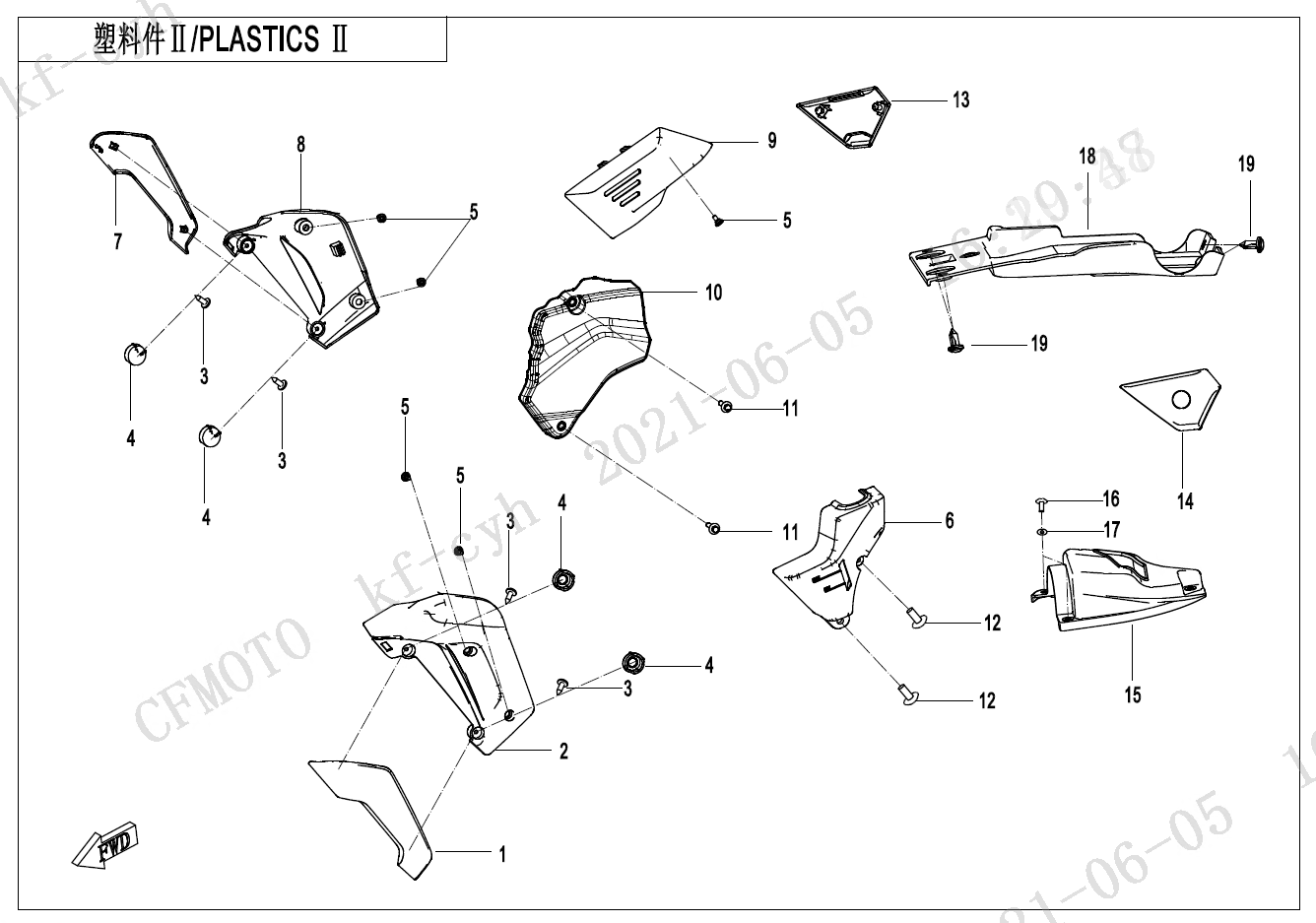

2022 CF MOTO CF700-2A PLASTICS2 - F04-2 exploded diagram
PLASTICS2 - F04-2 · 5
2022 CF MOTO CF700-2A REAR WHEEL - F11 exploded diagram
REAR WHEEL - F11 · 5
2022 CF MOTO CF700-2A ELECTRIC SYSTEM - F15 exploded diagram
ELECTRIC SYSTEM - F15 · 5

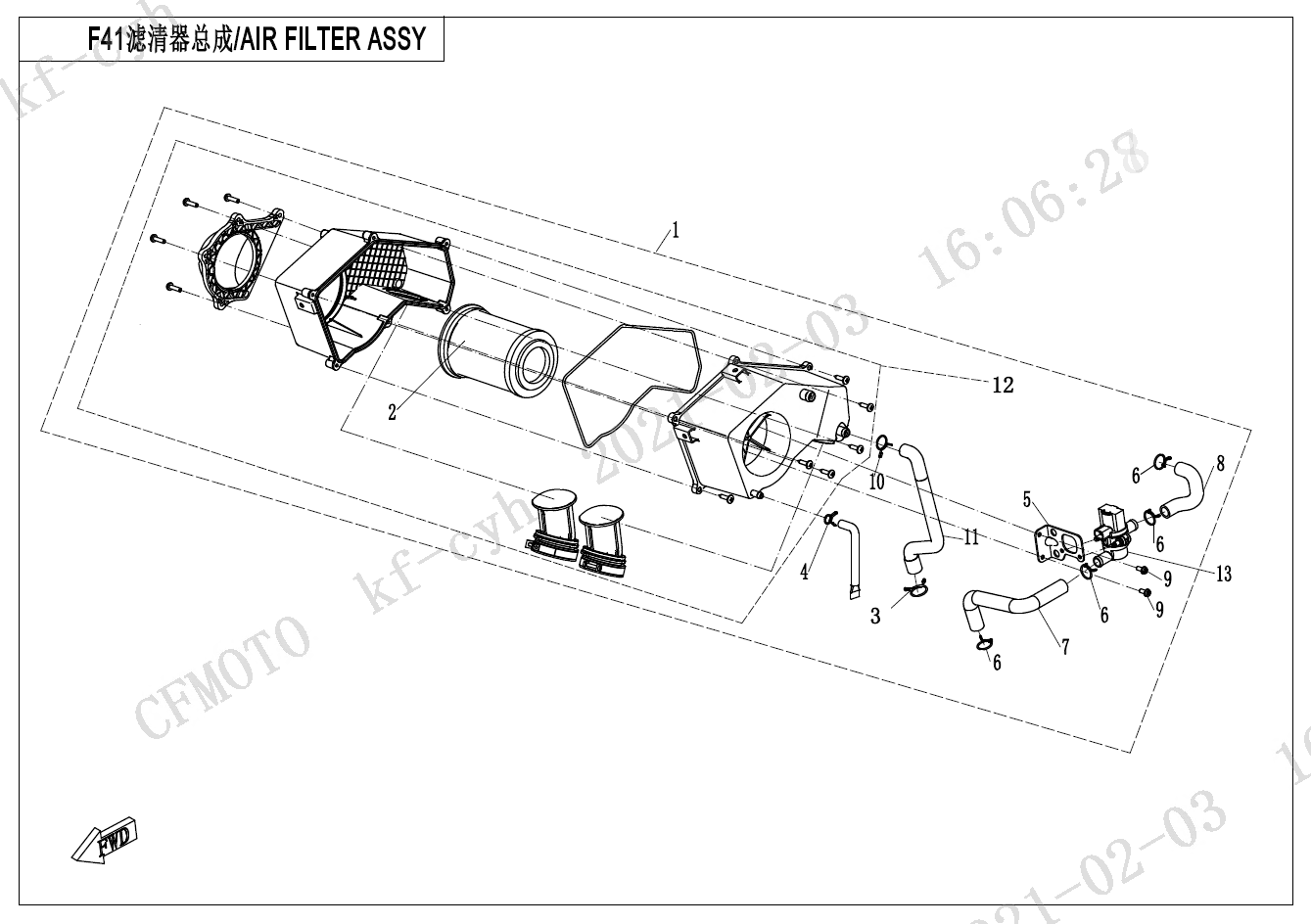

2022 CF MOTO CF700-2A AIR FILTER - F41 exploded diagram
AIR FILTER - F41 · 5
2022 CF MOTO CF700-2A MUFFLER - F02 exploded diagram
MUFFLER - F02 · 4
2022 CF MOTO CF700-2A FRAME - F03-1-B exploded diagram
FRAME - F03-1-B · 4
2022 CF MOTO CF700-2A PLASTICS3 - F04-3-A exploded diagram
PLASTICS3 - F04-3-A · 4
