2020 CF MOTO CF650-3C(EU4) — Wheels & Tyres parts
EE market32 genuine parts9 diagrams
Subgroups
Part numbers
Every genuine wheels & tyres part fitted to the 2020 CF MOTO CF650-3C(EU4). Each number opens its cross-reference & fitment page.
| Part number | Description | Diagram | Price | |
|---|---|---|---|---|
| A000-050015 | WIRE CLIP, FRONT BRAKE FLUID HOSE | FRONT SUSPENSION(HIGH CONFIGURATION) - F05-A | Enquire | |
| 6NTG-070100-1B200 | FRONT RIM ASSY | FRONT WHEEL(HIGH CONFIGURATION) - F07-A | Enquire | |
| 30400-02003 | BEARING | FRONT WHEEL(HIGH CONFIGURATION) - F07-A | Enquire | |
| A000-070004 | MIDDLE BUSHING, FRONT RIM | FRONT WHEEL(HIGH CONFIGURATION) - F07-A | Enquire | |
| 30705-1719 | TYRE | FRONT WHEEL(HIGH CONFIGURATION) - F07-A | Enquire | |
| A000-070001 | AXLE, FRONT WHEEL | FRONT WHEEL(HIGH CONFIGURATION) - F07-A | Enquire | |
| A000-050016 | RUBBER PLUG, FRONT WHEEL AXLE | FRONT WHEEL(HIGH CONFIGURATION) - F07-A | Enquire | |
| 5190-070030-1000 | VALVE, INFLATION | FRONT WHEEL(HIGH CONFIGURATION) - F07-A | Enquire | |

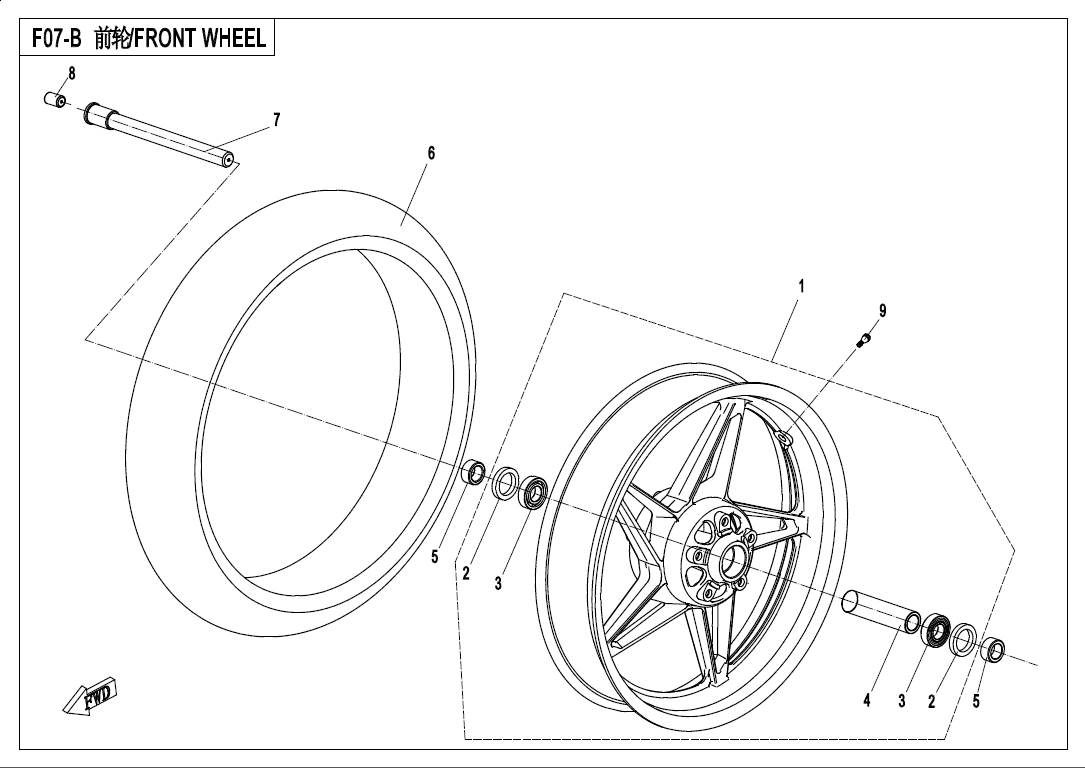

| 30705-1715 | TYRE | FRONT WHEEL (LOW CONFIGURATION) - F07-B | Enquire | |
| A000-0801E0 | BRACKET, FRONT LH BRAKE CALIPER | FRONT BRAKE - F08-1-V2 | Enquire | |
| A000-0801G0 | BRACKET, FRONT BRAKE CALIPER(RH) | FRONT BRAKE - F08-1-V2 | Enquire | |
| A000-080010 | FRONT BRAKE DISC | FRONT BRAKE - F08-1-V2 | Enquire | |

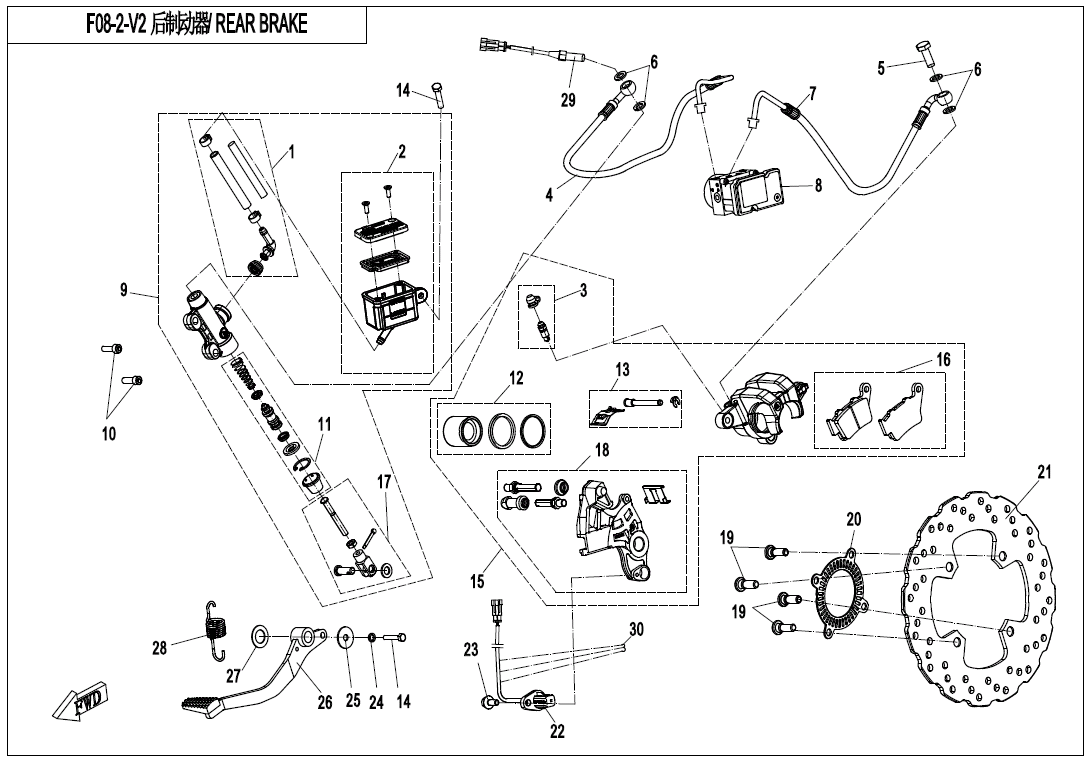

| 6NTG-080002-30000 | REAR BRAKE DISC | REAR BRAKE - F08-2-V2 | Enquire | |

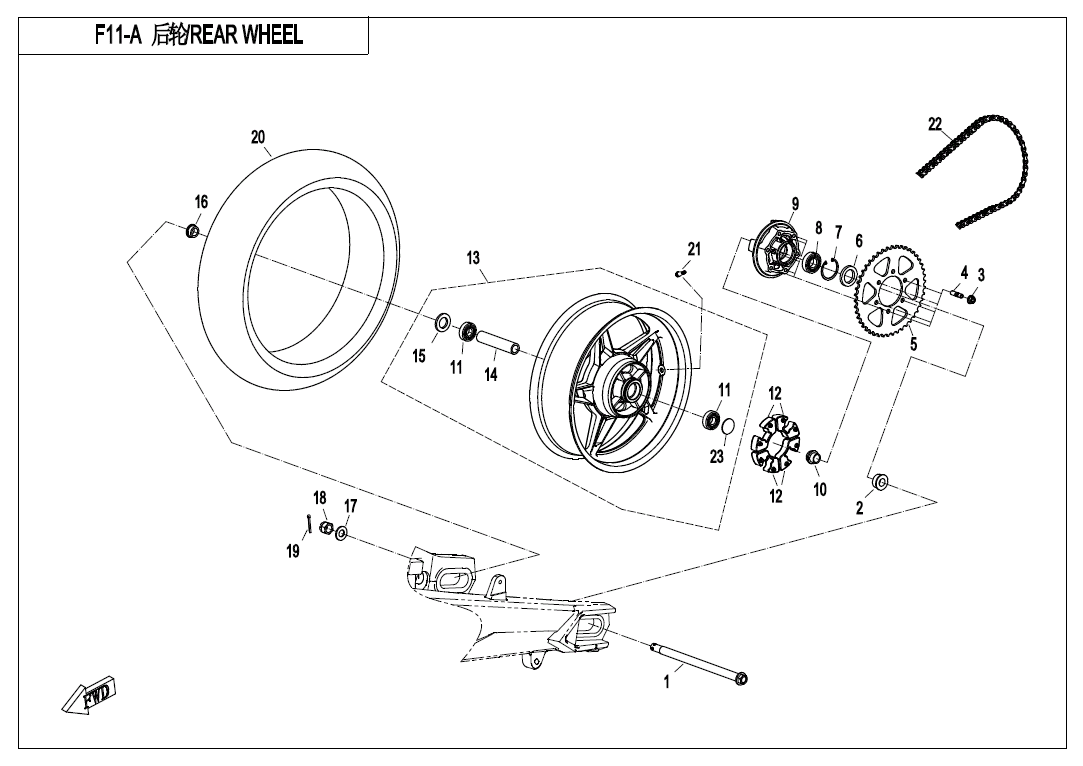

| 6NT1-110001 | REAR WHEEL AXLE | REAR WHEEL(HIGH CONFIGURATION) - F11-A | Enquire | |
| A000-110002 | REAR WHEEL LH SHAFT SLEEVE | REAR WHEEL(HIGH CONFIGURATION) - F11-A | Enquire | |
| A000-110004 | REAR SPROCKET | REAR WHEEL(HIGH CONFIGURATION) - F11-A | Enquire | |
| A000-110004-10000 | REAR SPROCKET | REAR WHEEL(HIGH CONFIGURATION) - F11-A | Enquire | |
| 30400-02503 | BEARING | REAR WHEEL(HIGH CONFIGURATION) - F11-A | Enquire | |
| A000-110006-0B20 | SPROCKET SEAT | REAR WHEEL(HIGH CONFIGURATION) - F11-A | Enquire | |
| A000-110005 | SPROCKET SEAT SHAFT BUSHING | REAR WHEEL(HIGH CONFIGURATION) - F11-A | Enquire | |
| 6NT1-110200-1B200 | REAR RIM ASSY MATTE BLACK | REAR WHEEL(HIGH CONFIGURATION) - F11-A | Enquire | |
| A000-110008 | REAR RIM MIDDLE SPACER | REAR WHEEL(HIGH CONFIGURATION) - F11-A | Enquire | |
| 6NT1-110003 | REAR WHEEL RH SHAFT SLEEVE | REAR WHEEL(HIGH CONFIGURATION) - F11-A | Enquire | |
| 6NT1-110002 | WASHER , REAR WHEEL AXLE | REAR WHEEL(HIGH CONFIGURATION) - F11-A | Enquire | |
| A000-110011 | NUT, REAR WHEEL | REAR WHEEL(HIGH CONFIGURATION) - F11-A | Enquire | |
| 30705-1720 | TYRE | REAR WHEEL(HIGH CONFIGURATION) - F11-A | Enquire | |
| 3120913 | CHAIN | REAR WHEEL(HIGH CONFIGURATION) - F11-A | Enquire | |

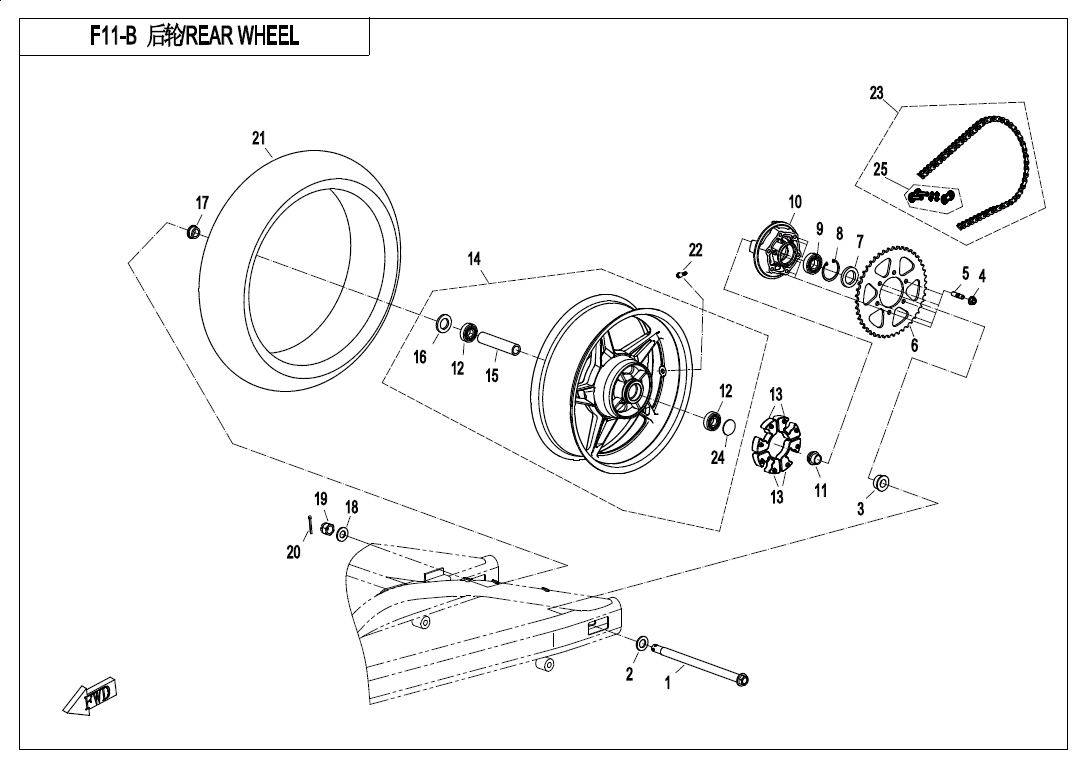

| 6NT1-110200-0B200 | REAR RIM ASSY MATTE BLACK | REAR WHEEL(LOW CONFIGURATION) - F11-B | Enquire | |
| 30705-1702 | REAR TYRE CONTINENTAL | REAR WHEEL(LOW CONFIGURATION) - F11-B | Enquire | |
| 30705-1716 | TYRE | REAR WHEEL(LOW CONFIGURATION) - F11-B | Enquire | |
| 3120914 | CHAIN | REAR WHEEL(LOW CONFIGURATION) - F11-B | Enquire | |
| 30400-02001 | BEARING | REAR WHEEL(HIGH CONFIGURATION) - F11-A | Enquire |
Exploded diagrams — Wheels & Tyres
Browse the catalogue interactively
Open Wheels & Tyres in the interactive 2020 CF MOTO CF650-3C(EU4) catalogue to drill into diagrams, check availability and add parts to your cart.
