2018 CF MOTO CF250 — Engine parts
EE market55 genuine parts12 diagrams
Subgroups
Part numbers
Every genuine engine part fitted to the 2018 CF MOTO CF250. Each number opens its cross-reference & fitment page.
| Part number | Description | Diagram | Price | |
|---|---|---|---|---|
| 0010-023010-0010 | BOLT M6x20 | ENGINE FITTINGS - F00 | Enquire | |
| 30110-421130010 | SELF-TAPPING SCREW | LOCK KIT - F01 | Enquire | |
| A000-040702 | INNER HEX SCREW M6x12 | MUFFLER - F02 | Enquire | |
| 30805-01005 | CIRCLIP 10 | GEARSHIFT LEVER - F03-2 | Enquire | |

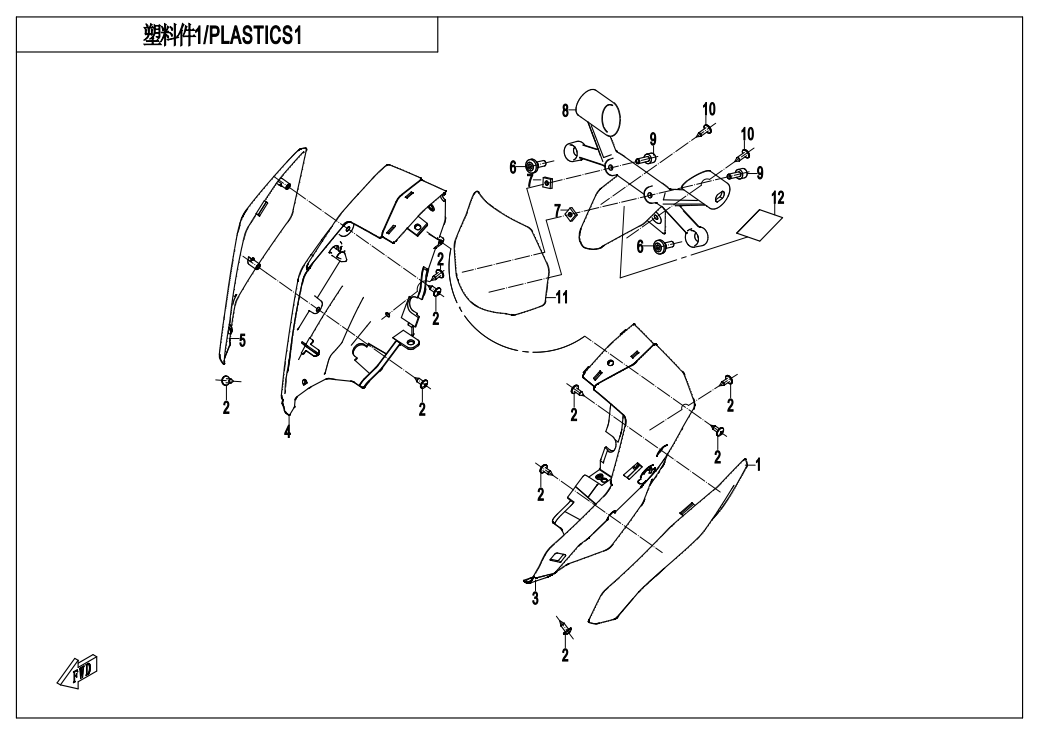

| A000-060002 | CHAIN GUARD SCREW | PLASTICS1 - F04-1 | Enquire | |

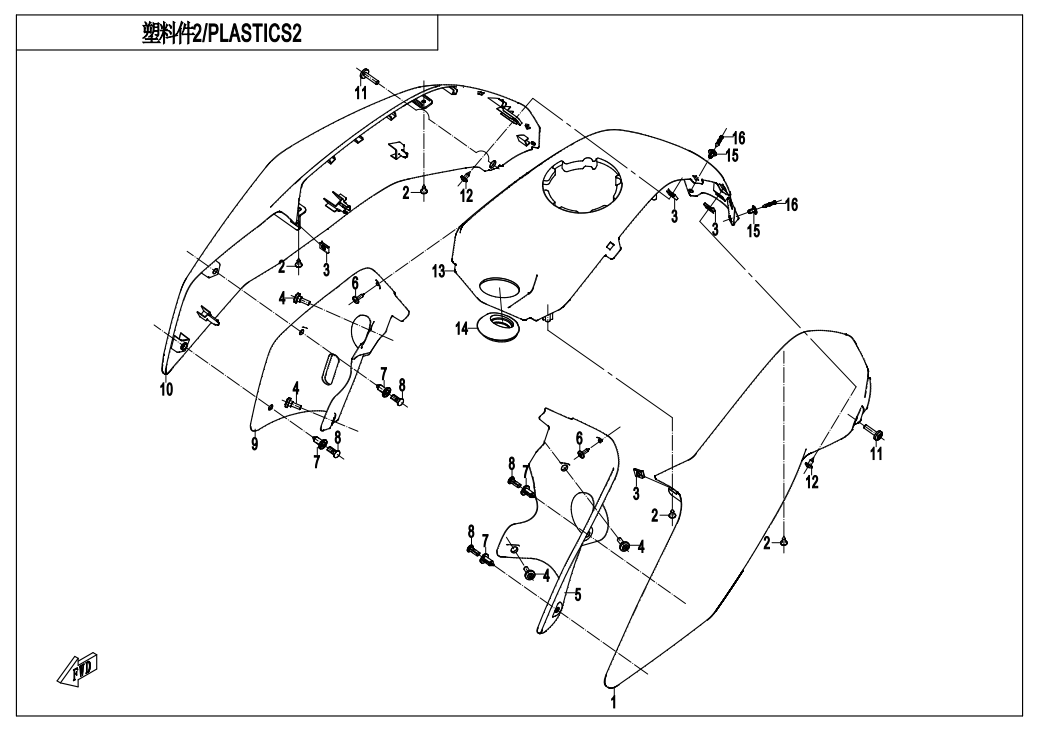

| 30110-480160010 | SELF-TAPPING SCREW | PLASTICS2 - F04-2 | Enquire | |
| 9060-040312 | SEAT, PLASTIC CLIP | PLASTICS2 - F04-2 | Enquire | |
| 9060-040311 | PLASTIC CLIP | PLASTICS2 - F04-2 | Enquire | |
| A000-040703 | INNER HEX SCREW | PLASTICS2 - F04-2 | Enquire | |
| 30110-481130010 | SELF-TAPPING SCREW | PLASTICS2 - F04-2 | Enquire | |
| 8080-041132 | PLASTIC STUD SEAT | PLASTICS2 - F04-2 | Enquire | |
| 8080-041131 | PLASTIC STUD | PLASTICS2 - F04-2 | Enquire | |
| 9060-040310 | CLAMP ASSY | PLASTICS3 - F04-3-V1 | Enquire | |

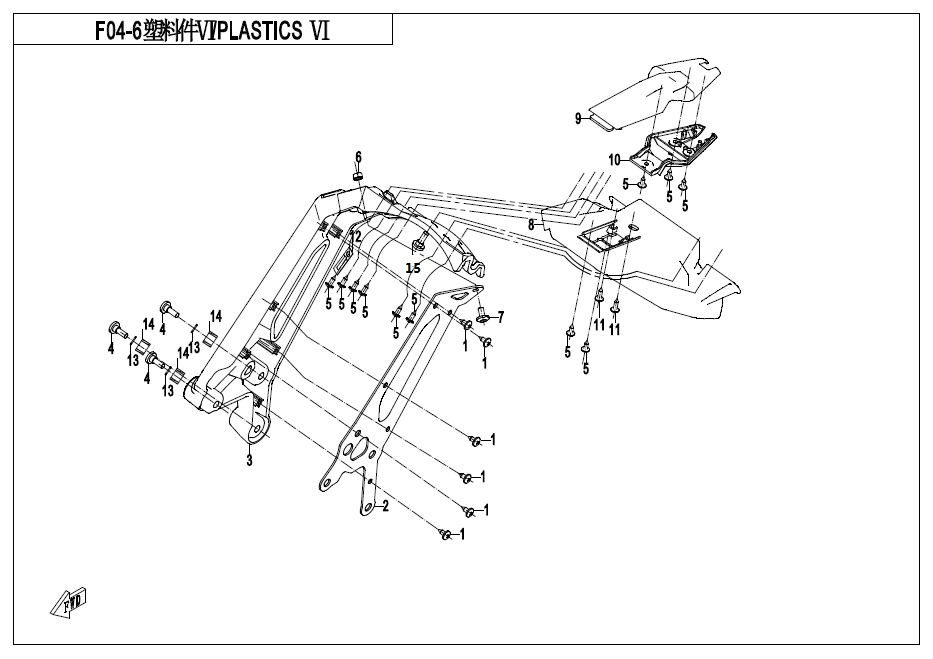

| 0180-014010 | WIRE CLAMP | PLASTICS6 - F04-6 | Enquire | |
| A000-050005 | RUBBER PLUG 1 | FRONT SUSPENSION - F05-A | Enquire | |
| A000-050003 | FIXING SCREW, UPPER TRIPLE CLAMP | FRONT SUSPENSION - F05-A | Enquire | |
| 30102-080030860 | SCREW | FRONT SUSPENSION - F05-A | Enquire | |
| 6KJ0-050006 | LINER, UPPER TRIPLE CLAMP | FRONT SUSPENSION - F05-A | Enquire | |
| A000-050100 | STEERING BEARING ASSY | FRONT SUSPENSION - F05-A | Enquire | |
| A000-050011 | RUBBER PLUG 2 | FRONT SUSPENSION - F05-A | Enquire | |
| 6KJ0-0500A0 | LOWER TRIPLE CLAMP RETAINER ASSY | FRONT SUSPENSION - F05-A | Enquire | |
| 30102-080040810 | SCREW M8x40 | FRONT SUSPENSION - F05-A | Enquire | |
| 6KJ0-070024 | OIL SEAL | FRONT WHEEL(MATTE BLACK-RIM) - F07-A | Enquire | |
| 30500-027800N | OIL SEAL | REAR WHEEL(MATTE BLACK-RIM) - F11-A | Enquire | |
| 6070-120400 | CLAMP(Φ14.5) | FUEL TANK - F12 | Enquire | |
| 30601-109010 | CLAMP | FUEL TANK - F12 | Enquire | |
| 30601-111010 | CLAMP | FUEL TANK - F12 | Enquire | |
| 6NTG-200424 | INNER HEX SCREW M6x25 | SEAT - F13-A | Enquire | |
| 6KM0-130106 | DAMPING RUBBER SLEEVE | SEAT - F13-A | Enquire | |
| 30802-00605 | SPLIT WASHER | FOOTREST (ORDINARY) - F14-A | Enquire | |
| 30802-00905 | SPLIT WASHER 9 | FOOTREST (ORDINARY) - F14-A | Enquire | |
| 30102-080020810 | SCREW | FOOTREST (ORDINARY) - F14-A | Enquire | |
| 30102-060012830 | INNER HEX SCREW M6x12 | ELECTRIC SYSTEM - F15-V1 | Enquire | |
| 30102-060016810 | SCREW | DASHBOARD(TFT) - F17-A | Enquire | |

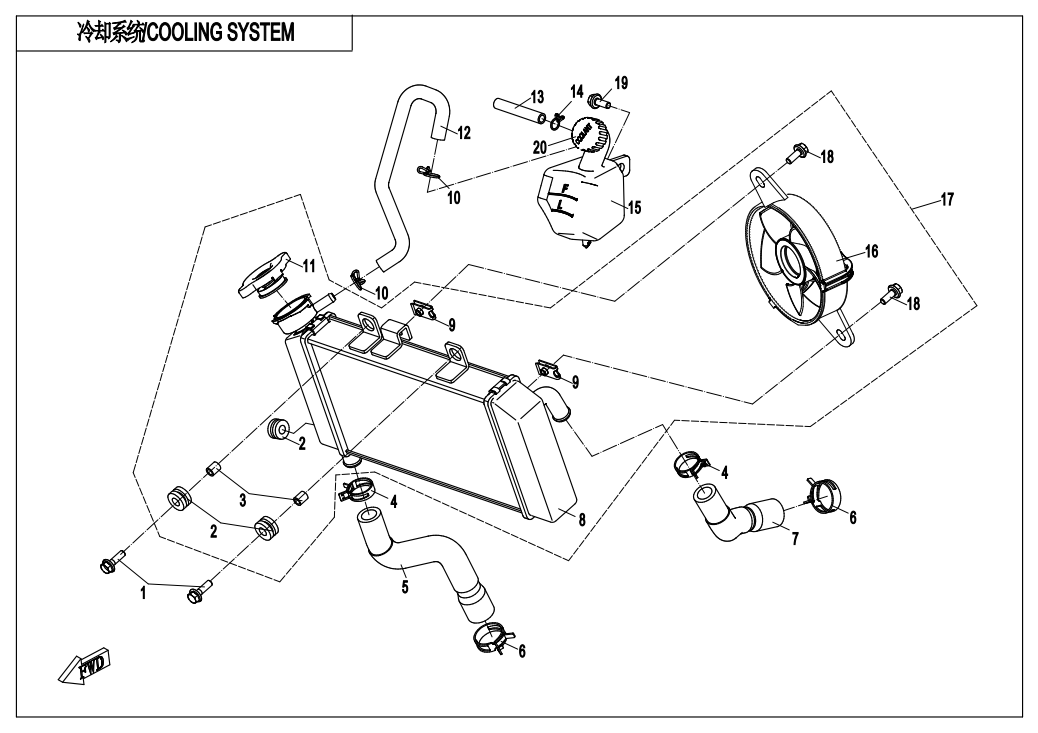

| 6100-180001 | CLAMP B24 | COOLING SYSTEM - F18 | Enquire | |
| 6KM0-180004 | CLAMP B28 | COOLING SYSTEM - F18 | Enquire | |
| 30601-113010 | CLAMP | COOLING SYSTEM - F18 | Enquire | |
| 0010-136100 | WATER FILLING PORT CAP ASSY | COOLING SYSTEM - F18 | Enquire | |
| 30601-109510 | CLAMP D9.5 | COOLING SYSTEM - F18 | Enquire | |
| 6KJ0-180302 | RESERVOIR CAP | COOLING SYSTEM - F18 | Enquire | |
| 30601-112010 | CLAMP | FUEL VAPORIZATION SYSTEM - F36 | Enquire | |
| 30601-107010 | CLAMP A7 | FUEL VAPORIZATION SYSTEM - F36 | Enquire | |
| 30601-110010 | CLAMP | FUEL VAPORIZATION SYSTEM - F36 | Enquire | |
| 30114-060025470 | SCREW ASSY | AIR FILTER - F41 | Enquire | |
| 30601-111220 | CLAMP D11.2 | AIR FILTER - F41 | Enquire | |
| 30601-212020 | CLAMP D12 | AIR FILTER - F41 | Enquire | |
| 0DM0-110012 | PLUG, OIL STORAGE HOSE | AIR FILTER - F41 | Enquire | |
| 30601-118010 | CLAMP | AIR FILTER - F41 | Enquire | |
| 30601-124020 | CLAMP | AIR FILTER - F41 | Enquire | |
| 0DM0-110200 | CLAMP ASSY | AIR FILTER - F41 | Enquire | |
| 30102-050025900 | INNER HEX SCREW | LOCK KIT - F01 | Enquire | |
| 30102-050016810 | SCREW | PLASTICS1 - F04-1 | Enquire | |
| 30110-420160010 | SELF-TAPPING SCREW | PLASTICS1 - F04-1 | Enquire | |
| 30102-060012810 | SCREW | FOOTREST (ORDINARY) - F14-A | Enquire | |
| 30105-050014410 | SCREW | FOOTREST (ORDINARY) - F14-A | Enquire |
Exploded diagrams — Engine
