2016 CF MOTO CF650-2 — Wheels & Tyres parts

EE market26 genuine parts6 diagrams

Subgroups

Every genuine wheels & tyres part fitted to the 2016 CF MOTO CF650-2. Each number opens its cross-reference & fitment page.

Part number	Description	Diagram	Price
A000-050016	RUBBER PLUG, FRONT WHEEL AXLE	FRONT SUSPENSION - F05	Enquire
A000-050015	WIRE CLIP, FRONT BRAKE FLUID HOSE	FRONT SUSPENSION - F05	Enquire
A000-070003-0B20	FRONT RIM MATT BLACK	FRONT WHEEL - F07	Enquire
30400-02003	BEARING	FRONT WHEEL - F07	Enquire
A000-070004	MIDDLE BUSHING, FRONT RIM	FRONT WHEEL - F07	Enquire
30705-1701	FRONT TIRE	FRONT WHEEL - F07	Enquire
A000-070001	AXLE, FRONT WHEEL	FRONT WHEEL - F07	Enquire
5190-070030-1000	VALVE, INFLATION	FRONT WHEEL - F07	Enquire
6NTG-081020	FRONT BRAKE FLUID INLET HOSE	FRONT BRAKE - F08-1	Enquire
A000-0801E0	BRACKET, FRONT LH BRAKE CALIPER	FRONT BRAKE - F08-1	Enquire
A000-0801G0	BRACKET, FRONT BRAKE CALIPER(RH)	FRONT BRAKE - F08-1	Enquire
A000-080010	FRONT BRAKE DISC	FRONT BRAKE - F08-1	Enquire
6NTG-080002	REAR BRAKE DISC	REAR BRAKE - F08-2	Enquire

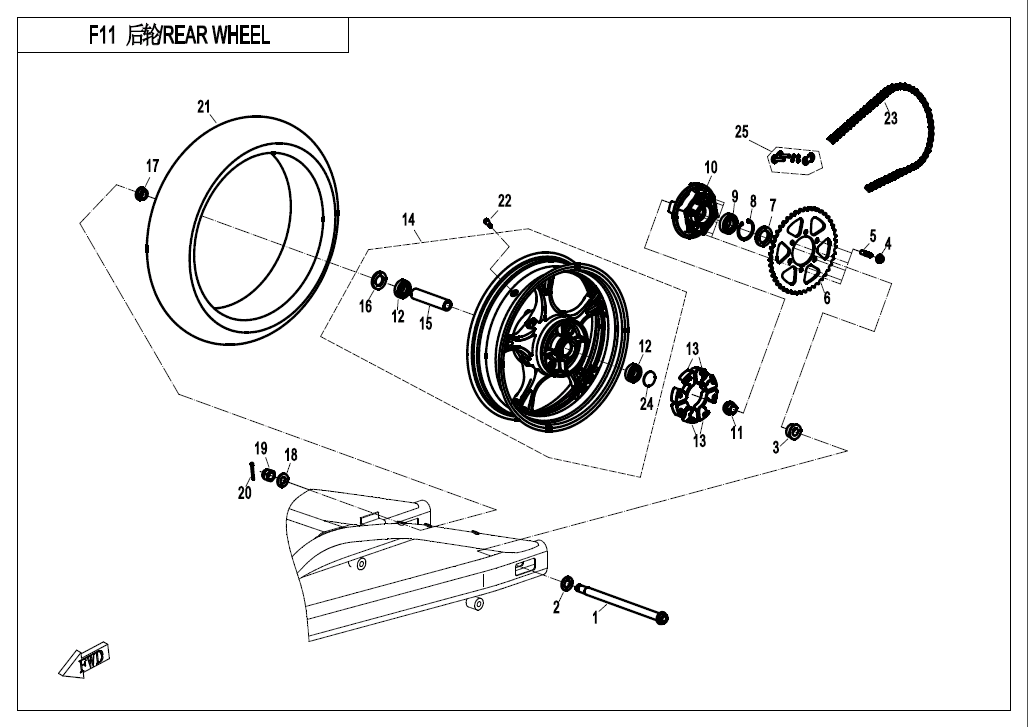

A000-110001	REAR WHEEL SHAFT	REAR WHEEL - F11	Enquire
A000-110002	REAR WHEEL LH SHAFT SLEEVE	REAR WHEEL - F11	Enquire
A000-110004	REAR SPROCKET	REAR WHEEL - F11	Enquire
30400-02503	BEARING	REAR WHEEL - F11	Enquire
A000-110006-0B20	SPROCKET SEAT	REAR WHEEL - F11	Enquire
A000-110005	SPROCKET SEAT SHAFT BUSHING	REAR WHEEL - F11	Enquire
A000-110200-0B20	REAR RIM MATT BLACK	REAR WHEEL - F11	Enquire
A000-110008	REAR RIM MIDDLE SPACER	REAR WHEEL - F11	Enquire
A000-110003	REAR WHEEL RH SHAFT SLEEVE	REAR WHEEL - F11	Enquire
A000-110011	NUT, REAR WHEEL	REAR WHEEL - F11	Enquire
30705-1702	REAR TYRE CONTINENTAL	REAR WHEEL - F11	Enquire
3120901	CHAIN RK 520XSO2 114L	REAR WHEEL - F11	Enquire
30400-02001	BEARING	REAR WHEEL - F11	Enquire

Open Wheels & Tyres in the interactive 2016 CF MOTO CF650-2 catalogue to drill into diagrams, check availability and add parts to your cart.
