2022 CF MOTO 650MTOEM parts & exploded diagrams
MY market881 parts16 groups12+ diagrams
Vehicle #1950
- CC
- —
- HP
- —
- 年款
- —

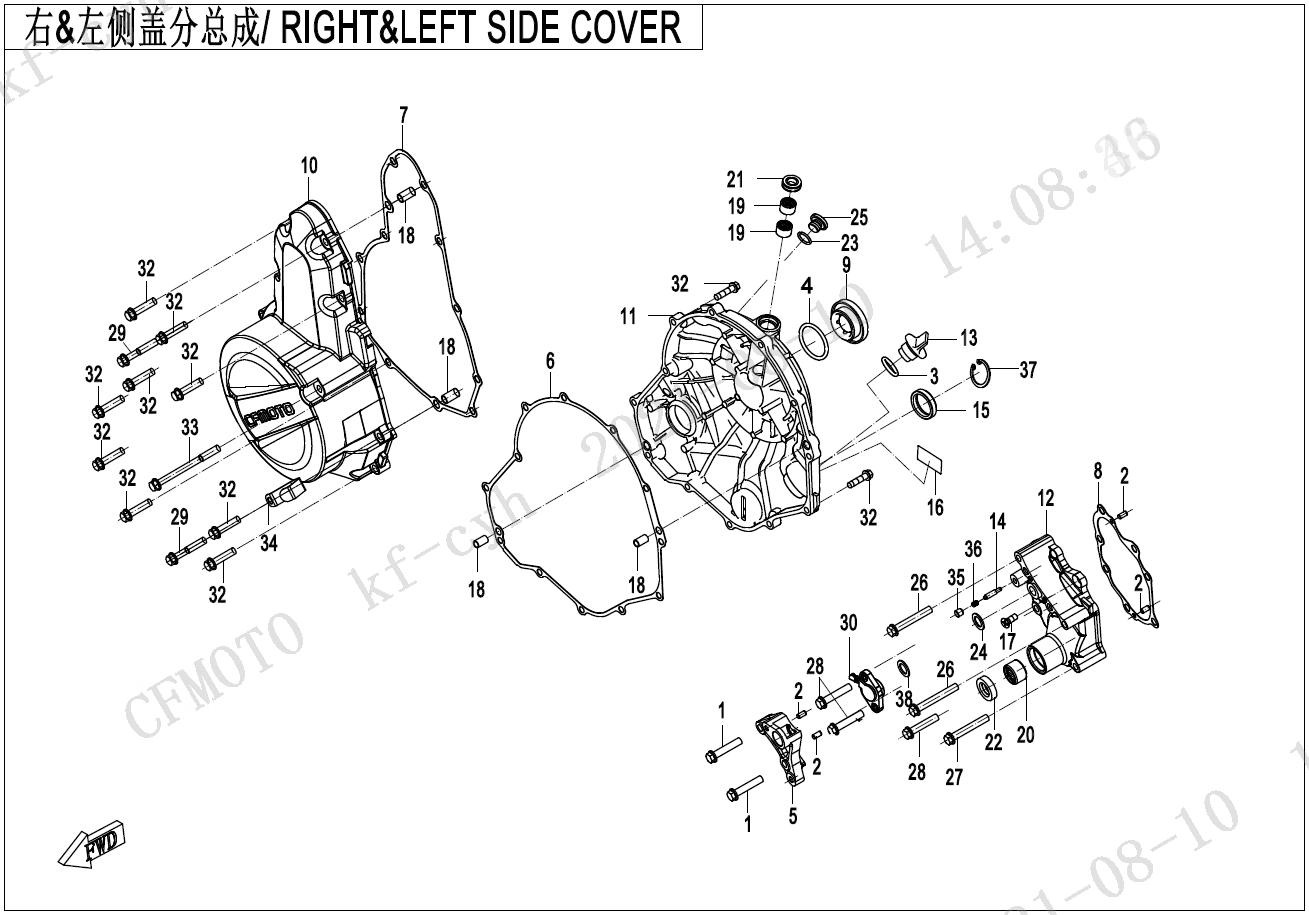

Exploded diagrams — 2022 CF MOTO 650MT
Part numbers on the 2022 CF MOTO 650MT
Each number has a dedicated cross-reference & fitment page.
- A000-120001 — FRONT RUBBER SLEEVE
- A000-120006 — FUEL TANK FRONT CUSHION MAT
- 6NT1-041510 — BUCKLE ASSY
- A010-120200 — FUEL HOSE ASSY
- 6NTC-130100 — SEAT ASSY
- 6NT1-130104 — RUBBER
- A000-130103 — FOAM DAMPER
- 6NT1-130105 — RUBBER
- A000-130101 — HOOK, SEAT LOCK
- 0700-040008 — PISTON PIN
- 0700-0400A0 — PISTON RING ASSY
- 0700-023004 — WASHER
- 0700-040009 — CIRCLIP, PISTON PIN
- 0700-022018 — SOLID PIN 8x14

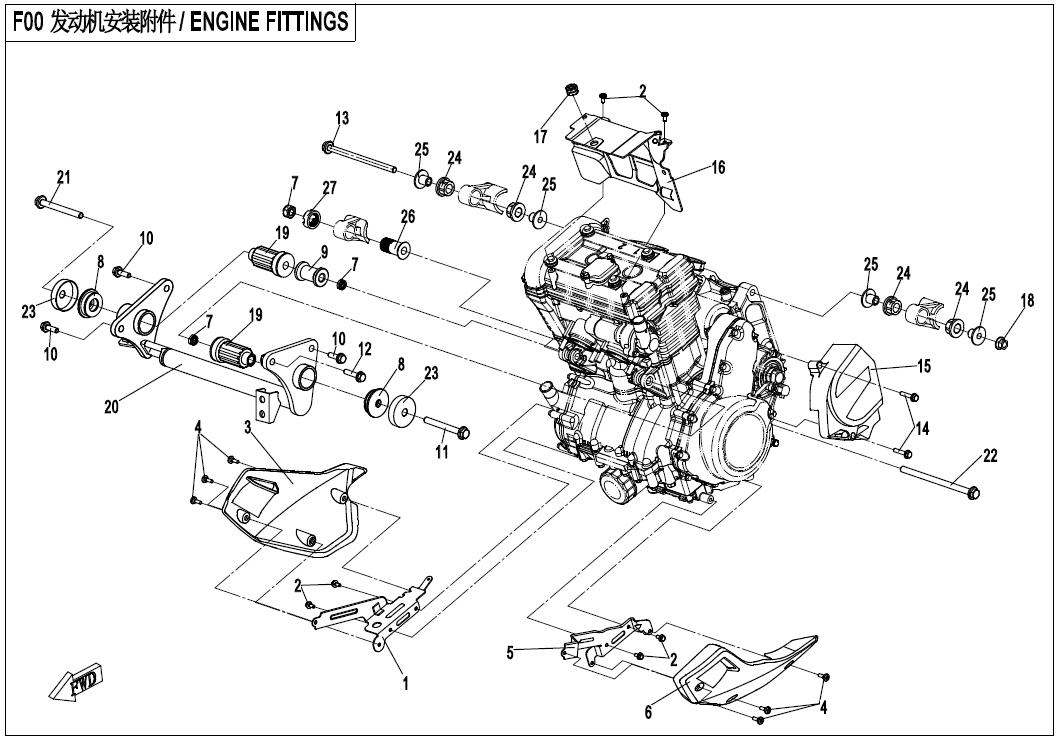

- 6NT1-000120 — RH BRACKET, LOWER BASE PLATE
- 30006-060012870 — BOLTM6x12
- 6NT1-043201 — RH PANEL,ENGINE
- A000-060002 — CHAIN GUARD SCREW
- 6NT1-000110 — LH BRACKET, LOWER BASE PLATE
- 6NT1-043101 — LH PANEL,ENGINE
- 30203-102110 — NUT M10x1.25
- 6NT1-000250 — FRONT LH CUSHION RUBBER 2, ENGINE
- 6NT1-000221 — FRONT RH BUSHING, ENGINE
- 30006-080025810 — BOLT
- 30001-102110110 — BOLT
- 30006-080028810 — BOLT
- 6NT1-000131 — ENGINE REAR UPPER SHAFT
- 30006-060030810 — BOLT
- 6NTG-000102 — GUARD, SMALL SPROCKET
- 6NT1-042701 — MIDDLE FENDER(REAR), WATER TANK
- 5020-031001 — RUBBER SLEEVE, FRONT LICENSE BRACKET
- 30204-102810 — NUT
- 6NT1-000240 — FRONT LH CUSHION RUBBER 1, ENGINE
- 6NT1-000210-0BB00 — FRONT BRACKET, ENGINE
- 30001-102150110 — BOLT M10x1.25x150
- 6NT1-000141 — REAR LOWER SHAFT, ENGINE
- 6NT1-000231 — FRONT DUST COVER, ENGINE
- 6NT1-000281 — REAR UPPER RUBBER, ENGINE
- 6NT1-000282 — REAR UPPER RUBBER BUSHING, ENGINE
- 6NT1-000291 — REAR LOWER THREAD SLEEVE, ENGINE
- 6NT1-000292 — NUT M18
- 6NTV-011000-B201-M1 — LOCK KIT
- 30105-050012410 — SCREW
- 30102-060020810 — SCREW
- 6NT1-010010 — SEAT CABLE
- A000-010600 — LOCK SEAT, SEAT
- 6KMV-011020-B001 — KEY
- 0700-022012 — GASKET, EXHAUST PIPE
- 8010-020001 — NUT M8, MUFFLER JOINT
- 6NTV-021100-B002 — EXHAUST PIPE ASSY
- 6NQV-021001-B000 — SEAL SLEEVE 1, GRAPHITE
- A000-020600 — CLAMP 2
- 6NTV-021200-B002 — MUFFLER ASSY Replacing: 6NTV-021200-B001 - MUFFLER BODY ASSY
- 6GU#-020002-6001 — BUSHING
- A000-020004 — DAMPER, MUFFLER
- 30204-080810 — LOCK NUT
- A000-020006 — SHAFT, MUFFLER
- 30006-080035810 — BOLT

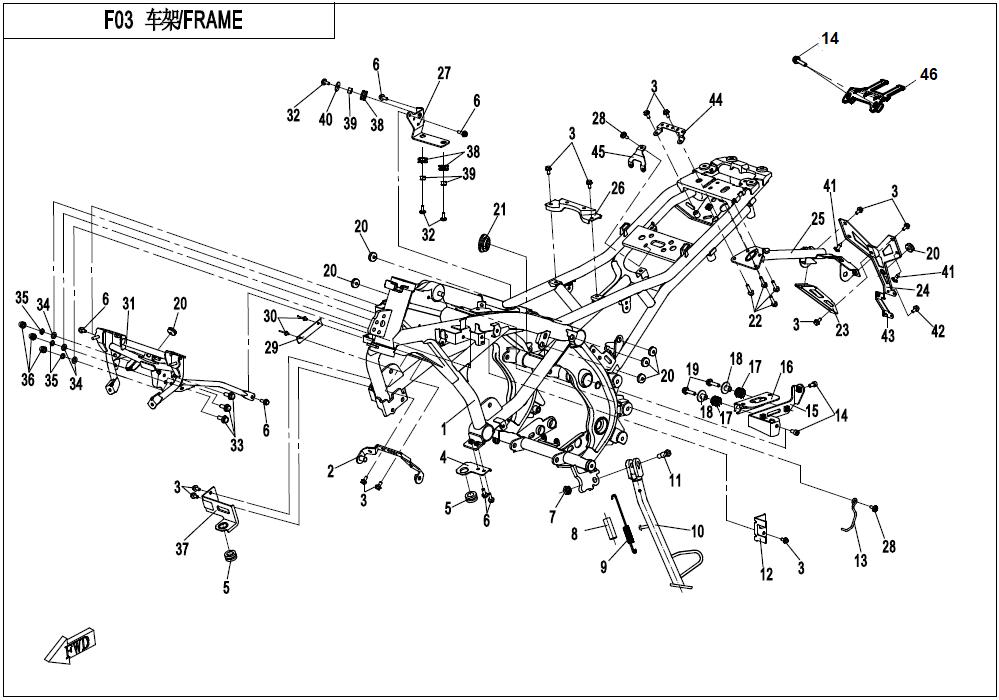

- 6NTV-031000-B202-0BP00 — FRAME ASSY (MAUD SPIRIT BLACK)
- 6NTG-030160 — UPPER BRACKET, RADIATOR
